Intel Xeon E3-1505M v6 represents the Kaby Lake-H family and it’s a high-performance chip with relatively high consumption – 45W TDP.
The processor has four cores ticking at 3GHz and can go up to 4GHz for one active core, 3.8GHz for two active cores and 3.6 GHz for four active cores, making him the second fastest mobile Xeon chip on the market.
The silicon supports the so-called Hyper-Threading technology that emulates one virtual core for each physical and thus establishing a total of 8 threads.
Intel Xeon E3-1505M v6 is manufactured using 14nm FinFET process and integrates Intel HD Graphics P630 GPU with 24 EU (Executable Units) clocked at 350 – 1100MHz.
The memory controller supports up to 64GB of DDR4 RAM at 2400MHz or DDR3 at 2133/1600MHz respectively. The CPU is suitable for heavy applications and gaming.
Check the prices of all notebooks equipped with Intel Xeon E3-1505M v6: Buy from Amazon.com
Intel Xeon E3-1505M v6 - Specs Sheet
|Base CPU frequency||3.00 GHz|
|Number of cores||4|
|Instructions type||64 bits|
|Integrated GPU||Intel HD Graphics P630|
|Base GPU frequency||350.00 MHz|
|Max. operating temperature||100 °C|
|Core / Architecture||Kaby Lake-H|
|Max. CPU frequency||4.00 GHz|
|Logical Cores (Threads)||8|
|LL cache||8192.00 KB|
|Max. GPU frequency||1100 MHz|
|Max Memory||64 GB|
|Supported technologies||Intel Speed Shift Technology, Intel Turbo Boost Technology , Intel vPro Technology, Intel Hyper-Threading Technology, Intel Virtualization Technology (VT-x), Intel Virtualization Technology for Directed I/O (VT-d) , Intel VT-x with Extended Page Tables (EPT), Intel TSX-NI, SSE4.1/4.2, AVX 2.0, Idle States, Enhanced Intel SpeedStep Technology, Thermal Monitoring Technologies, Intel Flex Memory Access, Intel Identity Protection Technology, Intel Stable Image Platform Program (SIPP), Intel Smart Response Technology, Intel My WiFi Technology|
Intel Xeon E3-1505M v6 - benchmark tests
Results are from the Cinebench 11 CPU test (higher the score, the better)
Results are from the Cinebench 15 CPU test (higher the score, the better)
Results are from the Fritz test (higher the score, the better)
Results are from our Photoshop benchmark test (lower the score, the better)
We’ve tested Intel Xeon E3-1505M v6 on…
|#||Laptop||Cinebench 11||Cinebench 15||Adobe Photoshop||Fritz||Price|

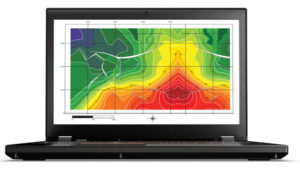

|1.||Lenovo ThinkPad P51||8.62||795.00||0.00||0.00||$2029.99|
