•  Date Published: 22 Aug 2022
  • Intel Core i7-12700H
  • NVIDIA GeForce RTX 3060 (Laptop, 105W)
  • 16.0”, WQUXGA (3840 x 2400), OLED
  • 8000GB SSD
  • 64GB DDR5
  • 2.40 kg (5.3 lbs)

Pros

  • Professional-grade hardware
  • Super rigid structure
  • 100% sRGB and DCI-P3 coverage + HDR support
  • High resolution and 16:10 aspect ratio + fast pixel response times
  • Deep blacks and virtually infinite contrast ratio
  • ASUS Dial + stylus-enabled touchpad
  • IR face recognition + fingerprint reader
  • ISV and MIL-STD-810H certifications
  • Extensive I/O with Thunderbolt 4, SD card slot, and HDMI 2.1 port

Cons

  • Uses PWM below 110 nits
  • Subpar battery life

Specs

CPU Performance #2in Top CPUs
  • Intel Core i9-12900H 0.9%
  • Intel Core i7-12700H
  • Intel Core i5-12500H 10.6%
  • AMD Ryzen 7 6800H 10.1%
  • Intel Core i7-1280P 14.9%
GPU Performance #29in Top GPUs
  • NVIDIA GeForce RTX 3060 (Laptop, 140W) 4.4%
  • NVIDIA GeForce RTX 3070 (Laptop, 100W) 18.6%
  • NVIDIA GeForce RTX 3060 (Laptop, 105W)
  • NVIDIA GeForce RTX 3060 (Laptop, 95W) 0.6%
  • NVIDIA RTX A3000 (Laptop) 3.1%
  • NVIDIA GeForce RTX 3060 (Laptop, 75W) 4.4%
  • Samsung ATNA60YV02-0 (SDC415D)
  • Color accuracy  4.0  3.6
  • HDD/SSD
  • 8TB SSD RAID 1
  • M.2 Slot
  • 1x 2280 M.2 PCIe 4.0 x4 + 1x 2280 M.2 PCIe 3.0 x4 + RAID  See photo
  • RAM
  • 64GB DDR5
  • OS
  • Windows 11 Pro
  • Body Material
  • Aluminum
  • Dimensions
  • 362 x 264 x 19.9 - 21.4 mm (14.25" x 10.39" x 0.78")
  • Weight
  • 2.40 kg (5.3 lbs)
  • Ports and connectivity
  • 2x USB Type-A
  • 3.2 Gen 2 (10 Gbps)
  • 1x USB Type-C
  • 3.2 Gen 2 (10 Gbps), Power Delivery (PD), DisplayPort
  • 1x USB Type-C
  • Thunderbolt 4, Power Delivery (PD), DisplayPort
  • HDMI
  • 2.1
  • Card Reader
  • SD
  • Ethernet LAN
  • 10, 100, 1000 Mbit/s
  • Wi-Fi
  • 802.11ax
  • Bluetooth
  • 5.2
  • Audio jack
  • 3.5mm Combo Jack
  • Features
  • Fingerprint reader
  • Web camera
  • HD
  • Backlit keyboard
  • Microphone
  • Array Microphone w/ Cortana or Alexa Voice Rec.
  • Speakers
  • Speakers by Harman Kardon
  • Optical drive
  • Security Lock slot
  • Gifts
  • Dockstorm USB Hub

More ASUS ProArt StudioBook 16 configurations - 199 laptops

#CommissionsEarned

DISPLAY: 16.0-inch, 3840 x 2400, OLED

  • Name
  • Samsung ATNA60YV02-0 (SDC415D)
  • Diagonal
  • 16.0"
  • Pixel density
  • 283.02 ppi
  • Brightness
  • 385 cd/m2
  • sRGB
  • 100%
  • PWM frequency
  • 236 Hz
  • Panel Type
  • OLED
  • Resolution
  • 3840 x 2400
  • Becomes "Retina" from
  • 12 inches (31 cm)
  • Contrast
  • infinite
  • dE Color Checker
  • 4.0 3.6
  • PWM Rating
  • 4.7: (undesirable)

Buy our profiles for Samsung ATNA60YV02-0 (SDC415D)

In addition to receiving efficient and health-friendly profiles, by buying LaptopMedia's products you also support the development of our labs, where we test devices in order to produce the most objective reviews possible.

Office Work

Office Work should be used mostly by users who spend most of the time looking at pieces of text, tables or just surfing. This profile aims to deliver better distinctness and clarity by keeping a flat gamma curve (2.20), native color temperature and perceptually accurate colors.

Design and Gaming

This profile is aimed at designers who work with colors professionally, and for games and movies as well. Design and Gaming takes display panels to their limits, making them as accurate as possible in the sRGB IEC61966-2-1 standard for Web and HDTV, at white point D65.

Health-Guard

Health-Guard eliminates the harmful Pulse-Width Modulation (PWM) and reduces the negative Blue Light which affects our eyes and body. Since it’s custom tailored for every panel, it manages to keep the colors perceptually accurate. Health-Guard simulates paper so the pressure on the eyes is greatly reduced.

Get all 3 profiles with 33% discount

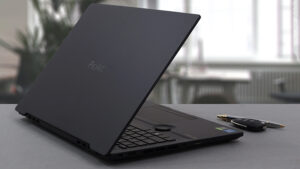

ASUS ProArt StudioBook 16 in-depth review

The ProArt brand is hardly as popular as its ZenBook and ROG cousins. However, it offers one of the most powerful laptops ASUS makes and is actually the brand, specifically intended for content creators. And we are not talking about photographers and videographers. No, this time, the target group is much bigger and spans even 3D model designers and architects. But what is the reason for ASUS' bold claims? Well, the ProArt Studiobook 16 OLED (W7600) is going to show you. Obviously, the display is a big selling point with its AMOLED technology, 16:10 aspect ratio, and 4K+ resolution. However, the hardware is something you simply can't overlook. We are talking about an Intel Xeon processor option, and a pro-grade graphics card of up to the RTX A5000 with 16GB of GDDR6 VRAM. Not to ment[...]

Read the full review

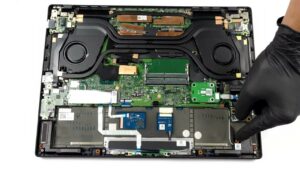

Disassembly, maintenance and upgrade options

Not only do you get a good amount of upgrade options with this laptop, but you also have the option to use ECC RAM, should you pair it with the appropriate processor. Check out all ASUS ProArt Studiobook 16 OLED (W7600) prices and configurations in our Specs System or read more in our In-Depth review. 1. Remove the bottom plate To get inside of this device, you need to undo 10 Torx-head screws. After that, carefully pry the bottom panel with a plastic tool, starting from the front corners. 2. Battery Here, we see a 90Wh battery pack. Before you continue, it would be best to [...]

Read more
