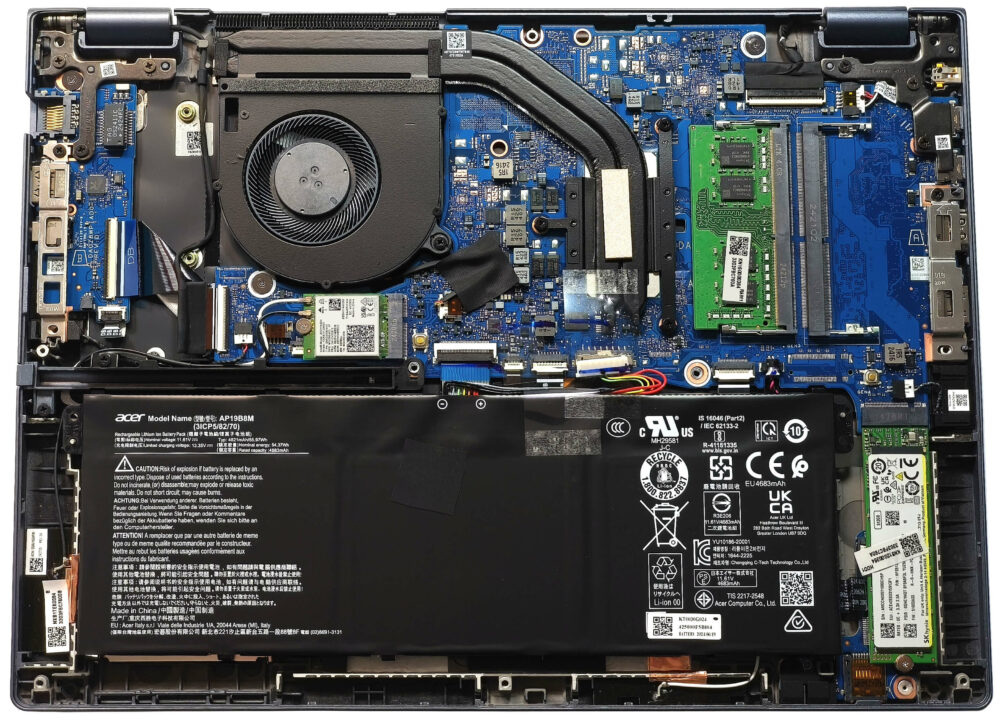

Opening the Acer TravelMate P4

Hint: Ensure the laptop is powered off and unplugged before starting.

Undo the 10 Torx-head screws securing the bottom panel to the chassis.
Insert a thin plastic tool into one of the top edges to create a gap.
Use another tool to pry along the sides and the front, releasing the internal clips.
Lift the tool slightly between the panel and base, then fully pry the rear to detach the bottom cover.

More info: The bottom panel includes a socket for securing the battery in place and provides access to key upgradeable components.

Battery Removal

Caution: Handle the battery carefully to avoid damage or electrical hazards.

Disconnect the battery connector by gently pulling it toward the battery unit.
Lift the 56Wh battery away from the main body.

More info: The 56Wh battery provides up to 10 hours of video playback. An optional 65Wh battery is also available for longer usage.

You can find compatible batteries here: Buy from Amazon.com (#CommissionsEarned)

Memory Upgrade

Note: The memory slots are user-upgradeable, allowing for increased performance.

Locate the two SODIMM slots, which are compatible with DDR4-3200MHz RAM.
Install up to 64GB of RAM as per Acer’s specifications. The CPU can potentially support up to 96GB, offering flexibility for advanced configurations.
Ensure the RAM modules are securely seated for proper functionality.

More info: Dual-channel memory improves performance for multitasking and demanding applications.

You can find compatible RAM here: Buy from Amazon.com (#CommissionsEarned)

Storage Upgrade

Hint: Handle SSD components carefully to avoid damage or data loss.

Locate the single M.2 slot on the right of the battery, compatible with 2280 Gen 4 SSDs.
Install the SSD into the slot at a slight angle, ensuring it is fully seated.

More info: The Gen 4 compatibility offers high-speed storage options for enhanced performance.

You can find compatible SSDs here: Buy from Amazon.com (#CommissionsEarned)

Connectivity Options

More info: The replaceable Wi-Fi 6E card is located underneath the fan, offering future connectivity upgrade potential.

Cooling System Overview

The system includes one fan for airflow control.
A pair of heat pipes efficiently transfer heat away from the CPU and other components.
One heat sink and a heat spreader ensure consistent heat dissipation across critical areas.

Tip: Regularly clean the fan and heat pipes to maintain optimal cooling performance.
