Hint: Ensure the laptop is powered off and unplugged before starting. Use proper tools to avoid damaging the device.

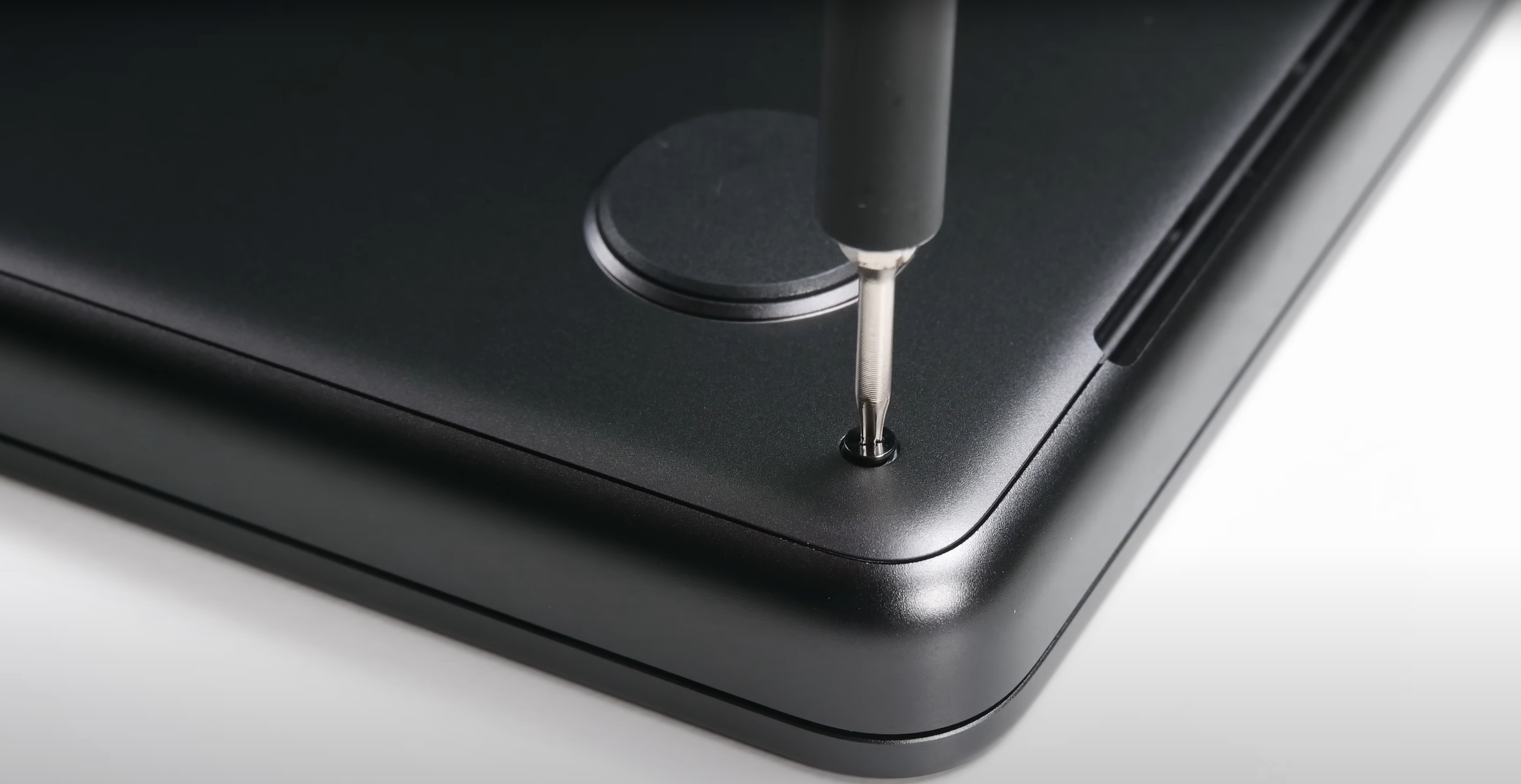

Undo the eight Pentalobe screws securing the bottom panel to the base.

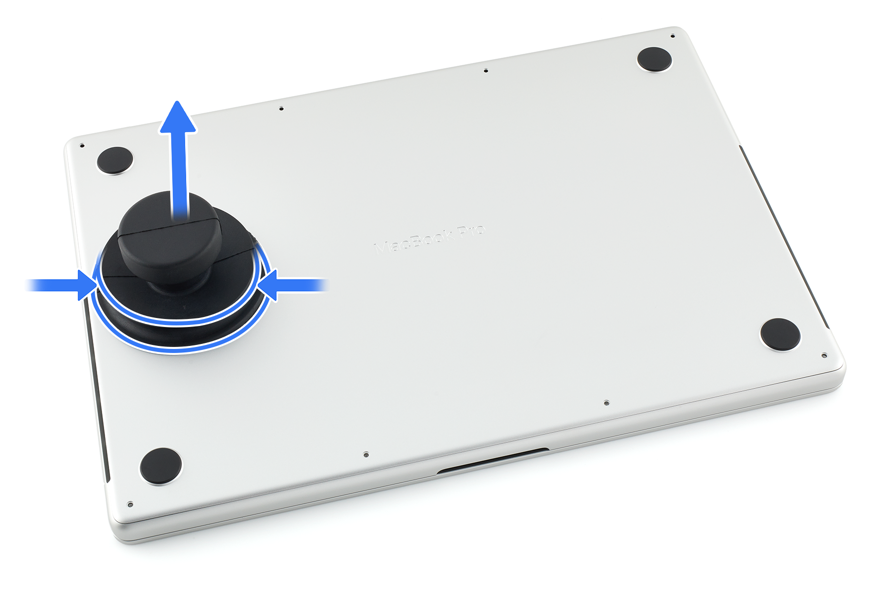

Press a suction cup firmly onto the left side of the bottom cover. Pull upwards gently until the internal clips on this side release.

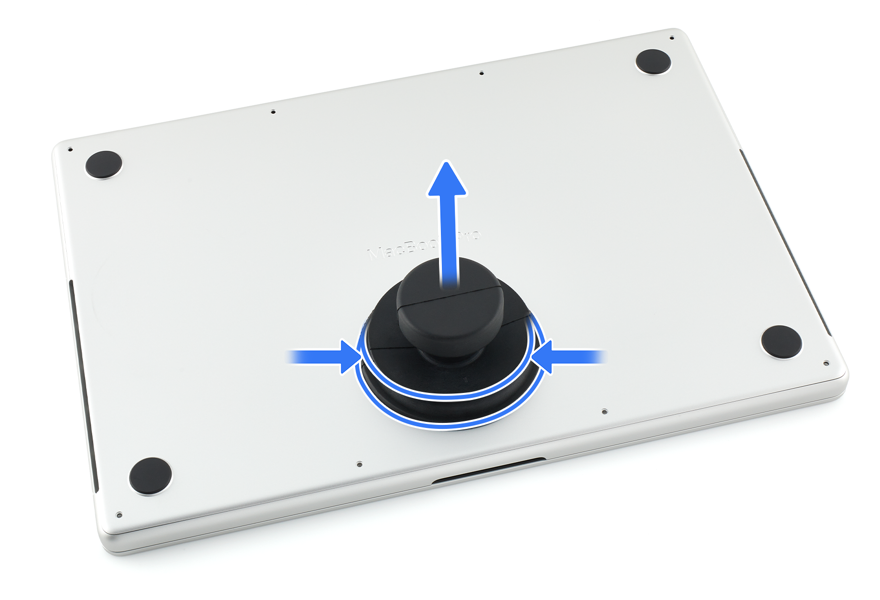

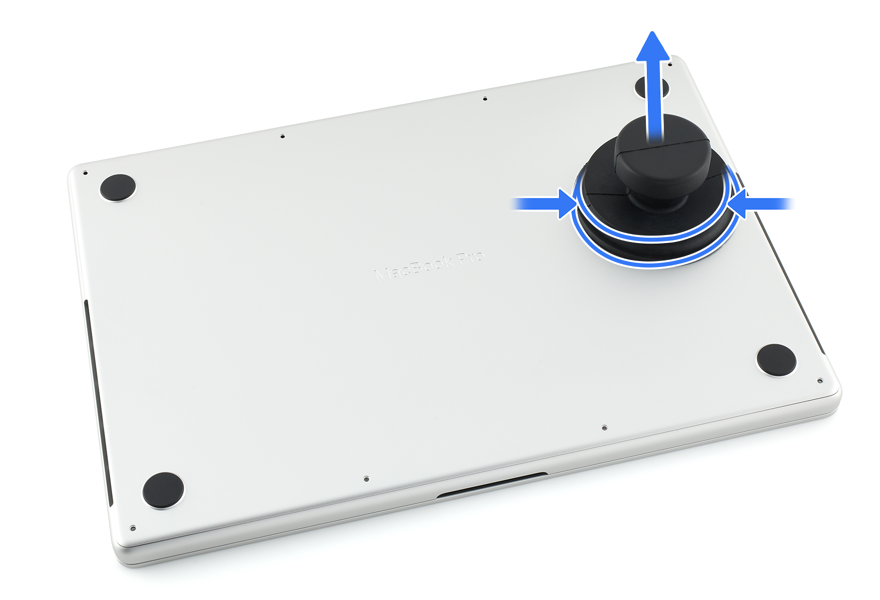

Repeat the process for the other sides, excluding the rear.

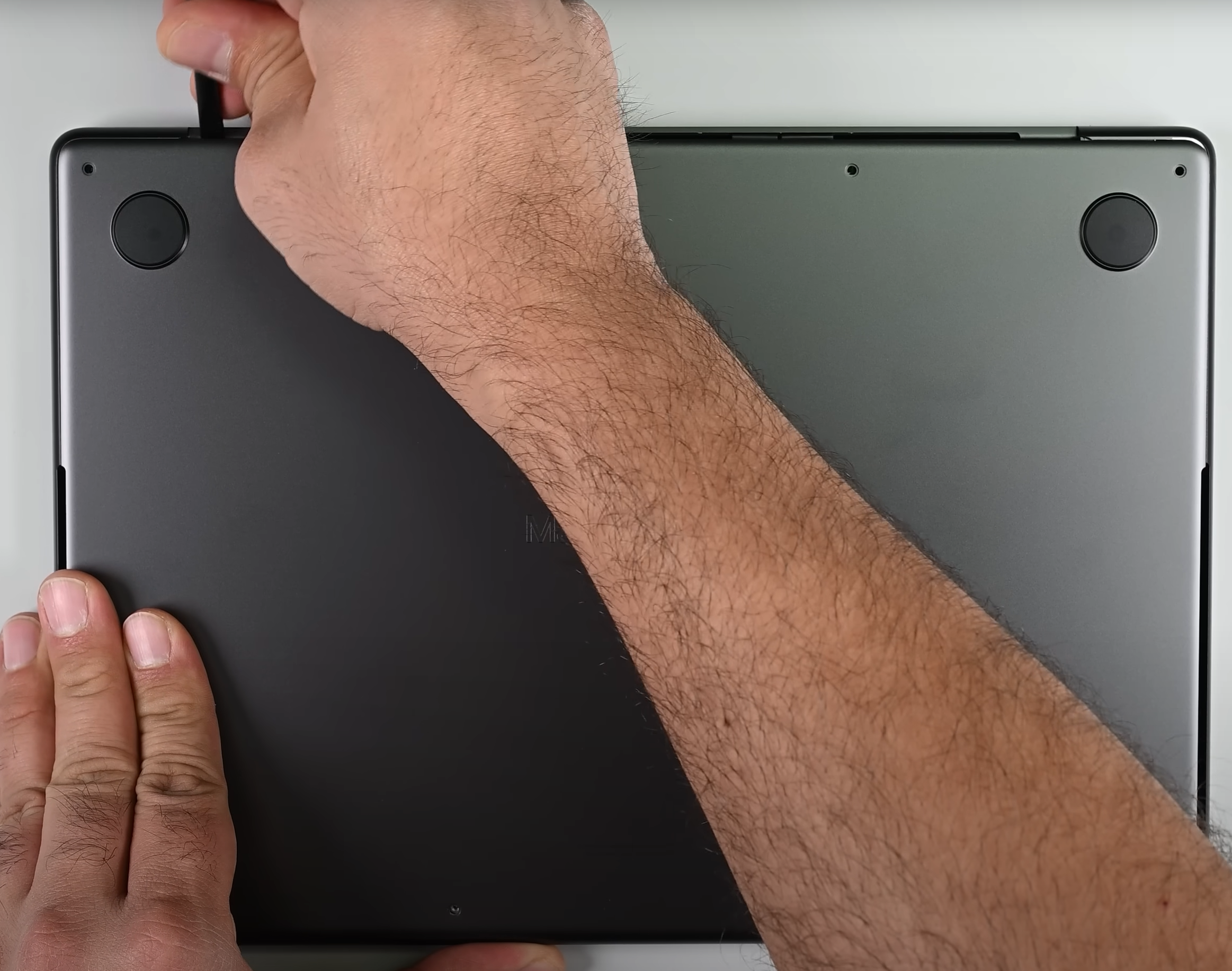

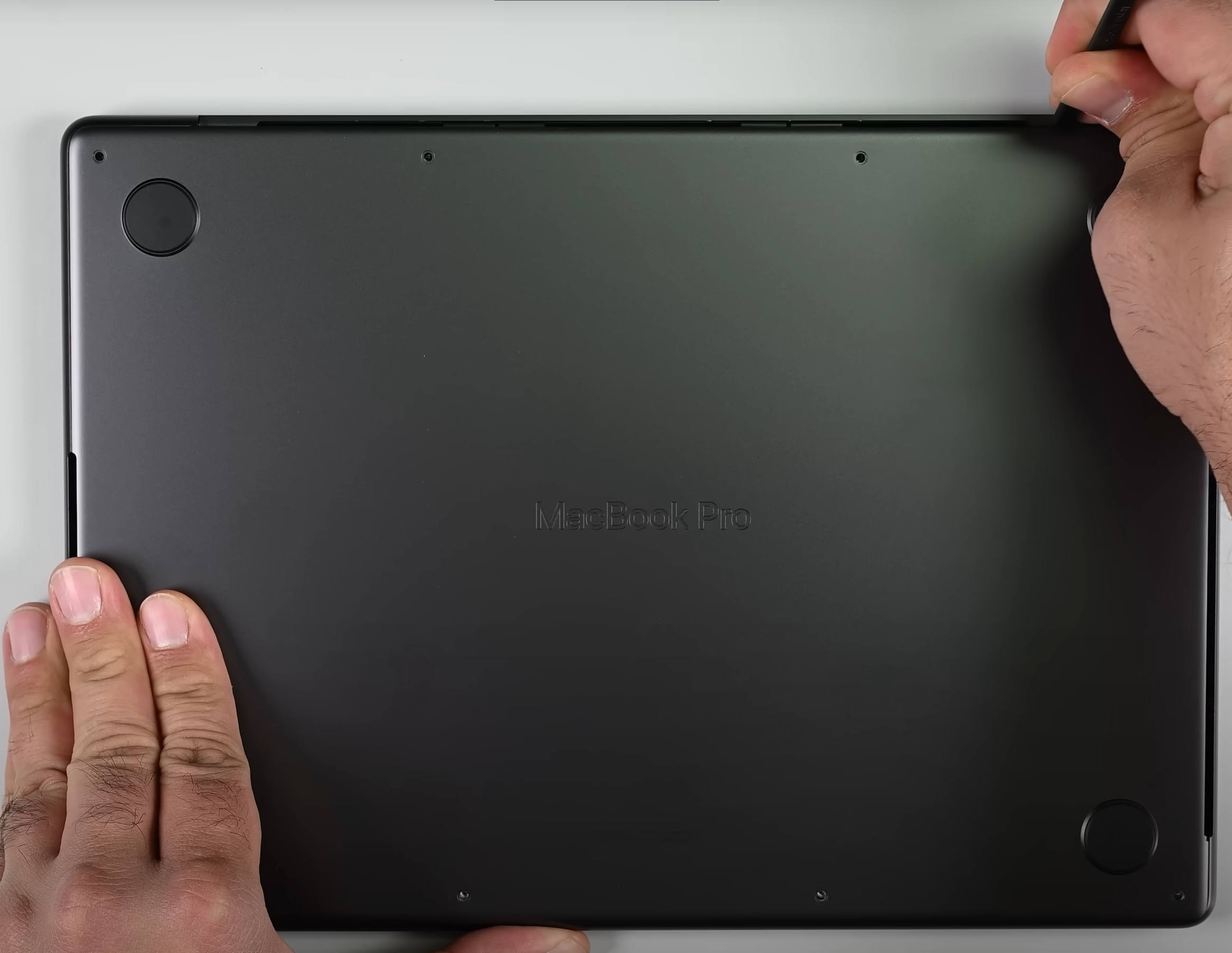

Using a spudger, carefully push the rear of the panel towards the front in the areas around the hinges to disengage the clips.

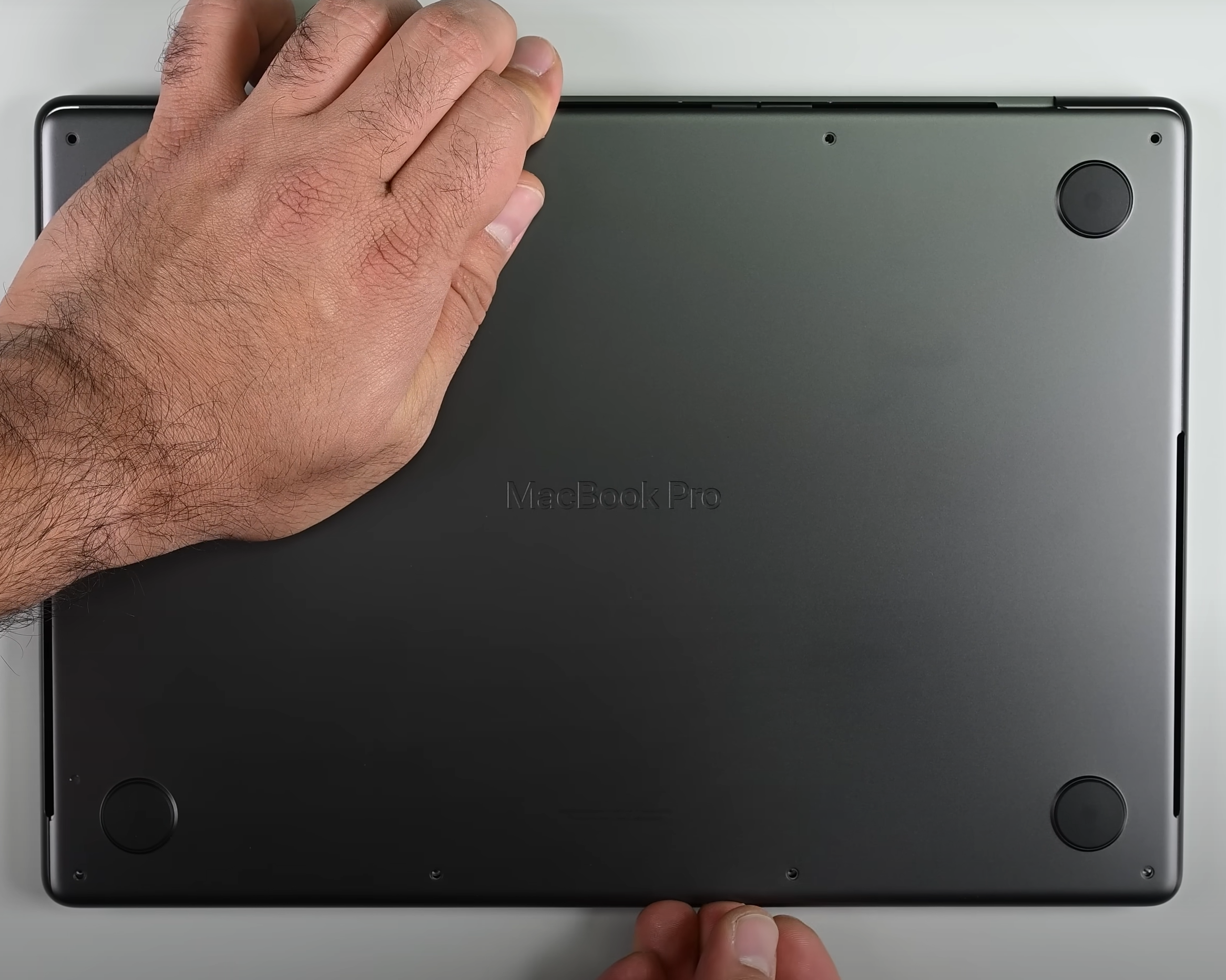

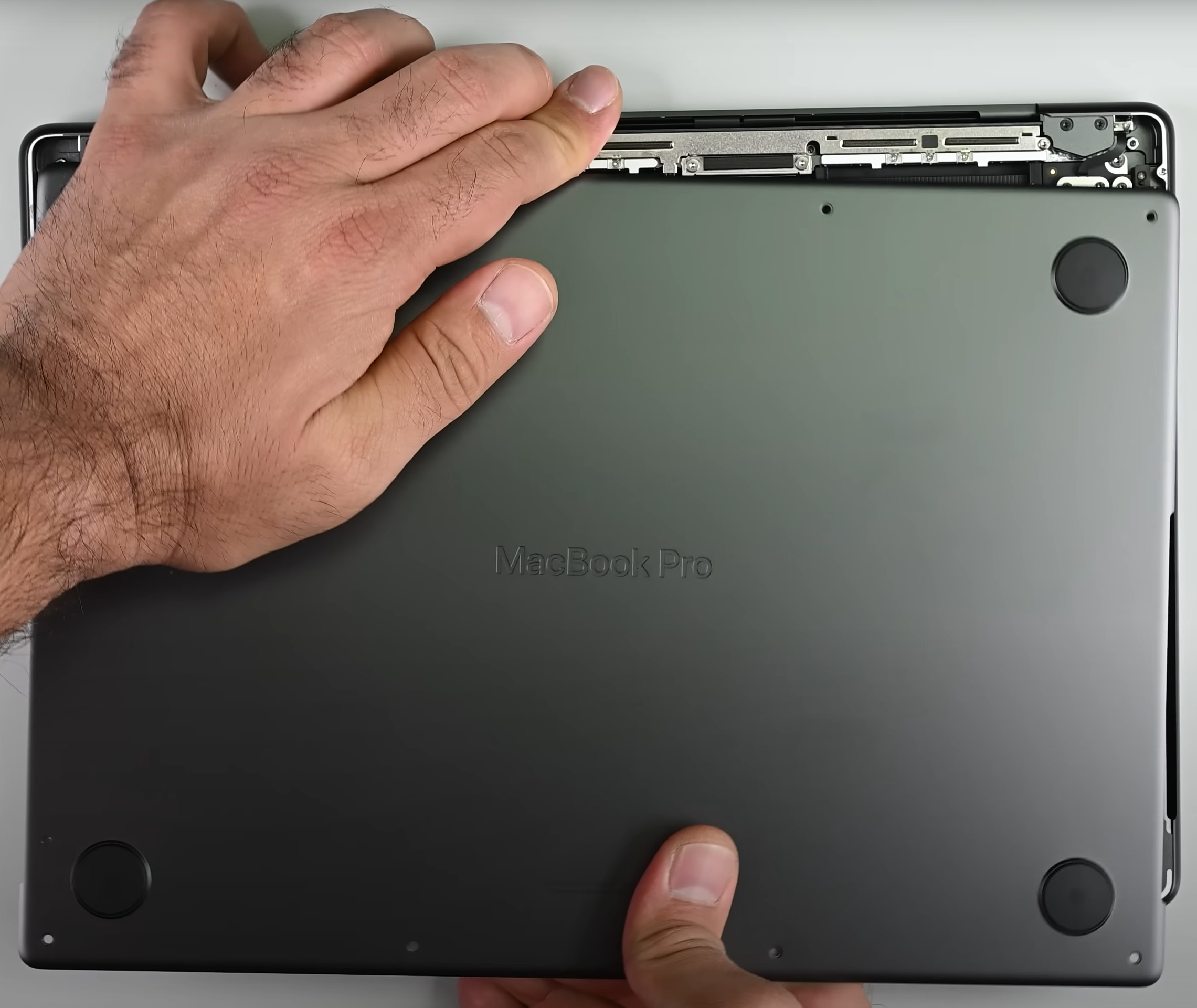

Use a thin plastic tool to pry open the front side of the panel and lift the metal plate away from the chassis.

More info: The internal components of the MacBook Pro 16 are not user-upgradeable. Disassembly is primarily for inspection or authorized repairs.

Important Notes

This guide is for disassembly purposes only. Proceed with caution, as opening your MacBook Pro may void its warranty.
Follow Apple’s official repair manual for additional details, or seek assistance from an authorized repair center.

All credits to this guide go to iFixit and the official Apple repair manual.
