ASUS Zenbook S 13

LaptopMedia.com Laptop Specs ASUS Zenbook S 13 OLED (UM5302, AMD Ryzen 6000 Series) ASUS Zenbook S 13

Date Published: 26 Jun 2023

AMD Ryzen 7 6800U
AMD Radeon 680M
13.3”, 2.8K (2880 x 1800), OLED
1000GB SSD
16GB LPDDR5
1.00 kg (2.2 lbs)

Pros

Long battery life
Rigid magnesium-aluminum chassis
Extremely thin and light device
100% sRGB and DCI-P3 coverage plus accurate color representation (Samsung ATNA33AA03-0 (SDC4172))
PWM is treated by first-party software (Samsung ATNA33AA03-0 (SDC4172))
OLED provides True Blacks and crazy fast pixel response times (Samsung ATNA33AA03-0 (SDC4172))
Charges via Type-C
Gen 4 SSD support
Fingerprint reader

Cons

Needs a dongle to expand the I/O
Soldered memory

Specs

Display
13.3”, 2.8K (2880 x 1800), OLED

HDD/SSD
1TB SSD

M.2 Slot
1x 2280 PCIe NVMe 4.0 x4 See photo

RAM
16GB LPDDR5

OS
Windows 11 Home

Body Material
Aluminum, Magnesium alloy

Dimensions
296.7 x 210.5 x 14.9 mm (11.68" x 8.29" x 0.59")

Weight
1.00 kg (2.2 lbs)

Ports and connectivity

3x USB Type-C
3.2 Gen 2 (10 Gbps), Power Delivery (PD), DisplayPort

HDMI

Card Reader

Ethernet LAN

Wi-Fi
802.11ax

Bluetooth
5.0

Audio jack
3.5mm Combo Jack

Features

Fingerprint reader

Web camera
HD / FHD

Backlit keyboard

Microphone
Microphone with Cortana and Alexa voice-recognition

Speakers
Speakers by Harman Kardon, Smart Amp

Optical drive

Security Lock slot

There are 2 laptops with the same specs, All brands (sorted by price)

#CommissionsEarned

ASUS Zenbook S 13

Processor: AMD Ryzen 7 6800U
VideoCard: AMD Radeon 680M
RAM: 16GB LPDDR5
STORAGE: 1TB SSD
Display: 13.3”, 2.8K (2880 x 1800), OLED
OS: Windows 11 Home

ASUS Zenbook S 13

Processor: AMD Ryzen 7 6800U
VideoCard: AMD Radeon 680M
RAM: 16GB LPDDR5
STORAGE: 1TB SSD
Display: 13.3”, 2.8K (2880 x 1800), OLED
OS: Windows 11 Pro

More ASUS Zenbook S 13 configurations - 2 laptops

#CommissionsEarned

ASUS Zenbook S 13

Processor: AMD Ryzen 7 6800U
VideoCard: AMD Radeon 680M
RAM: 16GB LPDDR5
STORAGE: 1TB SSD
Display: 13.3”, 2.8K (2880 x 1800), OLED
OS: Windows 11 Pro

ASUS Zenbook S 13

Processor: AMD Ryzen 5 6600U
VideoCard: AMD Radeon 660M
RAM: 16GB LPDDR5
STORAGE: 1TB SSD
Display: 13.3”, 2.8K (2880 x 1800), OLED
OS: Windows 11 Home

DISPLAY: 13.3-inch, 2880x1800, OLED

Name
Samsung ATNA33AA03-0 (SDC4172)

Diagonal
13.3"

Pixel density
255.36 ppi

Brightness
366 cd/m²

sRGB
100%

PWM frequency
239 Hz

Panel Type
OLED

Resolution
2880x1800

Becomes "Retina" from
14 inches (34 cm)

Contrast
infinite

dE Color Checker
1.8

PWM Rating
4.8: (undesirable)

Buy our Profiles

Buy our profiles for Samsung ATNA33AA03-0 (SDC4172)

In addition to receiving efficient and health-friendly profiles, by buying LaptopMedia's products you also support the development of our labs, where we test devices in order to produce the most objective reviews possible.

Office Work

Office Work should be used mostly by users who spend most of the time looking at pieces of text, tables or just surfing. This profile aims to deliver better distinctness and clarity by keeping a flat gamma curve (2.20), native color temperature and perceptually accurate colors.

$9.90 BUY NOW

Design and Gaming

This profile is aimed at designers who work with colors professionally, and for games and movies as well. Design and Gaming takes display panels to their limits, making them as accurate as possible in the sRGB IEC61966-2-1 standard for Web and HDTV, at white point D65.

$9.90 BUY NOW

Health-Guard

Health-Guard eliminates the harmful Pulse-Width Modulation (PWM) and reduces the negative Blue Light which affects our eyes and body. Since it’s custom tailored for every panel, it manages to keep the colors perceptually accurate. Health-Guard simulates paper so the pressure on the eyes is greatly reduced.

$9.90 BUY NOW

Get all 3 profiles with 33% discount

$19.90 BUY NOW

ASUS Zenbook S 13 in-depth review

ASUS is the manufacturer of one of the best ultrabooks on the market. Today, we have the Zenbook S 13 OLED (UM5302), which aims to battle with the Lenovo Yoga 7 Carbon, and the Dell XPS 13 9320 Plus.But what does that mean? Who is it made for? Well, this device is aimed at young professionals who travel a lot and concentrate on office tasks. Now, if we consider the hardware it comes with, we will see that it can do more than just ordinary Word and Excel.The Ryzen 7 6800U is an incredibly powerful mobile CPU. It obliterates two-year-old desktop CPUs, so it is no surprise that the laptop can ease through photo and video editing.Arguably the most impressive feature of them all, however, is Zenbook S 13 OLED (UM5302)'s portability. It is one of the thinnest and lightest notebooks [...]

Read the full review

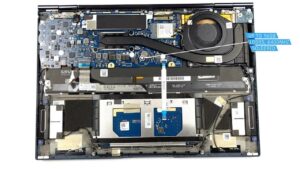

Disassembly, maintenance and upgrade options

As with almost every ultrabook out there, the Zenbook S 13 OLED (UM5302) is quite limited in terms of upgradeability.Check out all ASUS Zenbook S 13 OLED (UM5302) prices and configurations in our Specs System, or read more in our In-Depth review.1. Remove the bottom plate To access this laptop's internals, you need to remove the back rubber feet. Then, undo all 9 Torx-head screws you see, and pry the bottom panel with a plastic tool.2. Remove the battery Here, we find a 67Wh battery pack. To take it out, unplug the battery from the motherboard, and undo all 8 Phillips-hea[...]
