How to open Acer TravelMate P2 (TMP216-51-G2) – disassembly and upgrade options

Undo the 13 Phillips-head screws securing the bottom panel to the chassis.
Use a thin plastic tool to pop the top two edges of the panel.
Continue prying along the sides and the back, then finish with the front to fully release the clips.

More info: The bottom panel includes a dedicated socket that secures the battery and provides structural integrity.

Battery Removal

Caution: Handle the battery and connectors with care to avoid damage or short circuits.

Disconnect the battery connector by pulling it gently toward the battery.
Since no screws are used, simply lift the battery out of the chassis.

More info: This unit features the optional 65Wh battery, offering up to 11 hours of video playback. The base version comes with a 53Wh pack.

You can find compatible batteries here: Buy from Amazon.com (#CommissionsEarned)

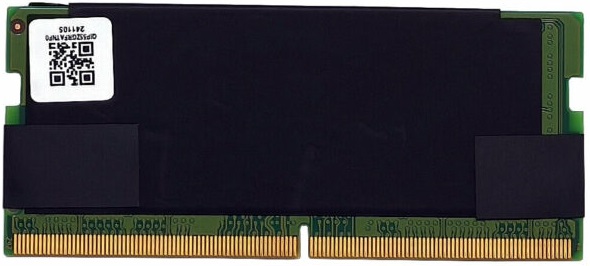

Memory Upgrade

Note: RAM slots are covered by a heat shield wrapped in a Mylar film.

Carefully unglue and remove the heat shield to access the two SODIMM slots.
Install up to 64GB of DDR5-5200MHz RAM in dual-channel mode (official spec).
Given the CPU supports up to 96GB, higher-capacity modules may be compatible.

More info: A thermal pad is preinstalled inside the heat shield to improve memory cooling.

You can find compatible RAM here: Buy from Amazon.com (#CommissionsEarned)

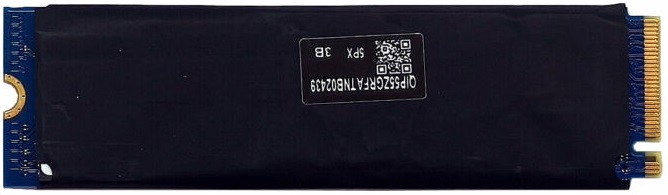

Storage Upgrade

Hint: Be careful not to bend connectors or dislodge nearby components during installation.

The device includes two M.2 slots: one supports Gen 4 SSDs, the other supports Gen 3 SSDs.
The preinstalled NVMe SSD is wrapped in a Mylar film for insulation and protection.
An optional SATA slot for 2.5-inch HDDs or SSDs is available on the left of the cooling system.

More info: This flexible storage layout allows for both high-speed and high-capacity configurations.

You can find compatible SSDs here: Buy from Amazon.com (#CommissionsEarned)

You can find compatible SATA SSDs here: Buy from Amazon.com (#CommissionsEarned)

Connectivity Options

More info:

The Wi-Fi 6E card is user-replaceable and located beneath the fan, allowing for future upgrades or replacements.

Cooling System Overview

More info: The Acer TravelMate P2 uses a simple but effective cooling design.

A single fan handles airflow across the system components.
One heat pipe transfers heat from the CPU to a top-mounted heat sink.
A heat spreader assists in balancing thermal output for stable performance.

Tip: Periodic cleaning of the fan and heat sink is recommended to maintain optimal temperatures and extend component life.

Acer TravelMate P2 (TMP216-51-G2) in-depth review

We were pretty pleased with the performance of the Acer TravelMate P2 (TMP216-51) and now it's time to test its G2 version which isn't that different. Of course, there are some fresh things under the hood like new CPU options. The TMP216-51-G2 is offered with 15W Raptor Lake-U / Refresh processors. The upgradability remains great, you even get an optional SATA slot. The port selection is a bit better than the predecessor because of the extra Thunderbolt 4 connector.When it comes to displays, you can choose from two 1200p IPS units. Acer claims 100% sRGB coverage for the optional panel (sti[...]

Read the full review

Pros

Long battery life with the optional 65Wh unit ~ 11 hours of videos
Good price
Light for a 16-incher (1.74 kg - 1.79 kg)
PWM-free (AUOCFAE)
Wide viewing angles (AUOCFAE)
315 nits of max brightness (AUOCFAE)
Wi-Fi 6E + Bluetooth 5.3
Good comfort during full system loads
The Core i5-1334U maintains ~ 4.00 GHz / 3.00 GHz in short loads and 2.86 GHz / 2.10 GHz in longer stress
Good "Normal" mode that offers 2.70 GHz / 2.00 GHz P and E core frequency + tamed fan
2x SODIMMs + 2x M.slots + optional SATA slot
Upgradable Wi-Fi card
You can pop the bottom plate pretty easily
Nice port selection with 2x Thunderbolt 4s and 2x Type-As
dTPM 2.0 chip + privacy shutter + fingerprint reader + Lock slot
Optional 1080p IR Web camera
Optional LTE connectivity
Comfortable spill-resistant keyboard
Acer Dust Defender system
