The mainstream Pavilion lineup from HP is one of the series that received a somehow subtle overhaul. Without drawing too much attention to the outer chassis, the Pavilion 15 and 17 received a major overhaul on the inside taking place as mainstream everyday notebooks up to mid-range gaming notebooks with Core i7-6700HQ CPUs and NVIDIA GeForce GTX 960M GPUs. Of course, the design and build don’t scream “gaming material” at your face but the mid-range-ish plastic and design of the notebook keep the price as low as possible while delivering unmatched performance for the asking price. Only a few notebooks on the market can offer similar performance for around €800-900.
In fact, this is a price for the Core i7-6700HQ and GTX 960M configuration so prices may go even low if you are willing to trade the CPU for the Core i5-6300HQ or a GTX 950M for that matter. But the main question remains. Will this 15-incher handle the heat and all that power from both chips? Well, HP has taken some precautions by removing the optical drive from the more powerful configurations in order to give some extra “breathing” room for the components. And another thing, does the price affect the overall quality of the product such as screen quality? We find out in our thorough review.
You can find more configurations and prices here: http://amzn.to/2azc6cK
We aren’t exactly sure what the final unit will ship with as our Pavilion 15 is a pre-production sample. Anyway, the usual user manuals, AC adapter and power cord should be included.
Design and construction
The HP Pavilion 15 is just a downsized version of the Pavilion 17 with the same choice of materials, textures, design, feel and input devices. Even the port distribution is identical, except for the missing optical drive, of course.
Keeping the same clean design signature on the outside, the lid features silver-colored matte plastic, which on first glance reminds us of aluminum. And sure doesn’t inherit the metal’s sturdiness as well. The plastic plate gives in under small pressure and can cause ripples on the other side where the LCD panel is placed. But being bouncy at this price range is the industry’s standard. Rarely you can find a notebook without build issues or inconsistencies. Hinges appear to be tight enough to keep the screen firmly in place, opening the machine with one hand is hard and surprisingly, using the touchscreen doesn’t cause the display to sway too much. The bottom cover features two long silicone “legs” and two big vent openings for extra airflow.
The sides aren’t as thin (26 mm at its thickest point) as some similarly priced competitors such as the Lenovo Ideapad 700 but it doesn’t fall too far behind from other powerful alternatives like the Acer Aspire V3-575G and V5-591G.
As far as the interior is concerned, it’s identical to the one on the 17-inch variant. Same shallow keyboard with white LED backlight, stiff touchpad and mildly matte finish around the input devices. If the keyboard offered slightly longer key travel, it would have improved the typing experience a lot.
As a mid-range notebook, the HP Pavilion 15 offers pretty good build quality – nothing special, nonetheless. But we do need to note that we found no unnecessary holes, gaps or protruding edges.
Disassembly, maintenance, internals and upgrade options
It’s really easy to gain access to the main components. You will only need a screwdriver to remove the screws. Then, just pry up the bottom and it will come off easily.
Storage upgrade options – 2.5-inch HDD, M.2 slot
The usual storage setup is found featuring 2.5-inch HDD slot accompanied by an M.2 SSD slot supporting 2280 sticks. However, it came as a surprise that the motherboard actually supports NVMe drives to benefit from the absurdly high read/write speeds. Interestingly, the 17-inch Pavilion doesn’t extend its support to PCIe NVMe but to SATA AHCI drives only.
|M.2 slot||Free M.2 SATA SSD slot||–|
|2.5-inch HDD||Seagate 2TB @5400 rpm||Check price|
The motherboard supports two RAM slots up to 32GB of DDR4-2133 memory but our unit came with only one 4GB DDR4-2133 Samsung chip.
The HP Pavilion 15 ditched the user-replaceable battery design and now it houses the unit inside the chassis. It’s rated at 61.6Wh.
The Wi-Fi module is placed near the RAM chip slots but since it’s an engineering sample, the Wi-Fi card is unknown. Probably an Intel Wireless Dual-Band AC.
The two heat pipes connect both chips – the CPU and GPU – and transfer the heat to the two fans placed at the back of the machine. The cooling design strongly resembles the one on the Lenovo Y700 (15-inch), which didn’t do so well in our temperature tests. Since this unit is equipped with only Core i3-6100H and a GeForce GTX 950M GPU, temperature problems will not occur. However, we remain skeptical of the cooling capabilities if Core i7-6700HQ and GTX 960M GPU are involved.
You can check our dedicated article regarding disassembly and upgrade here: http://laptopmedia.com/highlights/inside-hp-pavilion-15-2016-disassembly-internal-photos-and-upgrade-options/
The Pavilion 15 (2016) features an IPS glossy touch panel with Full HD (1920×1080) resolution in a 15.6-inch diagonal. The model number of the display is listed as LGD0519 with 142 ppi and 0.18 x 0.18 pixel pitch. It can be considered as “Retina” when viewed from a distance equal or greater than 60 cm.
The maximum brightness of the panel is 218 cd/m2 and 199 cd/m2 is the average value across the surface. So the maximum deviation is 17% in the bottom left corner. We also measured the color temperature – 7120K, which is slightly colder than the usual 6500K. Colors may appear slightly blue-ish but that’s barely noticeable.
The maximum color deviation dE2000 is 4.6 again in the lower left corner and this is not so good result since values above 4.0 are unwanted.
To make sure we are on the same page, we would like to give you a little introduction of the sRGB color gamut and the Adobe RGB. Starting with the CIE 1976 Uniform Chromaticity Diagram that represents the visible specter of colors by the human eye giving you a better perception of the color gamut coverage and the color accuracy. Inside the black triangle, you will see the standard color gamut (sRGB) that has been used by millions of people in HDTV and on the web. As for the Adobe RGB, this is used by professional cameras, monitors and etc. for printing. Basically, colors inside the black triangle are used by everyone and this is the essential part of the color quality and color accuracy of a mainstream notebook. Still, we’ve included other color spaces like the famous DCI-P3 standard used by movie studios and the digital UHD Rec.2020 standard. Rec.2020, however, is still a thing of the future and it’s hard to be covered by today’s displays. We’ve also included the so-called Michael Pointer gamut, or Pointer’s gamut, which represents the colors that naturally occur around us every day.
However, the most important is still the sRGB color space so the display covers just 53%. Not the best result to be honest.
Below you will see practically the same image but with color circles representing the reference colors and white circles being the result. You can see main and additional colors with 25%, 50%, 75% and 100% saturation inside the sRGB gamut before and after calibration.
We calibrated the display to reach 6500K white point in sRGB mode. The measured contrast before calibration is low 640:1 and falls down to 600:1 after calibration.
We’ve also measured how well the display is able to reproduce really dark parts of an image. It’s essential when watching movies or playing games. The left side of the image represents the display with stock settings while the right one with our custom profile for gaming and multimedia. On the horizontal axis, you will find the grayscale and on the vertical axis the luminance of the display. The display offers good visibility in dark areas of an image but it’s further improved by installing our profile.
We illustrate the first five levels of the gray (1%-5% white), right after black level, using the five boxes on the image below. Keep in mind that whether you can distinguish them or not strongly depends on the settings of your current display, the calibration, the viewing angle and the surrounding light conditions.
Below you can see the results from the accuracy color checker with 24 commonly used colors like light and dark human skin, blue sky, green grass, orange etc. The results are before and after calibration..
Gaming capabilities (Response time)
We test the reaction time of the pixels with the usual “black-to-white” and “white-to-black” method from 10% to 90% and reverse.
We recorded Fall Time + Rise Time = 29 ms.
PWM (Screen flickering)
The display uses PWM but it’s rather rare case in which the brightness is regulated by increasing the luminance to 200 cd/m2 and going back to 80 cd/m2 for about 43 microseconds. The final result is 140 cd/m2 with flickering around 23 kHz. The real pulse-width modulation, however, occurs from 40% brightness and below and will be felt by users with sensitive eyes. So keeping the brightness slider above 40% is advisable.
Blue light emissions
With our Health-Guard profile installed, you can benefit from reduced blue light emissions. You can see the levels of emitted blue light on the spectral power distribution (SDP).
The display has too many drawbacks to be called decent. We weren’t expecting any high results from the start but the low sRGB coverage combined with low maximum brightness and low contrast ratio makes this panel lackluster and drags behind the competition. On the other hand, our custom profiles can make things a tad better by reducing the blue light emissions, set color reproduction straight and improve the visibility in darker areas of the image. We would also like to mention that PWM is present only at 40% brightness and below and thus can be used by users with sensitive eyes, which is a big plus to consider.
Buy our display profiles
Since our profiles are tailored for each individual display model, this article and its respective profile package is meant for HP Pavilion 15 (2016) configurations with 15.6″ LGD0519 (FHD, 1920 × 1080) IPS touchscreen, which can be found at Amazon: http://amzn.to/2azc6cK
*Should you have problems with downloading the purchased file, try using a different browser to open the link you’ll receive via e-mail. If the download target is a .php file instead of an archive, change the file extension to .zip or contact us at firstname.lastname@example.org.
Read more about the profiles HERE.
In addition to receiving efficient and health-friendly profiles, by buying LaptopMedia's products you also support the development of our labs, where we test devices in order to produce the most objective reviews possible.
Office work / Web design
If your field is office work or web design, or you just want your monitor's color set to be as accurate as possible for the Internet color space, this profile will prove to be useful.
Gaming or Movie nights
We developed this profile especially for occasions on which you spend a lot of time in front of your monitor with some games or watching movies – it will be easier for you to discern fine nuances in the dark.
This profile reduces the negative impact of pulsation and the blue spectrum, securing your eyes and body. You still get a pitch-perfect color image, albeit slightly warmer.
The sound quality is decent – only small distortions are recorded at low and high frequencies.
The specs sheet applies only for the tested unit and may differ from your’s.
|CPU||Intel Core i3-6100H (2-core, 2.70 GHz, 3MB cache)|
|RAM||4GB (1x 4096MB) DDR4-2133|
|GPU||NVIDIA GeForce GTX 950M (4GB DDR3)|
|HDD/SSD||1TB HDD @5400 rpm + Free M.2 PCIe NVMe SSD slot|
|Display||15.6-inch Full HD (1920×1080) IPS touch panel, glossy|
|Connectivity||Intel® 802.11ac (1×1) Wi-Fi and Bluetooth 4.2 Combo|
|Thickness||26 mm (1.02″)|
|Weight||2.18 kg (4.81 lbs)|
The notebook we used had a pre-installed Windows 10 (64-bit) but if you insist of performing a clean install of the OS, we suggest downloading the latest drivers from HP’s official support page.
The battery performance is on par with most of the competition, although we suspect that since this is a pre-production sample, results might go up for the end user product. On the other hand, the configuration we tested has a 35W CPU while the rest of the configurations with Core i5-6300HQ and Core i7-6700HQ will drain the battery slightly faster due to the higher 45W TDP. Of course, the 61Wh battery is big enough to get you through at least several hours of work.
All tests were performed with Wi-Fi turned on at all times, Windows battery saver turned on and screen brightness set to 120 cd/m2.
In order to simulate real-life conditions, we used our own script for automatic web browsing through over 70 websites.
Slightly above average score – 362 minutes (6 hours and 2 minutes).
For every test like this, we use the same video in HD.
Interestingly, slightly higher than the web browsing score – 375 minutes (6 hours and 15 minutes).
We recently started using the built-in F1 2015 benchmark on loop for accurate real-life gaming representation.
It’s quite unlikely that you will start a gaming session without being close to a power source, but it’s good to know that you can play for about two hours – 134 minutes (2 hours and 14 minutes).
CPU – Intel Core i3-6100H
The Core i3-6100H is a dual-core CPU based on the Skylake architecture from Intel. Although the processor doesn’t feature the Turbo Boost technology for increasing its frequency, the chip is clocked at 2.7 GHz with Hyper-Threading feature. The latter emulates one virtual core for each physical one and this way it can handle more processes at once. It can be considered as part of the high-performance Core i3 lineup.
However, the higher TDP of 35W and relatively low performance comparable to Broadwell-U chips, make it an affordable solution suitable for office work and light gaming. This TDP includes the dual-channel DDR4-2133/DDR3L-1600 memory controller and the iGPU – Intel HD Graphics 530. On the contrary to other Core i3 models, this one features an improved integrated GPU with 24 EUs (Execution Units) clocked at 350 – 900 MHz.
Take a look at our CPU rating system to see where the Core i3-6100H stands:
More information about the CPU can be gathered here:
Results are from the Cinebench 11 test (higher the score, the better)
|HP Pavilion 15 (2016) Intel Core i3-6100H (2-cores, 2.7 - 2.7 GHz)||3.22|
|Toshiba Satellite P50-C / S55T Intel Core i7-6700HQ (4-cores, 2.6 - 3.5 GHz)||7.05||+118.94%|
|Lenovo Ideapad 700 (15-inch) Intel Core i7-6700HQ (4-cores, 2.6 - 3.5 GHz)||7.49||+132.61%|
|HP Pavilion 15 Gaming Notebook Intel Core i7-6700HQ (4-cores, 2.6 - 3.5 GHz)||7.39||+129.5%|
Results are from the NovaBench CPU test (higher the score, the better)
|HP Pavilion 15 (2016) Intel Core i3-6100H (2-cores, 2.7 - 2.7 GHz)||409|
|Toshiba Satellite P50-C / S55T Intel Core i7-6700HQ (4-cores, 2.6 - 3.5 GHz)||831||+103.18%|
|Lenovo Ideapad 700 (15-inch) Intel Core i7-6700HQ (4-cores, 2.6 - 3.5 GHz)||812||+98.53%|
|HP Pavilion 15 Gaming Notebook Intel Core i7-6700HQ (4-cores, 2.6 - 3.5 GHz)||826||+101.96%|
Results are from the Photoshop test (lower the score, the better)
|HP Pavilion 15 (2016) Intel Core i3-6100H (2-cores, 2.7 - 2.7 GHz)||22.26|
|Toshiba Satellite P50-C / S55T Intel Core i7-6700HQ (4-cores, 2.6 - 3.5 GHz)||11.57||-48.02%|
|Lenovo Ideapad 700 (15-inch) Intel Core i7-6700HQ (4-cores, 2.6 - 3.5 GHz)||11.43||-48.65%|
|HP Pavilion 15 Gaming Notebook Intel Core i7-6700HQ (4-cores, 2.6 - 3.5 GHz)||10.78||-51.57%|
Fritz is a chess benchmark that tests the computing capabilities of the CPU with various chess moves. The Intel Core i3-6100H managed 5.550 million moves per second. By comparison, one of the most powerful PCs, Deep(er) Blue, was able to squeeze out 200 million moves per second. In 1997 Deep(er) Blue even beat the famous Garry Kasparov with 3.5 to 2.5.
GPU – NVIDIA GeForce GTX 950M (4GB DDR3)
The GeForce GTX 950M is a direct successor to last year’s GTX 850M and it’s placed in the upper-mid range class. It is commonly used as a multimedia GPU and light gaming as its properties can handle some more demanding applications. The GPU core is the GM107, similar to most Maxwell NVIDIA graphics card and it’s clocked at 914MHz and can go up to 1124MHz. It has 2GB DDR3 memory and the effective clock speed of the memory is 2000MHz, while there are other variants of the GPU with GDDR5 memory.
However, the memory width is 128 bit with 16 ROPs, 40 texture units and 640 CUDA cores (or shading units). It also features increased L2 cache size, which is now 2MB. Supports features like Battery Boost, GameStream, ShadowPlay, GPU Boost 2.0, Optimus, PhysX, CUDA, SLI and GeForce Experience.
You can browse through our top GPUs ranking: http://laptopmedia.com/top-laptop-graphics-ranking/
Here you will find other useful information and every notebook we’ve tested with this GPU: http://laptopmedia.com/video-card/nvidia-geforce-gtx-950m-2gb-ddr3/
Results are from the 3DMark Cloud Gate (G) test (higher the score, the better)
|HP Pavilion 15 (2016) NVIDIA GeForce GTX 950M (2GB DDR3)||25482|
|Toshiba Satellite P50-C / S55T NVIDIA GeForce GTX 950M (4GB DDR3)||21228||-16.69%|
|Lenovo Ideapad 700 (15-inch) NVIDIA GeForce GTX 950M (4GB DDR3)||21350||-16.22%|
|HP Pavilion 15 Gaming Notebook NVIDIA GeForce GTX 950M (2GB DDR3)||20745||-18.59%|
Results are from the 3DMark Fire Strike (G) test (higher the score, the better)
|HP Pavilion 15 (2016) NVIDIA GeForce GTX 950M (2GB DDR3)||3187|
|Toshiba Satellite P50-C / S55T NVIDIA GeForce GTX 950M (4GB DDR3)||3200||+0.41%|
|Lenovo Ideapad 700 (15-inch) NVIDIA GeForce GTX 950M (4GB DDR3)||3198||+0.35%|
|HP Pavilion 15 Gaming Notebook NVIDIA GeForce GTX 950M (2GB DDR3)||3048||-4.36%|
Results are from the 3DMark (Sky Diver) test (higher the score, the better)
|HP Pavilion 15 (2016) NVIDIA GeForce GTX 950M (2GB DDR3)||11433|
|Toshiba Satellite P50-C / S55T NVIDIA GeForce GTX 950M (4GB DDR3)||10769||-5.81%|
|Lenovo Ideapad 700 (15-inch) NVIDIA GeForce GTX 950M (4GB DDR3)||10777||-5.74%|
|HP Pavilion 15 Gaming Notebook NVIDIA GeForce GTX 950M (2GB DDR3)||10878||-4.85%|
Results are from the Unigine Heaven 3.0 test (higher the score, the better)
|HP Pavilion 15 (2016) NVIDIA GeForce GTX 950M (2GB DDR3)||1065|
|Toshiba Satellite P50-C / S55T NVIDIA GeForce GTX 950M (4GB DDR3)||935||-12.21%|
|Lenovo Ideapad 700 (15-inch) NVIDIA GeForce GTX 950M (4GB DDR3)||934||-12.3%|
|HP Pavilion 15 Gaming Notebook NVIDIA GeForce GTX 950M (2GB DDR3)||900||-15.49%|
This sort of stress test doesn’t represent real-life situations as the general user won’t be able to reach 100% CPU and 100% GPU loads for longer periods of time. Still, this method gives us a good insight about the cooling system and the overall stability of the notebook in the long run.

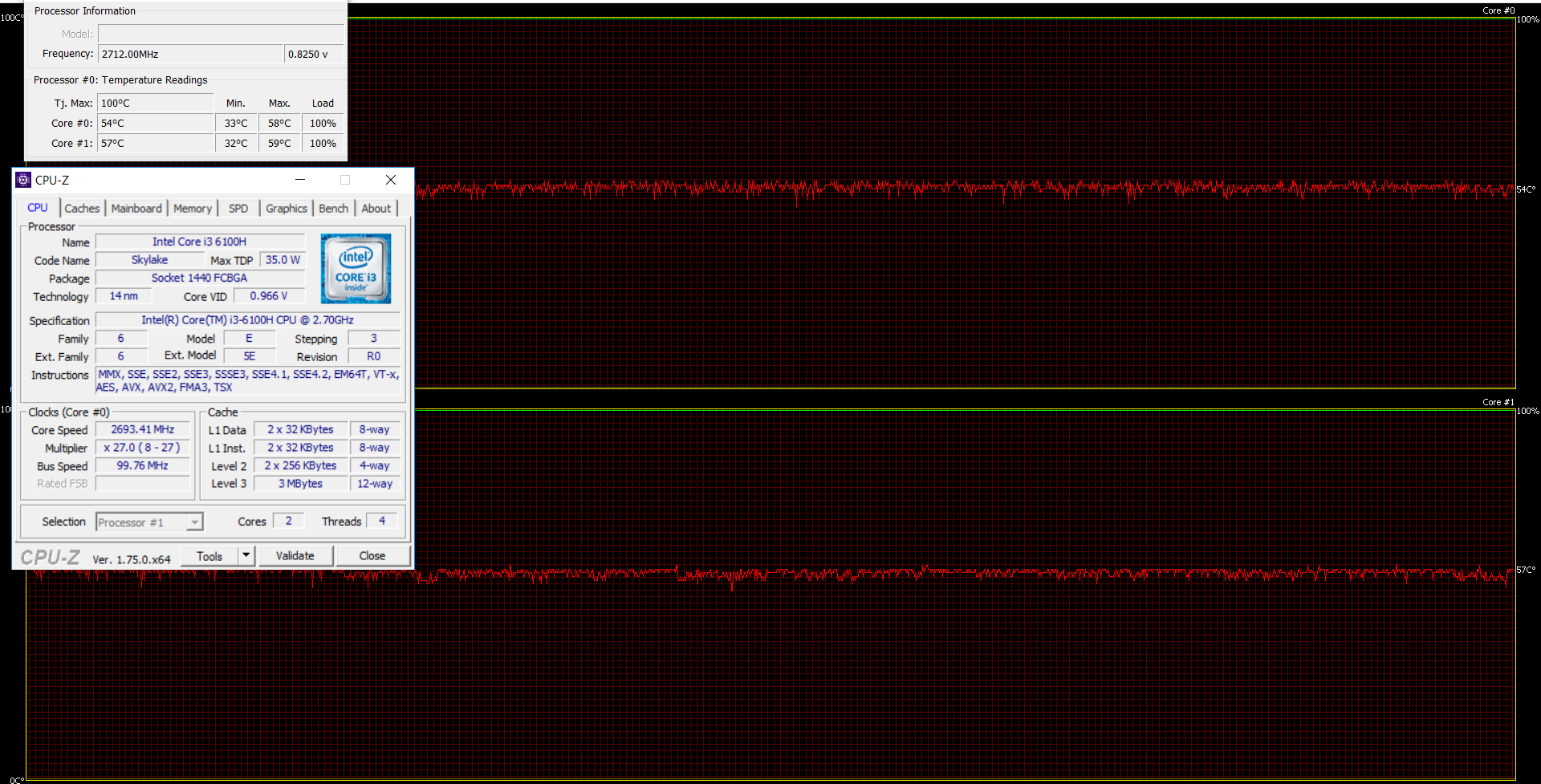

We start off with 100% CPU load for an hour. At this point, the CPU was able to maintain maximum operating frequencies of 2.7 GHz while keeping temperatures pretty low at 59 °C.
After an hour, we turned on the GPU stress test as well. The temperature of the CPU went up to 70 °C while the GPU was running smoothly at 63 °C. No throttling occurred and both chips remained at safe temperatures. However, we think that the system will have harder time handling the more powerful configuration including the Core i7-6700HQ CPU and the GTX 960M GPU.
The heat on the surface was on the safe side and didn’t cause any discomfort.
The new HP Pavilion 15 is a great all-rounder and the high-performance version of the notebook is particularly interesting as it offers exceptional price/performance ratio. Yes, the overall build isn’t exactly “premium” or anything (still the only major drawback when it comes to design are the shallow keyboard design and stiff touchpad) but keeps the cost low while offering powerful hardware suitable even for gaming. Not to mention the surprising support of PCIe NVMe-enabled M.2 SSDs, which will surely come in handy to a handful of users. One of the few notebooks in this price range that’s compatible with the latest NVMe is the Lenovo Ideapad 700.
On the image quality front, the Full HD touch IPS version, which we reviewed, isn’t one of the best we’ve tested and we consider it as slightly below average for this price range. It seems that HP had to settle for one more thing when building the high-performance version of the Pavilion 15. Nevertheless, the only serious drawback for the device’s screen is the low maximum brightness and probably the presence of PWM below 40% luminance. But since it’s a dim display, you won’t probably go below 40% anyway. You can always take advantage of our custom profiles, though. They will improve the overall visibility in the darker areas of the image, reduce blue light emissions and will definitely help with the color accuracy.
You can find more configurations and prices here: http://amzn.to/2azc6cK
- Excellent price/performance ratio
- Supports M.2 PCIe NVMe SSDs
- Various color options
- No PWM from 40 to 100% screen brightness
- Decent battery life
- Shallow keyboard, stiff touchpad
- Too dim screen
