日本Lenovo Legion 7 16
 47.jpg)
- Date Published: 03 Oct 2022
- AMD Ryzen 7 6800H
- AMD Radeon RX 6850M XT
- 16.0", WQXGA (2560 x 1600), 165 Hz, IPS + FreeSync
- 1000GB SSD
- 2x 16GB DDR5, 4800 MHz
- 2.53 kg (5.6 lbs)
Pros
- Very powerful hardware
- 2x M.2 PCIe x4 Gen 4 slots, 2x DDR5 RAM SODIMM slots in dual channel, Wi-Fi 6
- Covers 97% of the sRGB color gamut and has accurate color representation with our Gaming and Web design profile (BOE NE160QDM-NY1 (BOE0A9B))
- Snappy panel with quick response times (BOE NE160QDM-NY1 (BOE0A9B))
- FreeSync support + MUX switch
- Has a ton of ports and a lot of RGB LEDs
- Fantastic keyboard + fingerprint reader
- Great build quality with an all-metal design
- Vapor chamber
Cons
- No SD card
- Below-average battery life
Specs
- HDD/SSD
- 1TB SSD
- M.2 Slot
- 2x 2280 PCIe NVMe 4.0 x4 See photo
- RAM
- 2x 16GB DDR5, 4800 MHz
- OS
- No OS
- Body Material
- Aluminum
- Dimensions
- 358.1 x 263.5 x 19.4 mm (14.10" x 10.37" x 0.76")
- Weight
- 2.53 kg (5.6 lbs)
- Ports and connectivity
- 1x USB Type-A
- 3.2 Gen 1 (5 Gbps)
- 1x USB Type-A
- 3.2 Gen 1 (5 Gbps), Sleep and Charge
- 1x USB Type-C
- 3.2 Gen 1 (5 Gbps)
- 1x USB Type-C
- 3.2 Gen 2 (10 Gbps), DisplayPort
- 1x USB Type-C
- 3.2 Gen 2 (10 Gbps), Power Delivery (PD), DisplayPort
- 1x USB Type-C
- 4.0, DisplayPort
- HDMI
- 2.1 ([email protected] / [email protected])
- Card Reader
- Ethernet LAN
- 10, 100, 1000, 2500 Mbit/s
- Wi-Fi
- 802.11ax
- Bluetooth
- 5.1
- Audio jack
- 3.5mm Combo Jack
- Features
- Fingerprint reader
- Web camera
- FHD with e-camera shutter, fixed focus
- Backlit keyboard
- Microphone
- Dual Array Microphone
- Speakers
- 2x 2W Stereo Speakers, audio by HARMAN, optimized with Nahimic Audio
- Optical drive
- Security Lock slot
More Lenovo Legion 7 16 configurations - 5 laptops
DISPLAY: 16.0-inch, 2560x1600, IPS + FreeSync
- Name
- BOE NE160QDM-NY1 (BOE0A9B)
- Diagonal
- 16.0"
- Pixel density
- 188.68 ppi
- Brightness
- 470 cd/m2
- sRGB
- 92%
- PWM frequency
- No PWM (Flicker-Free)
- Panel Type
- IPS
- Resolution
- 2560x1600
- Becomes "Retina" from
- 18 inches (46 cm)
- Contrast
- 1260:1
- dE Color Checker
- 2.2 1.3
- PWM Rating
- 10.0: (safe)
Buy our profiles for BOE NE160QDM-NY1 (BOE0A9B)
In addition to receiving efficient and health-friendly profiles, by buying LaptopMedia's products you also support the development of our labs, where we test devices in order to produce the most objective reviews possible.
Office Work
Office Work should be used mostly by users who spend most of the time looking at pieces of text, tables or just surfing. This profile aims to deliver better distinctness and clarity by keeping a flat gamma curve (2.20), native color temperature and perceptually accurate colors.
Design and Gaming
This profile is aimed at designers who work with colors professionally, and for games and movies as well. Design and Gaming takes display panels to their limits, making them as accurate as possible in the sRGB IEC61966-2-1 standard for Web and HDTV, at white point D65.
Health-Guard
Health-Guard eliminates the harmful Pulse-Width Modulation (PWM) and reduces the negative Blue Light which affects our eyes and body. Since it’s custom tailored for every panel, it manages to keep the colors perceptually accurate. Health-Guard simulates paper so the pressure on the eyes is greatly reduced.
Get all 3 profiles with 33% discount

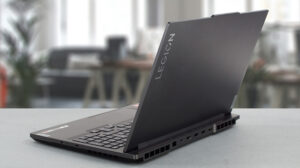

Lenovo Legion 7 16 in-depth review
You know, top-tier laptop manufacturers have all kinds of laptops, but all of them offer a one-of-a-kind device meant for the super enthusiast. Acer has the Helios 500, MSI sells the Titan GT77, while ASUS relies on the ROG Strix SCAR 17 G733 with liquid-cooled CPU and GPU. Where does Lenovo stand in this fierce world? Well, Lenovo has the Legion 7. While it is arguably the most powerful laptop on the company's roster, it represents an entirely different philosophy than the aforementioned beasts. The Legion 7 (16", 2022) is elegant, stylish, and it would have been classy if it wasn't for the Christmas spectacle that's going on with the RGB LEDs found everywhere around it. But hold your horses. There is something even more exciting - Lenovo was bold enough to go full AMD on the Legio[...]
Read the full review

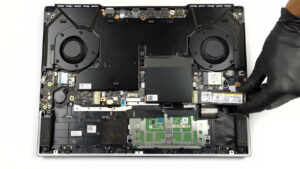

Disassembly, maintenance and upgrade options
The Legion 7 (16", 2022) offers DDR5 memory and Gen 4 SSD support, so you can be pretty happy with what you got. Check out all Lenovo Legion 7 (16", 2022) prices and configurations in our Specs System, or read more in our In-Depth review. 1. Remove the bottom plate To access this laptop's internals, you need to undo a total of 10 Phillips-head screws. Then, pry the bottom panel, starting from the front, and lift the panel away from the chassis. 2. Battery This device sports a 99.9Wh battery pack. Weirdly, it lasts only for 5 hours of Web browsing, or 30 minutes more of video[...]
Read more
CPU Performance: AMD Ryzen 7 6800H
Results are from the Cinebench 20 CPU test (the higher the score, the better)
GPU Performance: AMD Radeon RX 6850M XT
Results are from the 3DMark: Time Spy (Graphics) benchmark (higher the score, the better)
Some games you can play on this laptop
|
Resolution: 1920 x 1080 (Full HD)
|
MIN
|
MED
|
MAX
|
|---|---|---|---|
| AMD Radeon RX 6850M XT | 300 FPS PLAY VIDEO | 300 FPS PLAY VIDEO | 202 FPS PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
NORMAL
|
HIGH
|
VERY HIGH
|
MAX
|
|---|---|---|---|---|
| AMD Radeon RX 6850M XT | 177 FPS PLAY VIDEO | 150 FPS PLAY VIDEO | 101 FPS PLAY VIDEO | 76 FPS PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
LOW
|
MED
|
HIGH
|
EPIC
|
|---|---|---|---|---|
| AMD Radeon RX 6850M XT | 162 FPS PLAY VIDEO | 134 FPS PLAY VIDEO | 109 FPS PLAY VIDEO | 67 FPS PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
MIN
|
MED
|
HIGH
|
ULTRA
|
|---|---|---|---|---|
| AMD Radeon RX 6850M XT | 153 FPS PLAY VIDEO | 114 FPS PLAY VIDEO | 64 FPS PLAY VIDEO | - PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
LOW
|
MED
|
HIGH
|
ULTRA
|
|---|---|---|---|---|
| AMD Radeon RX 6850M XT | 176 FPS PLAY VIDEO | 140 FPS PLAY VIDEO | 105 FPS PLAY VIDEO | 87 FPS PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
MIN
|
MAX
|
|---|---|---|
| AMD Radeon RX 6850M XT | 3466 FPS PLAY VIDEO | 151 FPS PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
LOW
|
MED
|
MAX
|
|---|---|---|---|
| AMD Radeon RX 6850M XT | 327 FPS PLAY VIDEO | 334 FPS PLAY VIDEO | 334 FPS PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
MIN
|
MED
|
ULTRA
|
|---|---|---|---|
| AMD Radeon RX 6850M XT | 495 FPS PLAY VIDEO | 350 FPS PLAY VIDEO | 208 FPS PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
VERY LOW
|
MED
|
MAX
|
|---|---|---|---|
| AMD Radeon RX 6850M XT | 528 FPS PLAY VIDEO | 463 FPS PLAY VIDEO | 409 FPS PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
LOW
|
NORMAL
|
HIGH
|
MAX
|
|---|---|---|---|---|
| AMD Radeon RX 6850M XT | 183 FPS PLAY VIDEO | 163 FPS PLAY VIDEO | 158 FPS PLAY VIDEO | 146 FPS PLAY VIDEO |
