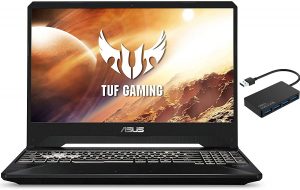

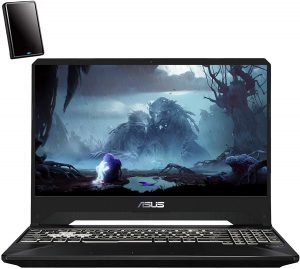

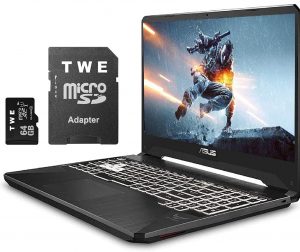

ASUS TUF Gaming FX505
- HDD/SSD
- up to 2000GB SSD + up to 2000GB HDD
- M.2 Slot
- 1x 2280 PCIe 3.0 x4 NVMe M.2 slot See photo
- RAM
- up to 64GB
- OS
- Windows 10 Home, Windows 10 Pro
- Battery
- 48Wh, 4-cell, 48Wh, 3-cell, 48Wh
- Dimensions
- 360 x 262 x 25.8 mm (14.17" x 10.31" x 1.02")
- Weight
- 2.20 kg (4.9 lbs)
- Ports and connectivity
- 2x USB Type-A
- 3.2 Gen 1 (5 Gbps)
- 1x USB Type-A
- 2.0
- HDMI
- 2.0
- Ethernet LAN
- Wi-Fi
- 802.11ac
- Bluetooth
- 5.0
- Audio jack
- combo audio / microphone jack
- Features
- Fingerprint reader
- Web camera
- HD 720p
- Backlit keyboard
- Microphone
- Speakers
- 2W
- Optical drive
- Security Lock slot
All ASUS TUF Gaming FX505 configurations
Buy our profiles for LG LP156WFC-SPD1 (LGD0563) / 15.6”, Full HD (1920 x 1080), IPS
In addition to receiving efficient and health-friendly profiles, by buying LaptopMedia's products you also support the development of our labs, where we test devices in order to produce the most objective reviews possible.
Office Work
Office Work should be used mostly by users who spend most of the time looking at pieces of text, tables or just surfing. This profile aims to deliver better distinctness and clarity by keeping a flat gamma curve (2.20), native color temperature and perceptually accurate colors.
Design and Gaming
This profile is aimed at designers who work with colors professionally, and for games and movies as well. Design and Gaming takes display panels to their limits, making them as accurate as possible in the sRGB IEC61966-2-1 standard for Web and HDTV, at white point D65.
Health-Guard
Health-Guard eliminates the harmful Pulse-Width Modulation (PWM) and reduces the negative Blue Light which affects our eyes and body. Since it’s custom tailored for every panel, it manages to keep the colors perceptually accurate. Health-Guard simulates paper so the pressure on the eyes is greatly reduced.
Get all 3 profiles with 33% discount
CPU performance
Here you can find the price/performance difference between all the CPUs that come in the ASUS TUF Gaming FX505 series.
Results are from the Cinebench 20 Multi-core test (the higher the score, the better)
GPU performance
Here you can find the price/performance difference between all the GPUs that come in the ASUS TUF Gaming FX505 series.
Results are for the 3DMark: Fire Strike (Graphics) benchmark (the higher the score, the better)
ASUS TUF Gaming FX505 in-depth review
Not a while ago we introduced you to the new TUF Gaming laptops line up of ASUS with the TUF FX504. If you remember we weren't the biggest fans of the device since it seemed unfinished to us. It had problems with the touchpad as well as some firmware issues. We believe this was resolved with future BIOS updates and some firmware ones. However, today we are looking at the update of this device - the slimmer "bezel-less" ASUS TUF FX505.Like the old one, the newcomer gets the Coffee Lake 45W chips and our unit has the Core i5-8300H in particular. In the GPU department, we have the NVIDIA[...]
Pros
- Doesn't use PWM to adjust screen brightness (LG LP156WFC-SPD1)
- Relatively low price
- NVMe support
- The right side of the device is completely free of ports
- Super thin bezels
- Optional RGB backlight
Cons
- Subpar built quality
- Shallow color coverage (LG LP156WFC-SPD1)
- Average battery life
