•  Date Published: 17 Jun 2021
  • Intel Core i7-1185G7
  • Intel Iris Xe Graphics G7 (96EU)
  • 14.0”, Full HD (1920 x 1080), IPS
  • 2000GB SSD
  • 32GB LPDDR4x, 4266 MHz
  • 0.88 kg (1.9 lbs)

Pros

  • Up to 13 hours of Web browsing on a single charge
  • Great input devices
  • 99% sRGB coverage and accurate color representation with our profile
  • Noise cancellation
  • 2x M.2 PCIe x4 + RAID support
  • Two Thunderbolt 4 connectors (both can be used for charging)
  • IR face recognition, fingerprint reader, and proximity sensor
  • Quad-channel memory
  • No PWM

Cons

  • Lacks an SD card reader
  • Memory is soldered to the motherboard

Specs

CPU Performance #100in Top CPUs
  • AMD Ryzen 5 4500U 1.4%
  • AMD Ryzen 3 5425U 1.5%
  • Intel Core i7-1185G7
  • AMD Ryzen 3 5300U 0.9%
  • Intel Core i7-1165G7 1.1%
GPU Performance #93in Top GPUs
  • NVIDIA Quadro T500 1.9%
  • NVIDIA GeForce MX450
  • Intel Iris Xe Graphics G7 (96EU)
  • NVIDIA Quadro P620 (4GB GDDR5) 3.2%
  • NVIDIA GeForce MX350 (25W) 3.1%
  • NVIDIA GeForce MX250 (25W) 4.6%
  • AUO B140HAN06.B (AUOA48F)
  • Color accuracy  2.0  0.8
  • HDD/SSD
  • 2TB SSD
  • M.2 Slot
  • 2x 2280 PCIe NVMe 3.0 x4 RAID  See photo
  • RAM
  • 32GB LPDDR4x, 4266 MHz
  • OS
  • Windows 10 Pro
  • Body Material
  • Magnesium-Lithium alloy
  • Dimensions
  • 320 x 203 x 0.9 ~ 14.9 mm (12.60" x 7.99" x 0.04")
  • Weight
  • 0.88 kg (1.9 lbs)
  • Ports and connectivity
  • 1x USB Type-A
  • 3.2 Gen 2 (10 Gbps)
  • 2x USB Type-C
  • 3.2 Gen 2 (10 Gbps), Power Delivery (PD), DisplayPort
  • HDMI
  • 2.0b
  • Wi-Fi
  • 802.11ax
  • Bluetooth
  • 5.0
  • Audio jack
  • 3.5mm Combo Jack
  • Features
  • Fingerprint reader
  • Web camera
  • HD
  • Backlit keyboard
  • Microphone
  • Array Microphone
  • Speakers
  • Harman Kardon Audio System
  • Optical drive
  • Security Lock slot

DISPLAY: 14.0-inch, 1920x1080, IPS

  • Name
  • AUO B140HAN06.B (AUOA48F)
  • Diagonal
  • 14.0"
  • Pixel density
  • 157.35 ppi
  • Brightness
  • 330 cd/m2
  • sRGB
  • 97%
  • PWM frequency
  • No PWM (Flicker-Free)
  • Panel Type
  • IPS
  • Resolution
  • 1920x1080
  • Becomes "Retina" from
  • 22 inches (56 cm)
  • Contrast
  • 1530:1
  • dE Color Checker
  • 2.0 0.8
  • PWM Rating
  • 10.0: (safe)

Buy our profiles for AUO B140HAN06.B (AUOA48F)

In addition to receiving efficient and health-friendly profiles, by buying LaptopMedia's products you also support the development of our labs, where we test devices in order to produce the most objective reviews possible.

Office Work

Office Work should be used mostly by users who spend most of the time looking at pieces of text, tables or just surfing. This profile aims to deliver better distinctness and clarity by keeping a flat gamma curve (2.20), native color temperature and perceptually accurate colors.

Design and Gaming

This profile is aimed at designers who work with colors professionally, and for games and movies as well. Design and Gaming takes display panels to their limits, making them as accurate as possible in the sRGB IEC61966-2-1 standard for Web and HDTV, at white point D65.

Health-Guard

Health-Guard eliminates the harmful Pulse-Width Modulation (PWM) and reduces the negative Blue Light which affects our eyes and body. Since it’s custom tailored for every panel, it manages to keep the colors perceptually accurate. Health-Guard simulates paper so the pressure on the eyes is greatly reduced.

Get all 3 profiles with 33% discount

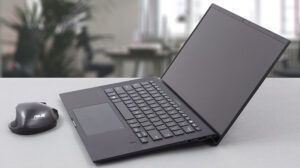

ASUS ExpertBook B9 in-depth review

No more budget offerings. ASUS is now going head-on for the top dogs in the business world. This means that devices like the ThinkPad X1 Carbon and the Latitude 14 9420 are being threatened. What is the name of that threat? ASUS ExpertBook B9 (B9400). Not only is it a premium device, but the manufacturer goes as far as stating that it is the lightest 14-inch business laptop on the market right now. Depending on the configuration, the device can stop the scales at just 880 grams. Speaking of configurations, the machine can be equipped with up to the Core i7-1185G7, and 32GB of LPDDR4x memory. Well, there is more than meets the eye, for sure, so we will explain all of the available features in this review. One of these features is the 1080p IPS display. Its bezels are extremely thin, [...]

Read the full review

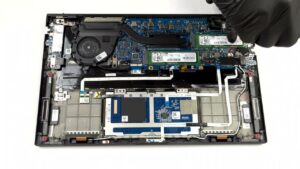

Disassembly, maintenance and upgrade options

The ExpertBook B9 (B9400) is full of surprises. This includes the RAID support through two M.2 PCIe x4 slots. Check out all ASUS ExpertBook B9 (B9400) prices and configurations in our Specs System or read more in our In-Depth review. 1. Remove the bottom plate To take this laptop apart, you need to undo 11 Torx-head screws. After that, just pry the bottom panel, starting from the front. 2. Battery Inside, you will see the larger 66Wh battery pack. If you need to take it away, first, remove the connector from the motherboard. Then, undo the four Phillips-head screws that hold[...]

Read more

CPU Performance: Intel Core i7-1185G7

GPU Performance: Intel Iris Xe Graphics G7 (96EU)

Some games you can play on this laptop

Resolution: 1920 x 1080 (Full HD)
HIGH PERF
HIGH QLT
Intel Iris Xe Graphics G7 (96EU) 97 FPS PLAY VIDEO 43 FPS PLAY VIDEO
