日本ASUS Zenbook S 13
- Date Published: 12 May 2023
- Intel Core i7-1355U
- Intel Iris Xe Graphics G7 (96EU)
- 13.3”, 2.8K (2880 x 1800), OLED
- 4000GB SSD
- 32GB LPDDR5
- 1.00 kg (2.2 lbs)
Pros
- Long battery life
- 1-kilo weight, and 10-11mm thickness
- Magnesium-aluminum chassis
- 100% sRGB and DCI-P3 coverage plus accurate color representation (Samsung ATNA33AA05-0 (SDC415B))
- PWM is treated by first-party software (Samsung ATNA33AA05-0 (SDC415B))
- OLED provides True Blacks and crazy fast pixel response times (Samsung ATNA33AA05-0 (SDC415B))
- 2x Thunderbolt 4 + HDMI + USB Type-A
- Gen 4 SSD support
- IR face recognition scanner/li>
Cons
- No SD card slot
- Soldered memory
Specs
- Display
- HDD/SSD
- 4TB SSD
- M.2 Slot
- 1x 2280 PCIe NVMe 4.0 x4 See photo
- RAM
- 32GB LPDDR5
- OS
- Windows 11 Pro
- Body Material
- Aluminum, Magnesium alloy
- Dimensions
- 296.2 x 216.3 x 10.9 - 11.8 mm (11.66" x 8.52" x 0.43")
- Weight
- 1.00 kg (2.2 lbs)
- Ports and connectivity
- 1x USB Type-A
- 3.2 Gen 2 (10 Gbps)
- 2x USB Type-C
- Thunderbolt 4, Power Delivery (PD), DisplayPort
- HDMI
- 2.1 TMDS
- Card Reader
- Ethernet LAN
- Wi-Fi
- 802.11ax
- Bluetooth
- 5.3
- Audio jack
- 3.5mm Combo Jack
- Features
- Fingerprint reader
- Web camera
- FHD IR with support for Windows Hello
- Backlit keyboard
- Microphone
- Array Microphone with Cortana Support
- Speakers
- Speakers, Smart Amp, harman/kardon
- Optical drive
- Security Lock slot
More ASUS Zenbook S 13 configurations - 4 laptops
DISPLAY: 13.3-inch, 2880x1800, OLED
- Name
- Samsung ATNA33AA05-0 (SDC415B)
- Diagonal
- 13.3"
- Pixel density
- 255.36 ppi
- Brightness
- 385 cd/m2
- sRGB
- 100%
- PWM frequency
- 240 Hz
- Panel Type
- OLED
- Resolution
- 2880x1800
- Becomes "Retina" from
- 14 inches (34 cm)
- Contrast
- infinite
- dE Color Checker
- 1.8
- PWM Rating
- 4.7: (undesirable)
Buy our profiles for Samsung ATNA33AA05-0 (SDC415B)
In addition to receiving efficient and health-friendly profiles, by buying LaptopMedia's products you also support the development of our labs, where we test devices in order to produce the most objective reviews possible.
Office Work
Office Work should be used mostly by users who spend most of the time looking at pieces of text, tables or just surfing. This profile aims to deliver better distinctness and clarity by keeping a flat gamma curve (2.20), native color temperature and perceptually accurate colors.
Design and Gaming
This profile is aimed at designers who work with colors professionally, and for games and movies as well. Design and Gaming takes display panels to their limits, making them as accurate as possible in the sRGB IEC61966-2-1 standard for Web and HDTV, at white point D65.
Health-Guard
Health-Guard eliminates the harmful Pulse-Width Modulation (PWM) and reduces the negative Blue Light which affects our eyes and body. Since it’s custom tailored for every panel, it manages to keep the colors perceptually accurate. Health-Guard simulates paper so the pressure on the eyes is greatly reduced.
Get all 3 profiles with 33% discount
ASUS Zenbook S 13 in-depth review

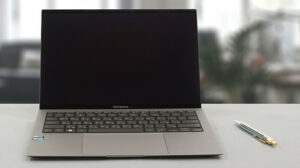

In this world, there are portable laptops, there are thin and light devices, and then - there is the ASUS Zenbook S 13 OLED (UX5304). It is branded as a 1 cm, 1 kg device - the only time a man would brag about such a number. To be honest, ASUS has the right to brag about this one. At least on paper. In this review, we are going to find out if they are right, or if we should strip its bragging rights on the spot. The first thing that is utterly impressive, is that the manufacturer was able to introduce an HDMI connector, and a regular USB Type-A at this thickness. Apple will be baffled. And what is the other - definitely the battery? There is a 63Wh package inside, which is a larger unit than what many 17-inch notebooks have. And this time there is nothing hidden - sometimes manuf[...]
Read the full review
Disassembly, maintenance and upgrade options

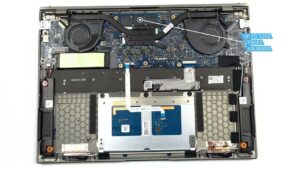

The Zenbook S 13 OLED (UX5304) looks like a tiny gaming device with its two fans. However, the overall thermal capacity of the cooling is quite low, compared to an actual gaming notebook. Check out all ASUS Zenbook S 13 OLED (UX5304) prices and configurations in our Specs System, or read more in our In-Depth review. 1. Remove the bottom plate To open this device, you need to undo 11 Torx-head screws. Then, pry the bottom panel with a plastic tool starting from the back. 2. Remove the battery Inside, we see a 63Wh battery pack. To remove it, unplug the battery connector, and [...]
Read more
CPU Performance: Intel Core i7-1355U
Results are from the Cinebench 20 CPU test (the higher the score, the better)
GPU Performance: Intel Iris Xe Graphics G7 (96EU)
Results are from the 3DMark: Time Spy (Graphics) benchmark (higher the score, the better)
Some games you can play on this laptop
|
Resolution: 1920 x 1080 (Full HD)
|
NORMAL
|
HIGH
|
VERY HIGH
|
MAX
|
|---|---|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 48 FPS PLAY VIDEO | 19 FPS PLAY VIDEO | - PLAY VIDEO | - PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
MIN
|
MED
|
MAX
|
|---|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 42 FPS PLAY VIDEO | 33 FPS PLAY VIDEO | 23 FPS PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
MIN
|
MAX
|
|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 537 FPS PLAY VIDEO | 50 FPS PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
LOW
|
MED
|
MAX
|
|---|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 117 FPS PLAY VIDEO | 79 FPS PLAY VIDEO | 39 FPS PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
VERY LOW
|
MED
|
MAX
|
|---|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 231 FPS PLAY VIDEO | 183 FPS PLAY VIDEO | 142 FPS PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
MIN
|
MED
|
ULTRA
|
|---|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 174 FPS PLAY VIDEO | 41 FPS PLAY VIDEO | 23 FPS PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
LOW
|
NORMAL
|
HIGH
|
MAX
|
|---|---|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 94 FPS PLAY VIDEO | 63 FPS PLAY VIDEO | 45 FPS PLAY VIDEO | 34 FPS PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
LOW
|
MED
|
HIGH
|
ULTRA
|
|---|---|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 37 FPS PLAY VIDEO | 28 FPS PLAY VIDEO | 23 FPS PLAY VIDEO | - PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
LOW
|
MED
|
HIGH
|
ULTRA
|
|---|---|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 33 FPS PLAY VIDEO | 25 FPS PLAY VIDEO | 22 FPS PLAY VIDEO | - PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
HIGH PERF
|
HIGH QLT
|
|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 97 FPS PLAY VIDEO | 43 FPS PLAY VIDEO |
