•  Date Published: 31 Aug 2021
  • Intel Core i5-1145G7
  • Intel Iris Xe Graphics G7 (80EU)
  • 15.6”, Full HD (1920 x 1080), IPS
  • 256GB SSD
  • 8GB DDR4, 3200 MHz
  • 1.79 kg (3.9 lbs)


  • Great upgradability
  • Good battery life
  • MicroSD card slot and a USB Type-C 3.2 (Gen. 2x2)
  • Optional fingerprint reader and IR face recognition


  • Uses PWM below 89 nits (our Health-Guard profile fixes that)
  • Not a very rigid structure
  • Covers only half of the colors in the sRGB gamut


CPU Performance #106in Top CPUs
  • Intel Core i7-1165G7 1.3%
  • AMD Ryzen 3 5300U 1.5%
  • Intel Core i5-1145G7
  • Intel Core i5-10400H 0.3%
  • Intel Core i5-9300H 0.7%
  • Intel Core i7-8705G 2.8%
GPU Performance #98in Top GPUs
  • NVIDIA GeForce MX350 (25W) 0.8%
  • NVIDIA Quadro P620 (4GB GDDR5) 0.9%
  • Intel Iris Xe Graphics G7 (80EU)
  • NVIDIA GeForce MX330 (4GB GDDR5, 25W) 2.9%
  • AMD Radeon RX Vega 7 (R4000,5000 35/45W) 2.9%
  • NVIDIA GeForce MX330 (2GB GDDR5, 25W) 2.7%
  • VNCT2-156DL02 (NCP0057)
  • Color accuracy  4.9  3.6
  • 256GB SSD
  • RAM
  • 8GB DDR4, 3200 MHz
  • OS
  • Windows 10 Pro
  • Body Material
  • Plastic / Polycarbonate
  • Dimensions
  • 361 x 240.9 x 18 mm (14.21" x 9.48" x 0.71")
  • Weight
  • 1.79 kg (3.9 lbs)
  • Ports and connectivity
  • 1x USB Type-A
  • 2.0
  • 1x USB Type-A
  • 3.2 Gen 1 (5 Gbps)
  • 1x USB Type-A
  • 3.2 Gen 1 (5 Gbps), Sleep and Charge
  • 1x USB Type-C
  • 3.2 Gen 2x2 (20 Gbps), Power Delivery (PD), DisplayPort
  • HDMI
  • 1.4a
  • Card Reader
  • microSD (SD/SDHC/SDXC)
  • Ethernet LAN
  • 10, 100, 1000 Mbit/s
  • Wi-Fi
  • 802.11ax
  • Bluetooth
  • 5.1
  • Audio jack
  • 3.5mm Combo Jack
  • Features
  • Web camera
  • HD
  • Microphone
  • Dual Array Microphone
  • Speakers
  • 2x 2W, Stereo Speakers
  • Optical drive
  • Security Lock slot
  • Wedge Lock Slot

More Dell Latitude 3520 configurations - 199 laptops


DISPLAY: 15.6-inch, 1920x1080, IPS

  • Name
  • VNCT2-156DL02 (NCP0057)
  • Diagonal
  • 15.6"
  • Pixel density
  • 141.21 ppi
  • Brightness
  • 330 cd/m2
  • sRGB
  • 55%
  • PWM frequency
  • 1050 Hz
  • Panel Type
  • IPS
  • Resolution
  • 1920x1080
  • Becomes "Retina" from
  • 24 inches (62 cm)
  • Contrast
  • 1500:1
  • dE Color Checker
  • 4.9 3.6
  • PWM Rating
  • 5.4: (undesirable)

Buy our profiles for VNCT2-156DL02 (NCP0057)

In addition to receiving efficient and health-friendly profiles, by buying LaptopMedia's products you also support the development of our labs, where we test devices in order to produce the most objective reviews possible.

Office Work

Office Work should be used mostly by users who spend most of the time looking at pieces of text, tables or just surfing. This profile aims to deliver better distinctness and clarity by keeping a flat gamma curve (2.20), native color temperature and perceptually accurate colors.

Design and Gaming

This profile is aimed at designers who work with colors professionally, and for games and movies as well. Design and Gaming takes display panels to their limits, making them as accurate as possible in the sRGB IEC61966-2-1 standard for Web and HDTV, at white point D65.


Health-Guard eliminates the harmful Pulse-Width Modulation (PWM) and reduces the negative Blue Light which affects our eyes and body. Since it’s custom tailored for every panel, it manages to keep the colors perceptually accurate. Health-Guard simulates paper so the pressure on the eyes is greatly reduced.

Get all 3 profiles with 33% discount

Dell Latitude 3520 in-depth review

Dell might be suffering the consequence of lack of innovation across its Inspiron lineup, but the Latitude sits ever so strong in the business market. This is mainly to the necessity of stability and security in the branch, and people see the Latitude brand as such. And what are the best-sellers in pretty much every segment of the market? Exactly - affordable devices. The Latitude 15 3520 is one of them, and its simplistic design, combined with Dell's security enhancements might attract a lot of customers. Especially since you can now find the laptop equipped with Tiger Lake-U processors. In terms of display options, it is a bit disappointing that Dell still offers a 768p TN panel as a default. It is strongly advisable that you stay away from it, and go for the IPS variant. We got t[...]

Read the full review

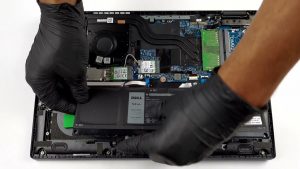

Disassembly, maintenance and upgrade options

Here, you get decent upgrade options and a choice of two battery packs. Check out all Dell Latitude 15 3520 prices and configurations in our Specs System or read more in our In-Depth review. 1. Remove the bottom plate There are 9 captive Phillips-head screws that you need to undo before you pry this laptop's bottom panel. After that, remove it from the chassis. 2. Battery Here, you get two battery options. There is a 3-cell 41Wh unit, as well as a 4-cell 54Wh one. 3. Мemory and storage In terms of memory, there are two SODIMM slots, which support up to 32GB of DDR4 RAM[...]

Read more
