•  Date Published: 29 Jun 2022
  • Intel Core i5-1245U
  • Intel Iris Xe Graphics G7 (80EU)
  • 14.0”, Full HD (1920 x 1080), IPS
  • 256GB SSD
  • 8GB DDR4
  • 1.36 kg (3 lbs)

Pros

  • Well-populated I/O
  • Up to 64 GB of RAM in dual-channel
  • Fingerprint reader embedded in the power button + optional IR face recognition
  • Wi-Fi 6, PCIe x4 Gen 4, Thunderbolt 4
  • No PWM (Innolux CYHFW-140HCA)
  • Comfortable keyboard with a backlight
  • Two days worth of battery

Cons

  • 53% sRGB coverage (Innolux CYHFW-140HCA)
  • Low clock speeds after 5 minutes of extreme workload

Specs

CPU Performance #63in Top CPUs
  • Intel Core i5-11400H 3.5%
  • Intel Core i7-1265U 3.8%
  • Intel Core i5-1245U
  • AMD Ryzen 7 PRO 4750U 1.4%
  • Intel Core i7-1250U 1.7%
  • Intel Core i7-1255U 1.4%
GPU Performance #96in Top GPUs
  • NVIDIA GeForce MX350 (25W) 0.8%
  • NVIDIA Quadro P620 (4GB GDDR5) 0.9%
  • Intel Iris Xe Graphics G7 (80EU)
  • NVIDIA GeForce MX330 (4GB GDDR5, 25W) 2.9%
  • AMD Radeon RX Vega 7 (R4000,5000 35/45W) 2.9%
  • NVIDIA GeForce MX330 (2GB GDDR5, 25W) 2.7%
  • Innolux CYHFW-140HCA (N140HCA-E5C, CMN14E7)
  • Color accuracy  6.0  3.6
  • HDD/SSD
  • 256GB SSD
  • M.2 Slot
  • 1x 2280 M.2 PCIe 4.0 x4  See photo
  • RAM
  • 8GB DDR4
  • OS
  • Windows 11 Pro
  • Body Material
  • Plastic / Polycarbonate, Aluminum, Carbon
  • Dimensions
  • 321.35 x 212 x 19.30 - 20.90 mm (12.65" x 8.35" x 0.76")
  • Weight
  • 1.36 kg (3 lbs)
  • Ports and connectivity
  • 1x USB Type-A
  • 3.2 Gen 1 (5 Gbps)
  • 1x USB Type-A
  • 3.2 Gen 1 (5 Gbps), Sleep and Charge
  • 2x USB Type-C
  • 4.0, Thunderbolt 4, Power Delivery (PD), DisplayPort
  • HDMI
  • 2.0
  • Card Reader
  • microSD (SD/SDHC/SDXC)
  • Ethernet LAN
  • 10, 100, 1000 Mbit/s
  • Wi-Fi
  • 802.11ax
  • Bluetooth
  • 5.2
  • Audio jack
  • 3.5mm Combo Jack
  • Features
  • Fingerprint reader
  • Web camera
  • HD / FHD
  • Backlit keyboard
  • Microphone
  • Dual Array Microphones
  • Speakers
  • 2x 2.5W Stereo Speakers
  • Optical drive
  • Security Lock slot
  • Wedge Lock

More Dell Latitude 5430 configurations - 13 laptops

#CommissionsEarned

DISPLAY: 14.0-inch, 1920x1080, IPS

  • Name
  • Innolux CYHFW-140HCA (N140HCA-E5C, CMN14E7)
  • Diagonal
  • 14.0"
  • Pixel density
  • 157.35 ppi
  • Brightness
  • 283 cd/m2
  • sRGB
  • 53%
  • PWM frequency
  • No PWM (Flicker-Free)
  • Panel Type
  • IPS
  • Resolution
  • 1920x1080
  • Becomes "Retina" from
  • 22 inches (56 cm)
  • Contrast
  • 1350:1
  • dE Color Checker
  • 6.0 3.6
  • PWM Rating
  • 10.0: (safe)

Buy our profiles for Innolux CYHFW-140HCA (N140HCA-E5C, CMN14E7)

In addition to receiving efficient and health-friendly profiles, by buying LaptopMedia's products you also support the development of our labs, where we test devices in order to produce the most objective reviews possible.

Office Work

Office Work should be used mostly by users who spend most of the time looking at pieces of text, tables or just surfing. This profile aims to deliver better distinctness and clarity by keeping a flat gamma curve (2.20), native color temperature and perceptually accurate colors.

Design and Gaming

This profile is aimed at designers who work with colors professionally, and for games and movies as well. Design and Gaming takes display panels to their limits, making them as accurate as possible in the sRGB IEC61966-2-1 standard for Web and HDTV, at white point D65.

Health-Guard

Health-Guard eliminates the harmful Pulse-Width Modulation (PWM) and reduces the negative Blue Light which affects our eyes and body. Since it’s custom tailored for every panel, it manages to keep the colors perceptually accurate. Health-Guard simulates paper so the pressure on the eyes is greatly reduced.

Get all 3 profiles with 33% discount

Dell Latitude 5430 in-depth review

Dell has been going on a positive route of updating and refreshing their laptops. The Latitude 14 5000 has not been spared, and we really hope that they managed to fix the heating issue. If it wasn't for that, we would have clearly recommended it (the Latitude 14 5420), because of its super-long battery life and generally stable runs. This year, the company swaps Tiger Lake for Alder Lake-U. Interestingly, like with the 15-inch model, Dell has retained the DDR4 memory support, which may be a good thing in the short term, mainly because of the lower price of DDR4 modules, as well as the insignificant difference, compared to DDR5 RAM, since the latter is in the first steps of its life cycle. By the way, Dell once again offers a laptop in 2022, that has a 768p TN panel as a base option[...]

Read the full review

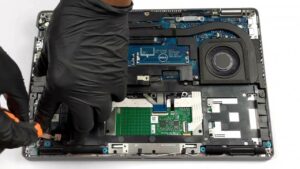

Disassembly, maintenance and upgrade options

This notebook is equipped with decent upgrade options. Interestingly, there are two battery options, the availability of which will likely depend on the region you are living in. Check out all Dell Latitude 14 5430 prices and configurations in our Specs System or read more in our In-Depth review. 1. Remove the bottom plate To open up this laptop, you need to undo 8 captive Phillips-head screws. Then, pry the bottom panel with a plastic tool, starting from the front two corners. 2. Battery Our unit is equipped with the larger 58Wh battery. It lasts for more than 13 hours of W[...]

Read more

CPU Performance: Intel Core i5-1245U

GPU Performance: Intel Iris Xe Graphics G7 (80EU)
