•  Date Published: 26 Jul 2022
  • Intel Core i5-1250P
  • Intel Iris Xe Graphics G7 (80EU)
  • 15.6”, Full HD (1920 x 1080), IPS
  • 256GB SSD
  • 16GB DDR4
  • 1.59 kg (3.5 lbs)

Pros

  • Wide I/O, which includes a MicroSD card reader and 2x Thunderbolt 4 ports
  • Two M.2 storage slots, one of which runs at 4.0 speeds + 2x RAM SODIMM slots
  • Fingerprint reader embedded in the power button + optional IR face recognition
  • Doesn't use PWM for brightness adjustment (BOE 1DW1M-NV15N4V (BOE0A86))
  • Comfortable keyboard with a backlight
  • Good battery life
  • Fantastic performance in photo editing

Cons

  • Covers only 53% of sRGB (BOE 1DW1M-NV15N4V (BOE0A86))
  • No 5G support and no spill-resistance

Specs

CPU Performance #85in Top CPUs
  • Apple M1 Pro (8-core) 2.4%
  • AMD Ryzen 5 4600U 2.9%
  • Intel Core i5-1250P
  • Apple M2 (8-core GPU) 0.2%
  • AMD Ryzen 5 4500U 1.0%
  • Intel Core i7-11390H 1.6%
GPU Performance #89in Top GPUs
  • NVIDIA Quadro P620 (4GB GDDR5) 0.9%
  • Intel Iris Xe Graphics G7 (96EU) 2.3%
  • Intel Iris Xe Graphics G7 (80EU)
  • AMD Radeon RX Vega 8 (R4000/5000, 15W) 2.9%
  • NVIDIA GeForce MX330 (4GB GDDR5, 25W) 2.9%
  • AMD Radeon RX Vega 7 (R4000,5000 35/45W) 2.9%
  • BOE 1DW1M-NV15N4V (BOE0A86)
  • Color accuracy  5.2  3.9
  • HDD/SSD
  • 256GB SSD
  • M.2 Slot
  • 1x 2280 M.2 PCIe 4.0 x4 + 1x 2280 M.2 PCIe 3.0 x4  See photo
  • RAM
  • 16GB DDR4
  • OS
  • Windows 10 Pro
  • Body Material
  • Plastic / Polycarbonate, Carbon
  • Dimensions
  • 357.80 x 233.30 x 20.77 - 22.15 mm (14.09" x 9.19" x 0.82")
  • Weight
  • 1.59 kg (3.5 lbs)
  • Ports and connectivity
  • 1x USB Type-A
  • 3.2 Gen 1 (5 Gbps)
  • 1x USB Type-A
  • 3.2 Gen 1 (5 Gbps), Sleep and Charge
  • 2x USB Type-C
  • 4.0, Thunderbolt 4, Power Delivery (PD), DisplayPort
  • HDMI
  • 2.0
  • Card Reader
  • microSD
  • Ethernet LAN
  • 10/100/1000 Mbit/s
  • Wi-Fi
  • 802.11ax
  • Bluetooth
  • 5.2
  • Audio jack
  • 3.5mm Combo Jack
  • Features
  • Web camera
  • HD/FHD
  • Microphone
  • Dual-Array Microphones
  • Speakers
  • 2x 2W Stereo Speakers
  • Optical drive
  • Security Lock slot

More Dell Latitude 5530 configurations - 14 laptops

#CommissionsEarned

DISPLAY: 15.6-inch, 1920x1080, IPS

  • Name
  • BOE 1DW1M-NV15N4V (BOE0A86)
  • Diagonal
  • 15.6"
  • Pixel density
  • 141.21 ppi
  • Brightness
  • 306 cd/m2
  • sRGB
  • 50%
  • PWM frequency
  • No PWM (Flicker-Free)
  • Panel Type
  • IPS
  • Resolution
  • 1920x1080
  • Becomes "Retina" from
  • 24 inches (62 cm)
  • Contrast
  • 1240:1
  • dE Color Checker
  • 5.2 3.9
  • PWM Rating
  • 10.0: (safe)

Buy our profiles for BOE 1DW1M-NV15N4V (BOE0A86)

In addition to receiving efficient and health-friendly profiles, by buying LaptopMedia's products you also support the development of our labs, where we test devices in order to produce the most objective reviews possible.

Office Work

Office Work should be used mostly by users who spend most of the time looking at pieces of text, tables or just surfing. This profile aims to deliver better distinctness and clarity by keeping a flat gamma curve (2.20), native color temperature and perceptually accurate colors.

Design and Gaming

This profile is aimed at designers who work with colors professionally, and for games and movies as well. Design and Gaming takes display panels to their limits, making them as accurate as possible in the sRGB IEC61966-2-1 standard for Web and HDTV, at white point D65.

Health-Guard

Health-Guard eliminates the harmful Pulse-Width Modulation (PWM) and reduces the negative Blue Light which affects our eyes and body. Since it’s custom tailored for every panel, it manages to keep the colors perceptually accurate. Health-Guard simulates paper so the pressure on the eyes is greatly reduced.

Get all 3 profiles with 33% discount

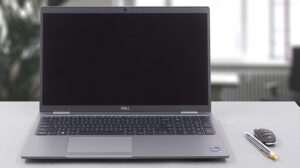

Dell Latitude 5530 in-depth review

Dell has been increasingly conscious about the environment with their latest business series notebooks. What the company did with the Latitude 15 5530 is to include 21% bioplastics, 30% recycled plastics, and 20% reclaimed carbon fiber for its lid. Furthermore, the packaging has been really reworked to be fully sustainable. But hey, sustainability is not the only thing that drives your business towards success. Having a good laptop helps too. This is why we are going to focus on the more technical aspect of the Latitude 15 5530. First and foremost, it is one of the first Dell laptops that come with the 12th Generation Intel CPUs (Alder Lake). Interestingly, there are a ton of customization options. They provide the option for both 15W and 28W processors, and you should choose the mo[...]

Read the full review

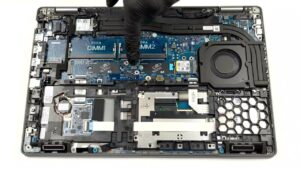

Disassembly, maintenance and upgrade options

Here, Alder Lake doesn't only bring higher performance, but also a Gen 4 PCIe x4 slot for storage. Check out all Dell Latitude 15 5530 prices and configurations in our Specs System or read more in our In-Depth review. 1. Remove the bottom plate To take this notebook apart, you need to undo 8 captive Phillips-head screws. Then, pry the bottom panel starting from the hinge gaps. It would be best to use a plastic tool. 2. Battery There are two battery options. A 41Wh and a 58Wh one. We got the bigger one, and it lasted us 11 hours of Web browsing, or 8 hours and 30 minutes of v[...]

Read more
