•  Date Published: 25 Oct 2021
  • Intel Core i5-1135G7
  • Intel Iris Xe Graphics G7 (80EU)
  • 15.6”, Full HD (1920 x 1080), IPS
  • 256GB SSD
  • 8GB DDR4, 3200 MHz
  • 1.65 kg (3.6 lbs)

Pros

  • Capable cooling and decent performance
  • Privacy shutter + Fingerprint reader
  • 2x Thunderbolt 4 + MicroSD card reader
  • No PWM (Innolux N156HCA-EAB (CMN15E7))
  • Abundance of ports
  • Decent upgrade options

Cons

  • Unsatisfactory speakers
  • 56% of sRGB coverage (Innolux N156HCA-EAB (CMN15E7))

Specs

CPU Performance #107in Top CPUs
  • Intel Core i7-1165G7 0.7%
  • AMD Ryzen 3 5300U 0.9%
  • Intel Core i5-1135G7
  • Intel Core i5-10300H 0.3%
  • Intel Core i5-1145G7 0.6%
  • Intel Core i5-10400H 0.9%
GPU Performance #100in Top GPUs
  • NVIDIA GeForce MX350 (25W) 2.8%
  • NVIDIA Quadro P620 (4GB GDDR5) 2.9%
  • Intel Iris Xe Graphics G7 (80EU)
  • AMD Radeon RX Vega 7 (R4000,5000 35/45W) 4.9%
  • NVIDIA GeForce MX330 (4GB GDDR5, 25W) 4.9%
  • NVIDIA GeForce MX330 (2GB GDDR5, 25W) 4.7%
  • Innolux N156HCA-EAB
  • Color accuracy  4.1  3.1
  • HDD/SSD
  • 256GB SSD
  • RAM
  • 8GB DDR4, 3200 MHz
  • OS
  • Windows 10 Home
  • Body Material
  • Plastic / Polycarbonate
  • Dimensions
  • 358.2 x 236.9 x 19.9 mm (14.10" x 9.33" x 0.78")
  • Weight
  • 1.65 kg (3.6 lbs)
  • Ports and connectivity
  • 1x USB Type-A
  • 3.2 Gen 1 (5 Gbps)
  • 1x USB Type-A
  • 3.2 Gen 1 (5 Gbps), Sleep and Charge
  • 2x USB Type-C
  • Thunderbolt 4, Power Delivery (PD), DisplayPort
  • HDMI
  • 2.0
  • Card Reader
  • MicroSD
  • Ethernet LAN
  • 10, 100, 1000 Mbit/s
  • Wi-Fi
  • 802.11ax
  • Bluetooth
  • 5.1
  • Audio jack
  • 3.5mm Combo Jack
  • Features
  • Fingerprint reader
  • Web camera
  • HD
  • Backlit keyboard
  • Microphone
  • Dual Microphone
  • Speakers
  • Stereo Speakers, DTS Sound
  • Optical drive
  • Security Lock slot

There are 50 laptops with the same specs, All brands (sorted by price)

#CommissionsEarned

DISPLAY: 15.6-inch, 1920x1080, IPS

  • Name
  • Innolux N156HCA-EAB
  • Diagonal
  • 15.6"
  • Pixel density
  • 141.21 ppi
  • Brightness
  • 210 cd/m2
  • sRGB
  • 55%%
  • PWM frequency
  • 26000 Hz
  • Panel Type
  • IPS
  • Resolution
  • 1920x1080
  • Becomes "Retina" from
  • 24 inches (62 cm)
  • Contrast
  • 1500:1
  • dE Color Checker
  • 4.1 3.1
  • PWM Rating
  • 9.8: (safe)

Buy our profiles for Innolux N156HCA-EAB

In addition to receiving efficient and health-friendly profiles, by buying LaptopMedia's products you also support the development of our labs, where we test devices in order to produce the most objective reviews possible.

Office Work

Office Work should be used mostly by users who spend most of the time looking at pieces of text, tables or just surfing. This profile aims to deliver better distinctness and clarity by keeping a flat gamma curve (2.20), native color temperature and perceptually accurate colors.

Design and Gaming

This profile is aimed at designers who work with colors professionally, and for games and movies as well. Design and Gaming takes display panels to their limits, making them as accurate as possible in the sRGB IEC61966-2-1 standard for Web and HDTV, at white point D65.

Health-Guard

Health-Guard eliminates the harmful Pulse-Width Modulation (PWM) and reduces the negative Blue Light which affects our eyes and body. Since it’s custom tailored for every panel, it manages to keep the colors perceptually accurate. Health-Guard simulates paper so the pressure on the eyes is greatly reduced.

Get all 3 profiles with 33% discount

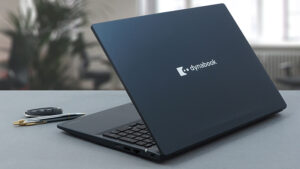

Dynabook Tecra A50-J in-depth review

Chances are high that you are not very familiar with the Dynabook brand. And this is to be expected, given how new the name is to the world. However, it acts as the moral and physical successor to the Toshiba brand in the laptop world, and they hope they can rebuild the long-lost trust in the platform. Ultimately, Dynabook is mostly invested in the business notebook world. With laptops like the Portege and the Tecra, we should see a worthy competition to the ThinkPads and Latitudes of the world. However, how does the company plan to do that? Well, firstly, the Tecra A50-J we have here today comes with a MIL-STD-810H certification for durability. Through the years, we have learned that this is not a guarantee for pristine build quality and rigid chassis, but it has to mean something, ri[...]

Read the full review

Disassembly, maintenance and upgrade options

This device is a good choice for business computing. Also, you have some options for upgrades down the line. Take a look! Check out all Dynabook Tecra A50-J prices and configurations in our Specs System or read more in our In-Depth review. 1. Remove the bottom plate This laptop's bottom panel is held in place by 9 Phillips-head screws. After you undo them, pry the panel with a plastic tool. Then, lift it away from the device. 2. Battery Inside, we see a 53Wh battery. It lasted us for 11 hours of Web browsing, or 8 hours of video playback. Interestingly, the internals look ex[...]

Read more
