•  Date Published: 27 Jul 2022
  • Intel Core i5-1235U
  • Intel Iris Xe Graphics G7 (80EU)
  • 14.0”, Full HD (1920 x 1080), IPS
  • 512GB SSD
  • 16GB DDR4
  • 1.59 kg (3.5 lbs)

Pros

  • Its keyboard is backlit, spill-resistant, and great for typing
  • Optional fingerprint reader and IR face recognition
  • Good contrast ratio and comfortable viewing angles (Innolux N140HCA-EAE)
  • Supports dual PCIe x4 SSDs, and some models feature a WiFi 6 card
  • Doesn't use PWM (Innolux N140HCA-EAE)
  • Charges via Thunderbolt 4
  • Great performance

Cons

  • Covers only 53% of sRGB (Innolux N140HCA-EAE)
  • Lacks an SD card reader

Specs

CPU Performance #70in Top CPUs
  • Intel Core i7-1250U 2.4%
  • AMD Ryzen 7 PRO 4750U 2.7%
  • Intel Core i5-1235U
  • AMD Ryzen 5 5500U 0.6%
  • AMD Ryzen 7 4700U 1.7%
  • AMD Ryzen 5 PRO 4650U 2.4%
GPU Performance #96in Top GPUs
  • NVIDIA GeForce MX350 (25W) 0.8%
  • NVIDIA Quadro P620 (4GB GDDR5) 0.9%
  • Intel Iris Xe Graphics G7 (80EU)
  • NVIDIA GeForce MX330 (4GB GDDR5, 25W) 2.9%
  • AMD Radeon RX Vega 7 (R4000,5000 35/45W) 2.9%
  • NVIDIA GeForce MX330 (2GB GDDR5, 25W) 2.7%
  • Innolux N140HCA-EAE
  • Color accuracy  7.5  3.6
  • HDD/SSD
  • 512GB SSD
  • M.2 Slot
  • 1x 2242 M.2 PCIe 4.0 x4 + 1x 2242 M.2 PCIe 3.0 x4  See photo
  • RAM
  • 16GB DDR4
  • OS
  • Windows 11 Home
  • Body Material
  • Plastic / Polycarbonate, Aluminum
  • Dimensions
  • 324 x 220.7 x 17.9 - 18.9 mm (12.76" x 8.69" x 0.70")
  • Weight
  • 1.59 kg (3.5 lbs)
  • Ports and connectivity
  • 1x USB Type-A
  • 2.0
  • 1x USB Type-A
  • 3.2 Gen 1 (5 Gbps), Sleep and Charge
  • 1x USB Type-C
  • 4.0, Thunderbolt 4, Power Delivery (PD), DisplayPort
  • HDMI
  • 2.0
  • Card Reader
  • Ethernet LAN
  • 10, 100, 1000 Mbit/s
  • Wi-Fi
  • 802.11ax
  • Bluetooth
  • 5.2
  • Audio jack
  • 3.5mm Combo Jack
  • Features
  • Fingerprint reader
  • Web camera
  • HD, FHD, IR
  • Backlit keyboard
  • Microphone
  • Dual Array Microphone, near-field
  • Speakers
  • 2x 2W Stereo Speakers, Dolby Atmos, Harman Speakers
  • Optical drive
  • Security Lock slot
  • Kensington Lock

DISPLAY: 14.0-inch, 1920x1080, IPS

  • Name
  • Innolux N140HCA-EAE
  • Diagonal
  • 14.0"
  • Pixel density
  • 157.35 ppi
  • Brightness
  • 298 cd/m2
  • sRGB
  • 53%
  • PWM frequency
  • No PWM (Flicker-Free)
  • Panel Type
  • IPS
  • Resolution
  • 1920x1080
  • Becomes "Retina" from
  • 22 inches (56 cm)
  • Contrast
  • 1620:1
  • dE Color Checker
  • 7.5 3.6
  • PWM Rating
  • 10.0: (safe)

Buy our profiles for Innolux N140HCA-EAE

In addition to receiving efficient and health-friendly profiles, by buying LaptopMedia's products you also support the development of our labs, where we test devices in order to produce the most objective reviews possible.

Office Work

Office Work should be used mostly by users who spend most of the time looking at pieces of text, tables or just surfing. This profile aims to deliver better distinctness and clarity by keeping a flat gamma curve (2.20), native color temperature and perceptually accurate colors.

Design and Gaming

This profile is aimed at designers who work with colors professionally, and for games and movies as well. Design and Gaming takes display panels to their limits, making them as accurate as possible in the sRGB IEC61966-2-1 standard for Web and HDTV, at white point D65.

Health-Guard

Health-Guard eliminates the harmful Pulse-Width Modulation (PWM) and reduces the negative Blue Light which affects our eyes and body. Since it’s custom tailored for every panel, it manages to keep the colors perceptually accurate. Health-Guard simulates paper so the pressure on the eyes is greatly reduced.

Get all 3 profiles with 33% discount

Lenovo ThinkPad E14 Gen 4 in-depth review

The ThinkPad E-series is Lenovo's cleanest business notebook. It has a no-nonsense design and has all of the necessary features you need - nothing too fancy, nor too complicated. Since mobile computing has gone a long way, whatever configuration you pick, you will receive a lot of power. There is the AMD option, which features last year's updated processors. Also, you can get the Intel model - the one we got. It can be equipped with either Alder Lake-U or Alder Lake-P CPUs, depending on the amount of raw horsepower you need. In addition to the decent performance, you can expect a great security package. On the surface, it has a Kensington lock slot, while the insides hide a TPM 2.0 security chip. It can be either a firmware or a dedicated one. We were almost too excited to see th[...]

Read the full review

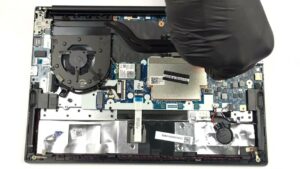

Disassembly, maintenance and upgrade options

The Lenovo ThinkPad E14 Gen 4 is a business notebook that offers essential upgradeability. Check out all Lenovo ThinkPad E14 Gen 4 prices and configurations in our Specs System, or read more in our In-Depth review. 1. Remove the bottom plate To access this notebook's internals, you need to undo 7 captive Phillips-head screws. Then, pry the bottom panel with a plastic tool. 2. Remove the battery Our configuration features a 57Wh battery pack. It lasts for nearly 10 hours of Web browsing, or about 8 hours of video playback. To remove it, undo the 5 Phillips-head screws that ho[...]

Read more

CPU Performance: Intel Core i5-1235U

GPU Performance: Intel Iris Xe Graphics G7 (80EU)
