•  Date Published: 24 Mar 2022
  • Intel Core i7-1255U
  • Intel Iris Xe Graphics G7 (96EU)
  • 15.6”, Full HD (1920 x 1080), IPS
  • 512GB SSD
  • 16GB DDR4, 3200 MHz
  • 1.70 kg (3.7 lbs)

Pros

  • MicroSD card reader
  • A backlit keyboard with big keycaps, and a large touchpad
  • Doesn't use PWM for brightness adjustment (AUO B156HAN02.1 (AUO21ED))
  • Has a good contrast ratio and comfortable viewing angles (AUO B156HAN02.1 (AUO21ED))
  • Sleek design with rigid structure
  • Great cooling

Cons

  • 54% sRGB coverage (AUO B156HAN02.1 (AUO21ED))
  • No Thunderbolt
  • Two out of three USB Type-As work at 2.0 speeds
  • Soldered memory

Specs

CPU Performance #68in Top CPUs
  • Intel Core i5-1245U 1.4%
  • AMD Ryzen 5 5625U 1.5%
  • Intel Core i7-1255U
  • Intel Core i7-10750H 1.8%
  • Intel Core i5-1235U 2.6%
  • AMD Ryzen 5 5500U 3.6%
GPU Performance #91in Top GPUs
  • NVIDIA Quadro T500 1.9%
  • NVIDIA GeForce MX450
  • Intel Iris Xe Graphics G7 (96EU)
  • NVIDIA Quadro P620 (4GB GDDR5) 3.2%
  • NVIDIA GeForce MX350 (25W) 3.1%
  • NVIDIA GeForce MX250 (25W) 4.6%
  • AUO B156HAN02.1
  • Color accuracy  4.4  3.7
  • HDD/SSD
  • 512GB SSD
  • M.2 Slot
  • 1x 2280 M.2 NVMe Gen 3 slot  See photo
  • RAM
  • 16GB DDR4, 3200 MHz
  • OS
  • Windows 11 Pro
  • Body Material
  • Plastic / Polycarbonate
  • Dimensions
  • 359 x 241 x 19.9 mm (14.13" x 9.49" x 0.78")
  • Weight
  • 1.70 kg (3.7 lbs)
  • Ports and connectivity
  • 2x USB Type-A
  • 2.0
  • 1x USB Type-A
  • 3.2 Gen 2 (10 Gbps)
  • 1x USB Type-C
  • 3.2 Gen 2 (10 Gbps), Power Delivery (PD)
  • HDMI
  • Card Reader
  • MicroSD
  • Ethernet LAN
  • Wi-Fi
  • 802.11ax
  • Bluetooth
  • 5.2
  • Audio jack
  • 3.5mm Combo Jack
  • Features
  • Fingerprint reader
  • Web camera
  • HD
  • Backlit keyboard
  • Microphone
  • Speakers
  • 2x 2W, Stereo Speakers
  • Optical drive

There are 50 laptops with the same specs, All brands (sorted by price)

#CommissionsEarned

More MSI Modern 15 configurations - 6 laptops

#CommissionsEarned

DISPLAY: 15.6-inch, 1920 x 1080, IPS

  • Name
  • AUO B156HAN02.1
  • Diagonal
  • 15.6"
  • Pixel density
  • 141.21 ppi
  • Brightness
  • 290 cd/m2
  • sRGB
  • 51%
  • PWM frequency
  • No PWM (Flicker-Free)
  • Panel Type
  • IPS
  • Resolution
  • 1920 x 1080
  • Becomes "Retina" from
  • 24 inches (62 cm)
  • Contrast
  • 1310:1
  • dE Color Checker
  • 4.4 3.7
  • PWM Rating
  • 10.0: (safe)

Buy our profiles for AUO B156HAN02.1

In addition to receiving efficient and health-friendly profiles, by buying LaptopMedia's products you also support the development of our labs, where we test devices in order to produce the most objective reviews possible.

Office Work

Office Work should be used mostly by users who spend most of the time looking at pieces of text, tables or just surfing. This profile aims to deliver better distinctness and clarity by keeping a flat gamma curve (2.20), native color temperature and perceptually accurate colors.

Design and Gaming

This profile is aimed at designers who work with colors professionally, and for games and movies as well. Design and Gaming takes display panels to their limits, making them as accurate as possible in the sRGB IEC61966-2-1 standard for Web and HDTV, at white point D65.

Health-Guard

Health-Guard eliminates the harmful Pulse-Width Modulation (PWM) and reduces the negative Blue Light which affects our eyes and body. Since it’s custom tailored for every panel, it manages to keep the colors perceptually accurate. Health-Guard simulates paper so the pressure on the eyes is greatly reduced.

Get all 3 profiles with 33% discount

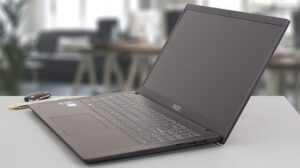

MSI Modern 15 in-depth review

MSI is really trying to promote the artists that help with the creation of their laptops. In this case, the company has paired with Lorraine Sorlet, who has absolutely nothing to do with the performance of the device. However, she has created some really "graceful" artwork to compliment your Modern 15 (B12M). What we, nerds, are more interested in though is numbers, scores, and results. Let's start with the first one - up to Core i7-1255U, which has 2 P-cores and 8 E-cores. This is one of Intel's latest ULV processors, which should make a big disturbance in the mobile force. As you can imagine, its name is quite self-explanatory - the laptop is aimed at young individuals, who want to express themselves, but still aim to be productive. Well, MSI has a more suitable series for product[...]

Read the full review

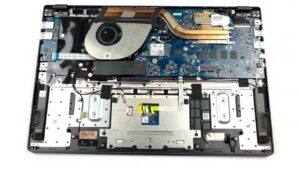

Disassembly, maintenance and upgrade options

The Modern 15 (B12M) is an affordable device with a decent amount of power, but an unimpressive amount of upgrade options. Check out all MSI Modern 15 (B12M) prices and configurations in our Specs System or read more in our In-Depth review. 1. Remove the bottom plate To take this laptop apart, you have to undo 11 Phillips-head screws. After that, pry the bottom panel and lift it away from the chassis. 2. Battery We got the smaller of two battery options, which has a capacity of 39.3Wh. It lasts more than 7 hours of Web browsing, or above 5 hours of video playback. To take it[...]

Read more
