ASUS ROG Zephyrus M16
- Intel Core i9-13900H
- NVIDIA GeForce RTX 4070 (Laptop, 140W)
- 16.0", WQXGA (2560 x 1600), 240 Hz, IPS + G-Sync
- 8000GB SSD
- 64GB DDR5
- 2.10 kg (4.6 lbs)
Pros
- Bright RGB
- Good cooling setup + liquid metal on CPU
- 98% DCI-P3 coverage (BOE NE160QDM-NM4 (BOE0B74))
- 240Hz panel has very quick pixel response times (BOE NE160QDM-NM4 (BOE0B74))
- HDR, G-Sync, and MUX switch on board
- Wi-Fi 6E and 2.5Gbit Ethernet support
- Great keyboard and touchpad
- 2x DDR5 SODIMM + 2x M.2 PCIe x4 slots
- Populous port selection
Cons
- Loud during gaming
- Keyboard gets pretty warm during gaming
Specs
- HDD/SSD
- 8TB SSD
- M.2 Slot
- 2x 2280 PCIe NVMe 4.0 x4 See photo
- RAM
- 64GB DDR5
- OS
- Windows 11 Pro
- Body Material
- Aluminum
- Dimensions
- 355 x 246 x 19.9/21.1 - 22.3/22.9 mm (13.98" x 9.69" x 0.78")
- Weight
- 2.10 kg (4.6 lbs)
- Ports and connectivity
- 2x USB Type-A
- 3.2 Gen 2 (10 Gbps)
- 1x USB Type-C
- 3.2 Gen 2 (10 Gbps), Power Delivery (PD), DisplayPort
- 1x USB Type-C
- Thunderbolt 4, Power Delivery (PD), DisplayPort
- HDMI
- 2.1
- Card Reader
- MicroSD (UHS-II)
- Ethernet LAN
- Wi-Fi
- 802.11ax
- Bluetooth
- 5.2
- Audio jack
- 3.5mm Combo Jack
- Features
- Fingerprint reader
- Web camera
- FHD IR Camera for Windows Hello
- Backlit keyboard
- Microphone
- 3x Microphone Array with Ai noise-canceling technology
- Speakers
- 2x 2W Tweeters + 2x 2W dual-force Woofers, Smart Amp, Dolby Atmos
- Optical drive
- Security Lock slot
- Kensington Lock
There are 3 laptops with the same specs, All brands (sorted by price)
More ASUS ROG Zephyrus M16 configurations - 64 laptops
DISPLAY: 16.0-inch, 2560x1600, IPS + G-Sync
- Name
- BOE NE160QDM-NM4 (BOE0B74)
- Diagonal
- 16.0"
- Pixel density
- 188.68 ppi
- Brightness
- 501 cd/m2
- sRGB
- 99%
- PWM frequency
- No PWM (Flicker-Free)
- Panel Type
- IPS
- Resolution
- 2560x1600
- Becomes "Retina" from
- 18 inches (46 cm)
- Contrast
- 1190:1
- dE Color Checker
- 2.6
- PWM Rating
- 10.0: (safe)
Buy our profiles for BOE NE160QDM-NM4 (BOE0B74)
In addition to receiving efficient and health-friendly profiles, by buying LaptopMedia's products you also support the development of our labs, where we test devices in order to produce the most objective reviews possible.

Office Work
Office Work should be used mostly by users who spend most of the time looking at pieces of text, tables or just surfing. This profile aims to deliver better distinctness and clarity by keeping a flat gamma curve (2.20), native color temperature and perceptually accurate colors.

Design and Gaming
This profile is aimed at designers who work with colors professionally, and for games and movies as well. Design and Gaming takes display panels to their limits, making them as accurate as possible in the sRGB IEC61966-2-1 standard for Web and HDTV, at white point D65.

Health-Guard
Health-Guard eliminates the harmful Pulse-Width Modulation (PWM) and reduces the negative Blue Light which affects our eyes and body. Since it’s custom tailored for every panel, it manages to keep the colors perceptually accurate. Health-Guard simulates paper so the pressure on the eyes is greatly reduced.
Get all 3 profiles with 33% discount
ASUS ROG Zephyrus M16 in-depth review
The ASUS ROG Zephyrus subbrand has always been about combining style with super-fast hardware. This is easier said than done since the CPUs and GPUs for mobile devices have gotten really hungry for power. That hunger translates to a lot of heat. And to get good thermal management, your laptop needs either a lot of heat pipes or a bulky vapor chamber. Regardless of what the manufacturer chooses, the sheer volume of copper will significantly increase the weight of the device. This is why building the ROG Zephyrus M16 (GU604, 2023) has inevitably been a huge challenge for ASUS engineers. Thankfully, this is far from a first-gen product, so the manufacturer clearly knows what it's doing. Moreover, the laptop features a liquid metal thermal compound on the CPU die. This helps for supe[...]
Read the full review

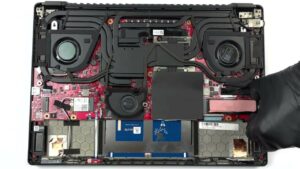

Disassembly, maintenance and upgrade options
This laptop's insides are mesmerizing. They comprise a labyrinth of heat pipes and are infused with a couple of SODIMM slots, and M.2 PCIe x4 storage slots. Check out all ASUS ROG Zephyrus M16 (GU604, 2023) prices and configurations in our Specs System, or read more in our In-Depth review. 1. Remove the bottom plate To get inside this device, you first need to remove a total of 7 rubber caps. Then, undo all 15 Phillips-head screws, and pry the bottom panel with a plastic tool. Start from the gap opened by the screw in the bottom left corner. 2. Remove the battery Here, we fi[...]
Read more
CPU Performance: Intel Core i9-13900H
Results are from the Cinebench 20 CPU test (the higher the score, the better)
GPU Performance: NVIDIA GeForce RTX 4070 (Laptop, 140W)
Results are from the 3DMark: Time Spy (Graphics) benchmark (higher the score, the better)
Some games you can play on this laptop

Resolution: 1920 x 1080 (Full HD)
|
MIN
|
MED
|
MAX
|
---|---|---|---|
NVIDIA GeForce RTX 4070 (Laptop, 140W) | 299 FPS PLAY VIDEO | 298 FPS PLAY VIDEO | 206 FPS PLAY VIDEO |

Resolution: 1920 x 1080 (Full HD)
|
NORMAL
|
HIGH
|
VERY HIGH
|
MAX
|
---|---|---|---|---|
NVIDIA GeForce RTX 4070 (Laptop, 140W) | 186 FPS PLAY VIDEO | 186 FPS PLAY VIDEO | 127 FPS PLAY VIDEO | 73 FPS PLAY VIDEO |

Resolution: 1920 x 1080 (Full HD)
|
LOW
|
MED
|
HIGH
|
EPIC
|
---|---|---|---|---|
NVIDIA GeForce RTX 4070 (Laptop, 140W) | 258 FPS PLAY VIDEO | 168 FPS PLAY VIDEO | 131 FPS PLAY VIDEO | 80 FPS PLAY VIDEO |

Resolution: 1920 x 1080 (Full HD)
|
MIN
|
MED
|
HIGH
|
ULTRA
|
---|---|---|---|---|
NVIDIA GeForce RTX 4070 (Laptop, 140W) | 161 FPS PLAY VIDEO | 112 FPS PLAY VIDEO | 63 FPS PLAY VIDEO | 33 FPS PLAY VIDEO |

Resolution: 1920 x 1080 (Full HD)
|
LOW
|
MED
|
HIGH
|
ULTRA
|
---|---|---|---|---|
NVIDIA GeForce RTX 4070 (Laptop, 140W) | 193 FPS PLAY VIDEO | 157 FPS PLAY VIDEO | 119 FPS PLAY VIDEO | 99 FPS PLAY VIDEO |

Resolution: 1920 x 1080 (Full HD)
|
MIN
|
MAX
|
---|---|---|
NVIDIA GeForce RTX 4070 (Laptop, 140W) | 3304 FPS PLAY VIDEO | 205 FPS PLAY VIDEO |

Resolution: 1920 x 1080 (Full HD)
|
LOW
|
MED
|
MAX
|
---|---|---|---|
NVIDIA GeForce RTX 4070 (Laptop, 140W) | 745 FPS PLAY VIDEO | 671 FPS PLAY VIDEO | 483 FPS PLAY VIDEO |

Resolution: 1920 x 1080 (Full HD)
|
MIN
|
MED
|
ULTRA
|
---|---|---|---|
NVIDIA GeForce RTX 4070 (Laptop, 140W) | 389 FPS PLAY VIDEO | 515 FPS PLAY VIDEO | 265 FPS PLAY VIDEO |

Resolution: 1920 x 1080 (Full HD)
|
VERY LOW
|
MED
|
MAX
|
---|---|---|---|
NVIDIA GeForce RTX 4070 (Laptop, 140W) | 757 FPS PLAY VIDEO | 692 FPS PLAY VIDEO | 608 FPS PLAY VIDEO |

Resolution: 1920 x 1080 (Full HD)
|
LOW
|
NORMAL
|
HIGH
|
MAX
|
---|---|---|---|---|
NVIDIA GeForce RTX 4070 (Laptop, 140W) | 213 FPS PLAY VIDEO | 182 FPS PLAY VIDEO | 178 FPS PLAY VIDEO | 167 FPS PLAY VIDEO |
