ASUS K550JX review – a substitute for the budget-oriented gaming notebook GL552JX

Asus-K550JX4_1And yet another budget notebook that’s aimed for gaming was in our lab – ASUS K550JX. At first glance of the specs sheet, it can easily be mistaken with the old version of GL552, which we reviewed a few months back. But besides the CPU and GPU, from design to hardware, both notebooks are totally different. Of course, with a price difference of €100, the K500JX compromises in screen quality and keyboard backlight., but the gap should have been filled after the GL552 became more expensive with better hardware.

However, we are not here to talk about the difference between the old GL552 and the K550JX but to see if the machine can handle more serious gaming. Despite the machine not being part of the ROG (Republic of Gamers) lineup, the GPU (GeForce 950M) and CPU (Intel Core i7-4720HQ) paired with 12GB DDR3 RAM suggest otherwise. There’s a little red pattern on the back and on the interior of the notebook hinting the ROG inheritance. At this price the offering is lucrative, but what about the display quality? Let’s find out.

If you are interested in the availability of the notebook, follow this link: http://amzn.to/1H4zfxH

Contents


Retail package

The package doesn’t offer anything out of the ordinary besides the usual user manuals, DVD with drivers, the AC adapter, and charging cable.


IMG_5270

IMG_5348

Design and construction

As a notebook at this price range with relatively powerful hardware, there isn’t much to be expected in terms of build quality. We are somewhat left with mixed feelings about the construction and design.


IMG_5290

IMG_5295

The lid is made of glossy plastic with ASUS’ logo in the middle and while the better part is in black, there are little red stripes and patterns on the back. We definitely liked those and kind of reminds us of the same pattern used for ASUS GL552JX’ chassis. Applying pressure on the back causes big ripples on the screen, so leaving heavy objects on the lid isn’t advisable. On the other side of the lid, you will find the 15.6-inch screen with ASUS’ logo at the bottom. Bezels are relatively thin and the top one houses the built-in webcam.

The bottom also kind of resembles the GL552 using the same hard plastic cover and small service cover that hides the most common upgrade options like RAM and 2.5-inch drive. The rest of the bottom side includes extra vents for more airflow that can be used with an additional cooling pad.


IMG_5332

IMG_5337

IMG_5341

IMG_5323

As we go around the sides, which are quite thin, we find all the usual ports and connectors. The left side accommodates the main vent for dispersing the heat, DC charging port, VGA, HDMI, RJ-45, 3.5 mm audio jack and two USB 3.0 ports. This means that the most commonly used ports are placed on the left and this will surely help using an external mouse in small workspaces better. As for the right side, it’s pretty clean – only one USB 2.0 port and the optical drive.


IMG_5282

IMG_5346

Opening the lid reveals the interior that will surely make you think of a ROG notebook. The same red stripes and patterns are placed on the plastic surface around the keyboard, the keyboard itself is in red, but there’s no LED backlight. Yes, most of the users type without looking at it, but the one time you will need to find a specific “Fn” key or the volume buttons will be a hassle. Some other variants on the market do include LED keyboard backlight and the same would have been appreciated here. We are not sure if this notebook is aimed for multimedia or gaming, but in both cases two important factors are missing – IPS LCD screen and LED keyboard backlight. Still, for the price point we can’t be too picky.

IMG_5318


IMG_5320

IMG_5319

Going back to the keyboard – keys feel okay with enough travel and good tactile feedback, but nothing too special. The touchpad is mostly good for the price of the K550JX – it’s responsive, accurate, but a bit stiff. Clicking is a challenge at times so bigger pressure has to be applied for the trackpad to register a mouse click. At least it doesn’t wobble as the one on the old version of GL552.


IMG_5297

IMG_5307

IMG_5289

IMG_5286

While the design is appealing, the keyboard is comfortable, the sides are relatively thin and the pattern on the back looks cool, there are some things that cannot be overlooked – the glossy finish is a fingerprint magnet (the interior as well), doesn’t feel sturdy enough and the plastic used for the lid and interior bends like crazy. That’s the compromise you have to make for a decent hardware that’s capable of running some of the latest games.

Display and sound

ASUS K550JX uses a Full HD TN panel with model number N156HGE-EAB manufactured by INNOLUX. It also has anti-glare hard coating (3H) in a 15.6-inch diagonal size and 16:9 aspect ratio. With a resolution of 1920 x 1080, the panel has a pixel density of 141 ppi and pixel pitch of 0.18 x 0.18 mm. It can be considered as “Retina” if viewed from a distance equal or greater than 61 cm.

Micr-ASUS K550

Due to the TN panel, K550’s display has poor viewing angles as you can see from the image below that represents a 45-degree incline.
Angles-ASUS K550

The maximum recorded brightness is 214 cd/m2 with a deviation of only 8% while the average color temperature on the surface of the screen is 7190K – daylight type of light, colder than the optimal one of 6500K(D65), but still close enough. No unacceptable deviations.

BefMax-ASUS K550

Color reproduction

To make sure we are on the same page, we would like to give you a little introduction of the sRGB color gamut and the Adobe RGB. Starting with the CIE 1976 Uniform Chromaticity Diagram that represents the visible specter of colors by the human eye giving you a better perception of the color gamut coverage and the color accuracy. Inside the black triangle, you will see the standard color gamut (sRGB) that has been used by millions of people in HDTV and the Web. As for the Adobe RGB, this is used by professional cameras, monitors and etc. used for printing. Basically, colors inside the black triangle are used by everyone and this is the essential part of the color quality and color accuracy.

The yellow triangle represents the color gamut coverage that the display has and it’s only 50% sRGB in this case.

GAMUT-ASUS K550

Below you will see practically the same image, but we’ve adjusted the screen brightness to 140 cd/m2. Color circles represent the reference colors and white circles being the result. You can see main and additional colors with 100% and 50% saturation inside the sRGB gamut.

Colors-ASUS K550

We’ve set the display at 140 cd/m2 brightness and color temperature to 6500K.

Bef64-ASUS K550

We used X-Rite i1Display Pro for profiling.

xRite-ASUS K550

Below you can see the results from the accuracy color checker with 24 commonly used colors like light and dark human skin, blue sky, green grass, orange etc. After profiling the color accuracy, average DeltaE 2000 = 1.69, good result, but the contrast ratio fell from 350:1 to 170:1 after calibration. Both results aren’t good at all.

Result-ASUS K550

REPORT-ASUS K550

On the image below are another batch of colors we’ve tested.
ColorCheker-ASUS K550

Pulse-width modulation (PWM, Screen flickering)

On contrary to the previously mentioned results, the display passed our PWM test with flying colors. We didn’t record any screen flickering across all brightness levels. The lowest frequency of the emitted we were able to detect was 26 kHz and it’s present only at the lowest brightness level, which is practically unusable. Still, even 26 kHz is considered to be really high and will not cause eye fatigue or headaches.

PWM-ASUS K550

Conclusion

While some of the values from the sRGB color gamut coverage, contrast ratio, maximum brightness and the viewing angles aren’t the best we’ve seen, there are some properties that are worth considering. Firstly, the display offers Full HD resolution, relatively accurate color reproduction after calibration and there’s no PWM across all brightness levels. The screen would be useful to users that don’t need accurate color reproduction for design-related tasks, but will suit well for gaming and web browsing.

Screen comparison

If we assume a distance of 58cm (~23in) between the human eye and the notebook monitor, then normal (20/20) vision would require a pixel density of at least 150ppi in order to interpret an image as perfectly detailed.

Laptop Results Result
difference
Price Price
difference
ASUS K550JX 15.6-inch, INNOLUX, 1920 x 1080 pixels141.21
ASUS GL552JX 15.6-inch, Samsung 156HL01-102., 1920 x 1080 pixels141.21
Acer Aspire V15 (V3-574G) 15.6-inch, LG LP156WF4-SPL1, 1920 x 1080 pixels141.21
Acer Aspire E5-572G 15.6-inch, Acer, 1366 x 768 pixels100-29.18%
Toshiba Satellite L50-C 15.6-inch, LG Display, 1920 x 1080 pixels141.21
Acer Aspire V15 Nitro 15.6-inch, LG, 1920 x 1080 pixels141.21

Higher panel brightness is of key importance for visual comfort when working outside or in a brightly lit room.

Laptop Results Result
difference
Price Price
difference
ASUS K550JX 15.6-inch, INNOLUX, 1920 x 1080 pixels214
ASUS GL552JX 15.6-inch, Samsung 156HL01-102., 1920 x 1080 pixels280+30.84%
Acer Aspire V15 (V3-574G) 15.6-inch, LG LP156WF4-SPL1, 1920 x 1080 pixels240+12.15%
Acer Aspire E5-572G 15.6-inch, Acer, 1366 x 768 pixels198-7.48%
Toshiba Satellite L50-C 15.6-inch, LG Display, 1920 x 1080 pixels263+22.9%
Acer Aspire V15 Nitro 15.6-inch, LG, 1920 x 1080 pixels331+54.67%

Delta E is a CIE measurement unit of color difference. Higher values indicate that the display produces less accurate colors. (lower results are desirable).

Laptop Results Result
difference
Price Price
difference
ASUS K550JX 15.6-inch, INNOLUX, 1920 x 1080 pixels1.69
ASUS GL552JX 15.6-inch, Samsung 156HL01-102., 1920 x 1080 pixels3.92+131.95%
Acer Aspire V15 (V3-574G) 15.6-inch, LG LP156WF4-SPL1, 1920 x 1080 pixels0.90-46.75%
Acer Aspire E5-572G 15.6-inch, Acer, 1366 x 768 pixels3.54+109.47%
Toshiba Satellite L50-C 15.6-inch, LG Display, 1920 x 1080 pixels5.84+245.56%
Acer Aspire V15 Nitro 15.6-inch, LG, 1920 x 1080 pixels2.85+68.64%

The sRGB color gamut, introduced as a standard for the Web, shows the percentage of colors used on the Web that can be displayed on the screen of the device being tested (higher values are better).

Laptop Results Result
difference
Price Price
difference
ASUS K550JX 15.6-inch, INNOLUX, 1920 x 1080 pixels50
ASUS GL552JX 15.6-inch, Samsung 156HL01-102., 1920 x 1080 pixels93+86%
Acer Aspire V15 (V3-574G) 15.6-inch, LG LP156WF4-SPL1, 1920 x 1080 pixels64+28%
Acer Aspire E5-572G 15.6-inch, Acer, 1366 x 768 pixels59+18%
Toshiba Satellite L50-C 15.6-inch, LG Display, 1920 x 1080 pixels91+82%
Acer Aspire V15 Nitro 15.6-inch, LG, 1920 x 1080 pixels91+82%

Buy our profiles

[edd_item edd_id_1=’71731′ edd_id_2=’71734′ edd_id_3=’71737′ edd_id_4=’71740′]

Sound

The sound quality is overall good at high and mid frequencies, but it’s not as satisfying at lower frequencies.

Sound-ASUS K550

Specs sheet

The specs sheet provided below is for the model used for the writing of this review. Hardware specification may vary depending on your region.

CPU Intel Core i7-4720HQ (4-core, 2.60 – 3.60 Ghz, 6MB cache)
RAM 12GB (1x 4096MB + 1x 8192MB) – DDR3, 1600Mhz
GPU NVIDIA GeForce 950M (4GB DDR3)
HDD/SSD 1TB HDD (5400 rpm)
Display 15.6-inch (39.62 cm.) – 1920×1080 (Full HD), matte
Optical Drive Double-layer DVD
Connectivity LAN 10/100/1000 Mbps, Wi-Fi 802.11ac, Bluetooth 4.0
Other features
  • 1x USB 2.0
  • 2x USB 3.0
  • built-in webcam
  • built-in microphone
  • 3.5 mm audio jack
  • built-in loudspeakers Sonic Master
  • RJ-45 LAN
  • VGA Port (D-Sub)
  • HDMI
  • SD card reader
Battery 4-cell, 37Wh, 2600 mAh
Thickness 24.8 mm – 31.7 mm (0.98″ – 1.25″)
Weight 2.3 kg (5.07 lbs)


ASUS K550JX configurations


Software

For testing purposes, we used Windows 10 (64-bit) and if your notebook didn’t come with pre-installed OS, you can find all the needed drivers here: http://www.asus.com/supportonly/K550JX/HelpDesk_Download/

Battery

The results we got from our battery tests are somehow good for this price range and available hardware. With the same CPU and GPU as the GL552, but with more efficient TN panel, the K550JX got a tad better readings in our tests, despite the lower battery capacity, which, in this case, is 4-cell and rated at 37Wh (2600 mAh). All tests were performed under the same conditions – Wi-Fi turned on, screen brightness set to 120 cd/m2 and power saver mode is on.

Web browsing

In order to simulate real-life conditions, we used our own script for automatic web browsing through over 70 websites.
net

Better than average – 253 minutes (4 hours and 13 minutes).

Video playback

For every test like this, we use the same video in HD.

movie

Slightly lower result here, but still acceptable – 211 minutes (3 hours and 31 minutes).

Gaming

For accurate simulation, we used the Metro Last Light benchmark running on loop with graphic settings set to minimum.

game

We got only 50 minutes on this one, but it’s quite normal given the price range, battery capacity, and the power-hungry hardware. It’s quite unlikely to start a gaming session away from the power source, though.

CPU

Intel_Core_i7_logoAlthough Intel Core i7-4720HQ debuts in Q1 of 2015, this high-end processor is part of the Haswell family, since the Broadwell generation represents only energy-efficient “U” series chips. The Core i7-4720HQ is a direct successor of the i7-4710HQ which is commonly used in gaming laptops due to its higher clock speeds and high power consumption for more raw performance boost. As usual, the Core i7-4720HQ uses the so-called HyperThreading technology, allowing the CPU to emulate one virtual core for each physical one, thus running 8 threads at the same time with only 4 physical cores. The CPU has a base frequency of 2.6GHz and Turbo Boost up to 3.4GHz for 4 active cores, 3.5GHz for two active cores and 3.6GHz for one active core. This makes the Core i7-4720HQ faster than the Core i7-4710HQ with only 100MHz.

The CPU is designed with 22nm manufacturing process (since it’s part of the Haswell generation). The cache levels are high and are as follows: 256KB at level 1, 1024KB at level 2, 6144KB at level 3. The maximum operating temperature is 100°C and as for the maximum TDP – 47W and that includes the memory controller, VRMs, and integrated graphics. Speaking of which, the Core i7-4720HQ accommodates Intel HD Graphics 4600 with 20 EU (Execution Units) clocked at 400MHz and can go up to 1200MHz. The maximum supported memory of the chip is 32GB DDR3L 1333/1600 with two memory channels. Other notable features are HyperThreading, AVX, AVX2, Quick Sync, Virtualization, AES-NI.

You can browse through our top CPUs ranking: http://laptopmedia.com/top-laptop-cpu-ranking/

Here you will find other useful information and every notebook we’ve tested with this processor: http://laptopmedia.com/processor/intel-core-i7-4720hq/

Fritz

Fritz is a chess benchmark which tests the computing capabilities of the CPU with various chess moves. The Intel Core i7-4720HQ managed to get 13.025 million moves per second. For comparison, one of the most powerful PCs, Deep(er) Blue, was able to squeeze out 200 million moves per second. In 1997 Deep(er) Blue even beat the famous Garry Kasparov with 3.5 to 2.5.

GPU

geforce-gtx-950m-3qtrThe GeForce GTX 950M is a direct successor to last year’s GTX 850M and it’s placed in the upper-mid range class. It is commonly used as a multimedia GPU and light gaming as its properties can handle some more demanding applications. The GPU core is the GM107, similar to most Maxwell NVIDIA graphics card and it’s clocked at 914MHz and can go up to 1124MHz. It has 2GB DDR3 memory and the effective clock speed of the memory is 2000MHz, while there are other variants of the GPU with GDDR5 memory.

However, the memory width is 128 bit with 16 ROPs, 40 texture units and 640 CUDA cores (or shading units). It als features increased L2 cache size, which is now 2MB. Supports features like Battery Boost, GameStream, ShadowPlay, GPU Boost 2.0, Optimus, PhysX, CUDA, SLI and GeForce Experience.

You can browse through our top GPUs ranking: http://laptopmedia.com/top-laptop-graphics-ranking/

Here you will find other useful information and every notebook we’ve tested with this GPU: http://laptopmedia.com/video-card/nvidia-geforce-gtx-950m-2gb-ddr3/


Gaming tests

tomb-raider-2013-wallpaper1

Tomb Raider (1080p, Low) Tomb Raider (1080p, Medium) Tomb Raider (1080p, Max)
111 fps 39 fps 22 fps

f1-2015-game

F1 2015 (1080p, Low) F1 2015 (1080p, Medium) F1 2015 (1080p, Max)
45 fps 34 fps 25 fps

thief_4_wallpaper_by_christian2506-d5x4ppb1

Thief (1080p, Low) Thief (1080p, Medium) Thief (1080p, Max)
47 fps 35 fps 19 fps

gta-5-cover

GTA 5 (1080p, Low) GTA 5 (1080p, Medium) GTA 5 (1080p, Max)
83 fps 28 fps 13 fps

Temperatures

This is an important part of the review where we check the performance of the cooling system and the overall stability of the notebook under heavy load and in the long run. However, 100% CPU and GPU usage are virtually impossible under normal exploitation by the general user.

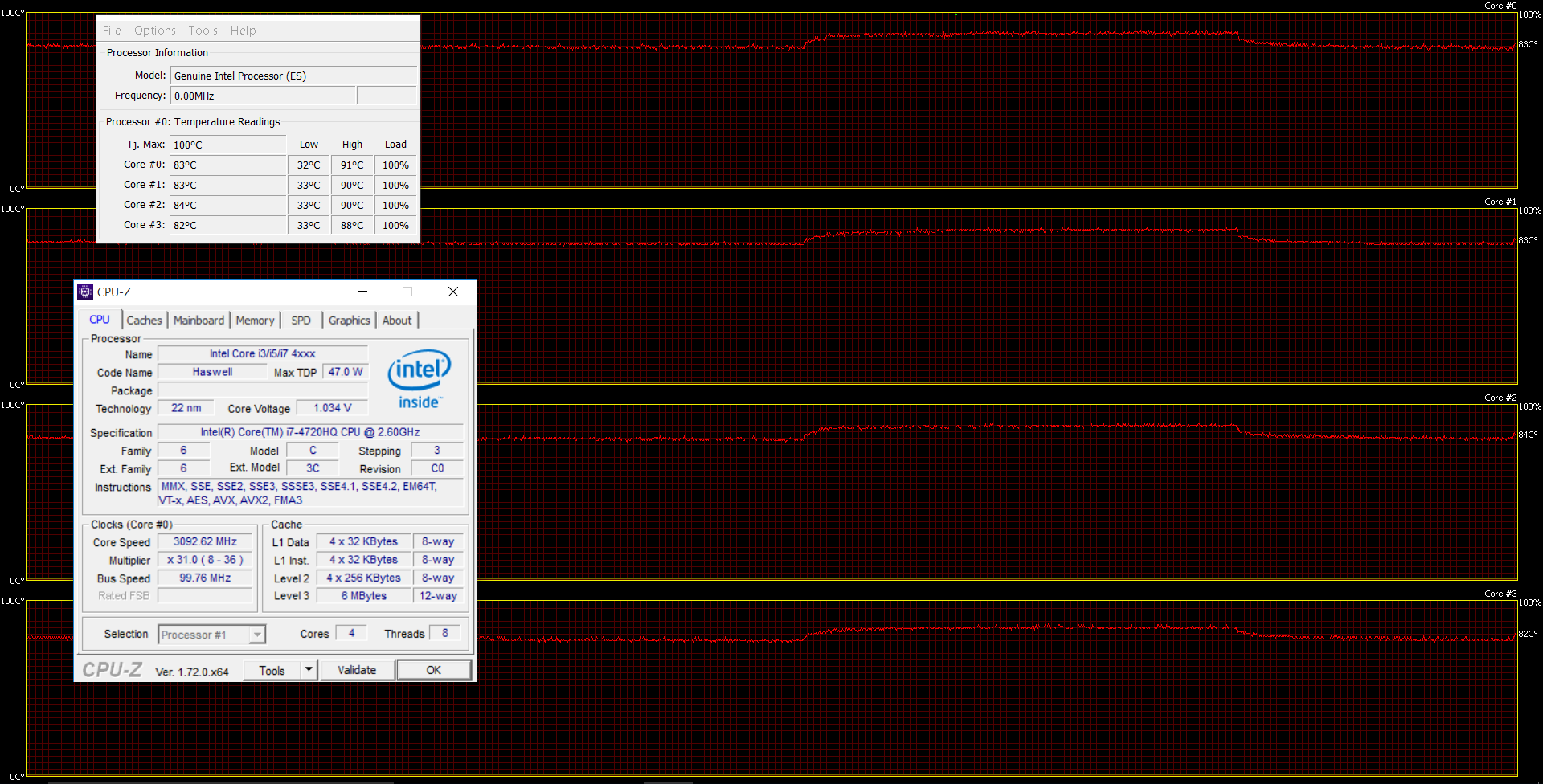

We start off with 100% CPU load for about an hour and the readings we got from the first part of the test look promising. The CPU ran at around 83 °C after cooling down from 91 °C and maintained frequency above the base one – 3.1 GHz. This means that no throttling occurs under heavy load and the fans do their job just fine.

cpu k550

After one hour, we turned on the GPU stress test alongside the first one and things took a drastic turn. The CPU started throttling not long after the GPU started working full time and there were constant spikes between 800 MHz and near 2.5 GHz, caused by the high inner temperatures. That’s why on the graph below shows lower CPU temperatures – it’s because the CPU’s performance has dropped in favor of the GPU. Despite the CPU throttling, we didn’t see any problem with the GPU and overheating whatsoever.

gpu k550

Here’s how the interior looks during heavy load and as you can see temperatures didn’t exceed 40 °C, with this being a good result. You won’t feel any excessive heat on the surface except for the middle part of the keyboard, but still the heat is bearable, but most importantly – you won’t feel discomfort.

temperatures-bottom

Verdict

Even if the K550JX isn’t part of the ROG family, it sure does serve as a good replacement of the previous generation GL552JX. It has powerful hardware for the asking price little more than €800 but lacks the cool IPS panel that the GL552JX offered (or still offers if you can find at any retailer). The GL552JX offered IPS panel for almost exactly the same price as the K500JX sells now, so this can be considered as a major drawback. The presented panel here has low maximum brightness, low contrast ratio, not enough sRGB color gamut coverage and poor viewing angles, yet we recorded no screen flickering across all brightness levels, which is a nice addition that’s rarely seen at this price point. But it’s actually your only option if you don’t want to opt for the significantly more expensive GL552VW with GTX 960M and Core i7-6700HQ.

Other than that, the notebook offers fairly good build quality at this price range with little setbacks, powerful hardware capable of running some of the latest games, relatively durable battery, and nice keyboard with responsive touchpad, with the latter being a little on the stiff side when using mouse buttons, though. Also, the keyboard doesn’t offer LED backlight and may cause some inconvenience when playing or working in a poorly lit room. We want again to stress that the GL552JX offered LED keyboard backlight, yet worse touchpad quality. Yet, the notebook will serve as a perfect solution for software engineers, for example, due to the powerful Core i7-4720HQ CPU and 12GB of RAM, not to mention the flicker-free display that won’t cause eye fatigue or headaches during long working sessions. The latter might be a deal-breaker for some. So at the end of the day, you have to give up some perks like a good IPS panel and build quality for a more powerful hardware, but if you are planning on using the machine with an external display most of the time – go for it. The K550JX is a great performer in the mid-class range.

If you are interested in the availability of the notebook, follow this link: http://amzn.to/1H4zfxH

Pros

  • The keyboard seems more than fine (despite the absence of LED backlight)
  • Responsive touchpad, but with a bit stiff right and left mouse buttons
  • No PWM across all brightness levels
  • Pretty powerful hardware, that’s suitable even for gaming, at a decent price
  • The cooling system provides the much-needed comfort to the user during heavy load


Cons

  • The panel used for the display doesn’t provide the bare minimum for a notebook at this price range
  • Small inconsistencies with the build quality and the whole surface attracts fingerprints and smudges
  • No keyboard LED backlight
