ASUS ROG Zephyrus GX501VI review – a gaming ultrabook with a desktop-like performance?

There has been a lot of buzz around the new NVIDIA Max-Q design and there’s a big reason why. NVIDIA’s new “fancy technology” finally allows implementing a powerful GPU inside a lean and portable chassis. And so the ASUS ROG Zephyrus notebook is one of the first to receive the GTX 1080 with Max-Q design resulting in really small trade-offs in performance and decent thermals under load. But in order to achieve that, ASUS used an unusual design similar to the Acer Predator Triton 700.

Sounds too good to be true, doesn’t it? Well, with Intel Core i7-7700HQ and a GeForce GTX 1080 (Max-Q) under the hood, the Zephyrus is able to run all of the latest games at high to maximum graphics settings without a sweat. When you add the 120Hz 15.6-inch IPS display and a speedy M.2 PCIe NVMe SSD for buttery smooth gaming and working experience, it’s not hard to guess the price of this thing. Starting at around $2 700 for the GTX 1080 you wouldn’t expect anything less than stellar performance in all aspects? But is it so?

You can find the available configurations here: http://amzn.to/2hJCLMT

Contents


Retail package

The Zephyrus comes in a generous package with plenty of useful accessories including a screwdriver for easier disassembly of the notebook, although this is quite a hassle and a USB-A to RJ-45 adapter for more stable wired connection during gaming. There’s also a silicone palm rest extension for more comfortable work and a ROG-branded gaming mouse, which in our opinion is probably inferior to any other gaming mouse you would use for the laptop while gaming. If you are willing to spend so much money on such laptop, you probably already have nice gaming peripherals.


Design and construction

As expected from a high-end gaming laptop, the whole design, build and feel exude quality. Aluminum is the main order of the day with a few exceptions like the screen bezels, which are made of plastic. And measuring at just 17.9 mm in height and weighing just 2.25 kg, this is by far the most portable 15-inch – probably the most portable of them all – gaming laptop with a GTX 1080 stuck inside.

Starting with the lid, it’s really hard to tell if this is a gaming laptop or not. Only the ROG logo attracts attention but retains the overall simplistic and clean appearance. The backplate is made of sturdy brushed aluminum piece and as you can see from the photos above, the direction of the brush changes as you reach the middle section. We are really impressed by the design concept and the overall rigidity – it’s fairly resistant to torsion and pressure considering the thickness of the lid, of course. The hinges provide excellent stability and stealthy linear travel from the very beginning. Opening the machine with just one hand is possible.

Along with the interesting design choices ASUS have made, the bottom really takes the cake here. When opening the notebook, the hinges push the bottom place and lift up the notebook a little. This gives the hardware some extra breathing room to compensate for the extremely thin chassis while giving it a pleasant aesthetic appearance. However, the lifting plate is made of plastic and it’s a little too flexible. Still, this doesn’t really make any difference in practice so you shouldn’t worry about that.

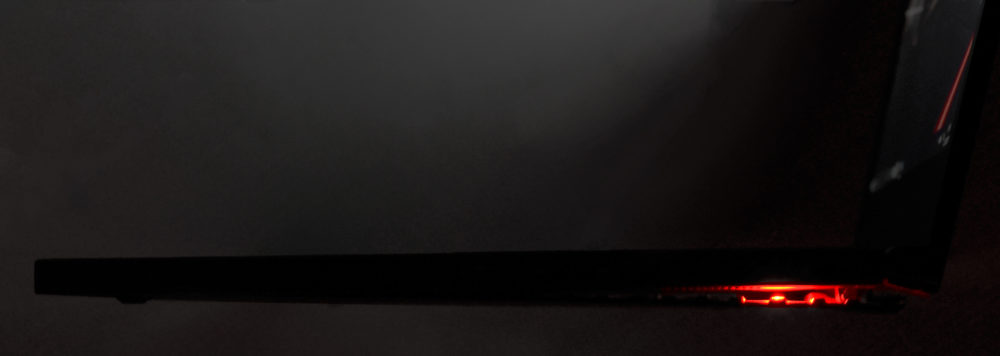

Going around the sides, you will realize how incredibly thin this notebook is – for a gaming machine that is – and the chamfered slightly gold-ish edges give the laptop a distinct look. But despite its absurdly thin profile, the Zephyrus doesn’t make any compromise when it comes to I/O. Also, the port distribution is good – the left side incorporates two USB 3.0 connectors, HDMI, a 3.5 mm audio jack and the main grill for heat dispersion. The right side has another set of USB 3.0 and a USB-C 3.1 with Thunderbolt support.

The interior is where the notebook does things totally different. The palm rest area is gone while the keyboard and the touchpad have been moved down near the edge leaving a wide unused space in front of the screen hinge. The whole area is made of patterned plastic surface covered in tiny holes, which provide cool air intake for the cooling fans – the hardware and the cooling fans are located right beneath that surface. This way ASUS has eliminated the heat issues that might arise from the powerful hardware crammed up inside. Unfortunately, there’s a noticeable flex in the middle of the chassis, yet again, nothing really to worry about and it’s quite understandable given the size of the machine.

Regarding input devices, however, ASUS has cut some corners. The keyboard uses slightly smaller than usual keycaps but that’s not the issue here. Each key press results in slightly mushy and short travel making the whole gaming experience less than stellar. For typing, the keyboard is okay but it’s definitely not for gaming. The touchpad is another aspect in which ASUS has made some sacrifices. Don’t get us wrong, though, it’s usable – good gliding surface, comfortable mouse keys, records precise movements, it’s responsive but too small to actually get some serious work done. Also, with a single key press, the touchpad turns into a touch-enabled Numpad block and you can never have both at the same time. Nevertheless, it’s definitely better to have the option of a Numpad area, although it takes some time adjusting.


Disassembly, maintenance and upgrade options

When it comes to upgradability and ease of access, the Zephyrus won’t impress you. The laptop has limited upgradeability options and it’s really hard to disassemble. First, you will have to remove the bottom panel that lifts up the notebook and then proceed with all of the remaining screws. Removing it will reveal the sophisticated hinge mechanism, which should also be removed if you want to perform a full disassembly of the notebook. But if upgrading the SSD or swapping the RAM chip is your goal, then a full disassembly won’t be necessary.

Storage upgrades – M.2 SSD

Probably due to design limitations, the laptop sports only one M.2 SSD slot, which in our case is Samsung SM961 PCIe NVMe SSD with 512GB capacity.

SlotUnitUpgrade price
M.2 slot512GB Samsung SM 961 M.2 PCIe NVMe SSD (2280)Upgrade options

RAM

THe most disappointing fact about this gaming laptop is the lack of RAM slots. There’s only one available for upgrade along with a soldred 8GB of DDR4-2400 memory. In most cases, 16GB of RAM (8GB soldered + normal 8GB chip, which is our configuration) will be more than enough for gaming. But enthusiasts will find the maximum allowed 24GB of RAM lower than it should be, especially for a gaming laptop.

SlotUnitUpgrade price
Slot 18GB DDR4-2400Upgrade options

Other components

The laptop uses a decently sized 50Wh battery located under the keyboard area but it’s definitely not enough to drive all those pixels and the demanding hardware.

Cooling system

Unfortunately, we weren’t able to take clear shots of the cooling design but by peeking through the holes located above the keyboard, it consists of the usual heat pipes connecting the CPU and GPU heat sinks to the separated fans placed on the sides. The system draws cool air from the bottom and from the holes placed near the hinges and pushes the hot air out of the chassis via the grills on the back and sides.

Display quality

The notebook boasts a Full HD (1920×1080) IPS panel (AUO B156HAN04.2) with 120Hz refresh rate and support for G-Sync. The diagonal is the standard 15.6″, which means that the pixel density is 142 ppi and the pixel pitch is 0.18 x 0.18 mm. The screen can be considered as “Retina” when viewed from a distance equal or greater than 60 cm.

Viewing angles are excellent from a 45-degree incline.

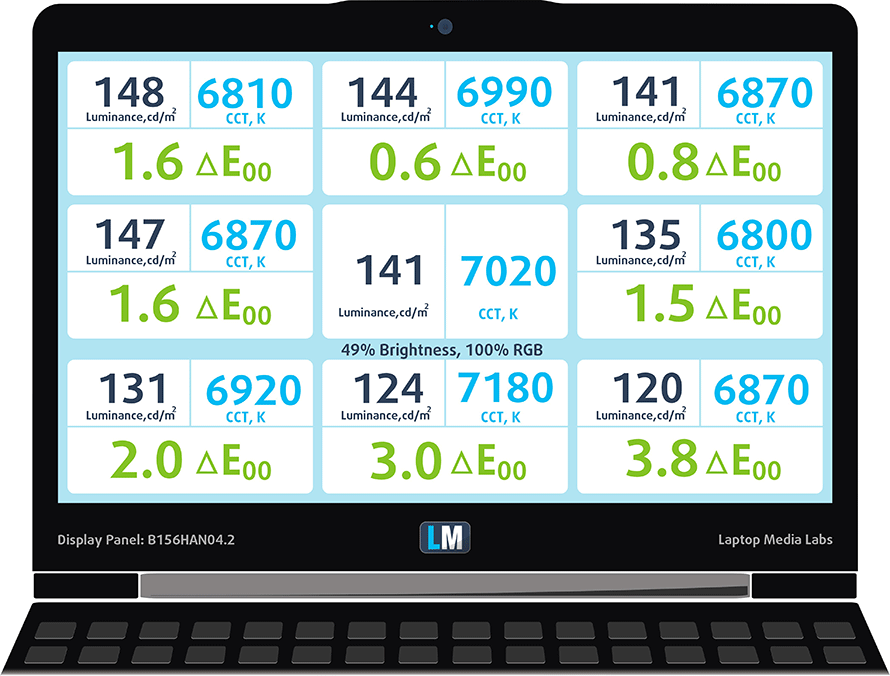

We were able to record a maximum brightness of just 251 cd/m2 in the center of the screen and 242 cd/m2 as average across the surface with 16% deviation. THe color temperature on white screen at maximum brightness is slightly colder than usual – 6900K. The average color temperature, however, becomes 6930K as you go along the grayscale and you can see how values change at 140 cd/m2 (49%) brightness.

The maximum color deviation dE2000 at 49% brightness is 3.8, which isn’t perfect but it’s perfectly fine since values above 4.0 are unwanted. The maximum contrast ratio is 1130:1 and goes down to 820:1 after calibration.

Color reproduction

To make sure we are on the same page, we would like to give you a little introduction of the sRGB color gamut and the Adobe RGB. To start, there’s the CIE 1976 Uniform Chromaticity Diagram that represents the visible specter of colors by the human eye, giving you a better perception of the color gamut coverage and the color accuracy.

Inside the black triangle, you will see the standard color gamut (sRGB) that is being used by millions of people in HDTV and on the web. As for the Adobe RGB, this is used in professional cameras, monitors etc for printing. Basically, colors inside the black triangle are used by everyone and this is the essential part of the color quality and color accuracy of a mainstream notebook.

Still, we’ve included other color spaces like the famous DCI-P3 standard used by movie studios, as well as the digital UHD Rec.2020 standard. Rec.2020, however, is still a thing of the future and it’s difficult for today’s displays to cover that well. We’ve also included the so-called Michael Pointer gamut, or Pointer’s gamut, which represents the colors that naturally occur around us every day.

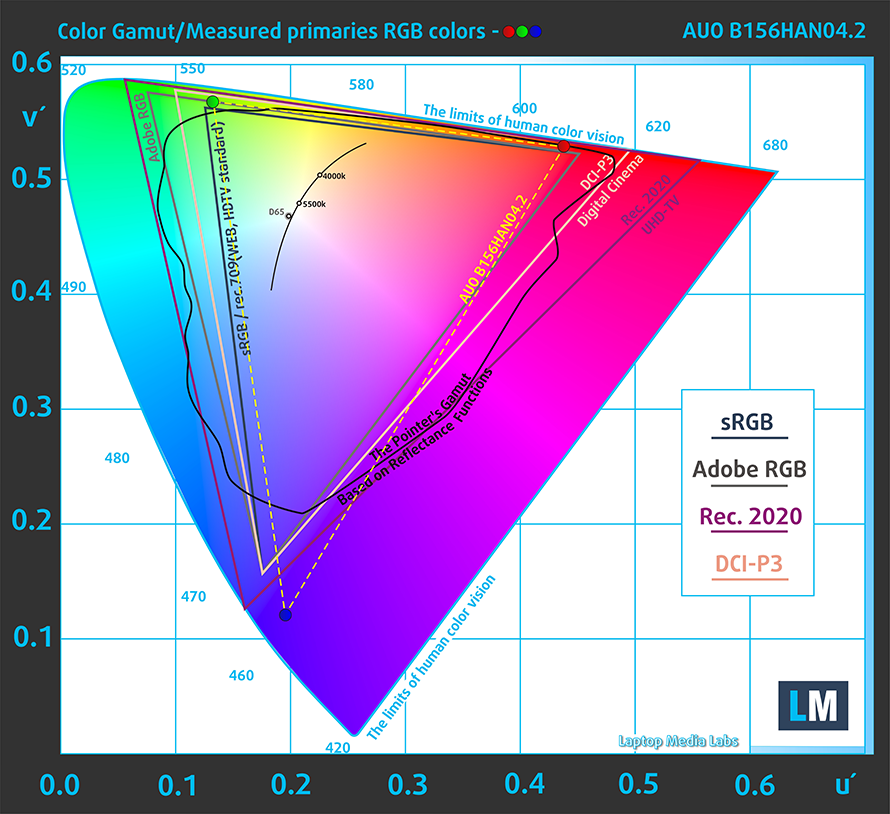

The sRGB coverage of this panel is 92% in CIE1976 making it excellent for multimedia and gaming purposes.

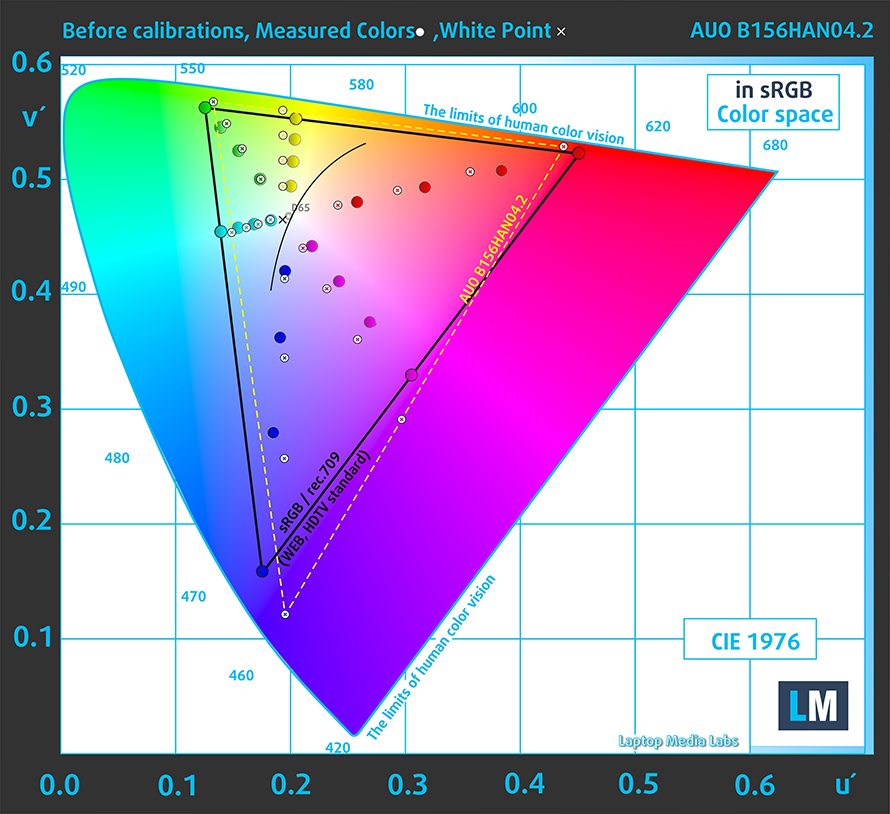

Below you will see practically the same image but with the color circles representing the reference colors and the white circles being the result. You can see main and additional colors with 25%, 50%, 75% and 100% saturation inside the sRGB gamut pre and post calibration.

The “Design and Gaming” profile is created at 140 cd/m2 brightness, D65 (6500K) white point and optimal gamma in sRGB mode.

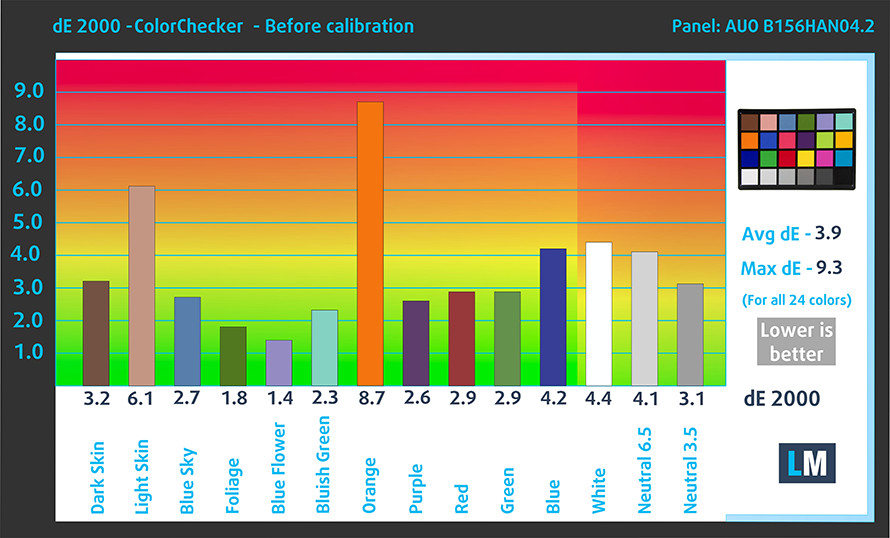

We tested the accuracy of the display with 24 commonly used colors like light and dark human skin, blue sky, green grass, orange etc. You can check out the results at factory condition and also, with the “Design and Gaming” profile.

The next figure shows how well the display is able to reproduce really dark parts of an image, which is essential when watching movies or playing games in low ambient light.

The left side of the image represents the display with stock settings, while the right one is with the “Gaming and Web Design” profile activated. On the horizontal axis, you will find the grayscale and on the vertical axis – the luminance of the display. On the two graphs below you can easily check for yourself how your display handles the darkest nuances but keep in mind that this also depends on the settings of your current display, the calibration, the viewing angle and the surrounding light conditions.

Gaming capabilities (Response time)

We test the reaction time of the pixels with the usual “black-to-white” and “white-to-black” method from 10% to 90% and reverse.

We recorded Fall Time + Rise Time = 22 ms.


PWM (Screen flickering)

Pulse-width modulation (PWM) is an easy way to control monitor brightness. When you lower the brightness, the light intensity of the backlight is not lowered, but instead turned off and on by the electronics with a frequency indistinguishable to the human eye. In these light impulses the light/no-light time ratio varies, while brightness remains unchanged, which is harmful to your eyes. You can read more about that in our dedicated article on PWM.

We are happy to report that there’s no PWM across all brightness levels so users with sensitive eyes should rest assured during long gaming sessions.

Blue light emissions

Installing of our Health-Guard profile not only eliminates PWM but also reduces the harmful Blue Light emissions while keeping the colors of the screen perceptually accurate. If you’re not familiar with the Blue light, the TL;DR version is – emissions that negatively affect your eyes, skin and your whole body. You can find more information about that in our dedicated article on Blue Light.

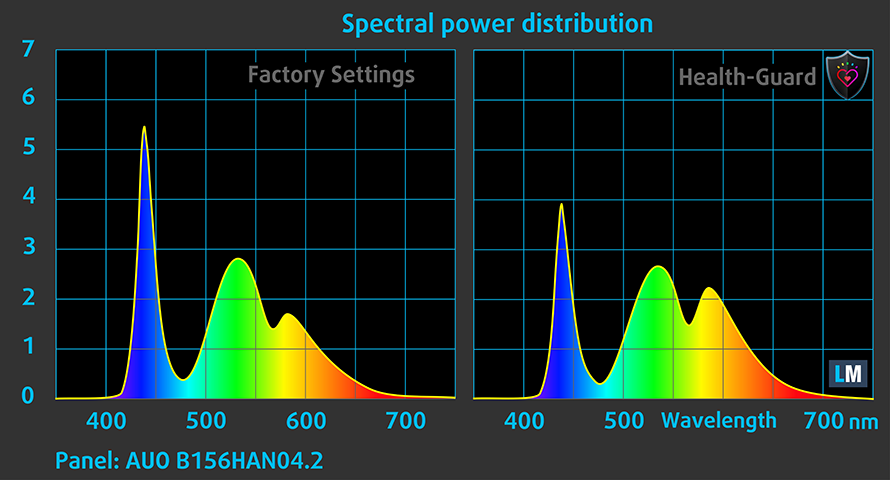

You can see the levels of emitted blue light on the spectral power distribution (SPD) graph.

Conclusion

The Zephyrus’ display uses a seemingly perfect IPS panel with plenty of gaming-oriented properties – wide sRGB coverage, high contrast ratio, support for G-Sync and 120Hz refresh rate. The last two features provide perfectly smooth gaming experience but there’s one little drawback – the panel’s maximum brightness is just 252 cd/m2, which might not be enough in some cases. A minor flaw but still worth considering by some users.

Moreover, the panel doesn’t use PWM across all brightness levels so it shouldn’t put unnecessary strain on your eyes even during the longest gaming sessions.

Buy our display profiles

Since our profiles are tailored for each individual display model, this article and its respective profile package is meant for ASUS ROG Zephyrus GX501 configurations with 15.6″ AUO B156HAN04.2 (FHD, 1920 × 1080) IPS screen and the laptop can be found at Amazon: http://amzn.to/2vEKD8d

*Should you have problems with downloading the purchased file, try using a different browser to open the link you’ll receive via e-mail. If the download target is a .php file instead of an archive, change the file extension to .zip or contact us at [email protected].

Read more about the profiles HERE.

In addition to receiving efficient and health-friendly profiles, by buying LaptopMedia's products you also support the development of our labs, where we test devices in order to produce the most objective reviews possible.

Office Work

Office Work should be used mostly by users who spend most of the time looking at pieces of text, tables or just surfing. This profile aims to deliver better distinctness and clarity by keeping a flat gamma curve (2.20), native color temperature and perceptually accurate colors.

Design and Gaming

This profile is aimed at designers who work with colors professionally, and for games and movies as well. Design and Gaming takes display panels to their limits, making them as accurate as possible in the sRGB IEC61966-2-1 standard for Web and HDTV, at white point D65.

Health-Guard

Health-Guard eliminates the harmful Pulse-Width Modulation (PWM) and reduces the negative Blue Light which affects our eyes and body. Since it’s custom tailored for every panel, it manages to keep the colors perceptually accurate. Health-Guard simulates paper so the pressure on the eyes is greatly reduced.

Get all 3 profiles with 33% discount


Sound

The sound quality is rather good with slight distortions in the low and high frequencies.


Specs sheet

The current specs sheet refers to this particular model – configurations may differ depending on your region.


CPUIntel Core i7-7700HQ (4-core, 2.80 – 3.80 GHz, 6MB cache)
RAM16GB (1x 8192MB + 1x soldered 8192MB) – DDR4, 2400MHz
GPUNVIDIA GeForce GTX 1080 Max-Q (8GB GDDR5X)
HDD/SSD512GB M.2 PCIe NVMe SSD
Display15.6-inch – 1920×1080 (Full HD) IPS, matte (120Hz + G-Sync)
Optical drive
ConnectivityWi-Fi 802.11ac, Bluetooth 4.1
Other features
  • 4x USB 3.0
  • 1x USB-C 3.1 (Gen 2 + Thunderbolt)
  • 3.5 mm audio jack
  • LAN
  • HDMI
  • red keyboard LED backlight
Battery50Wh
Thickness17.9 mm (0.70″)
Weight2.25 kg (4.96 lbs)


Software

We used the pre-installed Windows 10 Pro (64-bit) for the writing of this review but if you want to perform a clean install without the unnecessary bloatware, we suggest downloading all of the latest drivers from ASUS’ official support page.

Battery

Usually, gaming laptops sport huge batteries that compensate for the lack of switchable graphics support (due to the G-Sync not supporting NVIDIA Optimus) and the overall power-hungry hardware (high TDP CPU and GPU) but this time around, due to obvious reasons, the ASUS ROG Zephyrus can’t incorporate a large unit. The design limitations have allowed ASUS to cram up just 50Wh unit inside the chassis, which is barely enough to keep the system running for any longer than two or three (at the very most) hours even under light load.

All tests were run using the same settings as always – Wi-Fi turned on, screen brightness set to 120 cd/m2 and Windows battery saving feature switched on.

Web browsing

In order to simulate real-life conditions, we used our own script for automatic web browsing through over 70 websites.

Far from satisfactory score even for a gaming laptop- 185 minutes (3 hours and 5 minutes).

Video playback

For every test like this, we use the same video in HD.

Even lower on the video playback test – 167 minutes (2 hours and 47 minutes).

Gaming

We recently started using F1 2015’s built-in benchmark on loop in order to simulate real-life gaming.


Looking at the previous results, we didn’t expect good runtimes on this one as well – just 43 minutes.

CPU – Intel Core i7-7700HQ

The Core i7-7700HQ is Kaby Lake’s top-shelf direct successor of the Skylake Core i7-6700HQ offering slightly higher clock speeds on the almost identical architecture and TDP. While Intel markets Kaby Lake’s architecture as “14nm+”, the Core i7-7700HQ is still on the same 14nm node with the only significant update being in the iGPU department. That’s why the slightly altered clock speeds (2.8 – 3.8 GHz vs 2.6 – 3.5 GHz) bring not more than 10% increase in performance compared to the Core i7-6700HQ. We still have the supported Hyper-Threading technology with 4/8 – core/thread design, the same 45W TDP and 6MB cache.

However, the Kaby Lake generation boasts an updated video engine for the iGPU, although, its performance is just about the same. Branded as Intel HD Graphics 630, the GPU offers slightly higher clock speeds (350 – 1100 MHz vs 350 – 1050 MHz) compared to the Intel HD Graphics 530 and support for H265/HEVC Main10 profile at 10-bit color depth and the VP9 codec for full hardware acceleration. In addition, the HDCP 2.2 is also supported allowing Netflix’s 4K video streaming.

You can browse through our top CPUs ranking: http://laptopmedia.com/top-laptop-cpu-ranking/

Here you will find other useful information and every notebook we’ve tested with this processor: http://laptopmedia.com/processor/intel-core-i7-7700hq/

Fritz

Fritz is a chess benchmark that tests the computing capabilities of the CPU with various chess moves. The Intel Core i7-7700HQ scored 13.711 million moves per second. In comparison, one of the most powerful chess computers, Deep(er) Blue, was able to squeeze out 200 million moves per second. In 1997 Deep(er) Blue even beat the famous Garry Kasparov with 3.5 to 2.5.


GPU – NVIDIA GeForce GTX 1080 Max-Q (8GB GDDR5X)

The GeForce GTX 1080 Max-Q is a mobile graphics card based on the same Pascal architecture as the regular GTX 1080 using the 16nm FinFET process but with a few notable differences mainly in the clock speeds and drivers. The Max-Q design is aimed at thin and light gaming laptops sacrificing around 10 or 15% of the overall performance of the notebook-based GTX 1080 while keeping energy consumption, thermals and noise levels as low as possible. This is mainly due to the lowered base and Boost clock speeds. The base frequency of the GTX 1080 Max-Q is set to 1101 – 1290 MHz while the Boost clocks are set between 1278 and 1458 MHz. The regular GTX 1080 runs at 1566 – 1733 MHz.

As far as drivers are concerned, they are designed to prioritize efficiency and minimal noise levels. The voltage converters kick in to ensure the GPU works at 1V and keep the fan noise up to 40 dB while constantly adjusting clock speeds.

Rather than that, the GTX 1080 Max-Q sports the same memory configuration of 8GB of GDDR5X VRAM clocked at 10000 MHz using 256-bit bus and supports the same technologies – Multi-Projection, VR Ready, G-Sync, Vulkan, Multi Monitor. The whole GPU is rated at 90 to 110W including the memory controller, which is a notable decrease from the 165W TDP of the regular GTX 1080.

You can browse through our top GPUs ranking: http://laptopmedia.com/top-laptop-graphics-ranking/

Here you will find other useful information and every notebook we’ve tested with this GPU: http://laptopmedia.com/video-card/nvidia-geforce-gtx-1080-max-q-8gb-gddr5x/


Gaming tests

GTA-V-benchmarks

Grand Theft Auto V (GTA 5)Full HD, Medium (Check settings)Full HD, Very High (Check settings)Full HD, MAX (Check settings)
Average FPS130 fps78 fps58 fps

Far Cry PrimalFull HD, High (Check settings)Full HD, Very High (Check settings)Full HD, MAX (Check settings)
Average FPS93 fps86 fps84 fps

rise-of-the-tomb-raider

Rise of the Tomb Raider (2016)Full HD, Medium (Check settings)Full HD, Very High (Check settings)Full HD, MAX (Check settings)
Average FPS137 fps80 fps53 fps

Tom Clancy’s The DivisionFull HD, Medium (Check settings)Full HD, Ultra (Check settings)Full HD, MAX (Check settings)
Average FPS138 fps82 fps32 fps

Temperatures

Of course, the usual stress tests that we perform are so demanding that they rarely (almost never) represent real-life usage. However, these torture tests are still the best way to assess the overall stability and effectiveness of the cooling system in the long run.

We started off with 100% CPU load for an hour and we were instantly surprised by the decent thermals this little fellow was able to provide. The Core i7-7700HQ ran at its maximum potential at 3.4 GHz without breaking a sweat without going above 80 – 81 °C. Thicker gaming laptops with the same processor sometimes struggle to keep these temperatures.

Of course, turning on the GPU stress test resulted in higher CPU temperatures hitting 95 °C and lowering the clocks to 3.0 GHz. No thermal throttling occurred. As for the GPU, we were quite surprised to see that the chip was able to run at more than 1300 MHz for a while before going back to 1278 MHz and doing so at lower than usual temperature – 78 °C. For the record, the Alienware 17 R4, which sports a full-fledged GTX 1080, ran at 81 °C during our stress test so it seems that the so-called Max-Q design really does make some difference when it comes to thermals.

Quite expectedly, the surface of the laptop became pretty warm, especially around the center of the interior. We’ve recorded above 50 °C but thanks to the design of the Zephyrus, this will not affect the user because the keyboard is moved away from the heat source. Moreover, we noticed that the fans weren’t obnoxiously loud (high-pitched) and even during full load, the Zephyrus was relatively quiet.


Verdict

Finally, we have a new generation of ultra thin gaming notebooks without sacrificing too much performance. The ASUS ROG Zephyrus is one of the first of its kind and impresses with high-quality build (although a bit flexible at times but given the thickness of the case, it’s quite understandable), unmatched portability and desktop-like performance. What we didn’t like about the design, though, is the shallow keyboard and Numpad/touchpad hybrid solution. Also, due to the design limitations, ASUS wasn’t able to put a monstrous battery inside the chassis, so battery life suffers quite a lot as a result.

Anyway, when we say desktop-like performance in 15-inch ultrabook, we are not exaggerating at all. It turns out that NVIDIA did almost the impossible. The GTX 1080 Max-Q performs so well that you can barely notice the difference in real-world frame rates during gaming compared to the full-fledged GTX 1080 while being impressively optimized – noise and TDP-wise, that is. It still requires some serious cooling capabilities and you can see that from our temperature tests but the whole design of the machine is to keep the heat away from the user’s hands. It appears to be fairly effective.

But to take advantage of all that horsepower, you need a good screen, right? Well, the ASUS ROG Zephyrus checks another box on our list with an excellent IPS panel with wide sRGB coverage, good contrast, no PWM, G-Sync support and super fast 120Hz refresh rate. The only drawback here is the limited maximum brightness but it shouldn’t be a problem for most users.

So is the Zephyrus for you? It depends on what you want. Compared to a GTX 1070-powered gaming laptop, the Zephyrus prevails with portability and performance but costs considerably more. And if you put it against a GTX 1080-powered gaming machine, ASUS’ solution still comes on top when it comes to portability but drags behind by a few frames when it comes to real-world performance. What surprised us, though, is that the Zephyrus is considerably cheaper than some GTX 1080 configurations like the Razer Blade Pro, Alienware 17 R4 and the ASUS ROG G701VI. The deal-breaker, in this case, would be the limited upgradability – only one M.2 SSD slot and one RAM slot free for upgrade – features that have become a standard in the gaming segment.

You can find the available configurations here: http://amzn.to/2hJCLMT

Pros

  • Good build quality
  • Clean and sophisticated design
  • Incredibly thin and portable
  • Excellent IPS panel with G-Sync support and 120Hz refresh rate
  • The screen doesn’t use PWM across all brightness levels
  • Well-designed cooling system – keeps the heat away from the user’s hands and runs both chips at reasonable temperatures


Cons

  • Lower than usual maximum brightness for an IPS panel
  • Limited upgradability (only one M.2 SSD slot and one RAM slot)
  • Shallow keyboard, small touchpad
  • Poor battery life
