ASUS introduced a new line of gaming laptops. They call it “The Ultimate Force” or TUF and it’s aimed at both gamers and professionals. At the top of the line sits a model with the new 6-core Coffee Lake Core i7-8750H, which should make the 15.6-inch device a little workstation. Moreover, ASUS provides a choice of four different styles to suit you most. Given the GPU options, we can conclude that this is a more budget version of the premium ROG brand.
Of course, for the purpose of our review, we chose the Core i7-8750H version. Alongside it, there is a 4GB GeForce GTX 1050 (it is also sold with a GTX 1050 Ti), 8GB of DDR4-2666 MHz RAM and a hybrid HDD by Seagate. In the next couple of minutes, you are going to see how the new CPU fares against its predecessor and whether more cores mean better performance in games.
You can check the prices and configurations in our Specs System: http://laptopmedia.com/series/asus-tuf-gaming-fx504/
ASUS TUF Gaming FX504 technical specifications table
What’s in the box?
The first thing you see when you open the box is the device itself. Beneath it are the usual manuals and set up guides, as well as a disk with all drivers and features… We are wondering when manufacturers will start providing more adequate options for receiving your drivers out of the box, as this model lacks an optical drive. In addition to that, there are two compartments dedicated to the cable and the 120W charging unit.
Design and construction
As we said earlier, ASUS offers a couple of options for the design of TUF FX504. Well, to be more precise – those options refer mainly to the top panel and the base of the device. While the changes are minor as they offer a simple alteration of the color scheme, it can make a huge difference, making you more, let’s say, presentable if you use your laptop for work mostly. The TUF FX504 itself measures at 384 x 262 x 25.1 mm (15.12″ x 10.31″ x 0.99″) and weighs 2.3 kg (5.1 lbs) – nothing exceptional for this price range.
ASUS used solely plastic for the design of this device, which is a bold move, given the statements of “unprecedented reliability”. While the body of this laptop seems sturdy enough, the lid is a little bendy and is prone to scratches as well as fingerprints. However, it can be opened with only one hand.
Moving to the base of the TUF FX504, we see the same plastic material we found on the top, which imitates brushed aluminum. On the topmost, we see drills for some speakers with the power on/off button right next to them. Beneath them, you can see the full-sized backlit keyboard with designated WASD keys painted in even redder than the other ones. We like how ASUS has opted to pull down the arrow keys in order to preserve their size, which in our opinion is mandatory for a gaming device.
In addition to that, keystrokes feel a little bit soft, although the travel is long enough. Here, the company has not missed the opportunity to brag about the durability of their keys, which are rated at 20 million clicks. Next, we have the touchpad. No matter how much we wanted, we weren’t able to test it as we experienced problems with the drivers. We hope that newer versions of Windows won’t have that problem, or ASUS are going to address the issue soon enough. However, we are not sure whether the issue iss isolated to our unit only, so if you have an ASUS TUF FX504 device yourself, please leave a comment below.

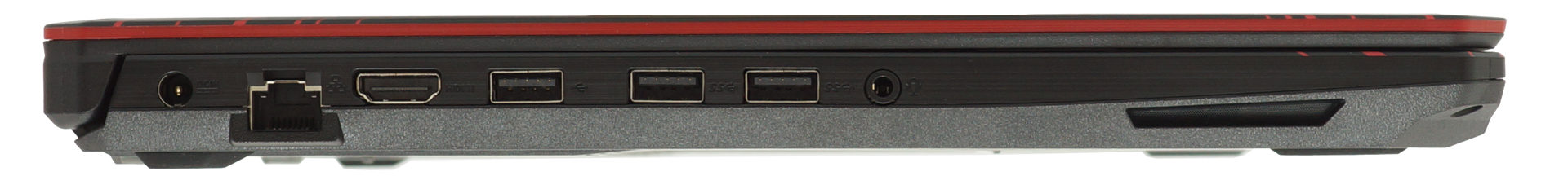

Finally, we are going to look at the sides of the laptop. What we like here is that the right side is completely free of I/O ports at the expense of the other side. There we can see the charging plug, RJ-45, and HDMI connectors, as well as three USB Type-A ports of which two are 3.0 and one is 2.0. Lastly, we got the combo 3.5 mm audio jack. There is also one speaker on both sides of the ASUS TUF FX504.
Disassembly and maintenance

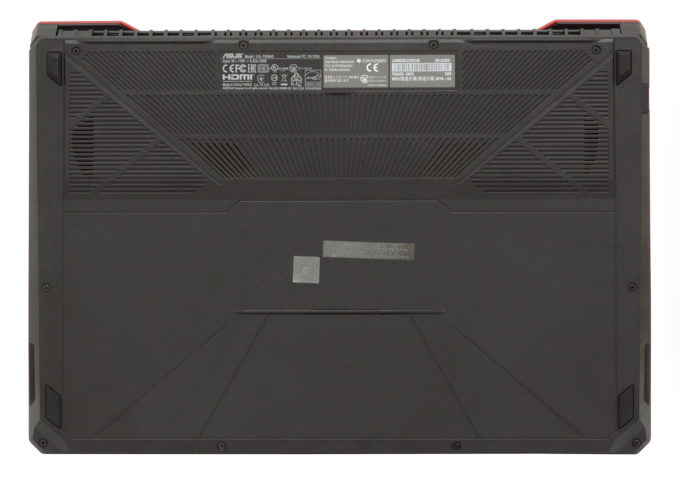

At first glance, ASUS TUF FX504 looks like it has a service panel. Don’t let them fool you, though. This is only a texture and you need to remove the whole bottom plate to access the internals. However, this is easy enough as you only have to deal with 11 screws.
As you can see, the manufacturer has used only two heat pipes to cool the GTX 1050 and the newest Core i7 by Intel. One of them is significantly larger than the other and is shared by both chips. This design is controversial, as it can be a two-edged sword. Its effectiveness drops significantly if you use a program that is both CPU and GPU-intensive. However, if you are playing a less CPU-intensive title the second fan will help cool the GPU as well.
Here you can see the two RAM DIMMs which support 32GB of DDR4 memory.
Next is the battery – a 48Wh unit with 3 cells.
In the image below are visible both storage connectors. One of them is an M.2 slot that supports NVMe SSDs while the other one is a SATA port, currently occupied by the Seagate FireCuda Hybrid HDD. It features 8GB NAND memory, serving as the cache to the 1TB Hard Drive.
ASUS TUF FX504 in the configuration we tested is equipped with a Full HD IPS panel with a model number AUO B156HAN02.3. It has a diagonal of 15.6 inches and has a resolution of 1920 x 1080, leading to a pixel pitch of 0.18 x 0.18 mm and a pixel density of 142 ppi, thus making it appear as “Retina” when viewed from at least 60 cm.
Viewing angles are comfortable.
We measured a peak brightness of 242 nits in the center of the screen and 239 nits as an average across the surface with just 6% maximum deviation. The correlated color temperature on white screen at maximum brightness is 6920K – a bit colder than the optimal 6500K in sRGB. However, along the grey scale we get a slightly warmer image – 6710K. You can see how values change at 142 nits or in other words – 57% brightness.
Values above 4.0 are unwanted and should not be present. The contrast ratio is excellent – 1480:1 (1460:1 after calibration).
To make sure we are on the same page, we would like to give you a little introduction to the sRGB color gamut and the Adobe RGB. To start, there’s the CIE 1976 Uniform Chromaticity Diagram that represents the visible specter of colors by the human eye, giving you a better perception of the color gamut coverage and the color accuracy.
Inside the black triangle, you will see the standard color gamut (sRGB) that is being used by millions of people in HDTV and on the web. As for the Adobe RGB, this is used in professional cameras, monitors etc for printing. Basically, colors inside the black triangle are used by everyone and this is the essential part of the color quality and color accuracy of a mainstream notebook.
Still, we’ve included other color spaces like the famous DCI-P3 standard used by movie studios, as well as the digital UHD Rec.2020 standard. Rec.2020, however, is still a thing of the future and it’s difficult for today’s displays to cover that well. We’ve also included the so-called Michael Pointer gamut, or Pointer’s gamut, which represents the colors that naturally occur around us every day.
ASUS TUF FX504’s display covers only 54% of the sRGB color gamut.
We tested the accuracy of the display with 24 commonly used colors like light and dark human skin, blue sky, green grass, orange etc. You can check out the results at factory condition and also, with the “Design and Gaming” profile.
The next figure shows how well the display is able to reproduce really dark parts of an image, which is essential when watching movies or playing games in low ambient light.
The left side of the image represents the display with stock settings, while the right one is with the “Gaming and Web Design” profile activated. On the horizontal axis, you will find the grayscale and on the vertical axis – the luminance of the display. On the two graphs below you can easily check for yourself how your display handles the darkest nuances but keep in mind that this also depends on the settings of your current display, the calibration, the viewing angle and the surrounding light conditions.
We test the reaction time of the pixels with the usual “black-to-white” and “white-to-black” method from 10% to 90% and reverse.
We recorded Fall Time + Rise Time = 27 ms.
PWM (Screen flickering)
Pulse-width modulation (PWM) is an easy way to control monitor brightness. When you lower the brightness, the light intensity of the backlight is not lowered, but instead turned off and on by the electronics with a frequency indistinguishable to the human eye. In these light impulses, the light/no-light time ratio varies, while brightness remains unchanged, which is harmful to your eyes. You can read more about that in our dedicated article on PWM.
This panel does not use PWM to set its brightness at any level. That means the screen is comfortable and less intrusive in this aspect even for extended periods of use.
Blue light emissions
Installing of our Health-Guard profile not only eliminates PWM but also reduces the harmful Blue Light emissions while keeping the colors of the screen perceptually accurate. If you’re not familiar with the Blue light, the TL;DR version is – emissions that negatively affect your eyes, skin and your whole body. You can find more information about that in our dedicated article on Blue Light.
ASUS TUF FX504’s IPS panel has a Full HD resolution, comfortable viewing angles and exceptional contrast ratio. Moreover, it doesn’t use PWM for brightness adjustment which makes it comfortable to work with. However, there is one slight setback – poor color reproduction. Despite the good contrast, this panel can display only half of the colors in the sRGB color space.
Buy our profiles
Since our profiles are tailored for each individual display model, this article and its respective profile package is meant for ASUS TUF FX504 configurations with 15.6″ AUO B156HAN06.1 (Full HD, 1920 x 1080) IPS screen and the laptop can be found at: Buy from Amazon.com
*Should you have problems with downloading the purchased file, try using a different browser to open the link you’ll receive via e-mail. If the download target is a .php file instead of an archive, change the file extension to .zip or contact us at [email protected]
Read more about the profiles HERE.
In addition to receiving efficient and health-friendly profiles, by buying LaptopMedia's products you also support the development of our labs, where we test devices in order to produce the most objective reviews possible.
Office Work should be used mostly by users who spend most of the time looking at pieces of text, tables or just surfing. This profile aims to deliver better distinctness and clarity by keeping a flat gamma curve (2.20), native color temperature and perceptually accurate colors.
Design and Gaming
This profile is aimed at designers who work with colors professionally, and for games and movies as well. Design and Gaming takes display panels to their limits, making them as accurate as possible in the sRGB IEC61966-2-1 standard for Web and HDTV, at white point D65.
THealth-Guard eliminates the harmful Pulse-Width Modulation (PWM) and reduces the negative Blue Light which affects our eyes and body. Since it’s custom tailored for every panel, it manages to keep the colors perceptually accurate. Health-Guard simulates paper so the pressure on the eyes is greatly reduced.
ASUS TUF FX504 has a good sound, although a little too quiet to our likings. However low, mid and high frequencies are free from deviations.
In some regions ASUS TUF FX504 may come with no operating system installed so if you need to download all drivers and features separately, you can find them here: https://www.asus.com/us/Laptops/ASUS-TUF-Gaming-FX504/HelpDesk_Download/
However, we have to note that we had some problems with the touchpad driver, which should be fixed with the latest versions of Windows. This doesn’t mean you are going to have problems with it, though. Also, make sure to install the latest version of BIOS you can find in the ASUS’s website, as it fixes the problem of the underperforming Core i7-8750H.
As always, the battery tests were run with Windows power saving setting and Wi-Fi turned on, and the screen brightness adjusted to 120 nits. ASUS TUF FX504 is equipped with a 3-cell 48Wh battery. Typically for a gaming laptop, it didn’t impress us with huge times on battery power but still – 4 hours and 20 minutes of web browsing, near 4 hours of video playback, and if you are enthusiastic enough to play games away from the plug – you have no more than 1 hour and 38 minutes.
In order to simulate real-life conditions, we used our own script for automatic web browsing through over 70 websites.
For every test like this, we use the same video in HD.
We use F1 2017’s built-in benchmark on loop in order to simulate real-life gaming.
CPU – Intel Core i7-8750H
Intel Core i7-8750H is a direct successor to the Core i7-7700HQ. The new Coffee Lake processors feature six physical cores instead of the just four found on Kaby Lake CPUs. Moreover, the blue company was able to fit the extra two cores on the same 14nm architecture while maintaining a TDP of 45W. In terms of clock speeds, we have a slight drop in the base frequency from 2.8 GHz to 2.2 GHz but the Turbo one is 4.1 GHz (up from 3.8 GHz). This means around 50% better performance in theory and 9 MB of cache (vs 6 MB on Core i7-7700HQ). However, the new Core i7-8750H will be more cooling-dependent, due to the higher clock count and the wide range of Turbo speeds.
On the iGPU end, there are no particular changes as the Core i7-8750H retains the HD Graphics 630 cores with 350 MHz Base frequency and 1100 MHz maximum Dynamic frequency. The only difference is the support of OpenGL 4.5.
You can browse through our top CPUs ranking: http://laptopmedia.com/top-laptop-cpu-ranking/
Results are from the Cinebench 15 CPU test (the higher the score, the better)
Results are from the Fritz chess benchmark (the higher the score, the better)
GPU – NVIDIA GeForce GTX 1050 (4GB GDDR5)
The GeForce GTX 1050 GPU for laptops is part of the latest NVIDIA Pascal lineup of GPUs featuring a brand new architecture design but on contrary to the rest of the GPUs from NVIDIA’s lineup, the GTX 1050 and 1050 Ti feature a Samsung-made FinFET 14nm chip instead of the TSMC 16nm found in the GTX 1060, 1070 and 1080. The graphics card is based on the GP107 chip paired with 4GB of GDDR5 memory via a 128-bit interface.
Since the GTX 1050 is quite dependent on the cooling design, its performance may vary but if the laptop handles the GPU well and shouldn’t be much different from its desktop counterpart. Anyway, the GPU operates at relatively high frequencies (1354 – 1493 MHz) but incorporates the same amount of CUDA cores (640) while the memory is clocked at 7000 MHz (effective). These specs ensure a huge performance boost over the previous generation of Maxwell GPUs. For instance, the GTX 1050 performs better than the GTX 960M and can be compared to the GTX 965M’s capabilities while running at similar to the GTX 960M’s TDP of around 40-50W.
However, along with all the power consumption and performance improvements, the GPU now supports essential features like DisplayPort 1.4, HDMI 2.0b, HDR, improved H.265 encoding, and decoding.
You can browse through our top GPUs ranking: http://laptopmedia.com/top-laptop-graphics-ranking/
Results are from the 3DMark: Fire Strike (Graphics) benchmark (higher the score, the better)
Results are from the Unigine Heaven 3.0 benchmark (higher the score, the better)
Results are from the Unigine Heaven 4.0 benchmark (higher the score, the better)
In our gaming tests, we saw a performance typical of a GeForce GTX 1050-equipped laptop. Even the most demanding titles remain playable at Full HD resolutions and low to medium settings. However, we know what you’re most interested in – did the Core i7-8750H offer any significant improvement over the Core i7-7700HQ. In simple words – no. As you may already know, very few games actually use the full power of your CPU. In our tests, we only noticed an improvement with GTA V, which is known for being CPU dependent. In order to get a full perspective of this, however, wait for a review of the laptop equipped with GTX 1080 along the Core i7-8750H, as the bottleneck factor will be in play.
|Grand Theft Auto V (GTA 5)||Full HD, Low (Check settings)||Full HD, Medium (Check settings)||Full HD, Very High (Check settings)|
|Average FPS||121 fps||62 fps||38 fps|
|Min FPS||50 fps||37 fps||24 fps|
|Far Cry Primal||Full HD, Normal (Check settings)||Full HD, High (Check settings)||Full HD, Very High (Check settings)|
|Average FPS||50 fps||44 fps||35 fps|
|Tom Clancy’s Ghost Recon Wildlands||Full HD, Medium (Check settings)||Full HD, High (Check settings)||Full HD, Very High (Check settings)|
|Average FPS||39 fps||35 fps||31 fps|
|Min FPS||32 fps||29 fps||25 fps|
The temperature tests go this way. We use Prime95 and FurMark to torture the CPU and the GPU respectively. This won’t give real-life representation but with our methodology, we try to give you the most optimal results.
The first values from the test are from the 30th second of running the Prime95 stress test, which simulates a heavy task run on your computer (usually lighter tasks take from a part of the second up to a couple of seconds). Next, we take the ones from the 2nd-minute mark, which imitates a very heavy task, run on the CPU. The last values we give you are the ones at the end of the test, which is 15 minutes, simulating the CPU load when rendering a video, for example.
0-15 min. CPU torture test
As a reminder – Intel Core i7-8750H has a base frequency of 2.2 GHz and reaches up to 4.1 GHz on a single core (3.9 GHz on all six). Idle temperature was 44°C, although it reached 84°C in no time. However, clock speeds were fluctuating around 3.0 GHz for around 15-20 seconds and at the end of the first checkpoint, we noticed a drop to 2.1 GHz.

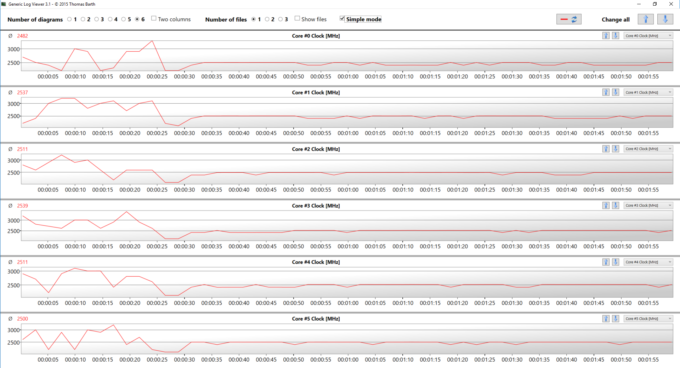

In a few seconds, core clocks stabilized to 2.5 GHz with temperatures around 70°C, which continued to the whole second checkpoint.
With the exclusion of a few drops and peaks, the frequencies remained around 2.4-2.5 GHz for the entire period of our torture test. Temperatures also maintained relatively adequate at around 75°C. However, we think that the cooling is having a hard time with the hexacore Core i7-8750H.
0-30 min. GPU torture test
In the GPU department stuff was crazy as the GeForce GTX 1050 went sky high with 1690 MHz as an average. This is strong 200 MHz more than what we saw on MSI GL62M, although at higher temperatures – 75°C at the end of the test.
As you know, to measure the surface temperatures we put the laptops we test to extreme loads. However, the readings we got from this device got us stunned. We literally didn’t expect the temperature in the middle of the keyboard to reach smoking hot 60.9°C. This is just not right. Moreover, we noticed that the body was heating up a little too much while playing. While not being too hot to touch, it won’t be very pleasant for extended periods of use, so we hope ASUS will come up with a solution.
We think ASUS has made a step in the right direction with the first device of its new The Ultimate Force series. Obviously, it is more budget-oriented but that doesn’t stop it from using the new Intel flagship – Core i7-8750H. Comparing it to devices like MSI GL62M and Acer Aspire VX15, we see a typical trend. While it completely destroys the 4-core competition at raw CPU benchmarks, on the GPU side there is almost no difference at all.
Even the higher clock speeds of GeForce GTX 1050’s GPU didn’t help it stand out. Quite the opposite, actually. The only thing that went up were temperatures. In the gaming tests, there was hardly any difference, except in GTA V which, as we all know, is also CPU intensive. The difference was not as dramatic as in the benchmarks where Core i7-8750H had around 20% better scores. In GTA V, framerate was barely 5-10% higher. However, we have to say that the new Coffee Lake CPUs are going to be a lot better at rendering videos, for example.
Screen-wise, it’s good that ASUS provides three options of Full HD screens, although the most common would be the IPS one and the 120 Hz TN one. We have chosen the IPS screen but given the limited color coverage, the colors were a little too dull for a gaming device. Nothing like MSI’s amazing TN panels. However, its excellent contrast and lack of PWM-adjustment justifies the panel. Battery life was nothing extraordinary unless you would settle for around 4 hours and 20 minutes of web browsing and 4 hours of video playback. If you are so desperate to play games away from the plug – you get a solid hour and a half from the 48Wh battery.
As you can tell, we don’t find ASUS’s new TUF FX504 laptop to be, let’s say, special. Although it comes equipped with the Core i7-8750H, this brings some setbacks. Our particular unit (and we are sure this will be a major issue in the beginning) had problems with the CPU underperforming. In our benchmarks, we received results which were the same, if not worse, to the Core i7-7700HQ. However, this problem was fixed by downloading the latest BIOS version from ASUS website.
- Reasonable price tag
- The display has exceptional contrast and doesn’t use PWM to adjust screen brightness
- Intel’s 8th Gen CPU onboard
- Backlit keyboard
- Choice of color scheme options
- NVMe SSD support
- Poor color coverage – just 54% of sRGB (for the IPS version)
- Cheap design
- Sub-par battery life
- We had some software-related hardware issues
