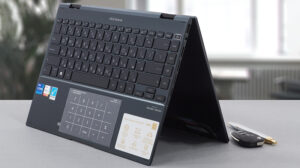

ASUS Zenbook 14 Flip OLED

LaptopMedia.com Laptop Specs ASUS Zenbook 14 Flip OLED (UP5401) ASUS Zenbook 14 Flip OLED

Date Published: 27 Aug 2024

Intel Core i7-1165G7
Intel Iris Xe Graphics G7 (96EU)
14.0″, 2.8K (2880 x 1800), 90 Hz, OLED
1000GB SSD
16GB RAM
1.40 kg (3.1 lbs)

TOTAL SCORE

7.6 Portability Very Good

10.0 Display EXCEPTIONAL

5.1 For Work Average

3.4 For Gaming Mediocre

Best Prices Specs Review Display For Work For Gaming

ASUS Zenbook 14 Flip OLED

Buy Now Amazon.com

Specs

CPU
Intel Core i7-1165G7

Display
14.0″, 2.8K (2880 x 1800), 90 Hz, OLED

HDD/SSD
1000GB SSD

M.2 Slot
1x 2280 PCIe NVMe 4.0 x4 See photo

RAM
16GB RAM

OS
Windows 10 Home

Body Material
Aluminum

Dimensions
311 x 223 x 15.9 mm (12.24" x 8.78" x 0.63")

Weight
1.40 kg (3.1 lbs)

Ports and connectivity

1x USB Type-A
3.2 Gen 2 (10 Gbps)

2x USB Type-C
Thunderbolt 4, Power Delivery (PD), DisplayPort

HDMI
2.0b

Card Reader
MicroSD

Ethernet LAN

Wi-Fi
802.11ax

Bluetooth
5.0

Audio jack
3.5mm Combo Jack

Features

Fingerprint reader

Web camera
HD

Backlit keyboard

Microphone
Array Microphone with Cortana and Alexa voice rec.

Speakers
Speakers by Harman Kardon

Security Lock slot

Portability

ASUS Zenbook 14 Flip OLED (UP5401)

12.24" x 8.78" x 0.63" Dimensions

1.40 kg (3.1 lbs) Weight

Average 14.0-inch laptop

1.47 kg (3.2 lbs) +5% Weight

Review

ASUS Zenbook 14 Flip OLED in-depth review

By the end of this review, you might just be in love with the Zenbook 14 Flip OLED (UP5401). You know, convertibles are not always enjoyed by the masses, because they often have conceptional disadvantages, when compared to their clamshell counterparts. The biggest setbacks we've seen so far are regarding the cooling and the structural integrity of the 360° laptops.However, the laptop we have with us today is a bit different. Later on, you will see that the cooling is built really well, especially when you consider that the laptop comes with a ULV processor inside. There is nothing weird about that - after all, the Core i7-1165G7 is very capable, while its integrated GPU will give you the needed boost in productivity tasks, or in some light games.Let's not forget the 16:10 OLED dis[...]

Read the full review

Pros

Great performance from a ULV chip
Strong aluminum chassis
100% sRGB and DCI-P3 coverage + HDR support
High resolution and 16:10 aspect ratio
Deep blacks and virtually infinite contrast ratio
NumberPad + Stylus inside the box
90Hz refresh rate with fast pixel response times
Fingerprint reader + MicroSD card slot + 2x Thunderbolt 4 ports

Cons

Uses PWM below 80 nits
Soldered memory

Disassembly, maintenance and upgrade options

It's not a surprise that this laptop is pretty limited when it comes to upgrade options. On the bright side, its single M.2 PCIe x4 slot supports Gen 4 drives.Check out all ASUS ZenBook 14 Flip OLED (UP5401) prices and configurations in our Specs System or read more in our In-Depth review.1. Remove the bottom plate You need to undo 10 Torx-head screws to access this laptop's internals. After that, pry the bottom panel with a plastic tool, and lift it away from the chassis.2. Battery Inside, we see a 63Wh battery pack that lasts for nearly 11 hours of Web browsing or about[...]
