Opening the Device

Undo the five captive Phillips-head screws on the bottom panel.
Use a thin plastic tool to pop the top two edges.
Pry the sides and the front, then raise the back to remove the panel.

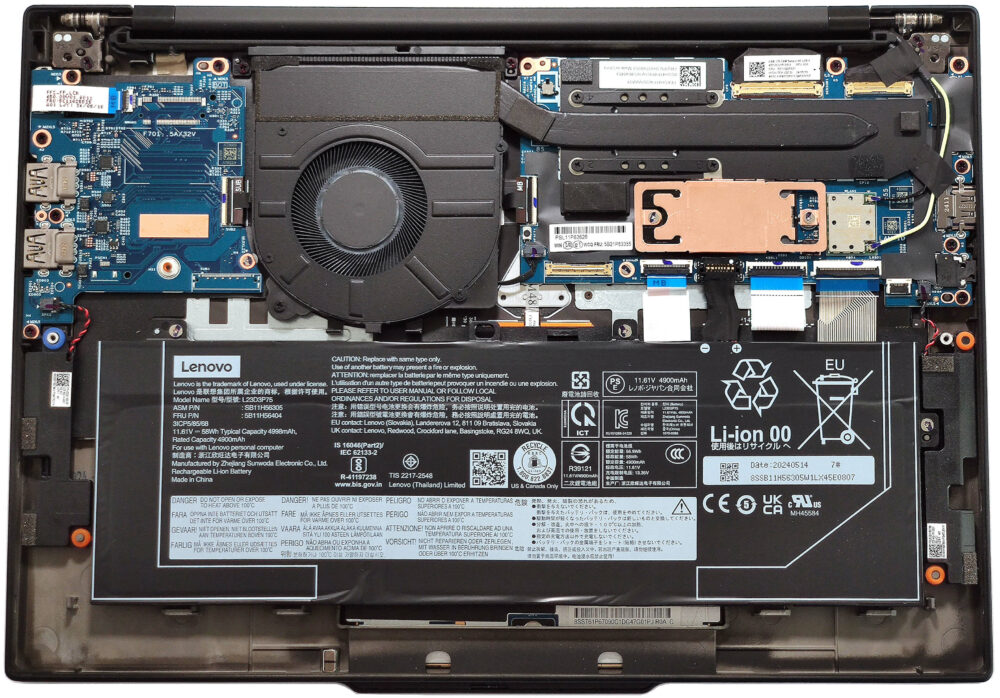

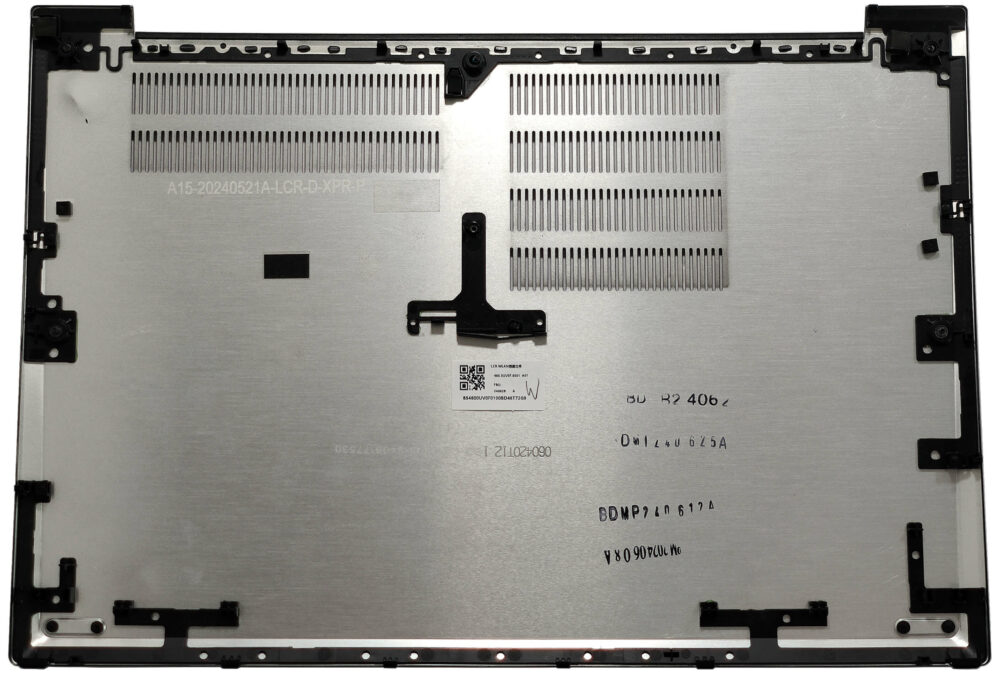

More info: Here’s how the bottom panel looks on the inside.

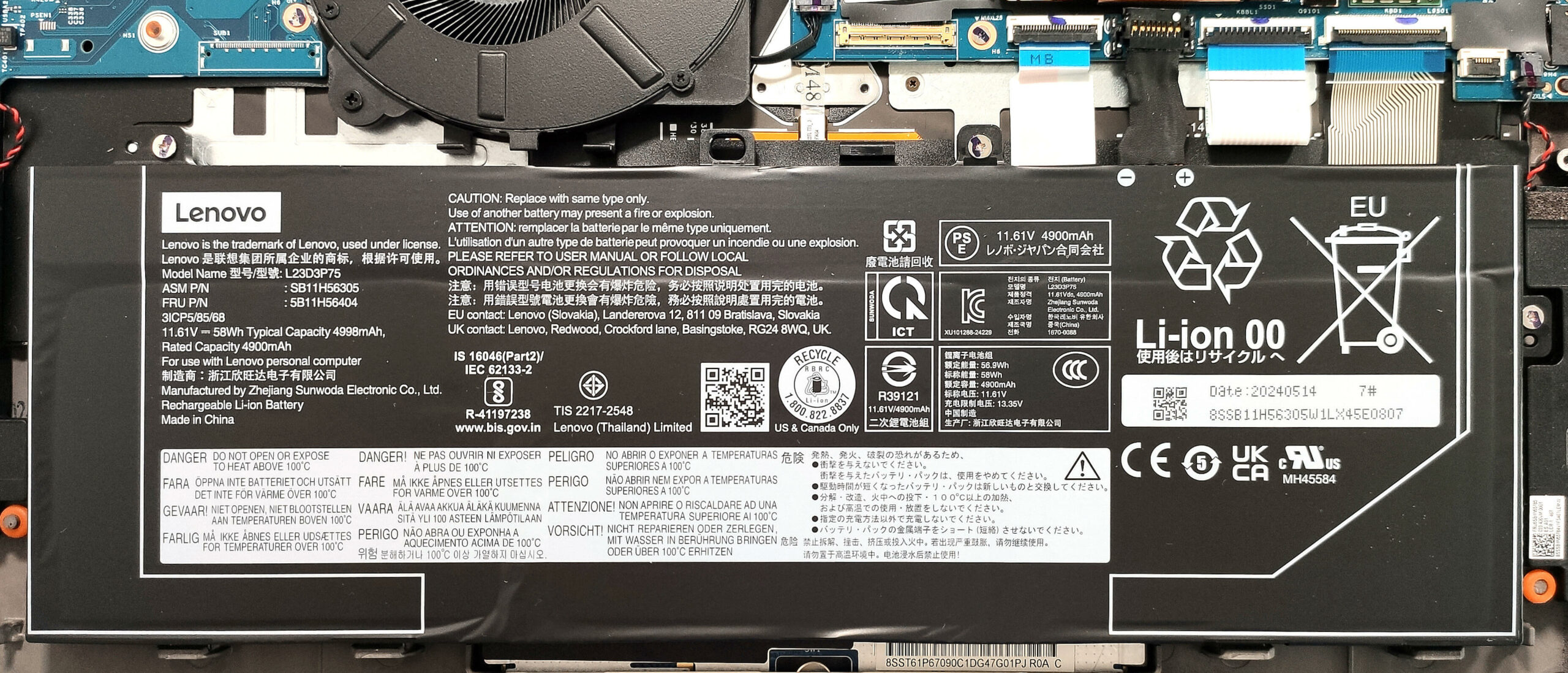

Battery Removal

Unplug the battery connector from the motherboard.
Undo the three Phillips-head screws that secure the battery to the base.
Lift the battery to remove it.

Note: This model is equipped with a 58Wh battery, providing around 19 hours and 30 minutes of video playback.

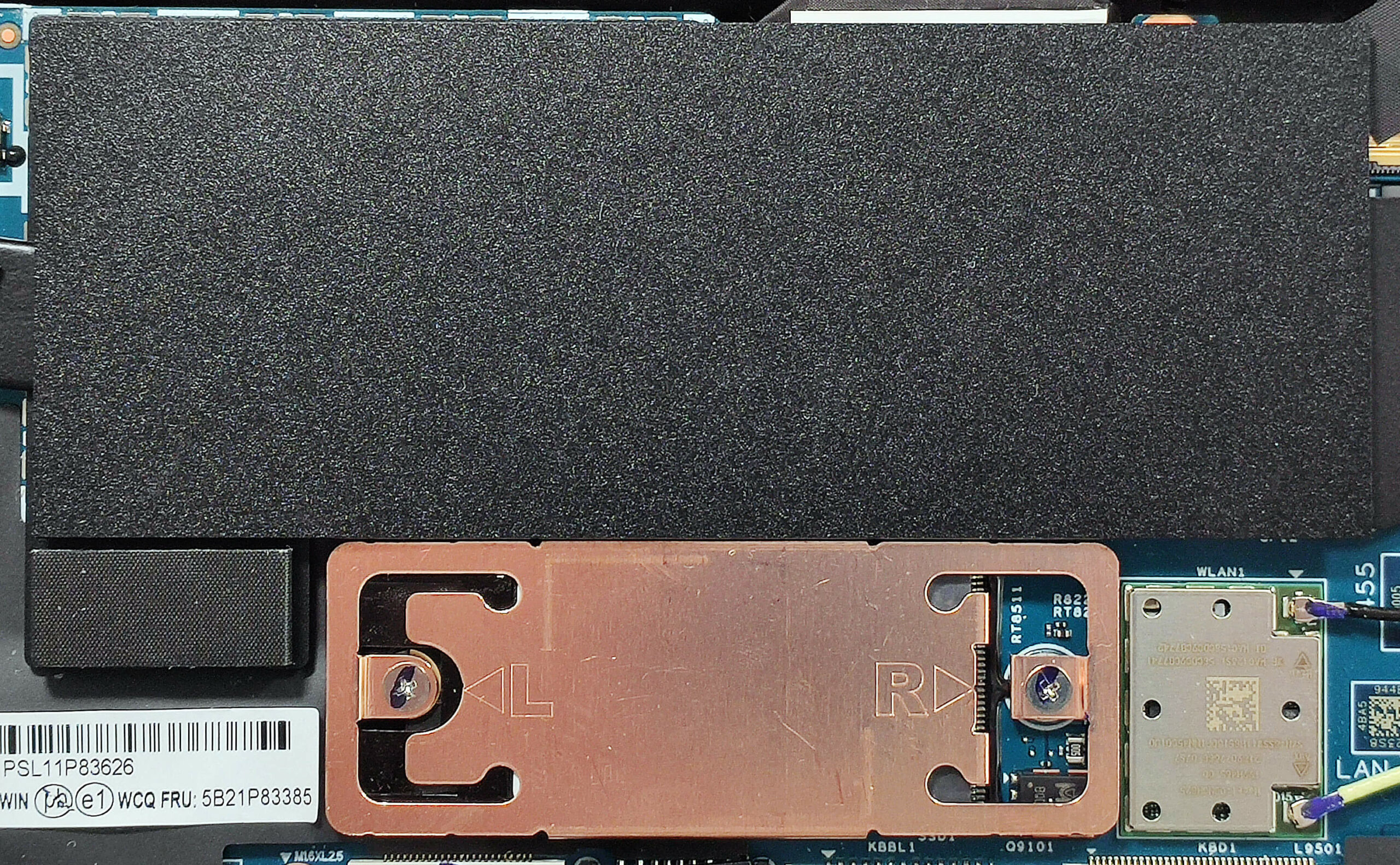

There is a mylar film over the heat spreader.

Memory Information

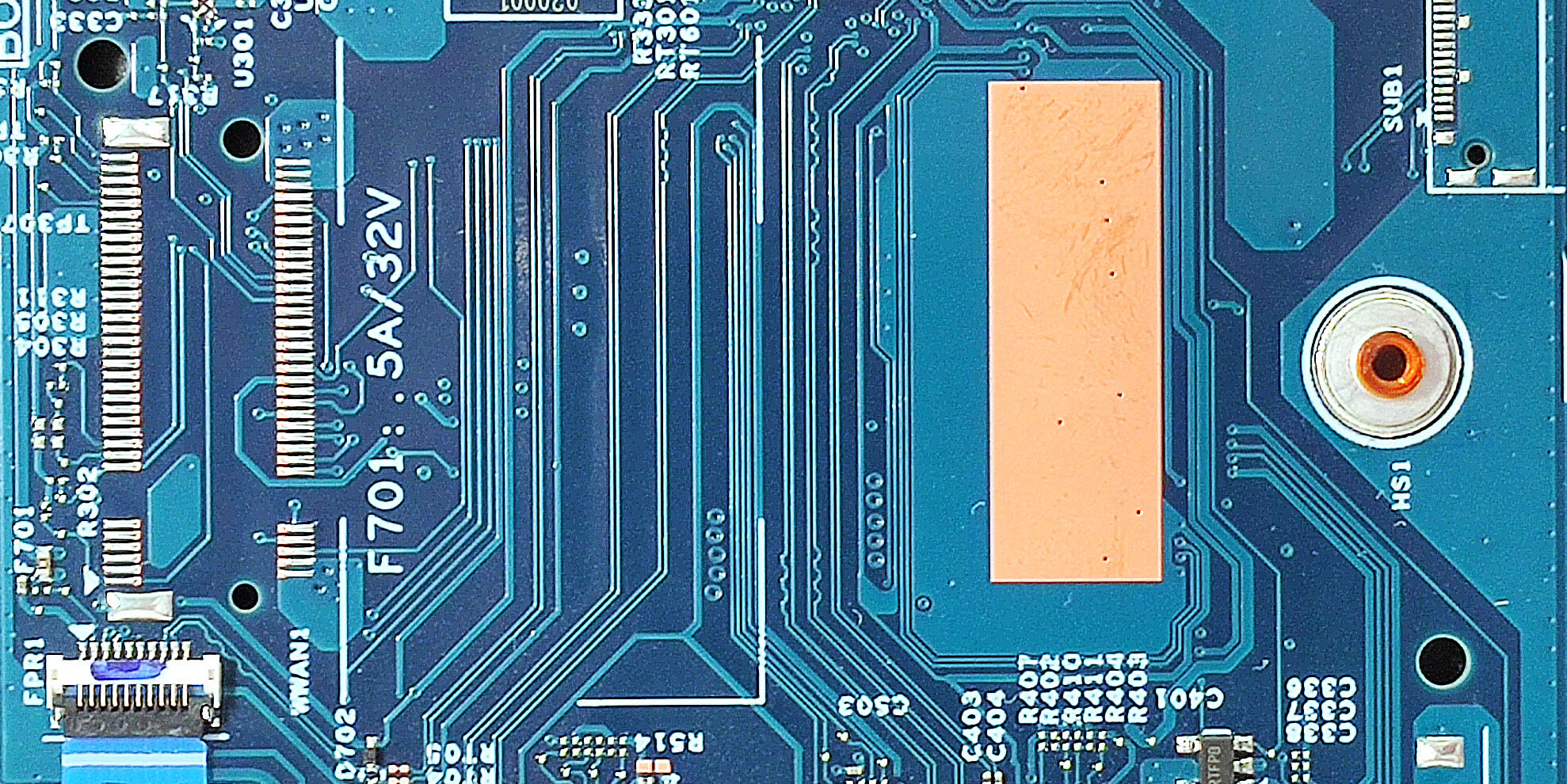

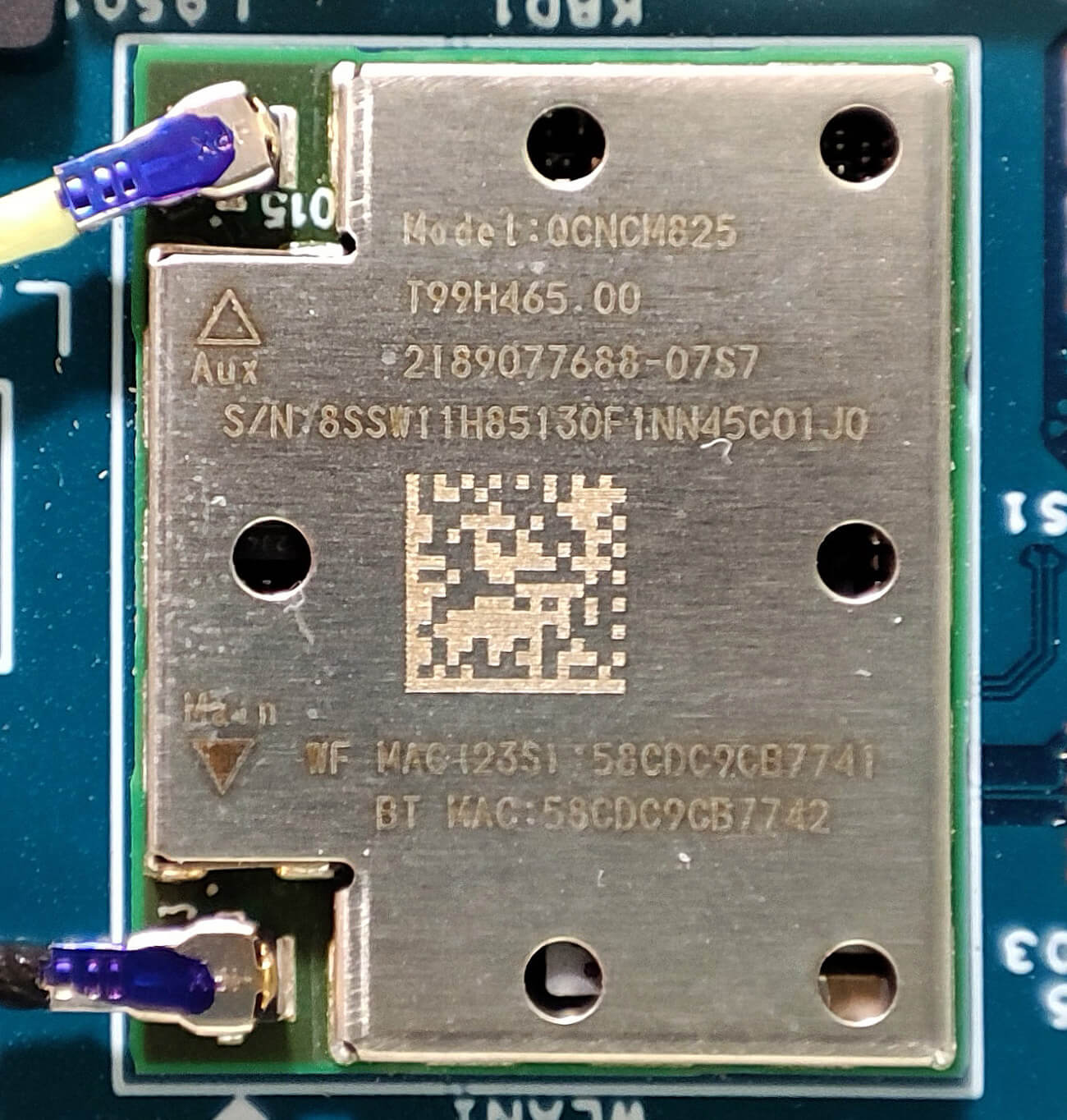

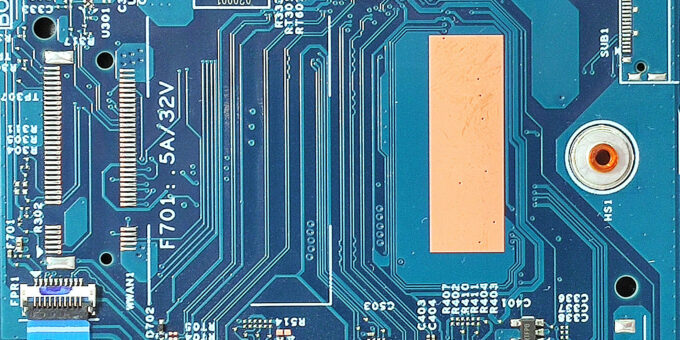

Note: The memory is soldered. You can get up to 64GB of LPDDR5x-8533MHz RAM, although it operates at 8448MHz due to platform limitations. Snapdragon devices like this one have soldered RAM and Wi-Fi cards. Devices with eSIM functionality feature a WWAN slot next to the cooling system, but this model lacks it.

Storage Upgrade

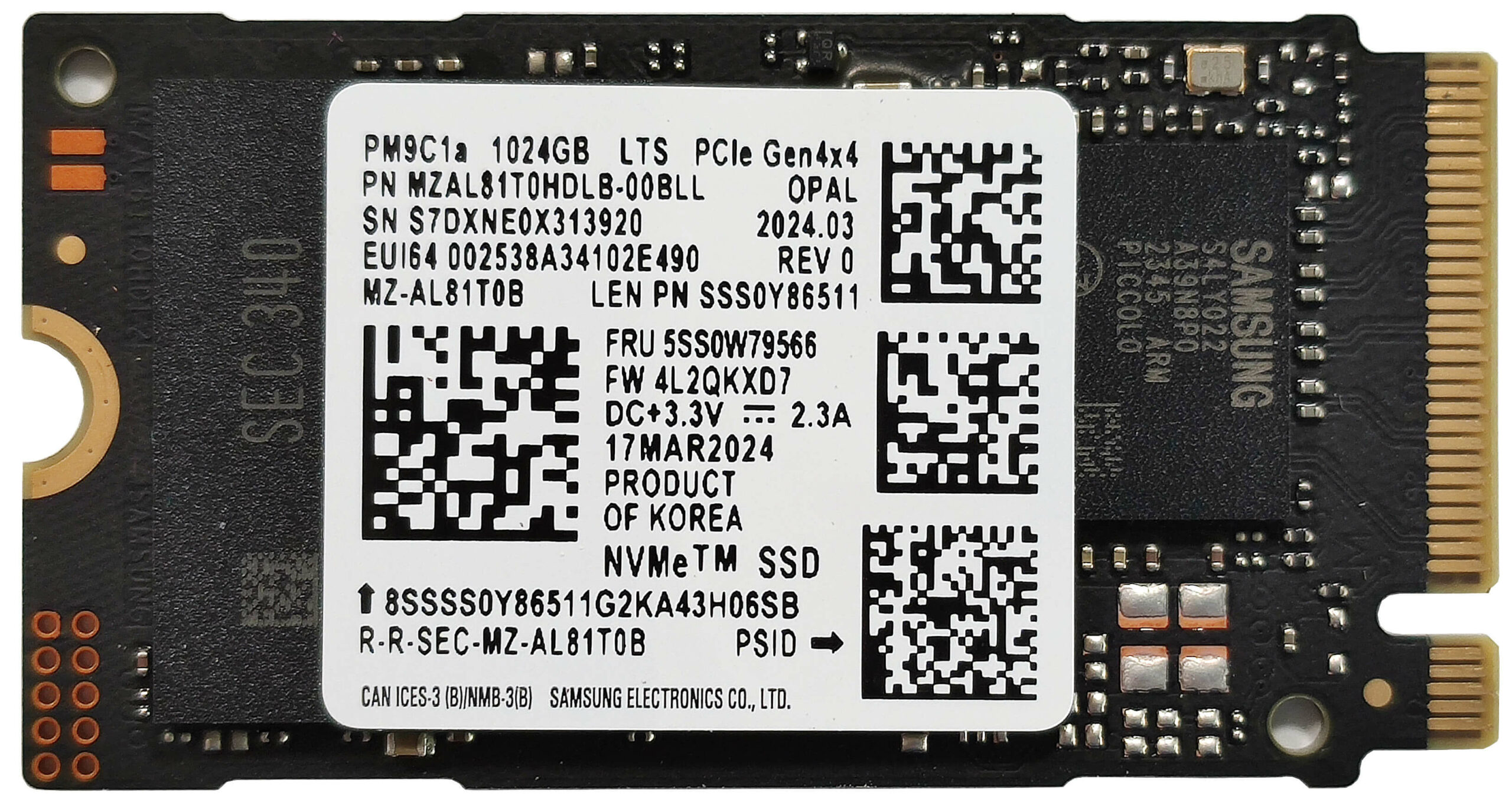

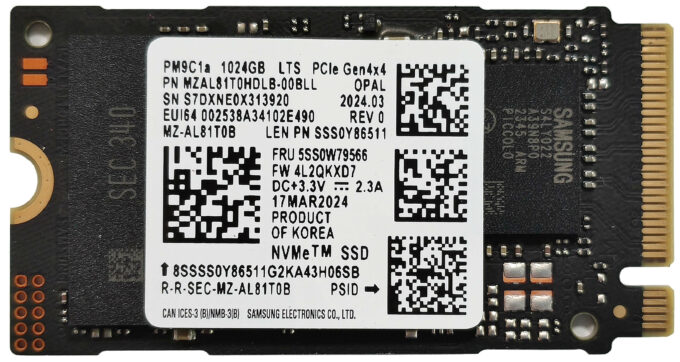

This device has one M.2 slot compatible with 2242 Gen 4 SSDs.

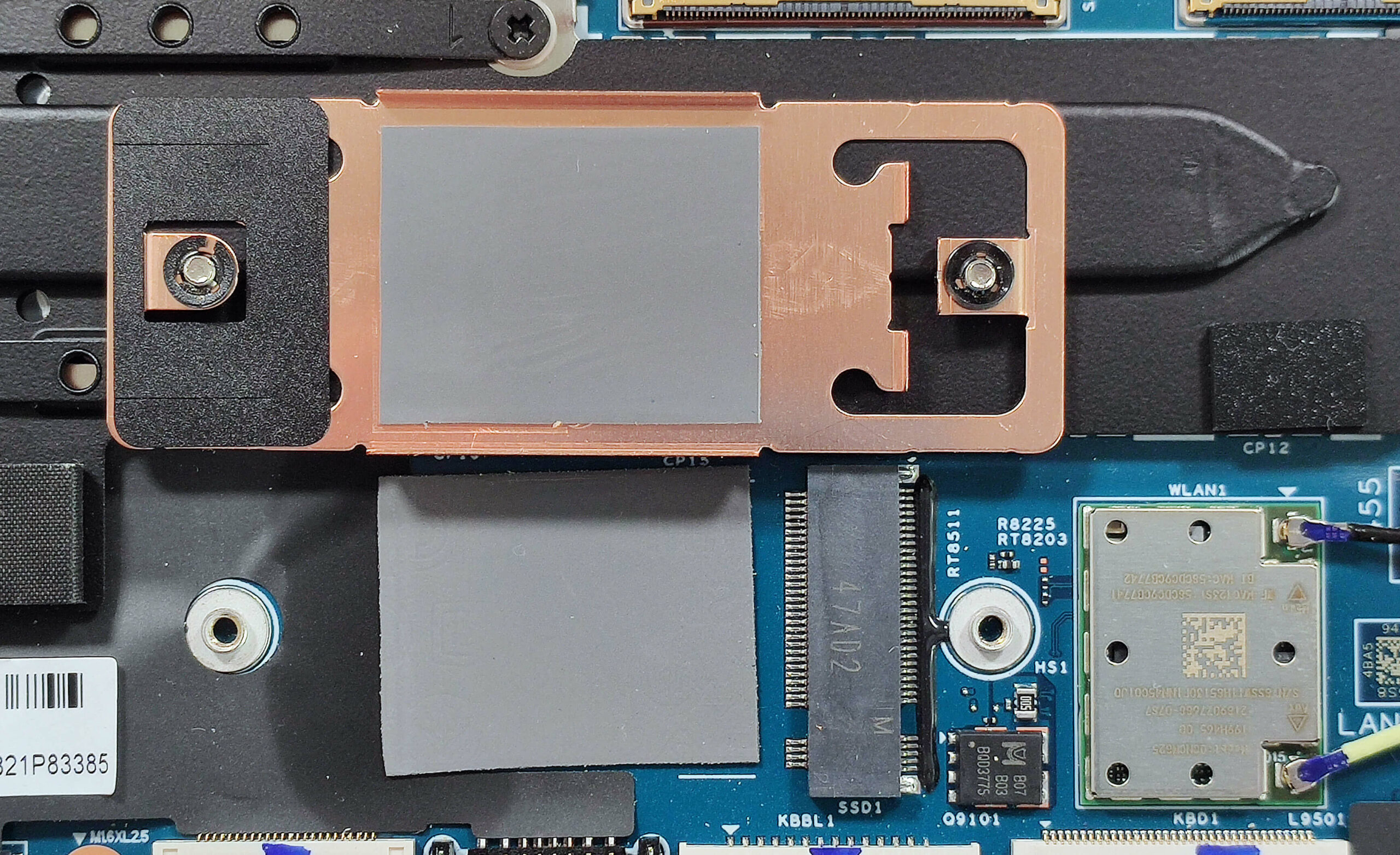

The NVMe drive is protected by a metal cap secured with two screws. A thermal pad is located on the underside of the shroud, and another pad is positioned below the SSD.

Hint: Don’t forget to check out our Top M.2 SSDs Performance Rankings for insights on the best storage options available.

You can buy compatible SSDs here: Buy from Amazon.com (#CommissionsEarned)

Cooling System Overview

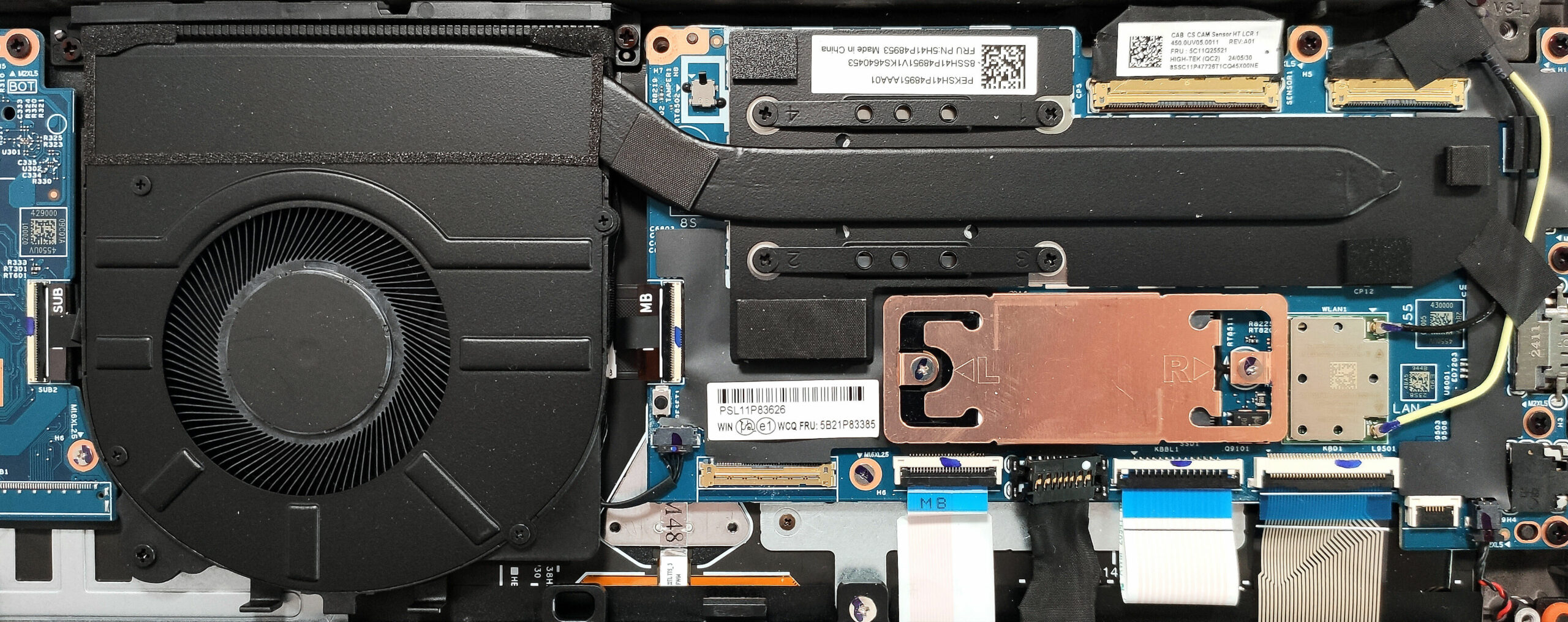

The cooling system features a single decently-sized fan, a long heat pipe, a heat sink, and a large heat spreader.
