ASUS Zenbook 14 Flip

LaptopMedia.com Laptop Specs ASUS Zenbook 14 Flip OLED (UP3404) ASUS Zenbook 14 Flip

Date Published: 13 Jun 2023

Intel Core i7-1360P
Intel Iris Xe Graphics G7 (96EU)
14.0″, 2.8K (2880 x 1800), 90 Hz, OLED
1000GB SSD
16GB LPDDR5
1.50 kg (3.3 lbs)

TOTAL SCORE

7.3 Portability Very Good

9.0 Display EXCEPTIONAL

6.6 For Work Good

3.9 For Gaming Mediocre

Best Prices Specs Review Display For Work For Gaming

ASUS Zenbook 14 Flip

Buy Now Amazon.com

Specs

Display
14.0″, 2.8K (2880 x 1800), 90 Hz, OLED

HDD/SSD
1TB SSD

M.2 Slot
1x 2280 M.2 NVMe PCIe 4.0 x4 See photo

RAM
16GB LPDDR5

OS
Windows 11 Home

Body Material
Aluminum

Dimensions
311.5 x 223.4 x 15.9 mm (12.26" x 8.80" x 0.63")

Weight
1.50 kg (3.3 lbs)

Ports and connectivity

1x USB Type-A
3.2 Gen 2 (10 Gbps)

2x USB Type-C
Thunderbolt 4, Power Delivery (PD), DisplayPort

HDMI
2.1

Card Reader

Ethernet LAN

Wi-Fi
802.11ax

Bluetooth
5.0

Audio jack
3.5mm Combo Jack

Features

Web camera
FHD IR with support for Windows Hello

Microphone
Array Microphone with Cortana and Alexa voice rec.

Speakers
Speakers, Smart Amp, Harman Kardon

Optical drive

Security Lock slot

Portability

ASUS Zenbook 14 Flip OLED (UP3404)

12.26" x 8.80" x 0.63" Dimensions

1.50 kg (3.3 lbs) Weight

Average 14.0-inch laptop

1.47 kg (3.2 lbs) -2% Weight

Review

ASUS Zenbook 14 Flip in-depth review

It looks like the smaller top-tier Lenovo Yoga devices and the MSI Summit machines are in trouble. The ASUS Zenbook 14 Flip OLED (UP3404) that sits in front of us is a 14-inch 2-in-1 device that has a lot of tricks up in its sleeve. Like the Raptor Lake P CPU options and a stunning OLED display.Wait, a 28W CPU inside a super thin chassis? Actually, the processor can boost over this limit but more on that later. The main event here is the transforming abilities of the laptop and the display. The latter is a bright touchscreen panel with a 2.8K resolution and ASUS mentions a 100% DCI-P3 coverage.The notebook can also offer modern I/O, Wi-Fi 6E connectivity, and Harman Kardon speakers. All that is fitted into a body that is light and sturdy. All seems good for now, except for the high[...]

Read the full review

Pros

Good performance for a 2-in-1 laptop
Infinite contrast ratio (Samsung ATNA40YK07-1 (SDC4171))
2.8K resolution, 16:10 aspect ratio, and a 90Hz refresh rate(Samsung ATNA40YK07-1 (SDC4171))
Covers 100% of DCI-P3 (Samsung ATNA40YK07-1 (SDC4171))
Great build quality
Touchscreen display (Samsung ATNA40YK07-1 (SDC4171))
2x Thunderbolt 4ports + Type-C charging
Comfortable and quiet backlit keyboard
Large and smooth touchpad that doubles as a NumPad

Cons

PWM usage with slow pulsations up until 80 nits (Samsung ATNA40YK07-1 (SDC4171))
Pricey
QLC NVMe
Lacks a privacy shutter for the Web camera and a fingerprint reader

Disassembly, maintenance and upgrade options

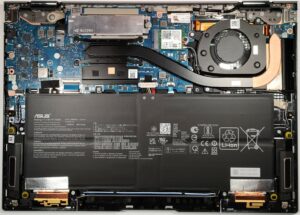

1. Removing the Bottom PanelBefore you start, ensure the laptop is powered off and disconnected from any external power sources.Place the laptop upside-down to access the bottom panel.Remove the two rubber back feet to reveal two hidden Phillips-head screws. Use a plastic tool to gently pry them off.Undo the two Phillips-head screws.Use a plastic pry tool to gently separate the bottom panel from the chassis.Carefully lift the bottom panel to access the internal components.Caution: Be gentle to avoid damaging the internal components.2. Battery Removal [...]
