Opening the Device

Undo the 10 Torx-head screws securing the bottom panel.
Detach the two plastic caps in front of the vents.
Carefully raise the back side while holding the two plastic exhausts at the rear. Avoid applying excessive force.
Once half of the panel is popped, hold the left side, swivel it slightly, and rotate it to the right to release all internal clips.

More info: The inside of the bottom panel has a dedicated socket for the battery, a thick dust filter in the middle, and a thermal pad for the Wi-Fi card.

Battery Removal

Unplug the battery connector from the mainboard.
Lift the battery unit to remove it from the chassis.

Note: The laptop is equipped with a 90Wh battery, providing approximately 5 hours and 17 minutes of video playback.

Memory Information

The RAM zone and preinstalled SSD are covered with a heat shield. Peel it gently to access the components.
The two SODIMMs support up to 32GB of DDR5-5600MHz RAM in dual-channel mode, though the CPU can support up to 192GB, which allows for future memory upgrades.

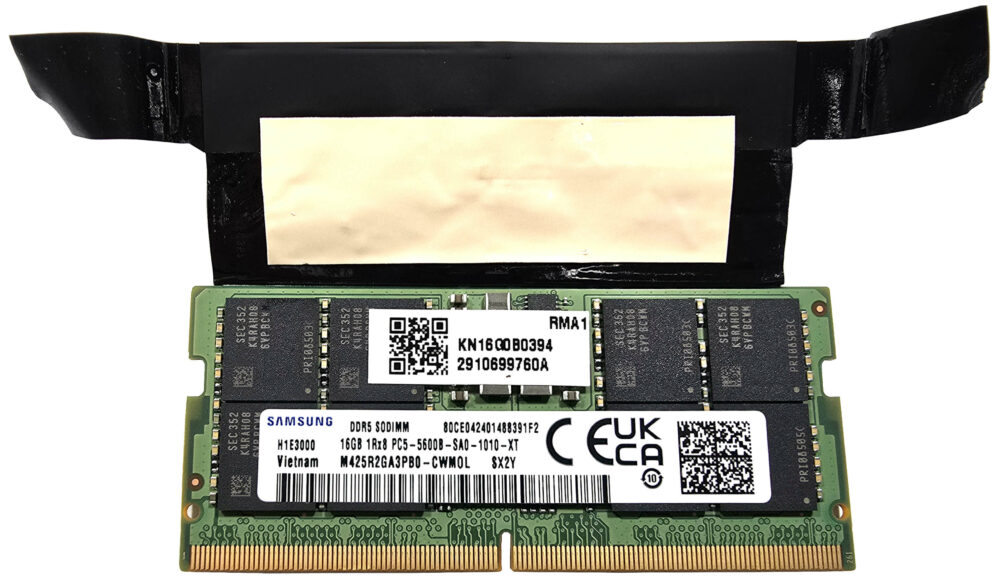

The memory stick is covered with foil that has a thermal pad on the inside for cooling.

You can buy compatible RAM modules here: Buy from Amazon.com (#CommissionsEarned)

Storage Upgrade

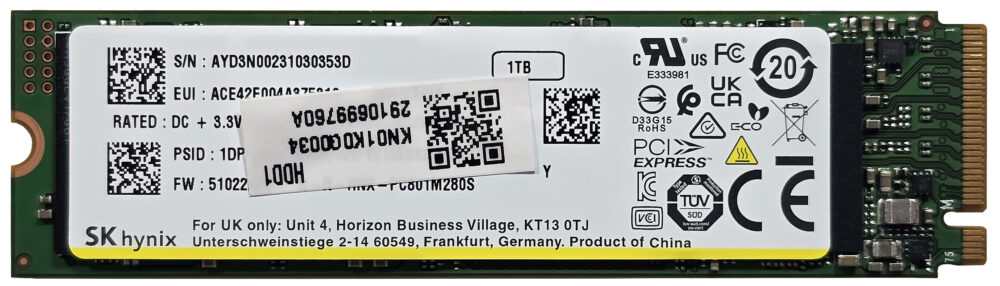

The device features two M.2 slots compatible with 2280 Gen 4 SSDs.
RAID 0 is supported for enhanced performance.

Hint: Don’t forget to check out our Top M.2 SSDs Performance Rankings for insights on the best storage options available.

You can buy compatible SSDs here: Buy from Amazon.com (#CommissionsEarned)

Wi-Fi Card

The Wi-Fi card is located on the left side near the battery.

Cooling System Overview

The cooling system features two metal Aeroblade 3D fans.
Two heat pipes are shared between the CPU and GPU, with one additional pipe for the processor and two more dedicated to the GPU, its memory, and VRMs.
Four heat sinks, a metal plate over the CPU, and a larger plate on the GPU side further enhance cooling. The bottom heat pipe also cools the chipset.
Ensure all cooling components are clean and free of dust for optimal performance.
