Inside Acer TravelMate P2 (P2410-M) – disassembly and upgrade options

LaptopMedia.com Highlights Inside Acer TravelMate P2 (P2410-M) - disassembly and upgrade options

From: Alex Iliev 02 June 2020 / 06:37 1

This is a budget offering, which provides good cooling and quite the upgradability.

Check out all Acer TravelMate P2 (P2410-M) prices and configurations in our Specs System or read more in our In-Depth review.

#CommissionsEarned

Acer TravelMate P2

Processor: Intel Core i3-8130U
VideoCard: Intel UHD Graphics 620
RAM: 4GB RAM
STORAGE: 500GB HDD

Detailed review

Acer TravelMate P2 (P2410-M)

Processor: Intel Pentium 4415U
VideoCard: Intel HD Graphics (Cherry Trail)
RAM: 4GB RAM
STORAGE: 128GB SSD

Detailed review

Acer TravelMate P2 (TMP2510-G2-M-320E)

Processor: Intel Core i3-8130U
VideoCard: Intel UHD Graphics 620
RAM: 4GB RAM
STORAGE: 500GB HDD

Detailed review

View all results

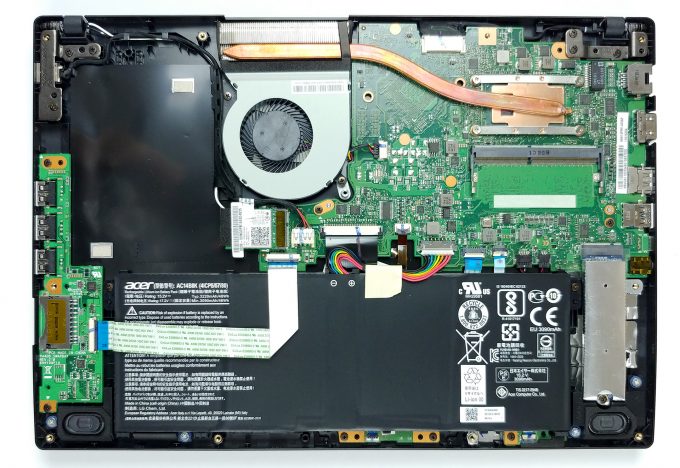

1. Remove the bottom plate

Rarely seen in 2020, this laptop features two service lids for quick upgrades. They are held in place by only a single Phillips-head screw, each. Beneath, you can find a RAM SODIMM slot, as well as a 2.5-inch SATA drive slot. Should you need to access all of the internals, there are further 11 screws of the same type. Then, pry your way around the panel with a plastic tool or a guitar pick and lift it away.

2. Battery

Battery-wise, there is a 48Wh unit inside.

3. Memory and storage

As we mentioned, there is only one RAM SODIMM slot that can hold up to 8GB of DDR4 memory. Additionally, there are 4GB of RAM soldered to the motherboard. As of the storage – there is an M.2 slot, as well as the aforementioned 2.5-inch SATA one.

4. Cooling system

It is good to see, that even though this laptop features a fairly unpretentious processor, Acer has still fitted the cooling solution with a heat pipe, a heat sink, and a fan – as it should be.
