Inside HP ProBook 430 G7 – disassembly and upgrade options

LaptopMedia.com Highlights Inside HP ProBook 430 G7 - disassembly and upgrade options

From: Alex Iliev 27 May 2020 / 02:35 0

Once again, HP has produced a strong 13-inch ProBook. While it is largely unchanged from last year, it is good that the manufacturer was able to retain the performance in almost every department.

Check out all HP ProBook 430 G7 prices and configurations in our Specs System or read more in our In-Depth review.

#CommissionsEarned

HP ProBook 430 G7

Processor: Intel Core i3-10110U
VideoCard: Intel UHD Graphics
RAM: 32GB RAM
STORAGE: 512GB SSD + 1000GB HDD

Detailed review

HP ProBook 430 G7

Processor: Intel Core i5-10210U
VideoCard: Intel UHD Graphics
RAM: 8GB RAM
STORAGE: 512GB SSD

Detailed review

HP ProBook 430 G7

Processor: Intel Core i5-10210U
VideoCard: Intel UHD Graphics
RAM: 16GB RAM
STORAGE: 512GB SSD

Detailed review

View all results

1. Remove the bottom plate

Disassembling this device is pretty straightforward. There are 7 Phillips-head screws you need to remove and five of them will remain attached to the bottom panel after they are unscrewed. Then pry your way around the panel and lift the plate away.

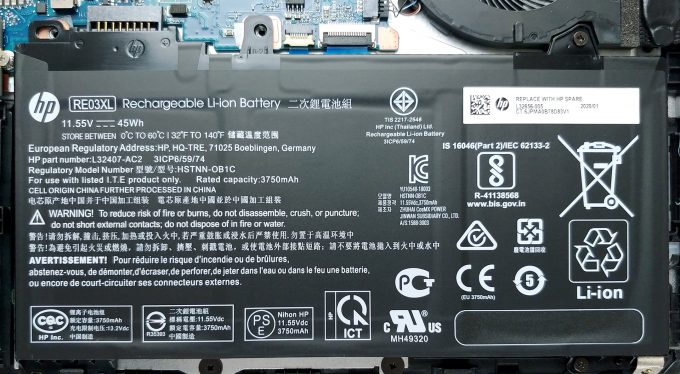

2. Battery

As you can see, the ProBook 430 G7 shares the same 45Wh battery with its 14 and 15-inch brothers.

3. Memory and storage

When it comes to the upgradability, though, you can see that this laptop has a lot to offer. Even though we are talking about a 13-inch notebook, you can put up to 32GB of DDR4 memory in dual-channel mode. Additionally, there is an M.2 slot for NVMe drives, and you can put a 2.5-inch SATA storage drive.
