- Date Published: 20 Feb 2023
- Intel Core i7-1260P
- Intel Iris Xe Graphics G7 (96EU)
- 14.0”, WQXGA (2560 x 1600), IPS
- 1000GB SSD
- 16GB LPDDR5
- 1.20 kg (2.6 lbs)
Pros
- Good battery life
- Super rigid chassis
- 100% sRGB coverage and accurate colors with our Gaming and Web design profile (AUO B140QAN03.2 (AUODD9E))
- No PWM (AUO B140QAN03.2 (AUODD9E))
- HDMI 2.1 + two USB Type-A 3.2 (Gen. 1) ports
- 2x Thunderbolt 4 + Gen 4 SSD support
- Fingerprint reader
- Antimicrobial Gorilla Glass display surface
Cons
- No SD card reader
- Soldered memory
Specs
- Display
- HDD/SSD
- 1TB SSD
- M.2 Slot
- 1x 2280 PCIe NVMe 4.0 x4 See photo
- RAM
- 16GB LPDDR5
- OS
- Windows 11 Home
- Body Material
- Aluminum
- Dimensions
- 310.5 x 213.3 x 14.95 mm (12.22" x 8.40" x 0.59")
- Weight
- 1.20 kg (2.6 lbs)
- Ports and connectivity
- 1x USB Type-A
- 3.2 Gen 1 (5 Gbps)
- 1x USB Type-A
- 3.2 Gen 1 (5 Gbps), Sleep and Charge
- 2x USB Type-C
- 4.0, Thunderbolt 4, Power Delivery (PD)
- HDMI
- 2.1
- Card Reader
- Ethernet LAN
- Wi-Fi
- 802.11ax
- Bluetooth
- 5.2
- Audio jack
- 3.5mm Combo Jack
- Features
- Fingerprint reader
- Web camera
- FHD
- Backlit keyboard
- Microphone
- 2x Microphones with Acer Purified Voice
- Speakers
- Front-facing Stereo Speakers, DTS Audio
- Optical drive
- Security Lock slot
- Kensington Lock
- Gifts
- Tri-Band AXE7800
There are 6 laptops with the same specs, All brands (sorted by price)
More Acer Swift 5 configurations - 2 laptops
DISPLAY: 14.0-inch, 2560x1600, IPS
- Name
- AUO B140QAN03.2 (AUODD9E)
- Diagonal
- 14.0"
- Pixel density
- 215.63 ppi
- Brightness
- 536 cd/m2
- sRGB
- 100%
- PWM frequency
- No PWM (Flicker-Free)
- Panel Type
- IPS
- Resolution
- 2560x1600
- Becomes "Retina" from
- 16 inches (41 cm)
- Contrast
- 1560:1
- dE Color Checker
- 4.0 1.4
- PWM Rating
- 10.0: (safe)
Buy our profiles for AUO B140QAN03.2 (AUODD9E)
In addition to receiving efficient and health-friendly profiles, by buying LaptopMedia's products you also support the development of our labs, where we test devices in order to produce the most objective reviews possible.
Office Work
Office Work should be used mostly by users who spend most of the time looking at pieces of text, tables or just surfing. This profile aims to deliver better distinctness and clarity by keeping a flat gamma curve (2.20), native color temperature and perceptually accurate colors.
Design and Gaming
This profile is aimed at designers who work with colors professionally, and for games and movies as well. Design and Gaming takes display panels to their limits, making them as accurate as possible in the sRGB IEC61966-2-1 standard for Web and HDTV, at white point D65.
Health-Guard
Health-Guard eliminates the harmful Pulse-Width Modulation (PWM) and reduces the negative Blue Light which affects our eyes and body. Since it’s custom tailored for every panel, it manages to keep the colors perceptually accurate. Health-Guard simulates paper so the pressure on the eyes is greatly reduced.
Get all 3 profiles with 33% discount

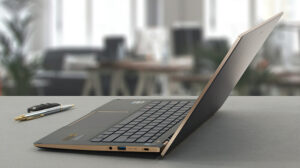

Acer Swift 5 in-depth review
Once one of the lightest notebooks out there, the Swift 5 has fallen to the clutches of the HP Pavilion Aero 13, and ASUS ExpertBook B9 B9400. However, Acer has figured that having the lightest chassis is not the most important thing anymore. Now, the Swift 5 (SF514-56T) comes with Intel's Alder Lake-P processor. They are pretty powerful but require adequate cooling to perform well. This is why Acer hasn't spared any resources in the design of its thermal management. The company is really proud of its "TwinAir" cooling setup and claims a huge performance boost over last year's model. Of course, we have a test that will access the claims and the efficiency of Acer's solution. In addition to the cooling, another big talking point about 2022's Swift 5 is its display. It now comes wi[...]
Read the full review

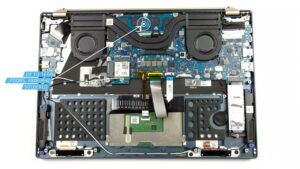

Disassembly, maintenance and upgrade options
This is an ultrabook. Essentially, this means you shouldn't expect to find much to upgrade on the inside. Thankfully, the storage is not soldered and supports Gen 4 SSDs. Check out all Acer Swift 5 (SF514-56T) prices and configurations in our Specs System, or read more in our In-Depth review. 1. Remove the bottom plate To access this laptop's internals, you need to undo 11 Torx-head screws. Then, pry the bottom panel with a plastic tool, and lift it away from the chassis. 2. Remove the battery This notebook is equipped with a 56Wh battery pack. It lasts for nearly 12 hours o[...]
Read more
CPU Performance: Intel Core i7-1260P
Results are from the Cinebench 20 CPU test (the higher the score, the better)
GPU Performance: Intel Iris Xe Graphics G7 (96EU)
Results are from the 3DMark: Time Spy (Graphics) benchmark (higher the score, the better)
Some games you can play on this laptop
|
Resolution: 1920 x 1080 (Full HD)
|
MIN
|
MED
|
MAX
|
|---|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 42 FPS PLAY VIDEO | 33 FPS PLAY VIDEO | 23 FPS PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
NORMAL
|
HIGH
|
VERY HIGH
|
MAX
|
|---|---|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 48 FPS PLAY VIDEO | 19 FPS PLAY VIDEO | - PLAY VIDEO | - PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
MIN
|
MED
|
ULTRA
|
|---|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 174 FPS PLAY VIDEO | 41 FPS PLAY VIDEO | 23 FPS PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
VERY LOW
|
MED
|
MAX
|
|---|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 231 FPS PLAY VIDEO | 183 FPS PLAY VIDEO | 142 FPS PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
MIN
|
MAX
|
|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 537 FPS PLAY VIDEO | 50 FPS PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
LOW
|
MED
|
MAX
|
|---|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 117 FPS PLAY VIDEO | 79 FPS PLAY VIDEO | 39 FPS PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
HIGH PERF
|
HIGH QLT
|
|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 97 FPS PLAY VIDEO | 43 FPS PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
LOW
|
NORMAL
|
HIGH
|
MAX
|
|---|---|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 94 FPS PLAY VIDEO | 63 FPS PLAY VIDEO | 45 FPS PLAY VIDEO | 34 FPS PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
LOW
|
MED
|
HIGH
|
ULTRA
|
|---|---|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 33 FPS PLAY VIDEO | 25 FPS PLAY VIDEO | 22 FPS PLAY VIDEO | - PLAY VIDEO |
|
Resolution: 1920 x 1080 (Full HD)
|
LOW
|
MED
|
HIGH
|
ULTRA
|
|---|---|---|---|---|
| Intel Iris Xe Graphics G7 (96EU) | 37 FPS PLAY VIDEO | 28 FPS PLAY VIDEO | 23 FPS PLAY VIDEO | - PLAY VIDEO |
