ASUS ProArt Studiobook 16

LaptopMedia.com Laptop Specs ASUS ProArt Studiobook 16 3D OLED (Pro W7604 / H7604, 2023) ASUS ProArt Studiobook 16

Date Published: 12 Feb 2024

Intel Core i9-13980HX
NVIDIA GeForce RTX 4060 (Laptop, 130W)
16.0″, 3.2K (3200 x 2000), 120 Hz, OLED
16000GB SSD
32GB DDR5
2.40 kg (5.3 lbs)

TOTAL SCORE

5.0 Portability Average

10.0 Display EXCEPTIONAL

8.7 For Work Excellent

8.1 For Gaming Excellent

Best Prices Specs Review Display For Work For Gaming

ASUS ProArt Studiobook 16

Buy Now Amazon.com

Specs

Display
16.0″, 3.2K (3200 x 2000), 120 Hz, OLED

HDD/SSD
16000GB SSD

M.2 Slot
2x 2280 M.2 NVMe PCIe 4.0 x4 See photo

RAM
32GB DDR5

OS
Windows 11 Pro

Body Material
Plastic / Polycarbonate, Aluminum

Dimensions
356 x 271 x 20.9 - 23.9 mm (14.02" x 10.67" x 0.82")

Weight
2.40 kg (5.3 lbs)

Ports and connectivity

2x USB Type-A
3.2 Gen 2 (10 Gbps)

2x USB Type-C
Thunderbolt 4, Power Delivery (PD), DisplayPort

HDMI
2.1

Card Reader
SD

Ethernet LAN
10, 100, 1000 Mbit/s

Wi-Fi
802.11ax

Bluetooth
5.0

Audio jack
3.5mm Combo Jack

Features

Fingerprint reader

Web camera
FHD IR with support Windows Hello, privacy shutter

Backlit keyboard

Microphone
Array Microphone with Cortana and Alexa voice rec.

Speakers
4-way Stereo Speakers, Smart Amp, harman/kardon

Optical drive

Security Lock slot

Gifts
Dockztorm USB Hub

Portability

ASUS ProArt Studiobook 16 3D OLED (Pro W7604 / H7604, 2023)

14.02" x 10.67" x 0.82" Dimensions

2.40 kg (5.3 lbs) Weight

Average 16.0-inch laptop

2.03 kg (4.5 lbs) -15% Weight

Review

ASUS ProArt Studiobook 16 in-depth review

The ASUS ProArt Studiobook Pro 16 OLED W7604 is a mind-blowingly good workstation for creators. It's offered in just one high-end configuration with Intel Core i9-13980HX and 130W NVIDIA RTX 3000 Ada Generation. The latter is the pro-grade version of the RTX 4070. The 13980HX CPU is almost the same chip as the slightly higher-clocked 14900HX which boasts an identical core count as the 13th gen sibling. Expectedly, you get goodies such as good upgradability and modern port selection. The lack of Type-C charging is actually quite positive since you don't lose one of the two Thunderbolt 4 connectors when the adapter is plugged in.The display is a superb OLED touchscreen with 3200 x 2000 resolution and 120Hz refresh rate. This panel's color accuracy is exceptional, making it ideal for colo[...]

Read the full review

Pros

2x SODIMMs + 2x 2280 Gen 4 slots
Very good sustained performance
Good CPU clocks and power limits during heavy stress in "Performance" mode (3.07 GHz P-core clock + 115W)
The RTX 3000 Ada Generation maintains a 130W TGP in graphics-heavy tasks
MUX Switch
Rich port selection
Full sRGB and DCI-P3 coverage (SDC4178)
Great color accuracy (SDC4178)
120Hz refresh rate and 3200x2000 resolution (SDC4178)
Infinite contrast ratio and high max brightness of 573 nits in HDR mode (SDC4178)
The Armoury crate app offers tons of customization options
Comfortable backlit keyboard with per-key illumination + accurate touchpad
Built like a tank
Capable cooling
Useful ASUS Dial controller
Well-cooled SSD (Micron 3400)

Cons

High price
Lacks goodies such as Wi-Fi 7 and Gen 5 SSD slot
The Wi-Fi card is positioned in front of the left SSD slot which is unlogical
Loud fans in "Performance" mode

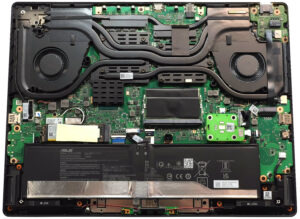

Disassembly, maintenance and upgrade options

Opening the ASUS ProArt Studiobook Pro 16 OLED Hint: Ensure the laptop is powered off and unplugged before starting. Use a microfiber cloth under tools to prevent scratches on the matte surface.Undo the 10 Torx-head screws securing the bottom panel of the laptop. Since there are no gaps, start by inserting a lever tool into the lower row of the rear exhausts to pop the panel. Use a thin plastic tool to pry the middle zone of the back and half of the sides. Carefully lift the rear of the panel to remove it from the chassis. If internal clips are not fully released, pry the[...]
