•  Date Published: 15 Jun 2022
  • AMD  Ryzen 7 6800HS
  • NVIDIA GeForce RTX 3060 (Laptop, 120W)
  • 15.6", WQHD (2560 x 1440), 165 Hz, IPS + FreeSync
  • 512GB SSD
  • 2x 8GB DDR5, 4800 MHz
  • 1.90 kg (4.2 lbs)

Pros

  • IR face recognition scanner, fingerprint reader, Wi-Fi 6E support
  • Up to 48GB of DDR5 RAM in dual-channel mode
  • Dual PCIe x4 Gen 4 drive support
  • PWM-free display (QHD, 165Hz panel)
  • Quick pixel response times (QHD, 165Hz panel)
  • 100% sRGB coverage + almost full DCI-P3 coverage and great color accuracy thanks to our Gaming and Web design profile (QHD, 165Hz panel)
  • The USB Type-C port supports charging and DisplayPort 1.4
  • Liquid metal on the CPU
  • Improved camera software

Cons

  • No Thunderbolt support (due to AMD limitations)
  • The keyboard has tiny arrow keys
  • No NumberPad
  • Weird behavior from the graphics card

Specs

CPU Performance #5in Top CPUs
  • Intel Core i7-12700H 9.7%
  • Intel Core i9-12900H 10.2%
  • AMD  Ryzen 7 6800HS
  • Intel Core i7-1280P 3.8%
  • AMD Ryzen 9 5900HS 4.6%
  • AMD Ryzen 9 6900HX 2.2%
GPU Performance #27in Top GPUs
  • NVIDIA GeForce RTX 2080 SUPER Max-Q (90W) 2.9%
  • NVIDIA GeForce RTX 3070 Ti (Laptop, 105W) 8.6%
  • NVIDIA GeForce RTX 3060 (Laptop, 120W)
  • AMD Radeon RX 6700S 4.4%
  • NVIDIA GeForce RTX 3070 (Laptop, 85W) 1.5%
  • NVIDIA GeForce RTX 3060 (Laptop, 105W) 3.0%
  • Innolux N156KME-GNA
  • Color accuracy  2.9  2.2
  • HDD/SSD
  • 512GB SSD NVMe
  • M.2 Slot
  • 2x 2280 PCIe NVMe 4.0 x4
  • RAM
  • 2x 8GB DDR5, 4800 MHz
  • OS
  • Windows 11 Home
  • Body Material
  • Aluminum, Magnesium alloy
  • Dimensions
  • 355 x 243 x 19.9 mm (13.98" x 9.57" x 0.78")
  • Weight
  • 1.90 kg (4.2 lbs)
  • Ports and connectivity
  • 2x USB Type-A
  • 3.2 Gen 2 (10 Gbps)
  • 2x USB Type-C
  • 3.2 Gen 2 (10 Gbps), Power Delivery (PD), DisplayPort
  • HDMI
  • 2.0b
  • Card Reader
  • MicroSD
  • Ethernet LAN
  • Wi-Fi
  • 802.11ax
  • Bluetooth
  • 5.2
  • Audio jack
  • 3.5mm Combo Jack
  • Features
  • Fingerprint reader
  • Web camera
  • HD IR with Windows Hello
  • Backlit keyboard
  • RGB
  • Microphone
  • Array Microphone with AI Noise Cancelling
  • Speakers
  • 2x 2W Dual-Force Woofer + 2x 2W Tweeter, Smart Amp, Dolby Atmos
  • Optical drive

More ASUS ROG Zephyrus G15 GA503 (2022) configurations - 137 laptops

#CommissionsEarned

DISPLAY: 15.6-inch, 2560x1440, IPS + FreeSync

  • Name
  • Innolux N156KME-GNA
  • Diagonal
  • 15.6"
  • Pixel density
  • 188.28 ppi
  • Brightness
  • 340 cd/m2
  • sRGB
  • 100%
  • PWM frequency
  • No PWM (Flicker-Free)
  • Panel Type
  • IPS
  • Resolution
  • 2560x1440
  • Becomes "Retina" from
  • 18 inches (47 cm)
  • Contrast
  • 1350:1
  • dE Color Checker
  • 2.9 2.2
  • PWM Rating
  • 10.0: (safe)

Buy our profiles for Innolux N156KME-GNA

In addition to receiving efficient and health-friendly profiles, by buying LaptopMedia's products you also support the development of our labs, where we test devices in order to produce the most objective reviews possible.

Office Work

Office Work should be used mostly by users who spend most of the time looking at pieces of text, tables or just surfing. This profile aims to deliver better distinctness and clarity by keeping a flat gamma curve (2.20), native color temperature and perceptually accurate colors.

Design and Gaming

This profile is aimed at designers who work with colors professionally, and for games and movies as well. Design and Gaming takes display panels to their limits, making them as accurate as possible in the sRGB IEC61966-2-1 standard for Web and HDTV, at white point D65.

Health-Guard

Health-Guard eliminates the harmful Pulse-Width Modulation (PWM) and reduces the negative Blue Light which affects our eyes and body. Since it’s custom tailored for every panel, it manages to keep the colors perceptually accurate. Health-Guard simulates paper so the pressure on the eyes is greatly reduced.

Get all 3 profiles with 33% discount

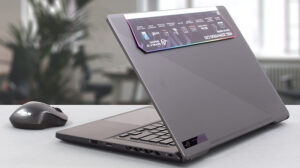

ASUS ROG Zephyrus G15 GA503 (2022) in-depth review

Ladies and gentlemen, one of the best gaming laptops have just been made better. The ROG Zephyrus G15 GA503 is an exquisite machine that is great not only for gaming, but also for content creation, photo, and video editing, and pretty much everything you can imagine. Last year, we were blown away by its sleek design, good battery life, and astonishing performance. This is why ASUS had very little homework for this year. However, they still appear to deliver as there are some improvements on the hardware front. Gone are the Zen 3 processors, which make way for their Zen 3+ refreshes. This means you get RDNA 2 integrated graphics, and ever so slightly improved performance, and again - 35W of TDP. Speaking of power, the graphics cards this year feature a 20W (25W for the RTX 3060) bump[...]

Read the full review

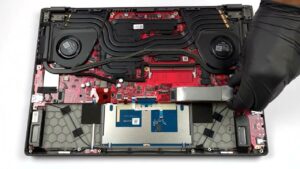

Disassembly, maintenance and upgrade options

This device sports a sophisticated cooling solution, which employs many heat pipes and a liquid metal thermal compound for the CPU. Check out all ASUS ROG Zephyrus G15 GA503 (2022) prices and configurations in our Specs System or read more in our In-Depth review. 1. Remove the bottom plate To get this laptop disassembled, you first need to remove the three rubber covers in the middle of the bottom panel. Then, undo all 13 Phillips-head screws and pry the panel starting from the front right corner. 2. Battery Inside, we find a 90Wh battery pack, which lasts for 8 hours of Web[...]

Read more

CPU Performance: AMD  Ryzen 7 6800HS

GPU Performance: NVIDIA GeForce RTX 3060 (Laptop, 120W)
