• CPU: Intel Core i7-8550U
  • GPU: AMD Radeon 530 (4GB GDDR5)
  • Display: 17.3”, Full HD (1920 x 1080), IPS
  • Storage: 128GB SSD + 1000GB HDD
  • RAM: 8GB DDR4, 2400 MHz
  • Weight: 2.79 kg (6.2 lbs)

Dell Inspiron 5770 - Specs

CPU Performance #13
  • Intel Core i7-7820HK 1%
  • Intel Core i7-7820HK (@ 3.8GHz) 3%
  • Intel Core i7-8550U
  • Intel Xeon E3-1505M v6 0.7%
  • Intel Core i7-8705G 0.8%
GPU Performance #97
  • AMD Radeon R8 M445DX (2GB DDR3) 0.1%
  • AMD Radeon RX Vega 10 0.1%
  • AMD Radeon 530 (4GB GDDR5)
  • NVIDIA GeForce GTX 760M (2GB GDDR5) 0.2%
  • NVIDIA GeForce 940MX (4GB GDDR5) 0.3%
17.3”, Full HD (1920 x 1080), IPS
panel 1
CHI MEI CMN1738 (N1YPX-173HCE) (Dell Inspiron 17 5770)
Color accuracy 4.2 -> 1.9
128GB SSD + 1TB HDD, 5400 rpm
M.2 Slot
1x PCIe NVMe M.2 slot (2280, M-key) See photo
8GB DDR4, 2400 MHz
Windows 10 Home
42Wh, 3-cell
Body material
Plastic / Polycarbonate, Aluminum (Aluminum interior, plastic base and exterior)
415 x 279 x 25 mm (16.34" x 10.98" x 0.98")
2.79 kg (6.2 lbs)
Ports and connectivity
  • 1x USB Type-C 3.0 (3.1 Gen 1), Power Delivery (PD), DisplayPort, Sleep and Charge
  • 2x USB Type-A 3.0 (3.1 Gen 1)
  • 1x USB Type-A 2.0
  • HDMI 1.4b
  • VGA
  • Card reader SD, SDHC, SDXC
  • Ethernet LAN 10/100 Mbps
  • Wi-Fi
  • Bluetooth
  • Audio jack
  • Web camera 72[email protected]
  • Backlit keyboard
  • Microphone Digital-array microphones
  • Speakers 2x 2W
  • Optical drive
  • Security Lock slotNoble lock

DISPLAY: 17.3-inch, 1920 x 1080, IPS

Name CHI MEI CMN1738 (N1YPX-173HCE) (Dell Inspiron 17 5770)
Diagonal 17.3"
Pixel density 127.34 ppi
Brightness 280 cd/m2
sRGB 94%
PWM frequency 1000 Hz
Panel Type IPS
Resolution 1920 x 1080
Becomes "Retina" from 27 inches (69 cm)
Contrast 1260:1
dE Color Checker 4.2 1.9
PWM Rating 1.5: (harmful)
Buy Our Profiles Here


The first and most important profile (in our opinion) is the Health-Guard – when being used with our LM Profiles application, Health-Guard eliminates the harmful Pulse-Width Modulation (PWM) and reduces the negative Blue Light which affects our eyes and body.

Since it’s custom tailored for every panel, it manages to keep the colors perceptually accurate (they may seem strange at first but after a few minutes our brain will start recognizing them as accurate ones – that’s how Health-Guard differs from alternatives like f.lux).

Left: No Profile | Drag the slider to see the difference | Right: Health-Guard Profile

Office Work and Web Design

The second profile type is Office Work and Web Design. Business tasks are various, most often related to a set of office-targeted applications. Sometimes, working outside is necessary. In such cases color accuracy is paramount, but so is image clarity, brightness, contrast etc. A piece of text must be legible, graphics and histograms must be clear. All of this is precisely what this profile is for. If you’re doing office work, web design, or simply value color accuracy when browsing the Internet, this is the profile to use!

It’s important to note that not all displays are suited for Web design – our profiles can not compensate for insufficient sRGB coverage (most TN panels have this problem), so you you might want to check our detailed color tests in the respective product reviews we’ve done if you want to use the machine for professional work.

Left: No Profile | Drag the slider to see the difference | Right: Design & Gaming Profile

Gaming and Movie Nights

Gaming is among the main driving forces for the fast clip of hardware development. Gamers are well-aware of the fact that a poor image can ruin the entire experience.

The same goes for watching movies. Imagine sitting down for a nice movie after a long day, and barely making out what’s on the screen. The ‘Gaming and movie night’ profile can make a huge difference. We strongly recommend you use it, since it’s gamma curve is specifically tuned to reveal details in the dark sections of the image.

Here’s what this amounts to:

Left: No Profile | Drag the slider to see the difference | Right: Design & Gaming Profile

You’ll find more information about the profiles HERE.

Buy our profiles for CHI MEI CMN1738 (N1YPX-173HCE) (Dell Inspiron 17 5770)

In addition to receiving efficient and health-friendly profiles, by buying LaptopMedia's products you also support the development of our labs, where we test devices in order to produce the most objective reviews possible.

Office Work - screen profile

Office Work

Office Work should be used mostly by users who spend most of the time looking at pieces of text, tables or just surfing. This profile aims to deliver better distinctness and clarity by keeping a flat gamma curve (2.20), native color temperature and perceptually accurate colors.

Buy Now
Design and Gaming - screen profile

Design and Gaming

This profile is aimed at designers who work with colors professionally, and for games and movies as well. Design and Gaming takes display panels to their limits, making them as accurate as possible in the sRGB IEC61966-2-1 standard for Web and HDTV, at white point D65.

Buy Now
Health-Guard - screen profile


THealth-Guard eliminates the harmful Pulse-Width Modulation (PWM) and reduces the negative Blue Light which affects our eyes and body. Since it’s custom tailored for every panel, it manages to keep the colors perceptually accurate. Health-Guard simulates paper so the pressure on the eyes is greatly reduced.

Buy Now
Buy Now


More Dell Inspiron 5770 configurations

See all Dell Inspiron 5770 configurations


Dell Inspiron 5770 in-depth review

Just another 8th Generation Intel-powered 17-inch notebook from Dell or there's more to it? It surely is a fine addition in the 17-inch market and Dell's portfolio if the price wasn't so high. The Intel Core i7-8550U paired with AMD's Radeon 530 GPU isn't something to brag about at the above $1 000 price point, especially when you have powerful 17-inch notebooks like the Acer Aspire 7 or the ASUS ROG Strix GL753VD/VE for roughly the same if not lower price. But even if horsepower isn't ev[...]

Read the full review


  • Excellent IPS display with wide sRGB coverage and high contrast

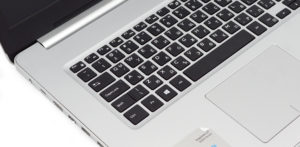

  • Shallow keyboard with no LED backlight
  • Hardware runs hot under heavy workload
  • Slow GPU for the asking price
  • Screen uses PWM For regulating screen brightness (our Health-Guard profile takes care of that)
  • Our unit's screen had significant light bleed and color deviation in the lower section

CPU Performance: Intel Core i7-8550U

GPU Performance: AMD Radeon 530 (4GB GDDR5)

Results are for the 3DMark: Fire Strike (Graphics) benchmark (the higher the score, the better)
