•  Date Published: 23 Dec 2021
  • Intel Core i5-1135G7
  • Intel Iris Xe Graphics G7 (80EU)
  • 14.0”, WUXGA (1920 x 1200), IPS
  • 256GB SSD
  • 16GB LPDDR4x, 4266 MHz
  • 1.40 kg (3.1 lbs)

Pros

  • 15 hours of Web browsing on a single charge
  • Great input devices
  • 98% sRGB coverage and accurate color representation with our profile (AUO B140UAN02.1 (LEN403A))
  • Included stylus
  • Supports PCIe x4 Gen 4 drives
  • Two Thunderbolt 4 connectors (both can be used for charging)
  • Wi-Fi 6 support plus optional IR face recognition, fingerprint reader, and 5G support
  • Quad-channel memory
  • No PWM (AUO B140UAN02.1 (LEN403A))
  • Great build quality

Cons

  • Lacks an SD card reader
  • Memory is soldered to the motherboard

Specs

CPU Performance #99in Top CPUs
  • Intel Core i7-1165G7 0.8%
  • AMD Ryzen 3 5300U 1.0%
  • Intel Core i5-1135G7
  • Intel Core i5-10300H 0.2%
  • Intel Core i5-1145G7 0.5%
  • Intel Core i5-10400H 0.8%
GPU Performance #90in Top GPUs
  • NVIDIA Quadro P620 (4GB GDDR5) 0.9%
  • Intel Iris Xe Graphics G7 (96EU) 2.3%
  • Intel Iris Xe Graphics G7 (80EU)
  • AMD Radeon RX Vega 8 (R4000/5000, 15W) 2.9%
  • NVIDIA GeForce MX330 (4GB GDDR5, 25W) 2.9%
  • AMD Radeon RX Vega 7 (R4000,5000 35/45W) 2.9%
  • AUO B140UAN02.1
  • Color accuracy  5.7  1.4
  • HDD/SSD
  • 256GB SSD
  • M.2 Slot
  • 1x 2280 PCIe NVMe 4.0 x4  See photo
  • RAM
  • 16GB LPDDR4x, 4266 MHz
  • OS
  • Windows 11 Pro
  • Body Material
  • Aluminum
  • Dimensions
  • 314.4 x 223 x 15.0 mm (12.38" x 8.78" x 0.59")
  • Weight
  • 1.40 kg (3.1 lbs)
  • Ports and connectivity
  • 2x USB Type-A
  • 3.2 Gen 1 (5 Gbps)
  • 2x USB Type-C
  • Thunderbolt 4, Power Delivery (PD), DisplayPort
  • HDMI
  • 2.0
  • Card Reader
  • Ethernet LAN
  • Wi-Fi
  • 802.11ax
  • Bluetooth
  • 5.2
  • Audio jack
  • 3.5mm Combo Jack
  • Features
  • Fingerprint reader
  • Web camera
  • HD
  • Backlit keyboard
  • Microphone
  • Four Array Microphones, 360° Far Field
  • Speakers
  • 2x 2W, Dolby Atmos
  • Optical drive
  • Security Lock slot
  • Kensington Lock Slot

More Lenovo ThinkPad X1 Yoga 6 configurations - 13 laptops

#CommissionsEarned

DISPLAY: 14.0-inch, 1920x1200, IPS

  • Name
  • AUO B140UAN02.1
  • Diagonal
  • 14.0"
  • Pixel density
  • 161.73 ppi
  • Brightness
  • 360 cd/m2
  • sRGB
  • 98%
  • PWM frequency
  • No PWM (Flicker-Free)
  • Panel Type
  • IPS
  • Resolution
  • 1920x1200
  • Becomes "Retina" from
  • 21 inches (54 cm)
  • Contrast
  • 1800:1
  • dE Color Checker
  • 5.7 1.4
  • PWM Rating
  • 10.0: (safe)

Buy our profiles for AUO B140UAN02.1

In addition to receiving efficient and health-friendly profiles, by buying LaptopMedia's products you also support the development of our labs, where we test devices in order to produce the most objective reviews possible.

Office Work

Office Work should be used mostly by users who spend most of the time looking at pieces of text, tables or just surfing. This profile aims to deliver better distinctness and clarity by keeping a flat gamma curve (2.20), native color temperature and perceptually accurate colors.

Design and Gaming

This profile is aimed at designers who work with colors professionally, and for games and movies as well. Design and Gaming takes display panels to their limits, making them as accurate as possible in the sRGB IEC61966-2-1 standard for Web and HDTV, at white point D65.

Health-Guard

Health-Guard eliminates the harmful Pulse-Width Modulation (PWM) and reduces the negative Blue Light which affects our eyes and body. Since it’s custom tailored for every panel, it manages to keep the colors perceptually accurate. Health-Guard simulates paper so the pressure on the eyes is greatly reduced.

Get all 3 profiles with 33% discount

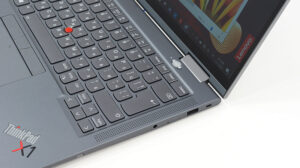

Lenovo ThinkPad X1 Yoga 6 in-depth review

Today, we have another member of the ThinkPad X1 family of premium business devices from Lenovo. It is a convertible and bears the name ThinkPad X1 Yoga Gen 6. Usually, the business world is taken over by the more conventional "clamshell" devices. Recently, however, manufacturers release a large portion of their commercial devices in both a classic and a 2-in-1 variant. This lets the users take notes, and even produce some design-related work. To do so, you don't only need a good amount of horsepower, but an adequate display as well. Here, you can rely on a 16:10 IPS panel with either a 1200p or a 2400p resolution. The latter also supports HDR 400. Since this laptop was released in 2021, it bears a Tiger Lake CPU. You can go all the way up to the Core i7-1185G7, with only integrated[...]

Read the full review

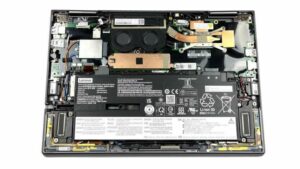

Disassembly, maintenance and upgrade options

In the face of the ThinkPad X1 Yoga Gen 6, you get a premium laptop that doesn't really offer much in terms of upgradeability. Check out all Lenovo ThinkPad X1 Yoga Gen 6 prices and configurations in our Specs System or read more in our In-Depth review. 1. Remove the bottom plate This laptop's bottom panel is held in place by 5 captive Phillips-head screws. After you undo them, remove the dedicated stylus from its garage, and pry the panel with a plastic tool. 2. Battery Here, the battery has a capacity of 57Wh. It lasted us for 15 hours of Web browsing, or more than 11 hour[...]

Read more
