Lenovo LOQ 17IRX10 (17″, Gen 10) review – A Practical Powerhouse
Lenovo’s LOQ line has always been about smart, value-focused gaming, and the new LOQ 17IRX10 is a perfect embodiment of that philosophy. It avoids flashy, expensive materials to deliver a robust, practical desktop replacement that’s packed with power and user-friendly features. However, its most impressive feature isn’t the powerful CPU or the stable GPU; it’s a small, deliberate design choice that shows a deep understanding of what gamers actually want: the keyboard. This machine makes a compelling case for being the most thoughtfully designed budget gamer on the market, but does its focus on the core experience amd can you ignore the compromises?
You can check the prices and configurations in our Specs System: https://laptopmedia.com/series/lenovo-loq-17-17-gen-10/
Contents
- Specs, Drivers, What’s in the box
- Design and construction
- Display and Sound Quality, Display Profiles
- Get our profiles
- Work Performance: CPU, Storage, AI
- GPU and Gaming Performance
- [eBook Guide + Tools] How to MAX OUT Your Laptop
- Temperatures and Comfort, Noise, Stability
- Battery Life
- Disassembly, Upgrade options, and Maintenance
- Verdict
Specs, Drivers, What’s in the box
Lenovo LOQ 17IRX10 (17", Gen 10) - Specs
- HDD/SSD
- up to 8000GB SSD
- M.2 Slot
- 2x 2280 M.2 NVMe PCIe 4.0 x4 See photo
- RAM
- up to 96GB
- OS
- Windows 11 Home, Windows 11 Pro, Windows 10 Pro, No OS, Windows 10 Home
- Battery
- 60Wh
- Body material
- Plastic / Polycarbonate
- Dimensions
- 398.4 x 276.2 x 22.95 - 25.25 mm (15.69" x 10.87" x 0.90")
- Weight
- 2.90 kg (6.4 lbs)
- Ports and connectivity
- 4x USB Type-A
- 3.2 Gen 1 (5 Gbps)
- 1x USB Type-C
- 3.2 Gen 2 (10 Gbps), Power Delivery (PD), DisplayPort
- HDMI
- 2.1 (8K@60Hz)
- Card reader
- Ethernet LAN
- 10, 100, 1000 Mbit/s
- Wi-Fi
- Wi-Fi 6
- Bluetooth
- 5.2
- Audio jack
- 3.5mm Combo Jack
- Features
- Fingerprint reader
- optional
- Web camera
- 5.0MP, with E-shutter, fixed focus
- Backlit keyboard
- Microphone
- Dual-microphone array
- Speakers
- Stereo speakers, 2W x2, optimized with Nahimic Audio
- Security Lock slot
All Lenovo LOQ 17IRX10 (17″, Gen 10) configurations
Drivers
All drivers and utilities for this notebook can be found here: https://pcsupport.lenovo.com/us/en/products/laptops-and-netbooks/gaming-series/loq-17irx10

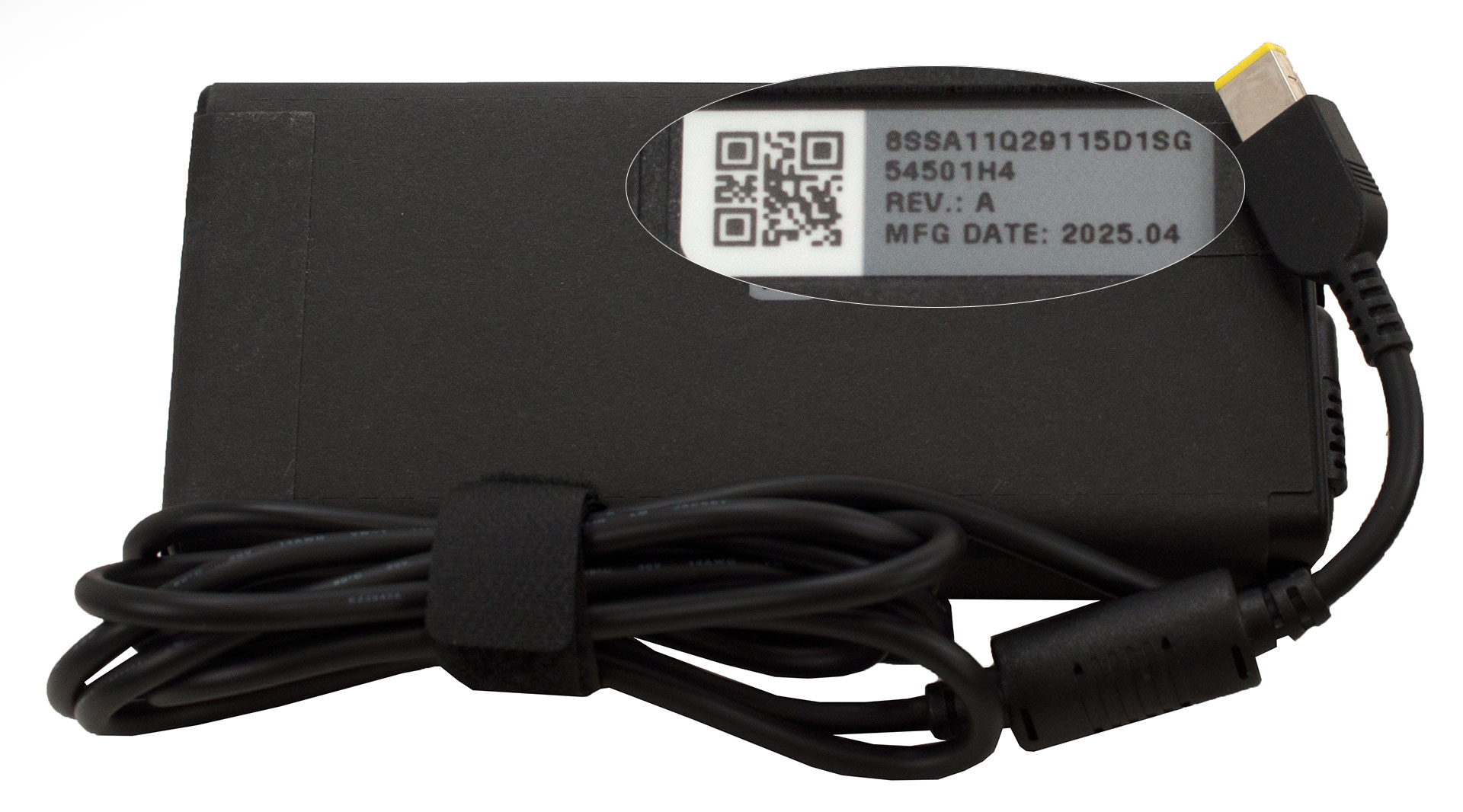

What’s in the box?
Unboxing the Lenovo LOQ 17IRX10 (17″, Gen 10) is pretty straightforward – inside you’ll find the hefty 245W charger and, of course, the laptop itself, ready to fire up. There aren’t any physical surprises beyond that, though Lenovo does throw in 3 months of Xbox PC Game Pass, which feels like a nice digital bonus for gamers. Depending on your region, you might also spot a Lenovo LOQ M100 RGB Mouse in the package, but that’s more of a regional treat than a guarantee.

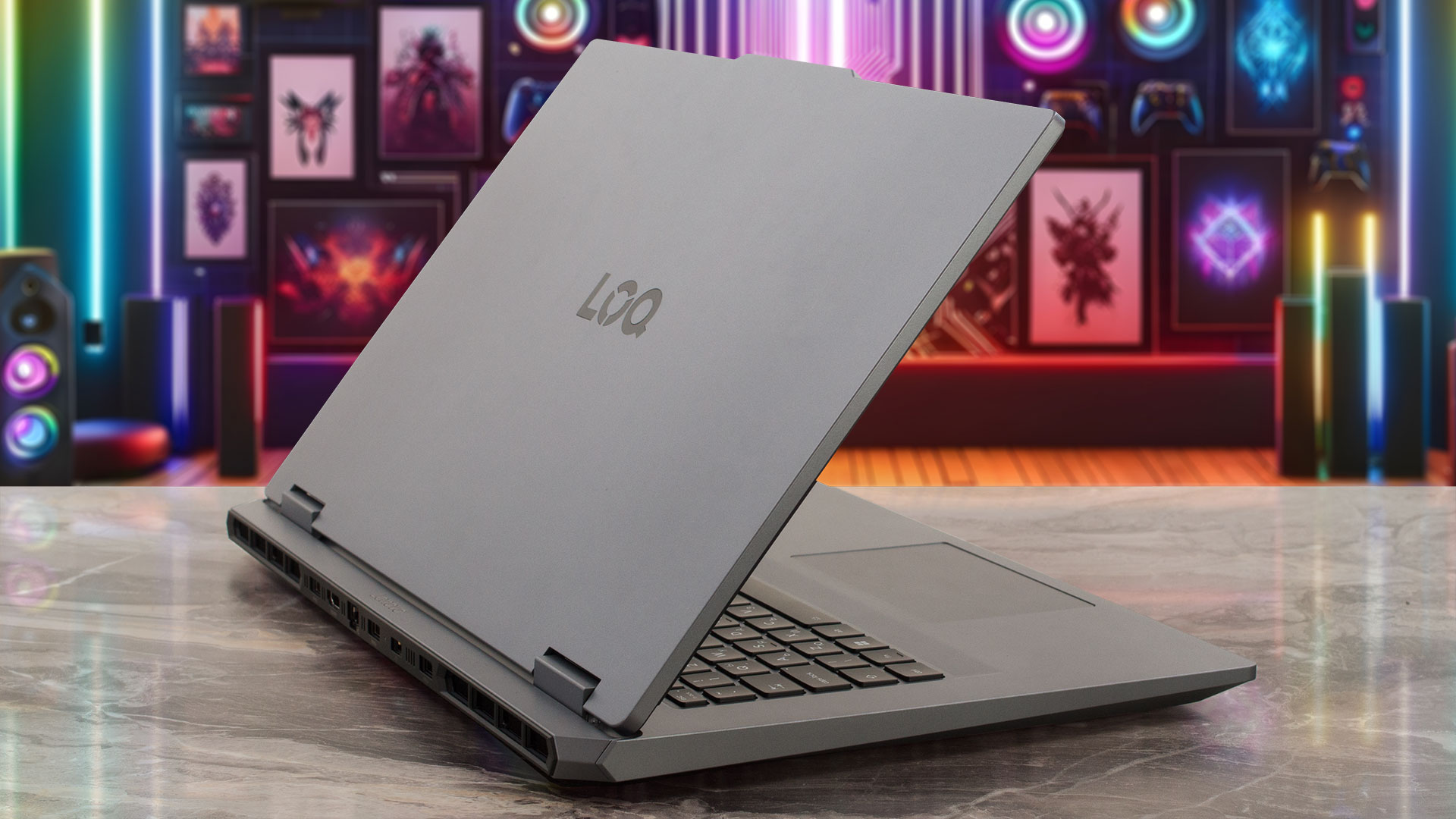

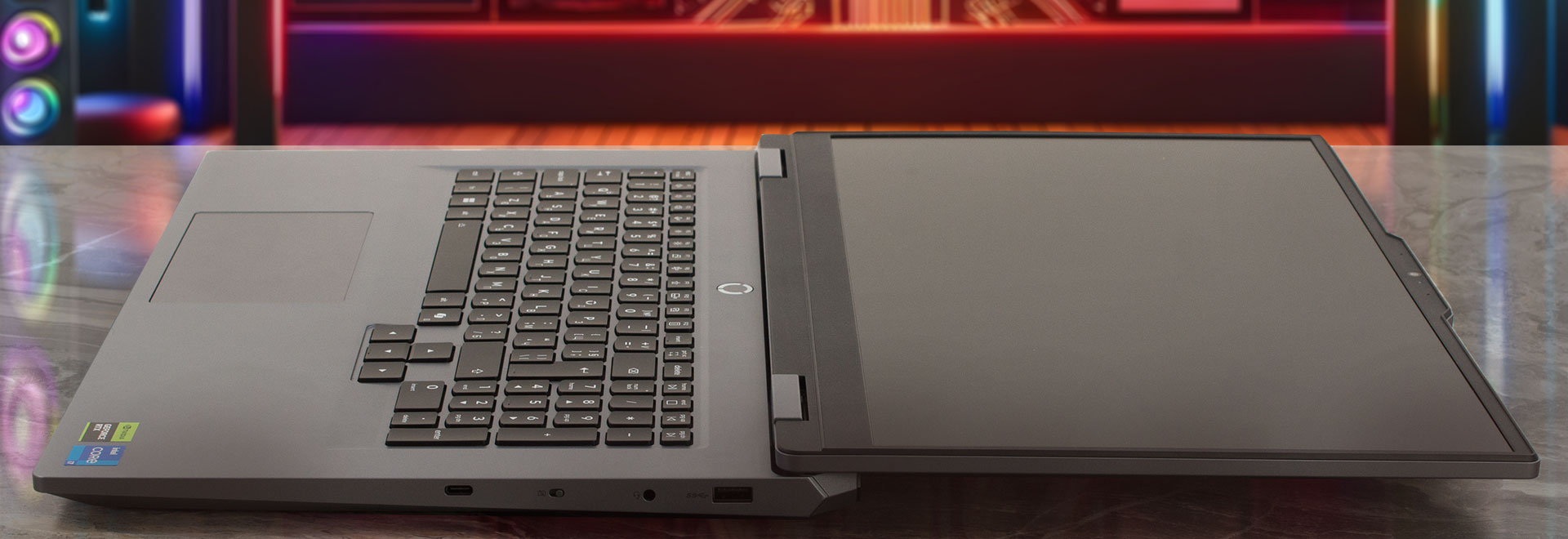

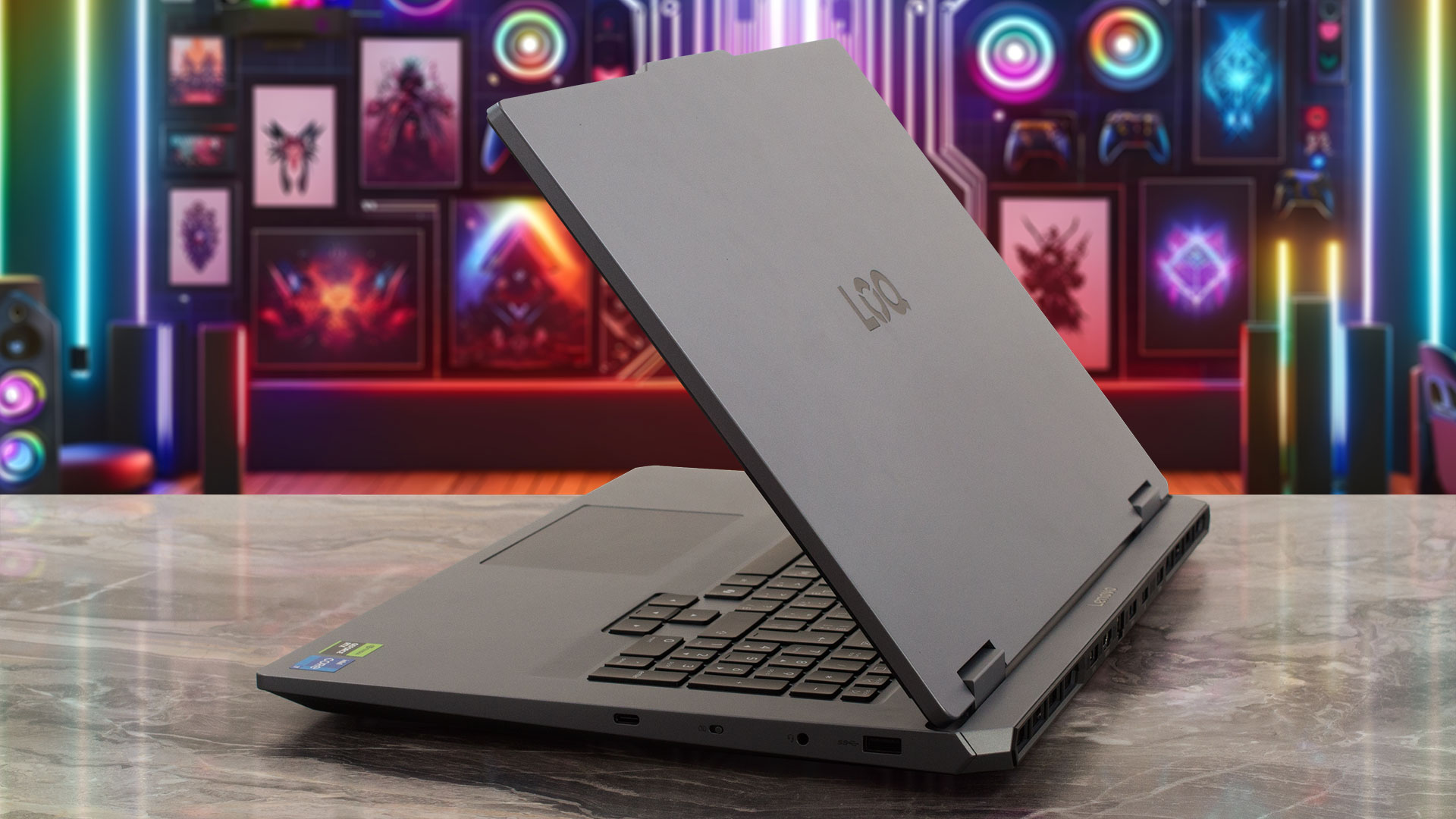

Design and construction
The Lenovo LOQ 17IRX10 (17″, Gen 10) arrives with a design philosophy that Lenovo itself dubs “Low-Key Looks,” and for the most part, that’s an accurate description. This isn’t a machine that screams for attention with overly aggressive lines or a blinding array of lights. Instead, it opts for a more subdued and purposeful aesthetic, finished in a single, handsome “Luna Grey” colour.
The build quality feels surprisingly solid, especially considering its all-plastic (PC-ABS) construction. While there is some minor flex if you apply significant pressure around the spacebar and arrow key area, it’s nothing you’d ever notice in normal day-to-day use. This tangible sturdiness backs up its MIL-STD certification, giving a sense of durability. The surface also does a commendable job of resisting fingerprints; any faint smudges that do appear are only visible under direct, bright light.
As a 17-inch gaming laptop, it has a substantial footprint, measuring 398.4 x 276.2 x 22.95-25.25 mm (15.69 x 10.87 x 0.94-0.99 inches) and with a starting weight of 2.9 kg (6.39 lbs). Despite this heft, opening the lid is a smooth, one-handed operation, a testament to well-tuned hinges that feel both stable and not overly tight. A great feature of the hinge design, which is mounted above the main chassis, is its ability to open a full 180 degrees, allowing the screen to lay completely flat. While there are no touchscreen options that would make this essential, the added flexibility is always a welcome bonus.
The display is framed by 8 mm (approximately 0.31 inches) bezels on the sides, with the top bezel featuring a “bump” that extends to 12 mm (approximately 0.47 inches) to accommodate the 5.0MP fixed-focus camera. For privacy, Lenovo has included an E-shutter, which is conveniently activated by a dedicated physical button on the right side of the chassis – a very neat and user-friendly implementation.

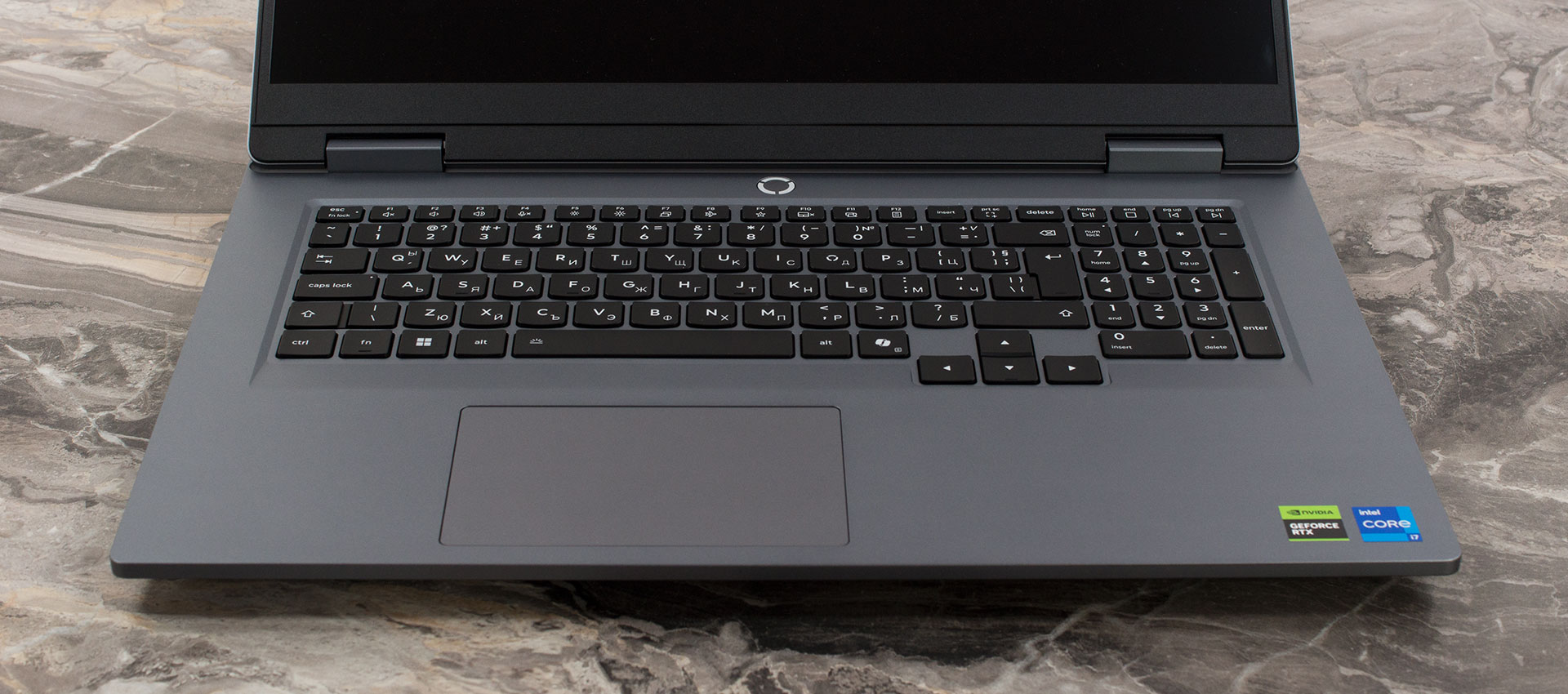

The keyboard deck is where the LOQ 17 really shines for gamers. In a rare and welcome design choice, the arrow keys are not only full-sized but are also slightly offset from the main cluster, making them easy to find by feel and a huge win for anyone who plays racing games or other genres that rely on them heavily. The keyboard itself is comfortable, offering a good 1.6mm of key travel and a 0.3mm cap recess. Depending on the configuration, the backlight can be either a simple white or a more vibrant 24-Zone RGB. A full NumPad is also included, and while its keys are slightly smaller than the main set (even with ample space available), it remains relatively comfortable for data entry.
However, a significant limitation is the complete lack of biometric login options; there are no configurations with a fingerprint reader or an IR camera, so you’ll be relying solely on passwords. Below the keyboard, the buttonless Mylar surface trackpad measures 75 x 120 mm (2.95 x 4.72 inches) and provides a smooth and comfortable experience for everyday navigation.

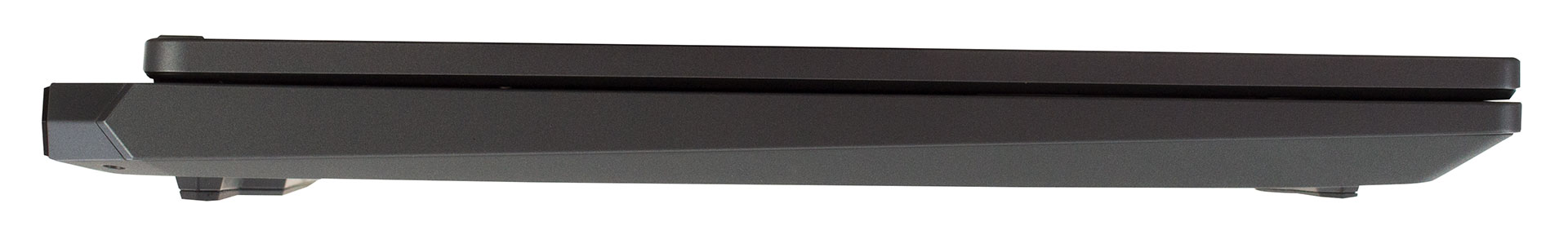

Ports and Connectivity

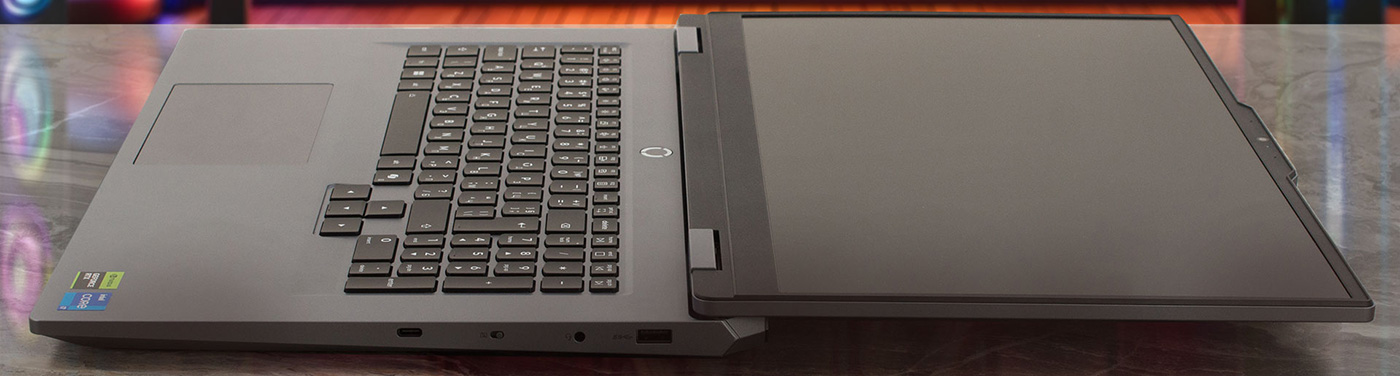

The Lenovo LOQ 17IRX10 (17″, Gen 10) adopts a thoughtful port layout focused on improving cable management by concentrating most connections on the rear. The left side of the chassis is completely clean, with no ports whatsoever, although it would be a significant benefit for right-handed mouse users to eliminate the potential cable interference on the right side instead.

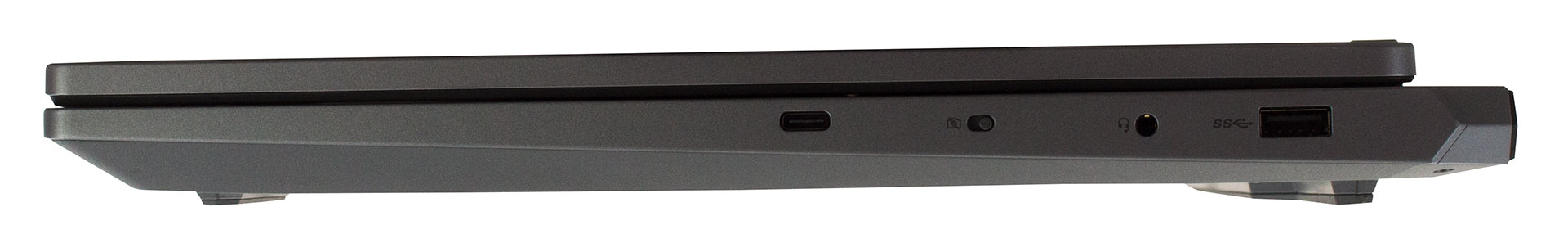

There are some ‘quick access’ ports located on the right flank. Here you’ll find a single USB-A port operating at 5Gbps (USB 3.2 Gen 1) speeds and a versatile USB-C port. This Type-C port supports faster 10Gbps (USB 3.2 Gen 2) data transfers, DisplayPort 1.4 for video output, and can accept a wide range of Power Delivery (65-100W) for alternative charging. Also on this side are a physical E-shutter switch for the webcam, a great privacy feature, and a standard 3.5mm headphone/microphone combo jack.

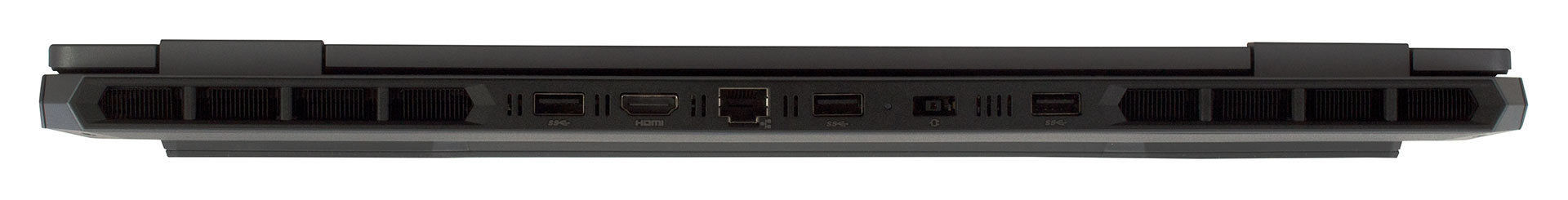

The bulk of the connectivity is housed on the rear of the laptop, which is ideal for less frequently accessed cables. This includes the dedicated power connector, a powerful HDMI 2.1 port capable of driving displays up to 8K at 60Hz, and a standard Gigabit Ethernet (RJ-45) port for a stable wired network connection. A standout feature is the inclusion of three additional USB-A ports on the rear, all running at 5Gbps speeds. This brings the total count to four USB-A ports, which is exceptionally generous and provides ample connectivity for a full setup of peripherals without needing a hub.

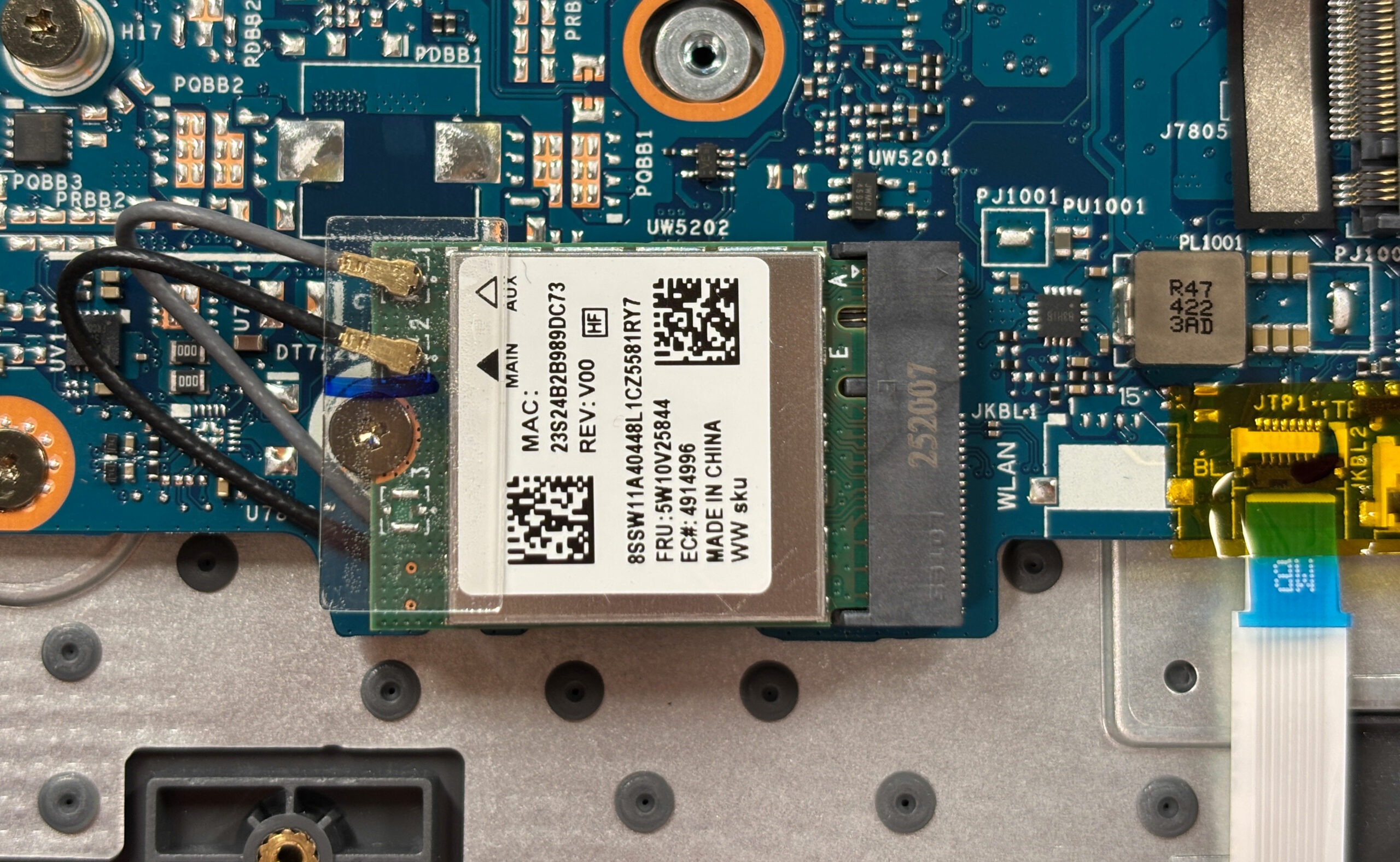

For wireless connectivity, the LOQ 17IRX10 is equipped with Wi-Fi 6 (802.11ax). The module features a 2×2 antenna configuration for reliable performance on modern wireless networks and is paired with Bluetooth 5.2 for connecting wireless accessories such as mice, keyboards, and headphones.
Display and Sound Quality, Display Profiles
| Lenovo LOQ 17IRX10 | Innolux N173HME-G31 (CMN174C) |
| Diagonal | 17.3 inches (43.9 cm) |
| Panel Type | IPS |
| Resolution | 1920 x 1080 pixels |
| Max Refresh Rate | 165 Hz |
| Aspect Ratio | 16:9 |
| Pixel Density | 127 PPI |
| ‘Retina’ Distance | Greater than or equal to 69 cm |

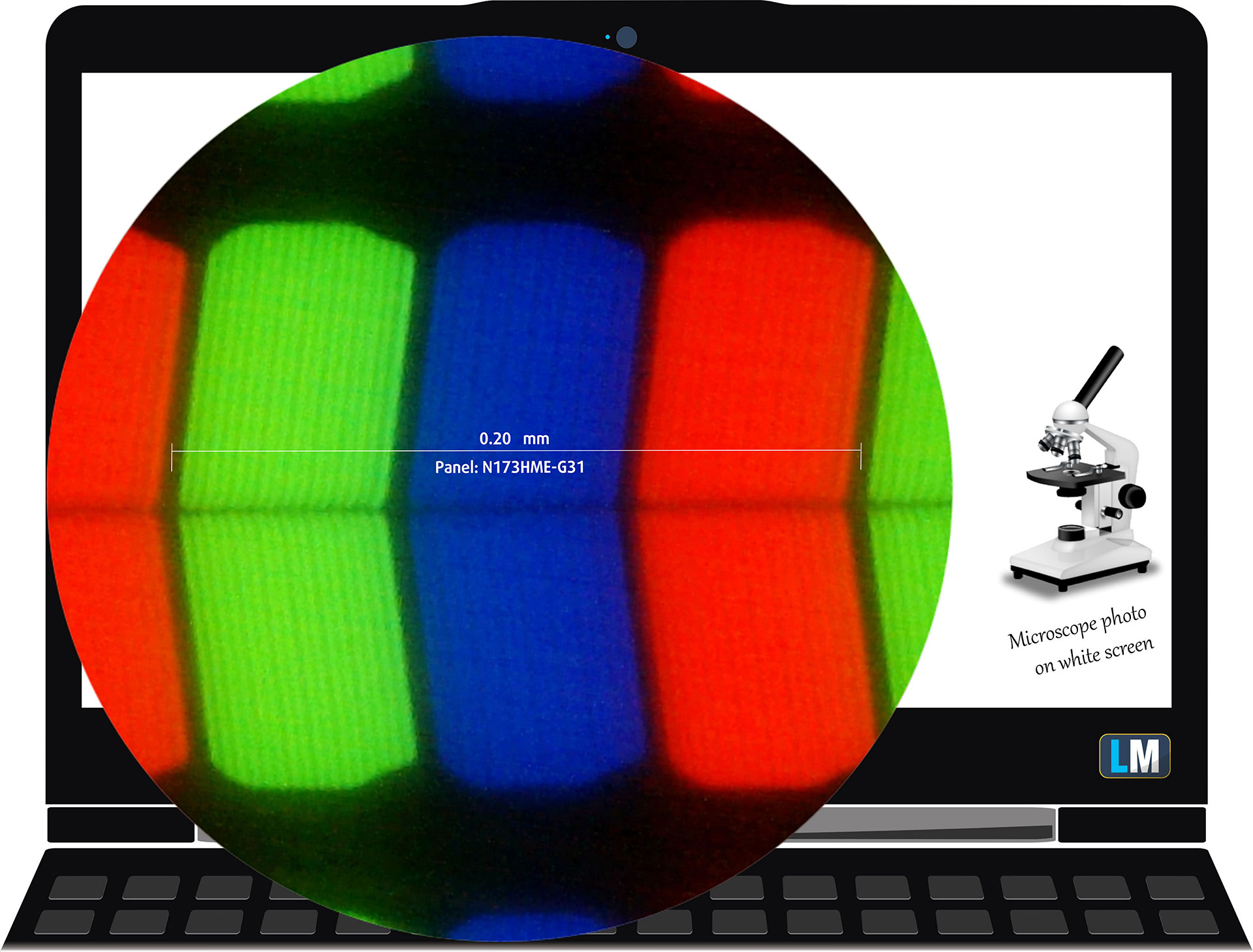

Lenovo LOQ 17’s Innolux N173HME-G31 under our microscope

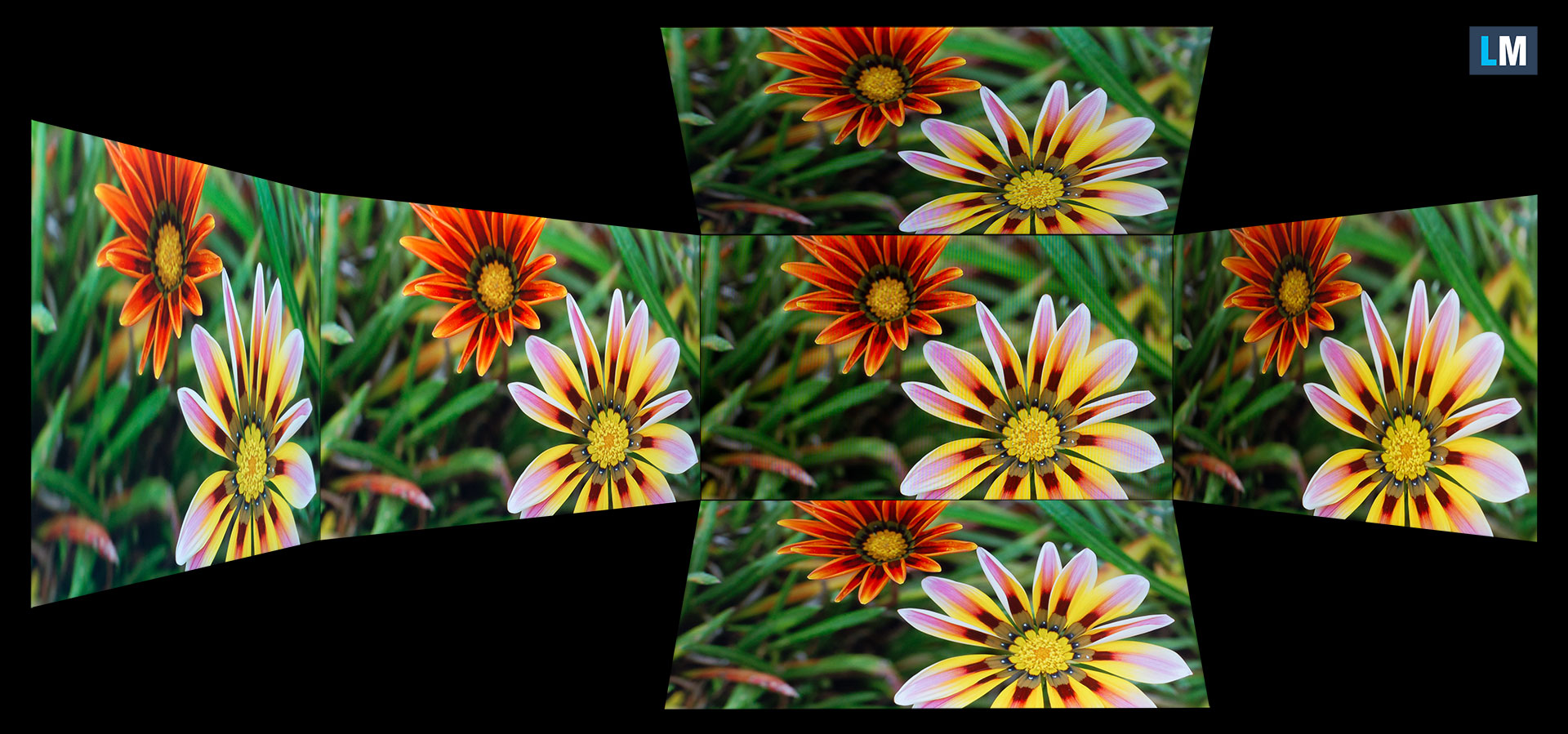

Viewing Angles
Viewing angles are good. We take photos from different angles to evaluate the quality.
Also, a video with locked focus and exposure.
Color Coverage
The whole “sail-shaped” map below (Fig. 1) consists of all the colors we can see, while the black crooked line shows all the colors from real-world scenes and nature around us.
Then, we’ve drawn some of the most important and interesting color spaces, compared to the colors the panel of Lenovo LOQ 17IRX10 can show:
Standard/For Web: sRGB – widely used color space for most consumer devices, ideal for Web design and development
For Print: AdobeRGB – used in professional photo editing, graphic design, and print
For Photographers/Video Editors: DCI-P3 – used in high-end film production, post-production, and digital cinema
Premium HDR: Rec.2020 – the widest consumer ITU color standard, covering a massive 75.8% of the visible spectrum, a benchmark for premium HDR content.
Lenovo LOQ 17IRX10: the yellow dashed triangle (– – – – – –) represents the range of colors this display can show.
In our tests, we calculated the total color coverage of the display at 94% of the sRGB color gamut and 74% of the DCI-P3 color gamut.

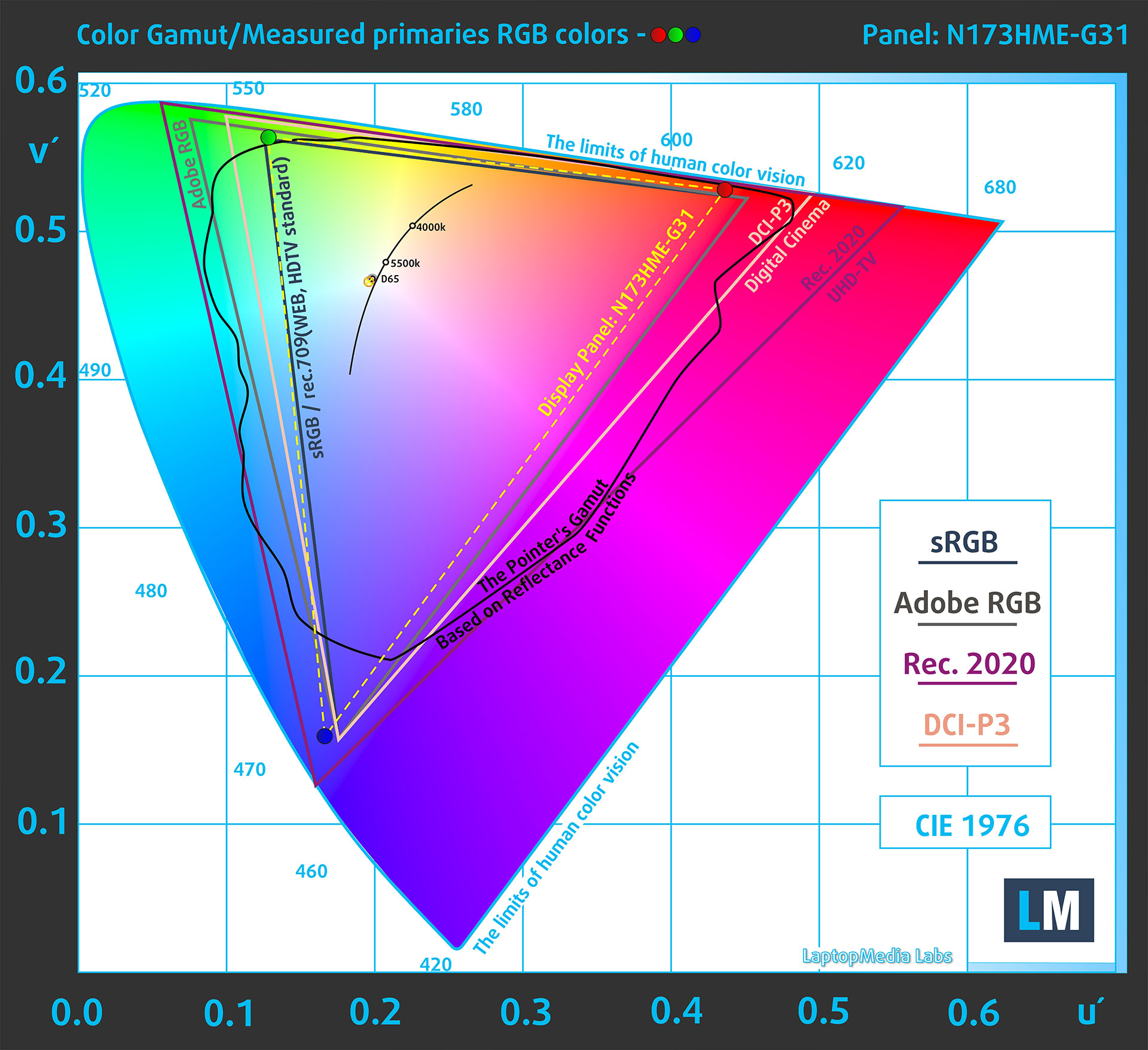

(Fig.1) Lenovo LOQ 17IRX10 covers 94% of the sRGB gamut
Brightness and Contrast
The maximum brightness in SDR mode is 323 cd/m² in the center of the screen and 307 cd/m² averaged across the surface with a maximum deviation of 10%.
The Correlated Color Temperature (CCT) on a white screen at maximum brightness is 6770K.
The contrast ratio is 1180:1.

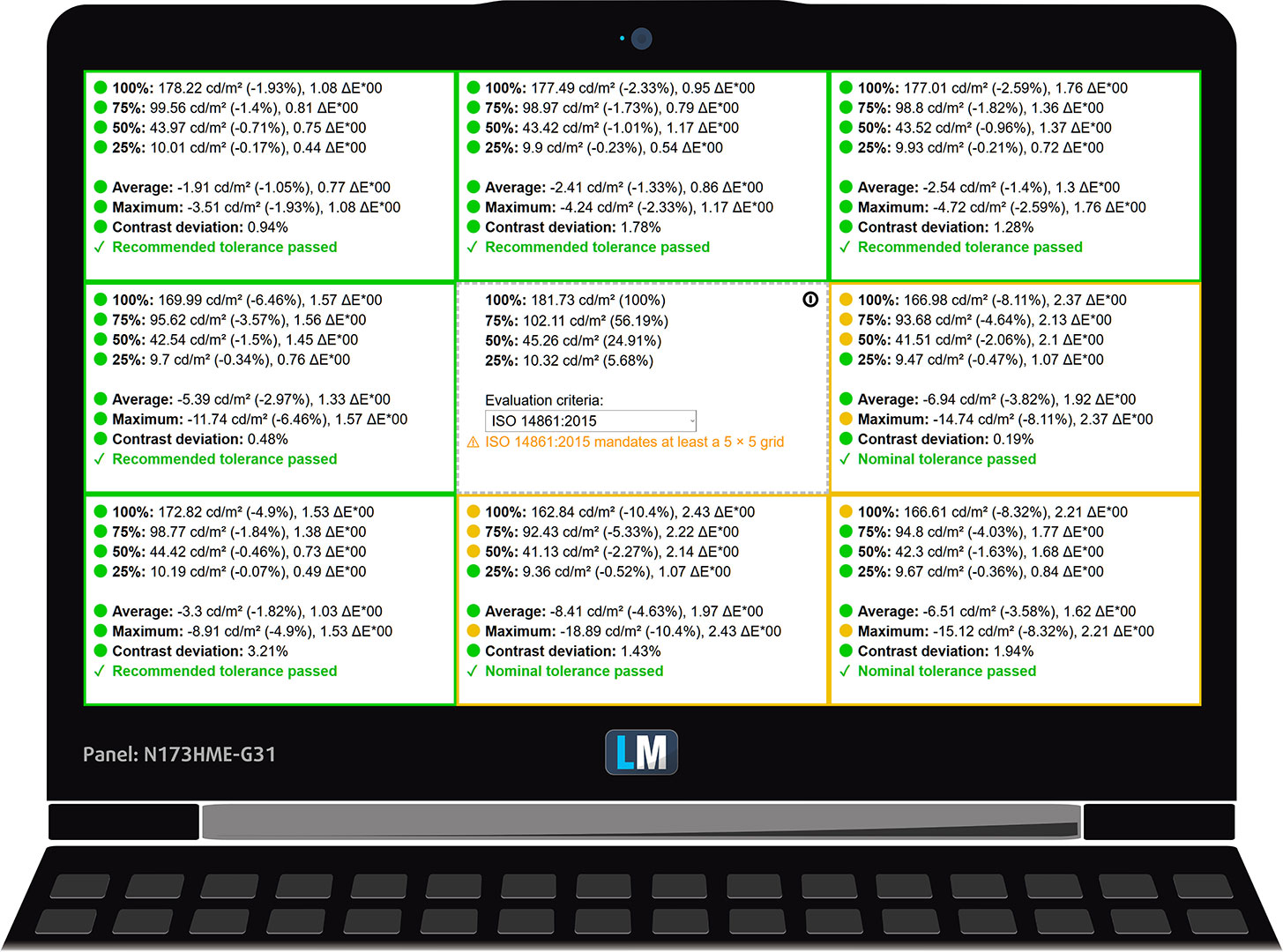

Uniformity: Luminance, Contrast, and Color Deviation
The figure below shows the results from our uniformity test across different sections of the screen. It’s measured at 181 nits (Windows slider = 75%) — a brightness level we consider typical for standard working conditions.
DeltaE values below 4.0 are acceptable for regular users. For those working with colors, screens with DeltaE values no higher than 2.0 are recommended.
Color Accuracy
Let’s check the difference between real colors and those you’ll see on the Lenovo LOQ 17IRX10. We measure that distance in DeltaE – the higher the number, the more different they look.
Values below 4.0 are acceptable for regular users, while values below 2.0 are suitable for color-sensitive work. A value below 1.0 means the difference is indistinguishable to the naked eye.
For the next graph, we’ve selected 24 common colors, including dark/light skin, blue sky, green grass, etc.
Before our calibration of the Lenovo LOQ 17IRX10, the Average color accuracy was 2.3 dE (Fig. 2), and with our Design and Gaming profile, it lowered to 1.2 dE (Fig. 3).
(Fig. 2) Lenovo LOQ 17IRX10 in its factory condition

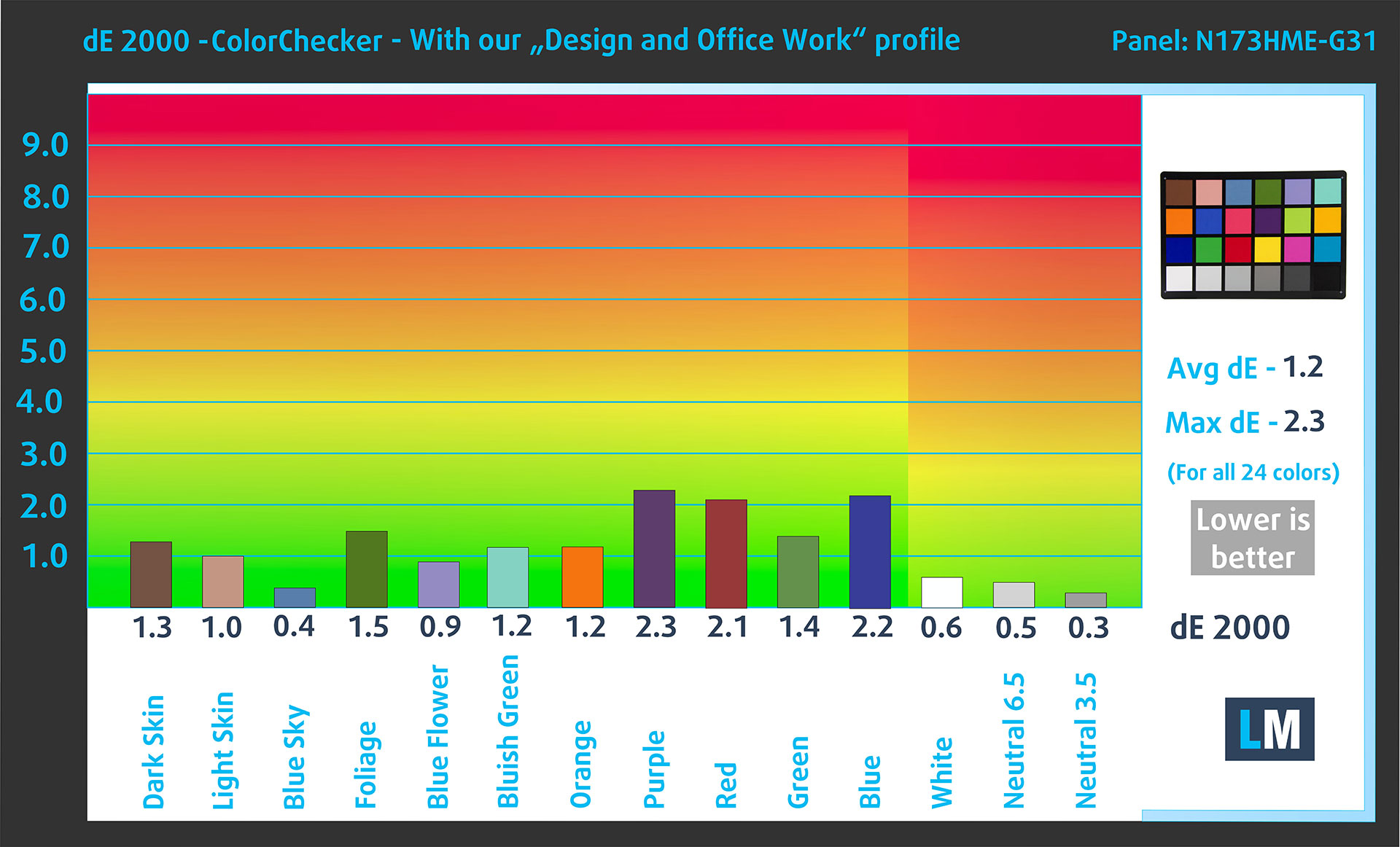

(Fig. 3) Lenovo LOQ 17IRX10 with our display profile
Comparison in the sRGB color space.
Here’s an illustration of what the Design and Office profile aims to deliver:
Left: No Profile | Drag the slider to see the difference | Right: Design & Office Profile
Visibility in dark scenes
Have you ever watched a movie with dark scenes where you could barely see anything? This often happens because many display panels struggle to differentiate the darkest nuances, making them appear the same.

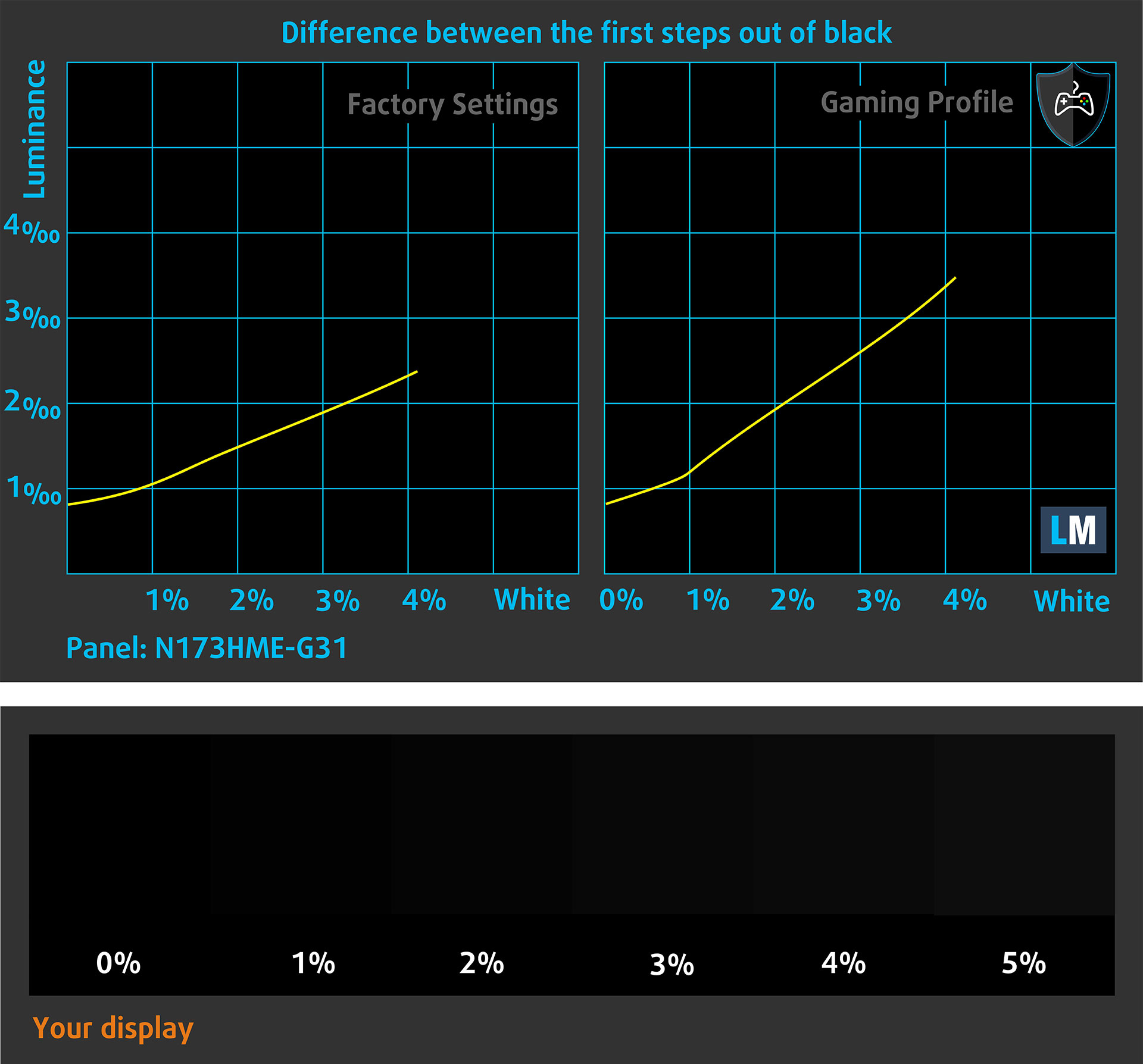

The next figure illustrates how well the display reproduces these dark nuances. The left side of the image shows the display with stock settings, and the right side shows it with our Gaming and movies profile activated.
On the horizontal axis are the grayscale levels, and on the vertical axis – the corresponding display brightness.
You can also check how your display handles the darkest nuances but keep in mind that this also depends on the settings of your current display and the surrounding light conditions.
Response time (Gaming capabilities)

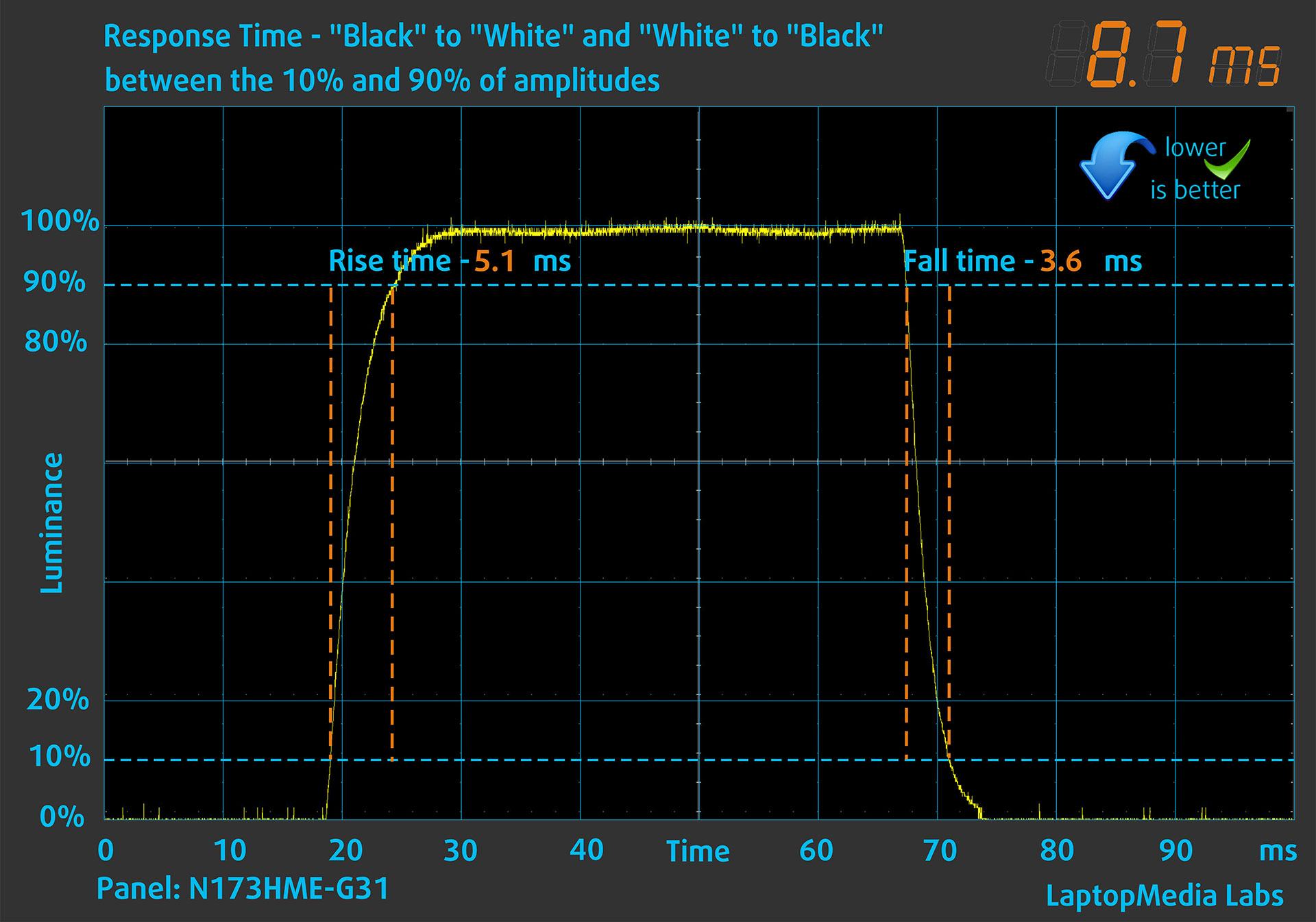

We test the reaction time of the pixels with the usual “black-to-white” and “white-to-black” method from 10% to 90% and vice versa.
We recorded Fall Time + Rise Time = 8.7 ms. Short pixel response time is a prerequisite for a smooth picture in dynamic scenes.

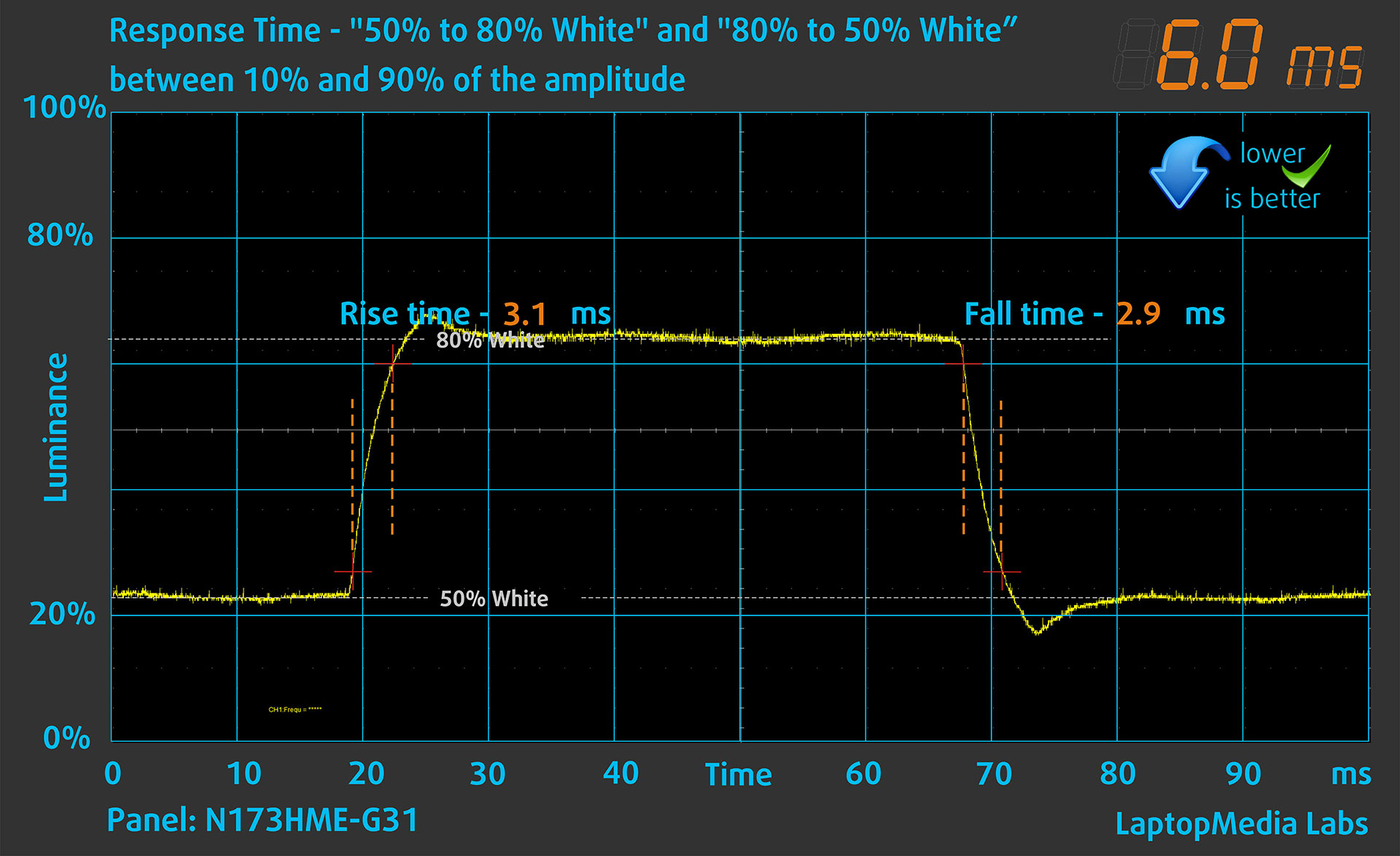

After that, we test the reaction time of the pixels with the usual “Gray-to-Gray” method from 50% White to 80% White and vice versa between 10% and 90% of the amplitude.
Health Impact: PWM (Screen flickering)
Some use PWM to regulate their brightness, which means that instead of reducing the light intensity, they pulse or flicker. Our brain merges the image, so it appears darker, but this strains both it and our vision, especially when the frequency of the pulses is low. You can read more about that in our dedicated article on PWM.

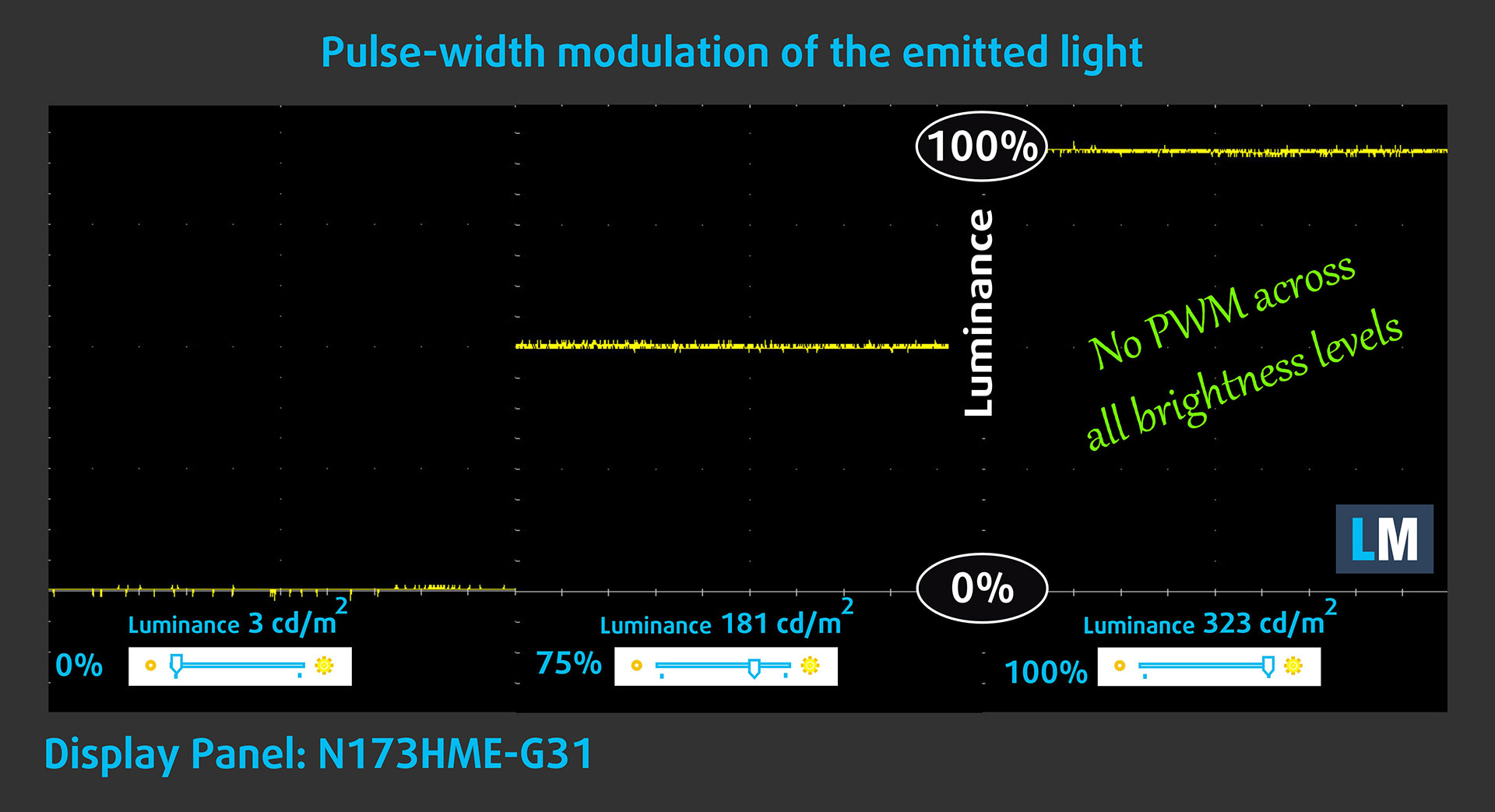

In the graph below, you see the intensity of light at different brightness levels—on the vertical axis is the brightness of the emitted light, and on the horizontal axis—time.
The light from the backlight of the Lenovo LOQ 17IRX10 display is not pulse-width modulated, providing visual comfort in the discussed aspect.
Health Impact: Blue light emissions
Installing our Health-Guard profile reduces harmful Blue Light emissions while keeping the colors of the screen perceptually accurate.
If you’re not familiar with the Blue light, the TL;DR version is – emissions that negatively affect your eyes, skin, and your whole body. You can find more information about that in our dedicated article on Blue Light.
Health Impact: Screen Reflectance
Glossy-coated displays can cause eye fatigue in high ambient light conditions due to reflections. We measure the level of screen reflection with the display turned off, at a 60° angle.
The reflectance of the Lenovo LOQ 17IRX10’s screen is 47.5 GU. This is a great result!
High Gloss: >70 GU
Medium Gloss: 30 – 70 GU
Low Gloss: <30 GU
Get our profiles
Since our profiles are tailored for each individual display model, this article and its respective profile package are meant for Lenovo LOQ 17IRX10 configurations with N173HME-G31 (CMN174C), 1920 x 1080, IPS panel.
*Should you have problems with downloading the purchased file, try using a different browser to open the link you’ll receive via e-mail. If the download target is a .php file instead of an archive, change the file extension to .zip or contact us at [email protected].
Read more about the profiles HERE.
In addition to receiving efficient and health-friendly profiles, by buying LaptopMedia's products you also support the development of our labs, where we test devices in order to produce the most objective reviews possible.
Design and Office
The Design and Office profile makes display colors as close to real as possible.Ideal not only for professionals but also for everyday users, it meets sRGB standards (D65 white point, sRGB gamma) with minimal DeltaE for precise color reproduction on your panel.
Gaming and Movies
Have you ever watched a movie where, during dark scenes, you can barely see anything? Many displays fail to distinguish dark tones properly. Our Gaming and Movies profile enhances low-light performance, like HDR tech, using a gamma curve tailored to human perception — ideal for gamers seeking faster reactions and clearer visuals.
Health-Guard
Our Health-Guard profile protects your eyes by eliminating PWM flickering, reducing strain and fatigue, and minimizing harmful Blue light exposure that can disrupt sleep and health. It uses software dimming and a gamma curve tailored to human perception for comfort and safety during screen use.
Get All The Profiles With 33% Discount!
Sound

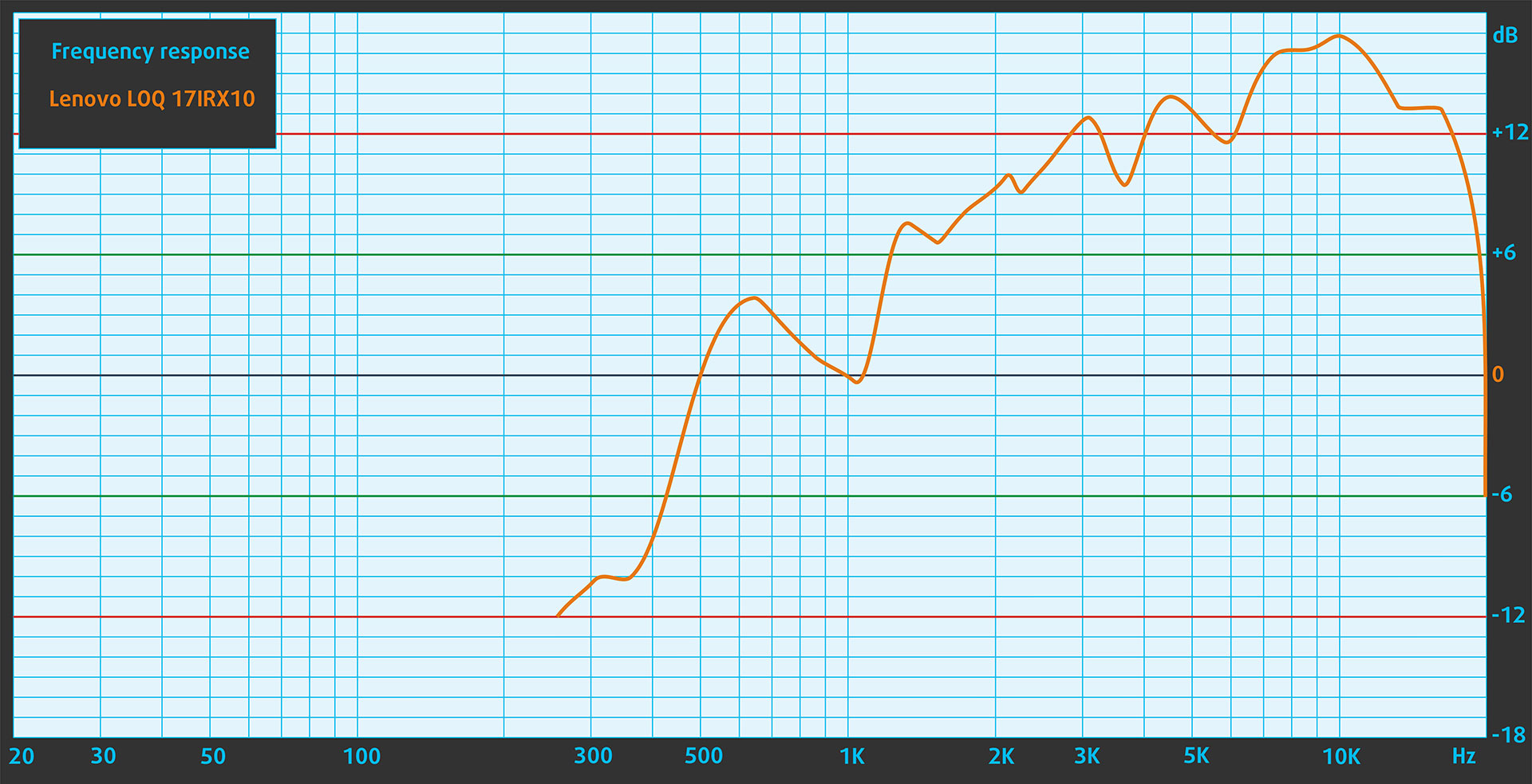

When we subjectively listen to a sound file through the built-in speakers, the sound quality offered by the Lenovo LOQ 17IRX10 is very good. The low, mid, and high frequencies are clear.
Work Performance: CPU, Storage, AI

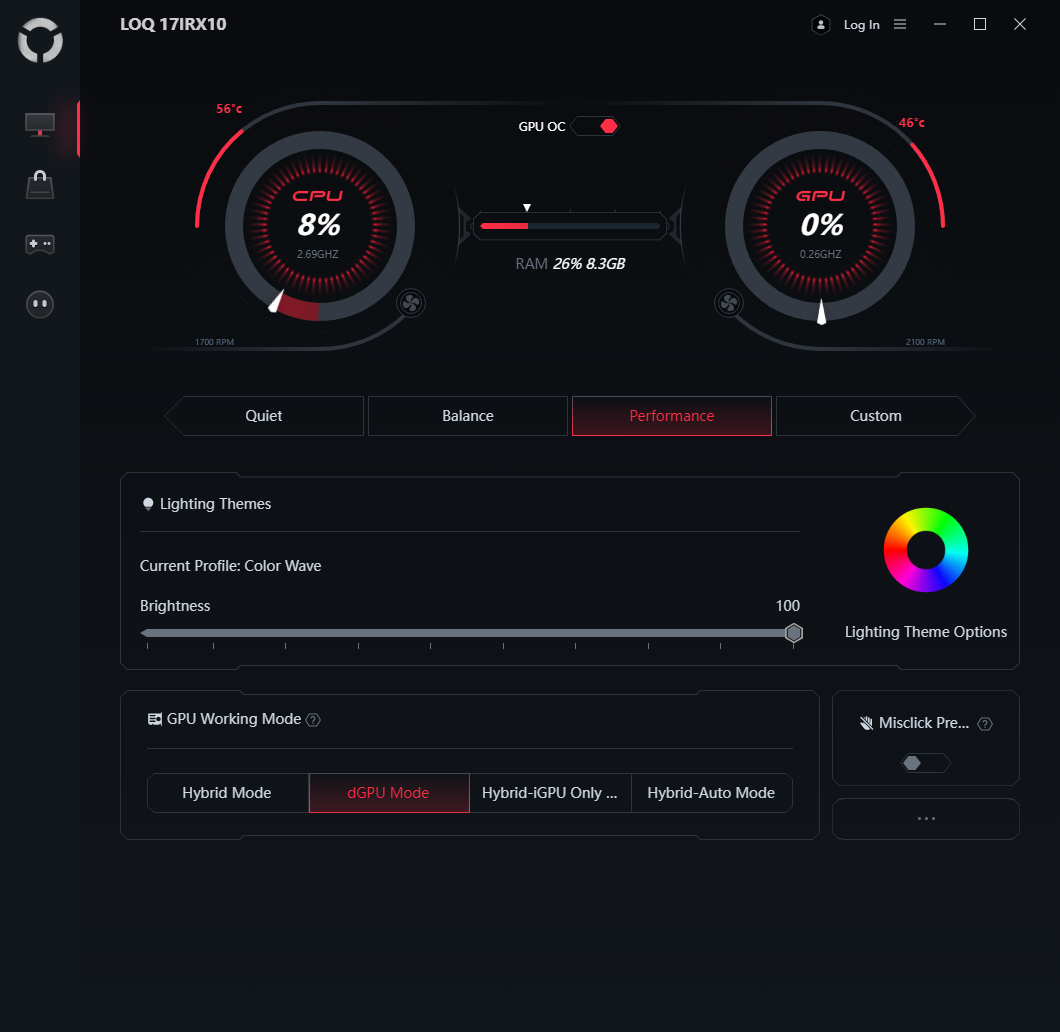

All performance and temperature tests are conducted with “Performance” mode activated in Legion Space:
CPU and Work Performance

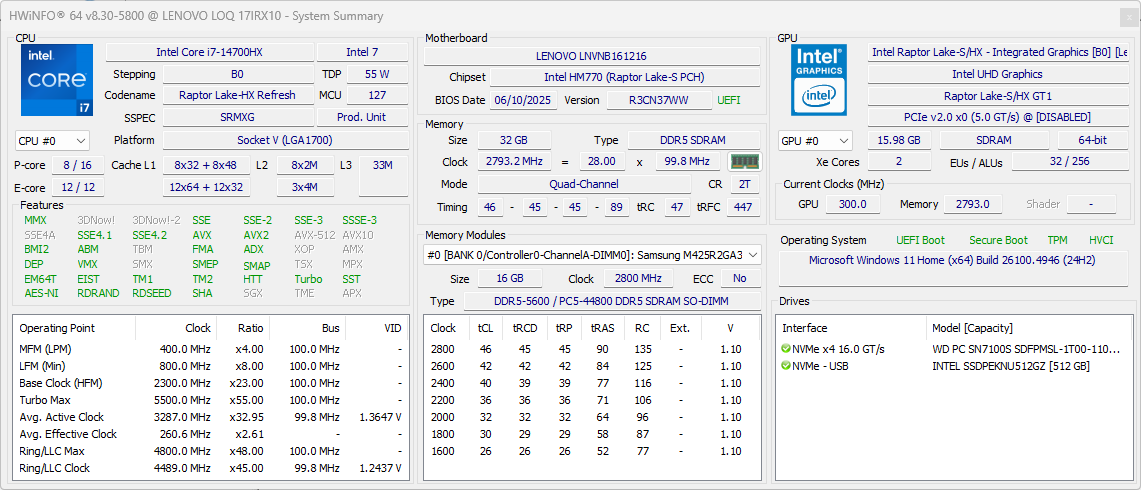

The Lenovo LOQ 17IRX10 (17″, Gen 10) is built around high-performance Intel HX-series CPUs. The top configuration uses the Intel Core i7-14700HX, which is currently ranked #16 in our Top Laptop CPU Ranking, offering 20 cores (8 performance + 12 efficiency) and boost clock speeds up to 5.50 GHz. There are also slightly more modest versions with the i7-13700HX, i7-13650HX, and i5-13450HX, giving users flexibility depending on how much processing power they need versus budget and thermal considerations.
The Intel Core i7-14700HX is very fast mobile CPU, comparable with Core Ultra 9 and Ryzen AI 9, and much faster than the popular Ryzen 7 260, in single-core performance. For heavy work, in the Multi-Core tests, the advantage over Ryzen 7 260 is even bigger, but here the Core Ultra 9 is the big winner, as expected. However, i7-14700HX shows higher performance than Ryzen AI 9 HX 370 which is a nice win.
Single-core performance ensures smooth operation and responsiveness in operating systems, providing a better user experience.
Results are from the Geekbench 6 Single-Core test (higher is better)
Multi-core performance is essential for handling complex and demanding tasks, such as Video editing, CAD, and Scientific simulations.
Results are from the Geekbench 6 Multi-Core test (higher is better)
Here, we evaluate the CPU's performance using a real-world 3D rendering task, assessing its ability to handle complex computations and rendering workloads efficiently.
Results are from the Cinebench 2024 Multi-Core test (higher is better)
Storage Performance

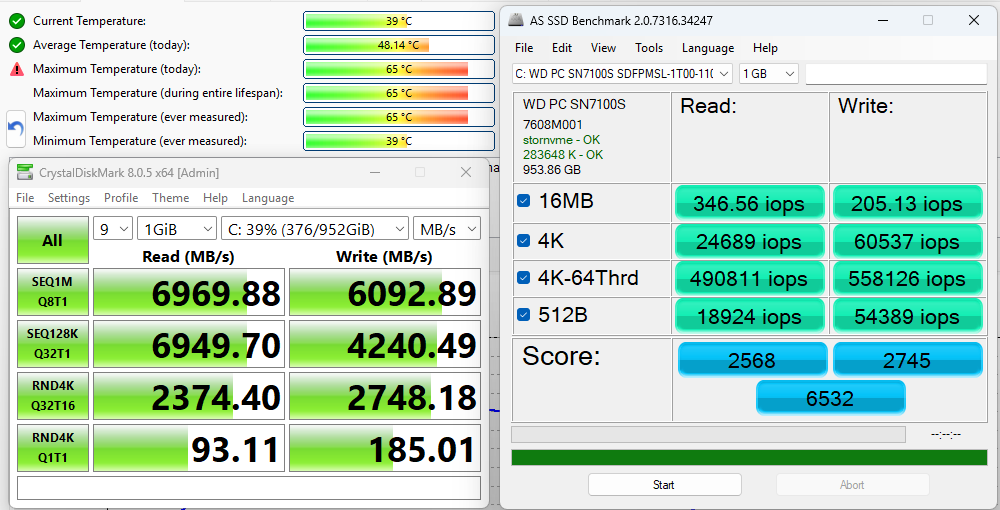

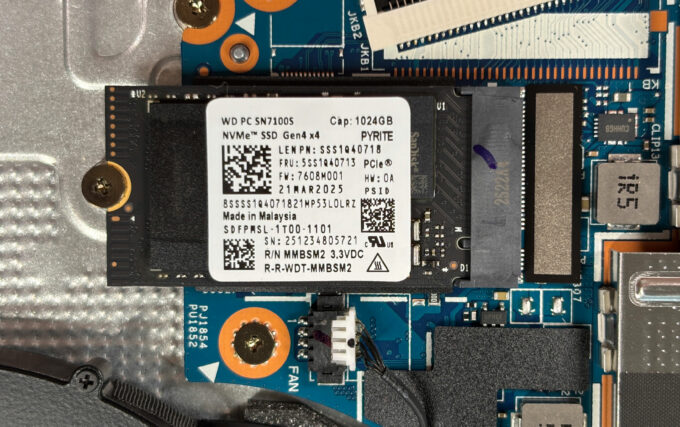

Lenovo LOQ 17IRX10 (17″, Gen 10) has two one 2280 M.2 slots for storage. We ordered a 1TB configuration, and it arrived with WD SN7100S PCIe 4.0 NVMe SSD.
It’s very fast, with 7.0GB/sec sequential read, and 6.1GB/sec sequential write speeds, while keeping the temperatures in check.
AI Performance
Here you can see the position of the GPUs and CPUs (NPUs) found within the Lenovo LOQ 17IRX10 (17", Gen 10) in our AI Hardware Performance Rankings based on their AI processing power, measured in TOPS (Tera Operations Per Second) - a critical metric indicating the computational throughput, particularly for AI tasks.
The first column shows peak performance for INT8/FP8 precision, which is the most widespread metric for evaluating AI inference capabilities. We exclude Sparsity to provide a more accurate reflection of AI performance in dense computation scenarios where sparsity optimizations may not be applicable. The second and third columns show the performance with Sparsity, and FP4 TFLOPS, when supported.
For SoCs, the results reflect the peak performance of the integrated NPU. Additionally, it’s important to note that, according to Microsoft, a NPU must have at least 40 TOPS of AI computing power for the PC to be considered “AI-capable.”
| # | GPU / CPU (NPU) | TOPS INT8/FP8 No Sparsity | TOPS INT8/FP8 Sparsity | TFLOPS FP4 Sparsity |
|---|---|---|---|---|
| 849. | NVIDIA GeForce RTX 5070 (Laptop, 8GB GDDR7) | 173 | 346 | 692 |
| 1015. | NVIDIA GeForce RTX 5060 (Laptop) | 133 | 266 | 532 |
GPU and Gaming Performance
On the graphics front, the LOQ 17IRX10 can be paired with NVIDIA’s RTX-series laptop GPUs. Your choices include the RTX 5070, 5060, or 5050 variants, allowing for a trade-off between gaming/creativity performance and cost or power draw. These GPUs sit respectively at about #19, #29, and #47 in our Top Laptop Graphics Ranking.
The RTX 5060 in LOQ 17 is 2-4% faster than the RTX 5060 in Acer Nitro V 16 AI (ANV16-42), and about 10% faster than its predecessor , RTX 4060.
The same difference but in the opposite direction will come if you order a configuration with RTX 5070. As you see, the Lenovo Legion 7i (16”, Gen 10 / 16IAX10) with RTX 5070 is 10% faster than LOQ 17 with RTX 5060.
The results are from 3DMark Time Spy (Graphics). Higher is better.
The results are from 3DMark Wild Life Extreme Unlimited. Higher is better.
Lenovo LOQ 17IRX10 (17", Gen 10) GPU variants
Here you can see an approximate comparison between the GPUs that can be found in the Lenovo LOQ 17IRX10 (17", Gen 10) models on the market. This way you can decide for yourself which Lenovo LOQ 17IRX10 (17", Gen 10) model is the best bang for your buck.
Note: The chart shows the cheapest different GPU configurations so you should check what the other specifications of these laptops are by clicking on the laptop’s name / GPU.
The results are from 3DMark Time Spy (Graphics). Higher is better.
Results are from the 3DMark: Wild Life (Graphics) benchmark (higher the score, the better)
Gaming tests
The Lenovo LOQ 17 shows very strong performance in the new and graphically demanding Black Myth: Wukong, delivering an impressive 97 FPS at 1080p on High settings. This is a great result that ensures a smooth and enjoyable experience.
| Black Myth: Wukong | 1080p, High (Check settings) |
| Average FPS | 97 FPS |
In Shadow of the Tomb Raider, the RTX 5060 easily handles the Highest preset at 1080p, pushing a fantastic 120 FPS. This performance is perfect for taking advantage of the laptop’s 165Hz high-refresh-rate display in single-player titles.
| Shadow of the Tomb Raider | 1080p, Highest (Check settings) |
| Average FPS | 120 FPS |
The LOQ 17 proves its mettle in the ray-tracing-heavy Metro Exodus Enhanced Edition. It achieves a very smooth 94 FPS on High settings at 1080p, demonstrating that it’s more than capable of handling modern, graphically intensive games.
| Metro Exodus Enhanced Edition | 1080p, High (Check settings) |
| Average FPS | 94 FPS |
[eBook Guide + Tools] How to MAX OUT Your Laptop
You can make your laptop Faster. LaptopMedia has tested thousands of models in the last 15 years, and we have yet to see a notebook that couldn't be made more powerful through modifications.
That's why we decided to bundle everything we know about how to achieve this in an Easy-to-Follow, Step-by-Step, and Laboratory-Tested, all in one project.
Read more about it here:
[eBook Guide + Tools] How to MAX OUT Your Laptop
🛠️ GPU Modifications: vBIOS, Overclocking, Undervolting
⚙️ Building Fast/Reliable RAID configuration
💻 Hardware upgrade tips for best results
🖼 Display enhancing
💾 OS Optimization for best performance
Temperatures and Comfort, Noise, Stability
At idle, the CPU package of the Intel Core i7-14700HX in LOQ 17IRX10 maintains a temperature of 56ºC, and the notebook is slightly audible.
Office Work, Web Development, Design

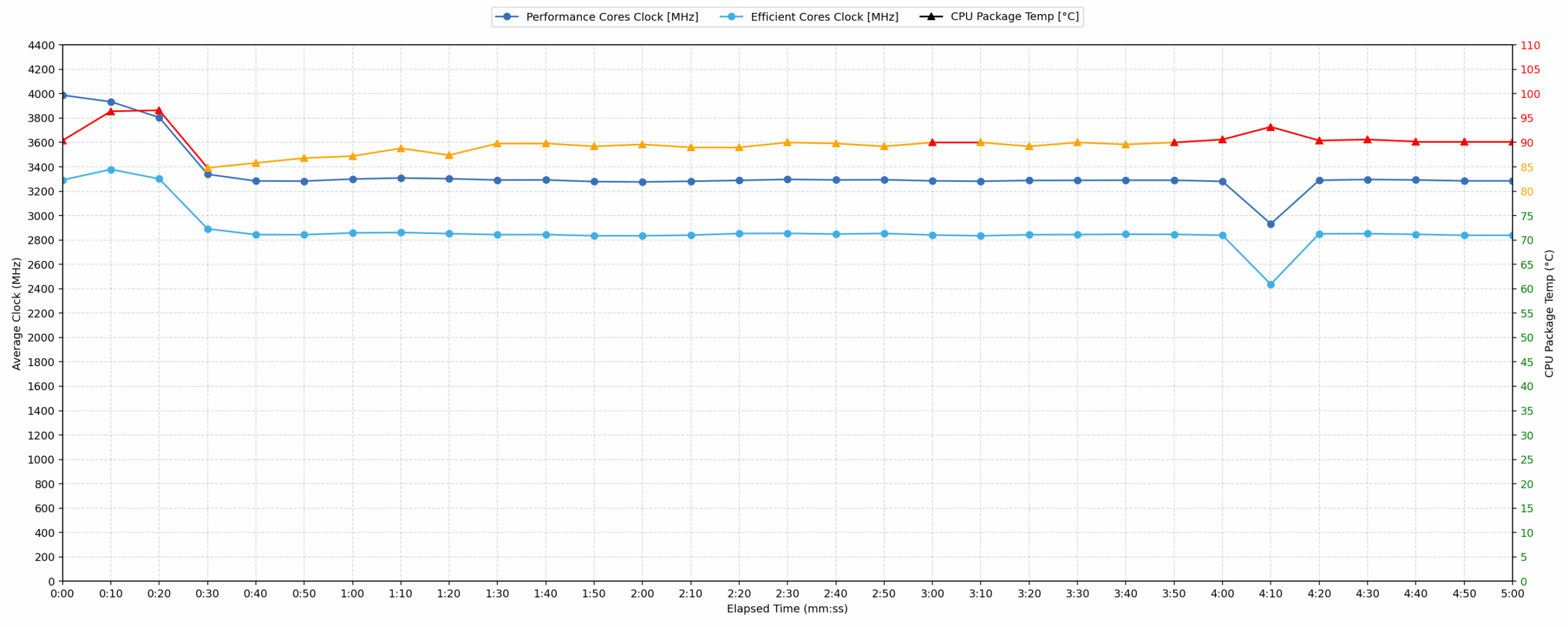

Short periods (0:00 – 0:10 s) of 100 % CPU load
This test shows the CPU behavior during short periods of serious load. It’s important for users who are looking for laptops suitable for tasks like Web Design and Programming.
| Intel Core i7-14700HX | Avg. P-Core Clock | Avg. CPU Temp. | Avg. CPU Power |
| Lenovo LOQ 17IRX10 | 3988 MHz | 90 °C | 146 W |
For short, burst loads, the Intel Core i7-14700HX in the Lenovo LOQ 17IRX10 achieves a strong average clock speed of 3988 MHz over 10 seconds, with a peak of 4236 MHz. It draws a significant average power of 146 W, peaking at 161 W. However, thermal management appears challenging, as the average CPU temperature reaches 90 °C, which is considered high. The peak temperature hits 100 °C, indicating the CPU is operating at its thermal limit during initial intense tasks. This suggests robust immediate performance but with high thermal output.
Video editing, Scientific computing, Software compilation, 3D rendering

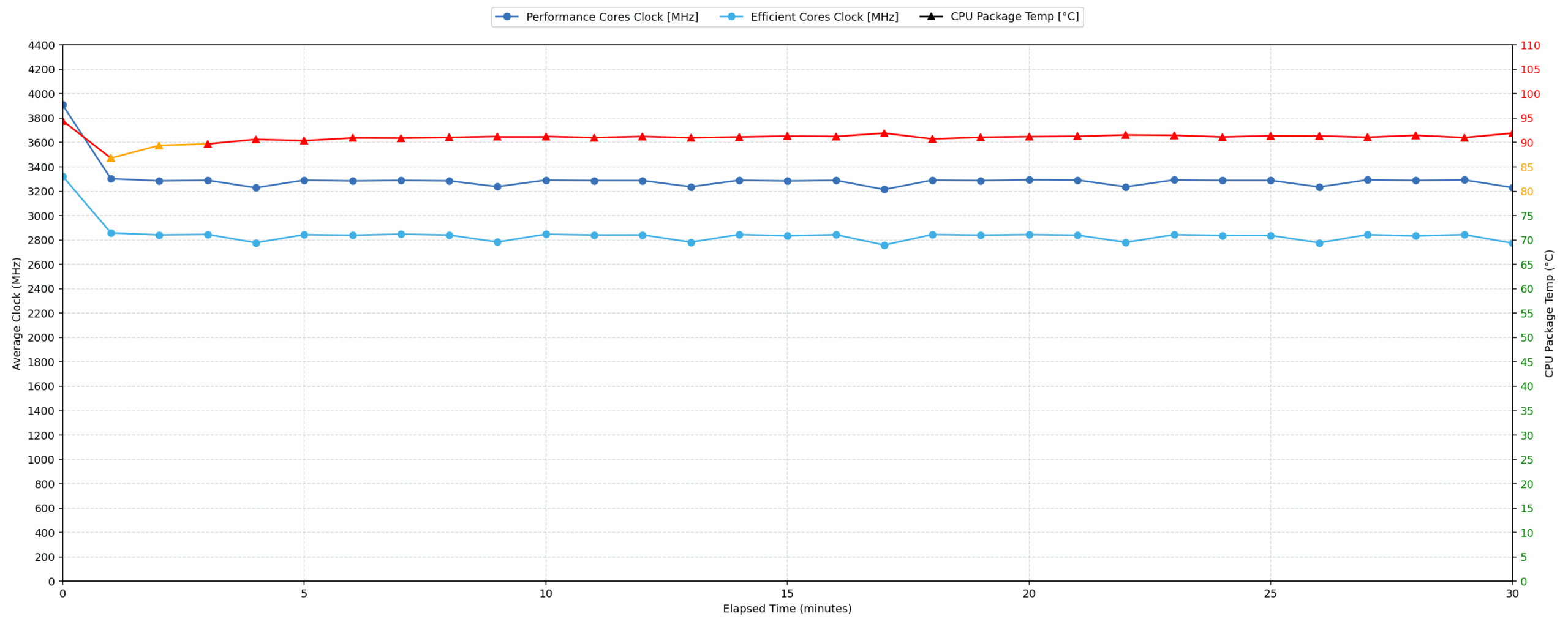

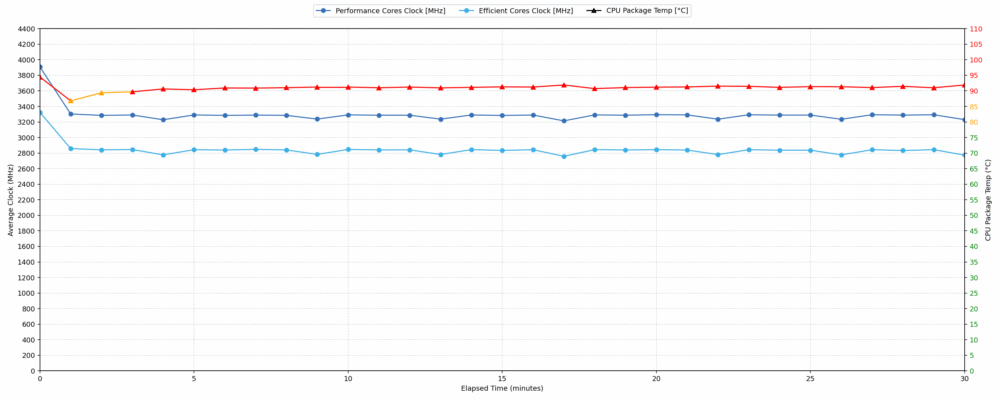

Long periods (0:00 – 30:00 min) of 100 % CPU load
This test shows the CPU behavior during long periods of serious load. It’s important for users who are looking for laptops suitable for tasks like Video Editing and 3D Rendering.
| Intel Core i7-14700HX | Avg. P-Core Clock | Avg. CPU Temp. | Avg. CPU Power |
| Lenovo LOQ 17IRX10 | 3288 MHz | 90 °C | 90 W |
Under sustained 30-minute CPU loads, the Intel Core i7-14700HX in the Lenovo LOQ 17IRX10 maintains an average clock speed of 3288 MHz, drawing 90 W of power. While this sustained clock speed provides consistent performance for demanding applications like video editing or 3D rendering, the average CPU temperature remains at 90 °C. This temperature level is high, indicating the system operates at the upper end of its thermal envelope during prolonged, intensive tasks. The significant drop from the initial peak clock speed to the sustained average suggests thermal throttling or power limits are actively managing the CPU’s output to maintain stability over time, albeit at elevated temperatures.
Gaming Stability
Continuous gaming (1-hour test)

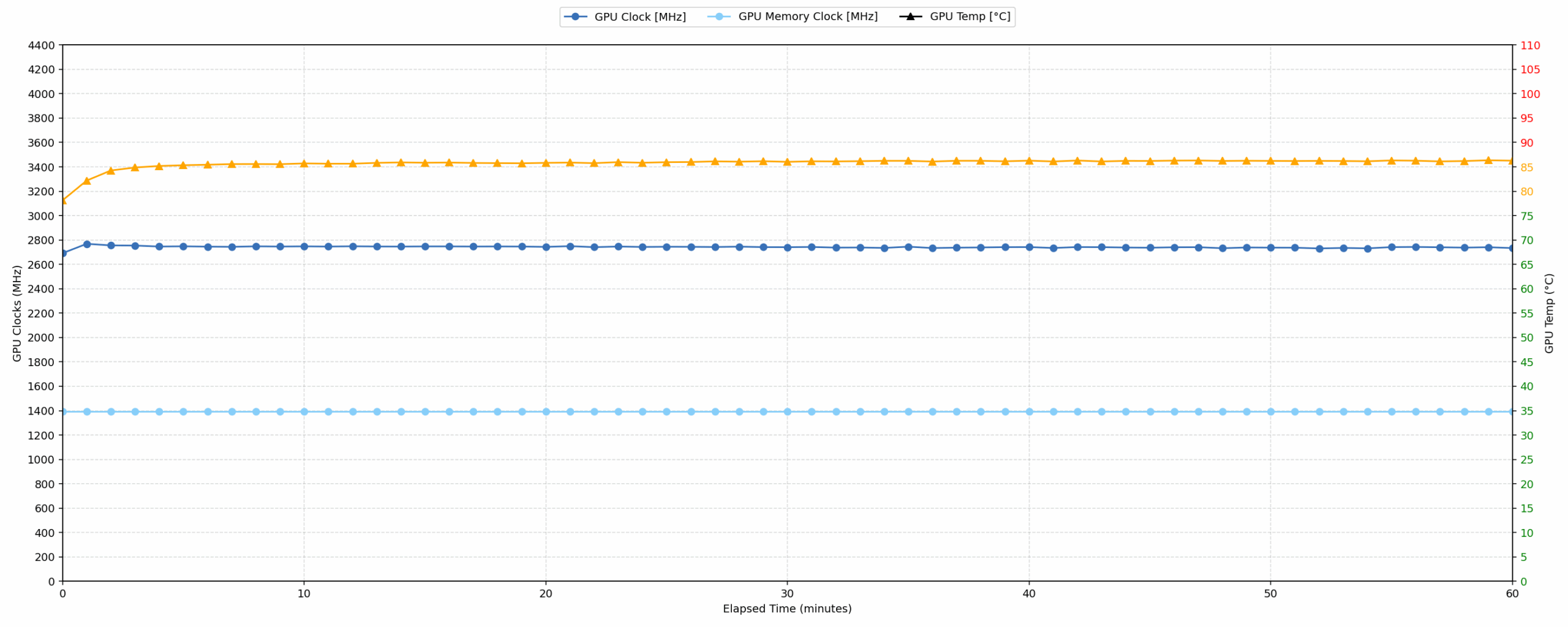

This test evaluates the laptop’s performance under sustained GPU load and high CPU usage.
| NVIDIA GeForce RTX 5060 | Avg. GPU Clock | Avg. GPU Temp. | Avg. Memory Clock | Avg. GPU Mem Temp. | Avg. GPU Power |
| Lenovo LOQ 17IRX10 | 2742 MHz | 85 °C | 1393 MHz | 77 °C | 113 W |
| Acer Nitro V 16 AI (ANV16-42) | 2575 MHz | 84 °C | 1354 MHz | 79 °C | 93 W |
For sustained gaming over an hour, the NVIDIA GeForce RTX 5060 in the Lenovo LOQ 17IRX10 performs strongly, averaging 2742 MHz at 113 W, with a peak of 2827 MHz. This is notably higher than the comparative Acer Nitro V 16 AI, which averaged 2575 MHz. Thermally, the GPU core averages 85 °C, peaking at 87 °C, both within the good range. GPU memory also remains excellent at an average of 77 °C, peaking at 80 °C. The consistent clock speeds and good thermal management indicate stable and robust performance for prolonged gaming sessions, demonstrating superior power delivery and clock speeds compared to other RTX 5060 implementations.
Battery Life

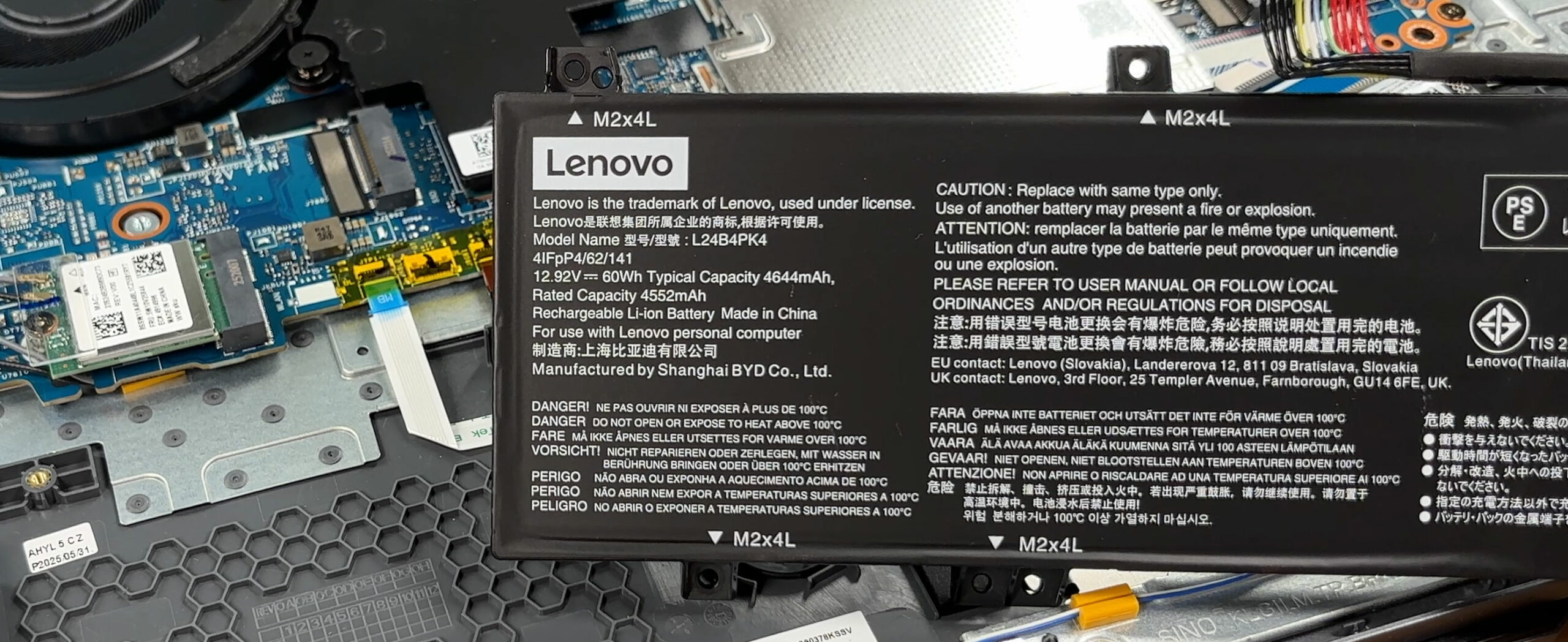

The battery of the Lenovo LOQ 17IRX10 is a lithium-polymer unit, model L24B4PK4. Its nominal voltage is 12.92V, and stores 60 Wh of electrical energy.

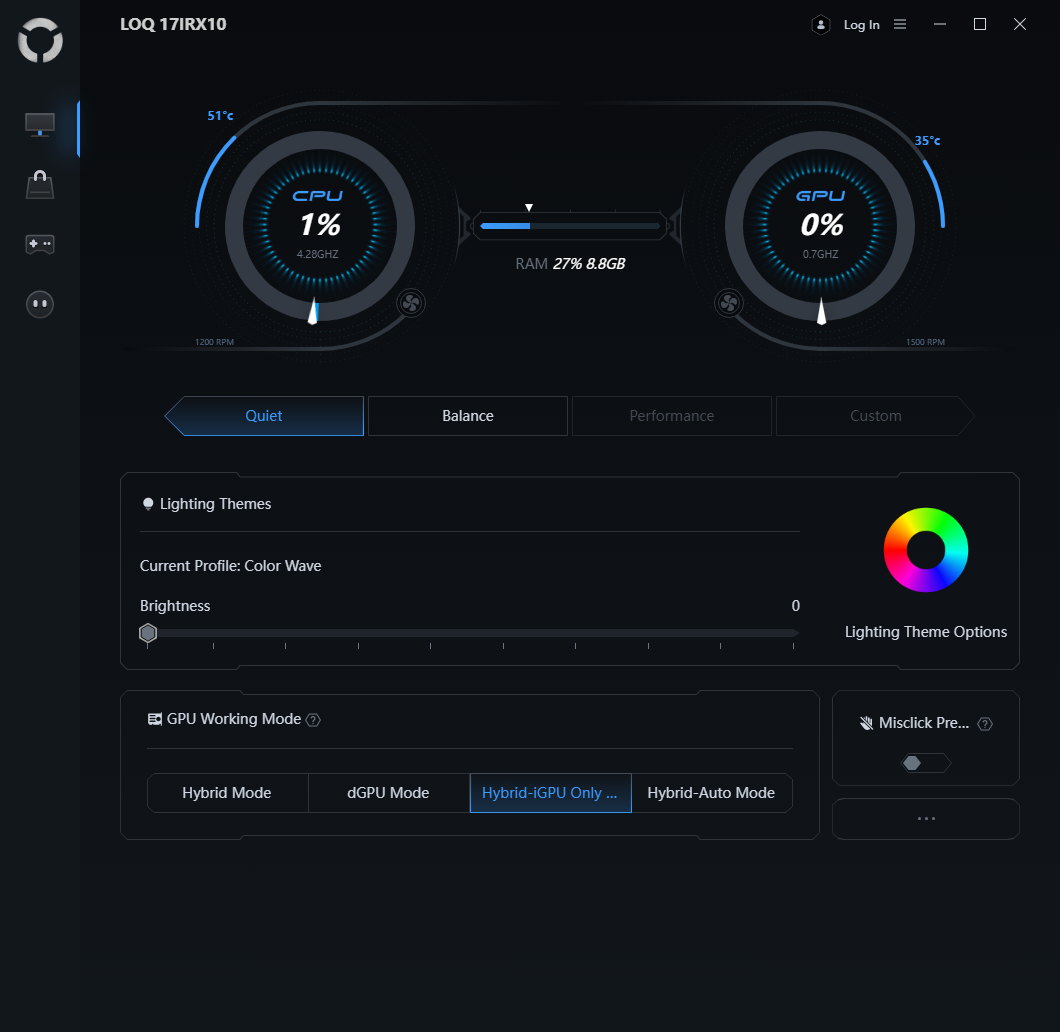

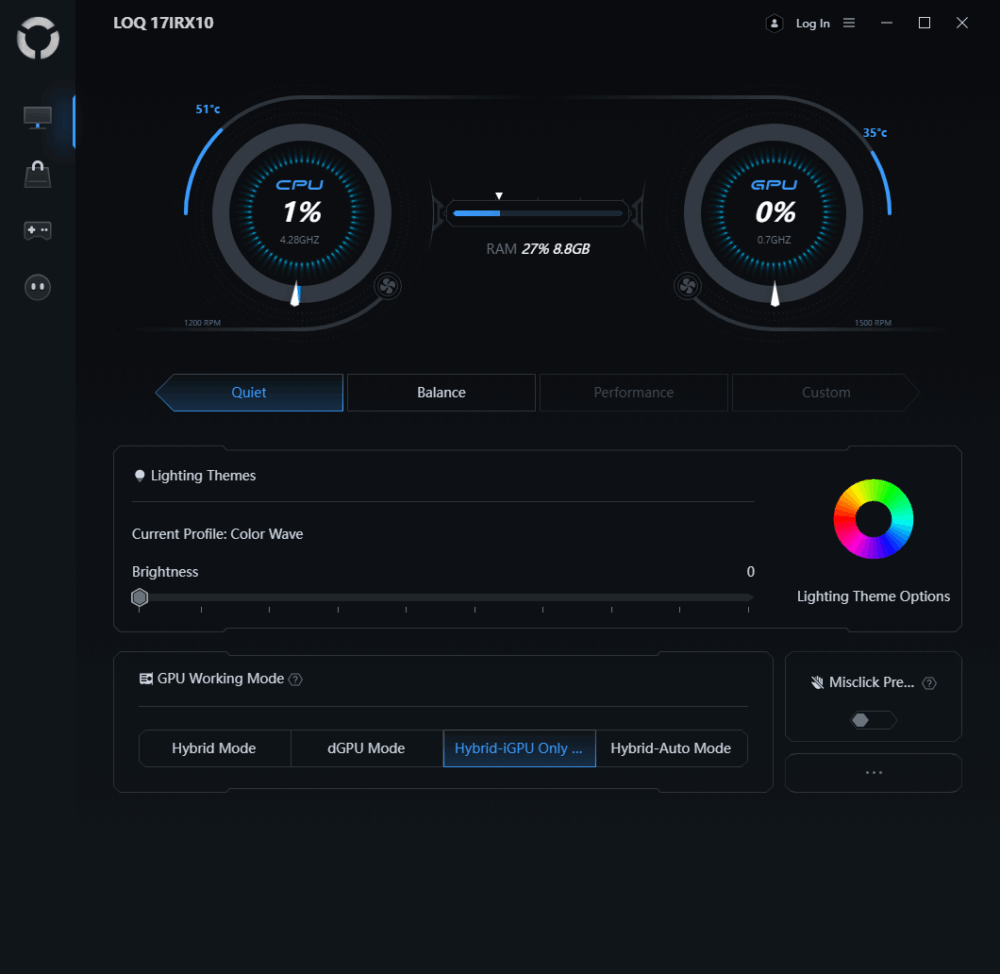

We tested the battery life with the “Quiet” option selected in Legion Space, and Hybrid-iGPU mode.
A 60Wh unit is a pretty small battery for such a laptop and it shows. As you can see, the only laptop with shorter battery life is the other Lenovo in the chart. The winner here is the ASUS ProArt P16 with more than 11 hours on a single charge.
Brightness: 180 nits; Display Mode: SDR
Time to Full Discharge: Higher is Better
Disassembly, Upgrade options, and Maintenance

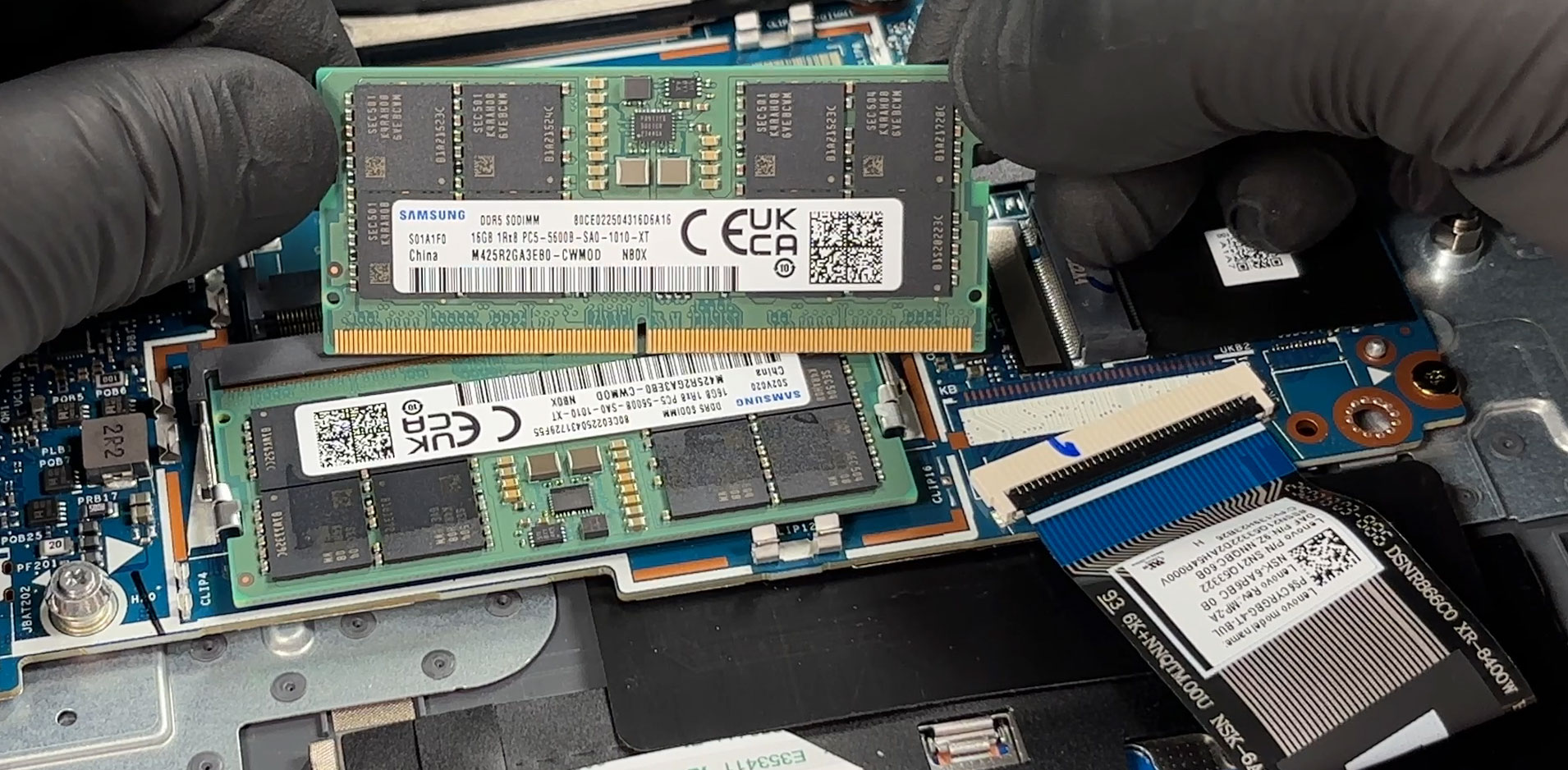

The bottom panel of the Lenovo LOQ 17IRX10 pops off after removing ten Phillips/JIS screws and releasing a ring of plastic clips. Four of the screws are shorter (around 4.5 mm) and six are longer (around 8.5 mm), so it’s worth noting their locations for reassembly.

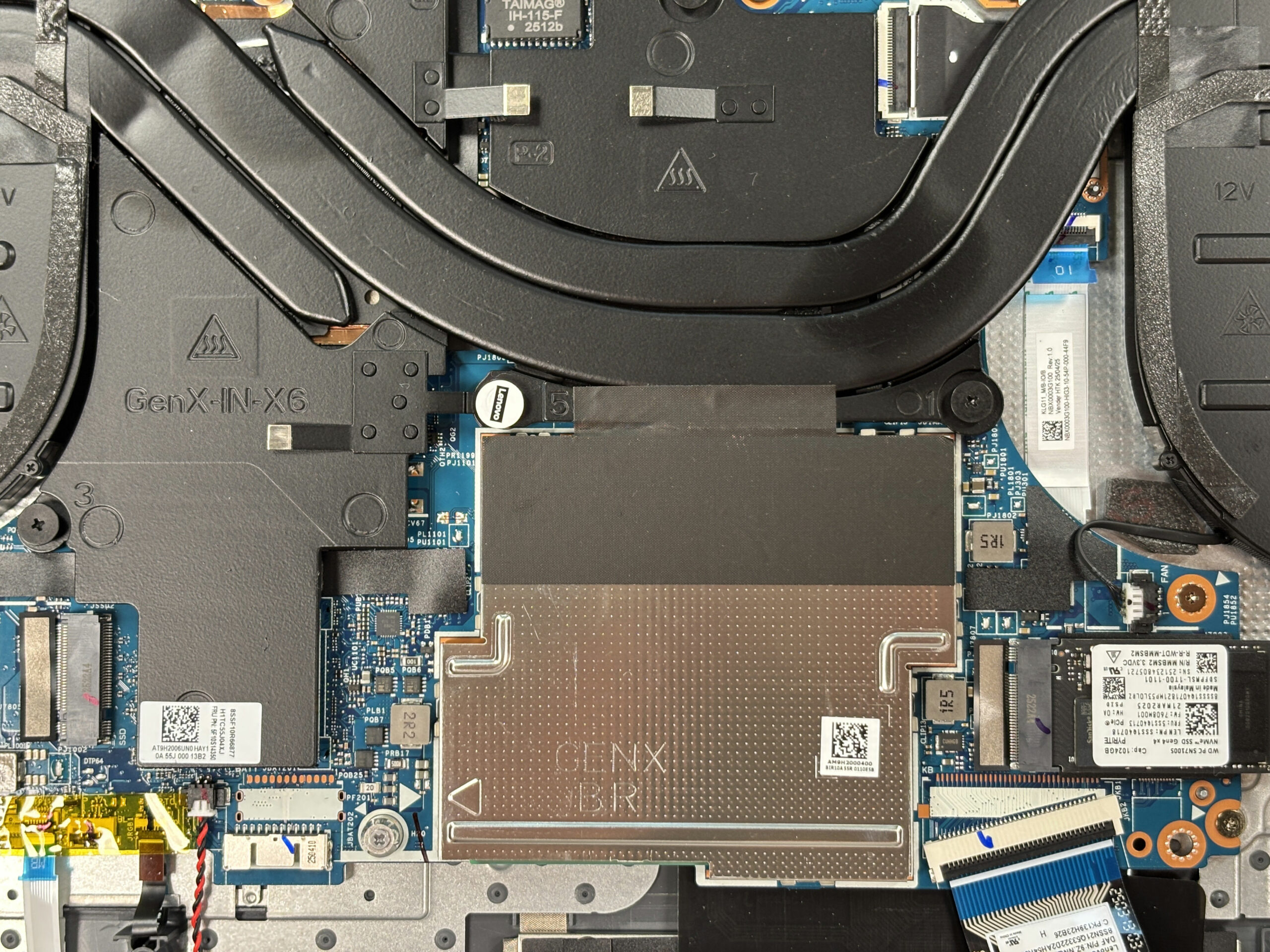

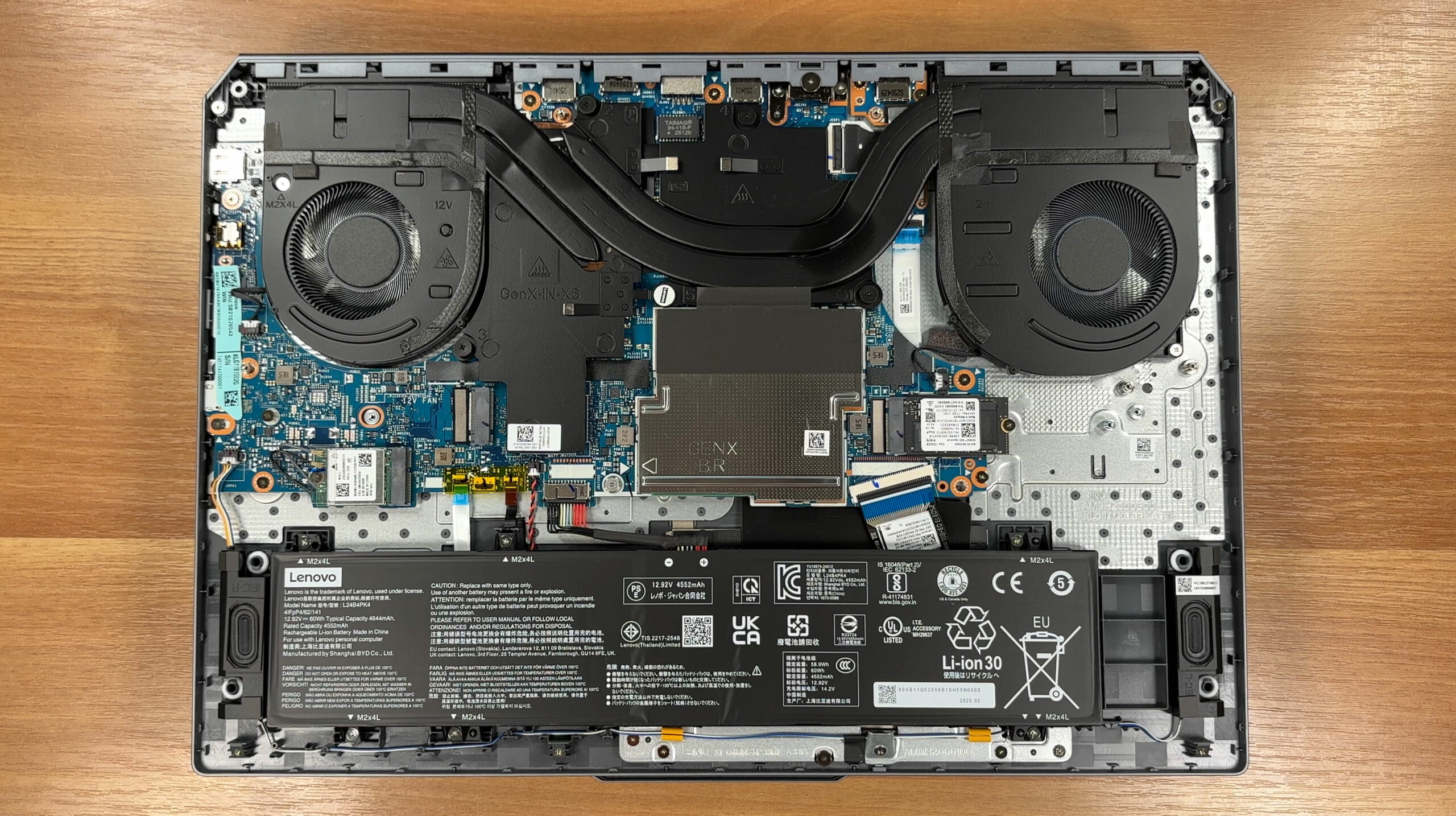

Inside, the layout is clean and service-friendly. The cooling assembly spans the CPU and GPU with multiple shared heatpipes and two fans exhausting to the rear and sides. There’s no vapor chamber here, but the footprint is generous for this class.
Memory is handled by two DDR5 SO-DIMM slots, supporting DDR5-4800 or DDR5-5600 in dual channel. Our review unit comes populated with two 16 GB Samsung sticks at DDR5-5600. The modules sit under a spring-steel shield that’s grounded to the chassis with metallized tape – peel it gently and re-apply it during reassembly for proper ESD control.
Storage options are excellent for an affordable gaming machine – two M.2 2280 slots run at PCIe 4.0 x4. The tested configuration uses a WD PC SN7100S 1 TB drive in Slot 1, with the second slot open for easy expansion.
Wireless connectivity comes from an M.2 Wi-Fi 6 (802.11ax) 2×2 card with Bluetooth 5.2. It’s secured by a single screw and two antenna leads labeled Main and Aux, so replacements or upgrades are straightforward.
The battery is a 60 Wh Li-ion pack (model L24B4PK4) fixed with six screws and a single board connector. It also supports Rapid Charge Pro, allowing a quick top-up to 50% in about 30 minutes, which is handy after a service session.
Other replaceable parts include both fans, the Wi-Fi card, the two M.2 SSDs, and the SO-DIMMs. When reinstalling the memory shield, center it carefully into its spring clips and re-apply the conductive tape so the shield, chassis, and nearby metal parts share a solid ground.
Upgrade limits are practical: two DDR5 SO-DIMMs for DDR5-4800 or DDR5-5600 modules,and dual PCIe 4.0 x4 M.2 slots whihc provide ample headroom for fast storage or a roomy second drive. There’s no soldered memory to hold you back.
Verdict

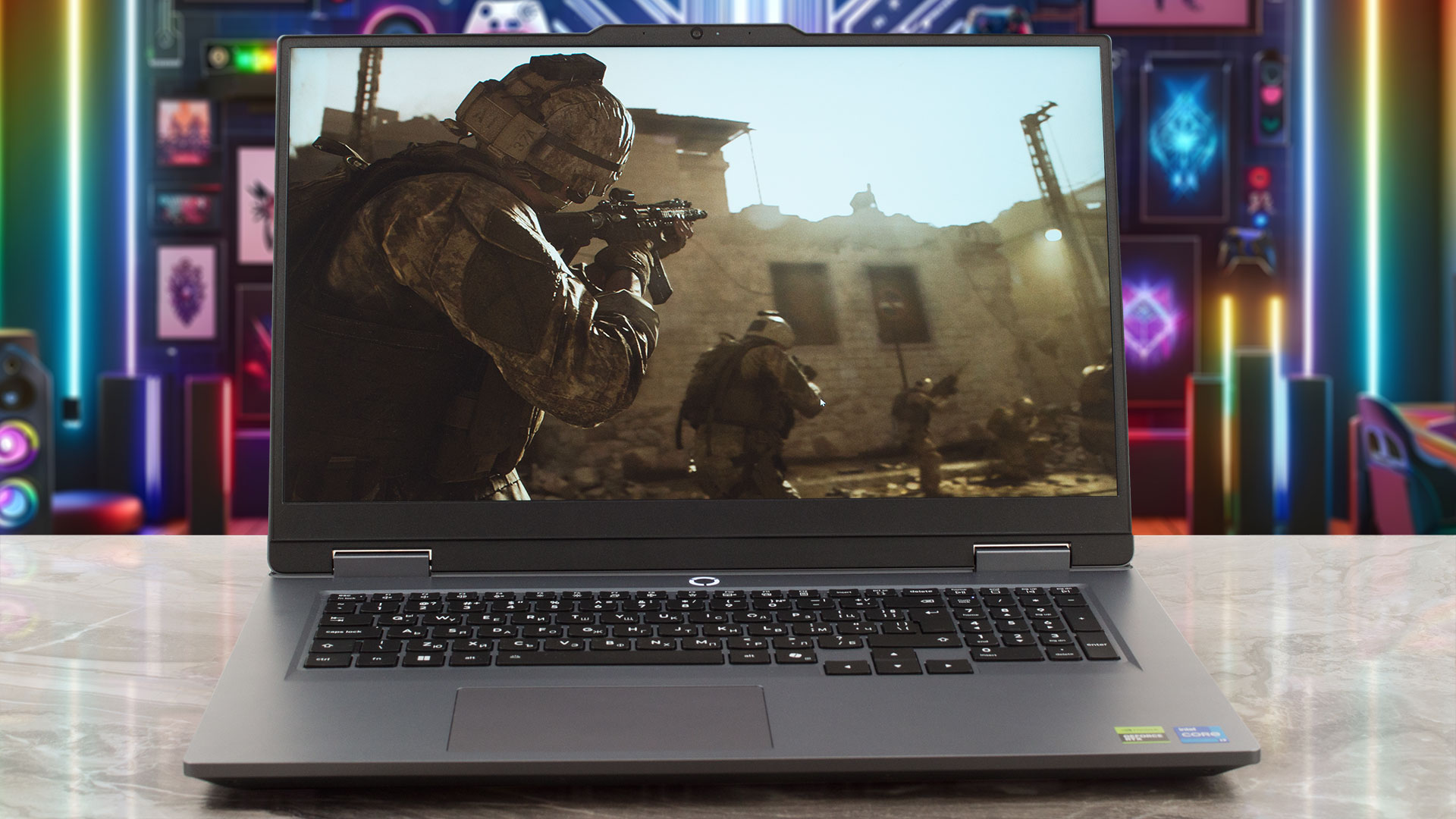

The Lenovo LOQ 17IRX10 (17″, Gen 10) is a textbook example of a smart, value-oriented gaming laptop. It forgoes flashy materials and premium frills to focus its budget on what matters most to its target audience: a big screen, a fantastic gamer-centric keyboard, and a powerful component package that delivers excellent and stable performance. It’s a machine built for the practical gamer who wants a robust desktop replacement experience without the “Pro” price tag.
While it makes some clear and understandable compromises to hit its price point, the core experience it provides is so strong that it stands as a fantastic option in the entry-level to mid-range 17-inch gaming market.
✅ The Good
The standout feature here is the superb gamer-focused keyboard. The decision to not only include full-sized arrow keys but to also offset them from the main cluster is a huge win for usability and a rare, thoughtful touch that gamers will absolutely love. The performance is another massive victory. The LOQ 17 delivers excellent and incredibly stable gaming performance, with its RTX 5060 running faster and cooler than its direct competitors, thanks to a very effective cooling system.
The display is another highlight, offering a fast 165Hz refresh rate, good sRGB color coverage, and excellent color accuracy with our profile, making it suitable for both gaming and content creation. Critically, the screen is also completely PWM-free, a fantastic feature for eye comfort during long sessions.
Finally, the upgradeability is top-notch, with two user-accessible RAM slots and two M.2 slots for storage, providing great long-term value. The port selection is also exceptionally generous, with a total of four USB-A ports.
❌ The Bad
The biggest and most significant drawback is the very poor battery life. The small 60Wh battery provides less than 5 hours of use, which is one of the worst results among its peers and firmly tethers this machine to a power outlet. It’s a true desktop replacement in every sense of the word.
A surprising omission for a modern laptop is the complete lack of any biometric login options – no fingerprint reader and no IR camera.
🆚 The Competitors
When compared to a rival like the Acer Nitro V 16 AI (ANV16-42), the LOQ 17’s strengths are clear. It delivers superior GPU performance and a much more gamer-friendly keyboard layout. However, the Nitro V 16 counters with significantly better battery life and a more portable 16-inch form factor.
Against more premium machines like its own sibling, the Lenovo Legion 7i, the LOQ 17 offers a compelling value proposition. While the Legion 7i provides a more powerful GPU and a more premium build, the LOQ 17 delivers a fantastic core gaming experience for a fraction of the price, making it an excellent choice for budget-conscious gamers who still want top-tier performance.
You can check the prices and configurations in our Specs System: https://laptopmedia.com/series/lenovo-loq-17-17-gen-10/
Pros
- Excellent gaming performance with great thermal stability for the GPU
- Superb keyboard with offset, full-sized arrow keys
- Great upgradeability with two RAM and two M.2 slots
- Fast, color-accurate, and PWM-free 165Hz display
- Extremely generous port selection with four USB-A ports
- Physical e-shutter for the webcam
Cons
- Very poor battery life due to small 60Wh battery
- No biometric login options (fingerprint or IR camera)
Author: Simeon NikolovEditor-in-Chief at LaptopMedia.com with 20+ years of experience in testing and analyzing laptops and mobile devices.
Author: eng. Kroum NikolovHead of Engineering at LaptopMedia.com, inventor and innovator with 40+ years of experience in electronics and high technology.TOP 100 GAMING LAPTOPS
TOP LAPTOP RATINGS
HIGHLIGHTS view more
![[June 2026] Best-Selling Laptop Brands on Amazon Global – Apple’s Unrivaled Dominance in Units and Revenue](https://laptopmedia.com/wp-content/uploads/2026/07/GLOBAL-Best-Brands-400x225.jpg)
[June 2026] Best-Selling Laptop Brands on Amazon Global – Apple’s Unrivaled Dominance in Units and Revenue
Jul 06, 2026![[June 2026] Amazon Global: Top 10 Best-Selling Laptops – Apple’s New MacBook Neo Storms to #1, Reshaping the Market with Affordability](https://laptopmedia.com/wp-content/uploads/2026/07/Best-Selling-Laptops-GLOBAL-Top-10-400x225.jpg)
[June 2026] Amazon Global: Top 10 Best-Selling Laptops – Apple’s New MacBook Neo Storms to #1, Reshaping the Market with Affordability
Jul 06, 2026![[June 2026] Amazon Global: Top 10 Best-Selling Gaming Laptops – Acer’s Nitro V 16S AI Dominates Sales, While ASUS Leads Overall Revenue](https://laptopmedia.com/wp-content/uploads/2026/07/Best-Selling-Gaming-Laptops-GLOBAL-Top-10-400x225.jpg)
[June 2026] Amazon Global: Top 10 Best-Selling Gaming Laptops – Acer’s Nitro V 16S AI Dominates Sales, While ASUS Leads Overall Revenue
Jul 06, 2026![[June 2026] Global Ranking of Best-Selling Laptop GPUs on Amazon – NVIDIA RTX 5060 is the Top-Selling Dedicated GPU](https://laptopmedia.com/wp-content/uploads/2026/07/Best-Selling-GPUs-GLOBAL-Top-10-400x225.jpg)
[June 2026] Global Ranking of Best-Selling Laptop GPUs on Amazon – NVIDIA RTX 5060 is the Top-Selling Dedicated GPU
Jul 05, 2026![[June 2026] Global Ranking of Best-Selling Laptop CPUs on Amazon – Apple M5 Dominates, AMD Ryzen 7 260 Gets Solid Premium Share](https://laptopmedia.com/wp-content/uploads/2026/07/Best-Selling-CPUs-GLOBAL-Top-10-400x225.jpg)
[June 2026] Global Ranking of Best-Selling Laptop CPUs on Amazon – Apple M5 Dominates, AMD Ryzen 7 260 Gets Solid Premium Share
Jul 05, 2026
REVIEWS view more
Lenovo ThinkTab X11 Gen 1 review – The Tablet That Runs Without a Battery!
Jul 11, 2026Lenovo Yoga 9i 2-in-1 Aura Edition (14″, Gen 11) review – 2.8K OLED, Great Speakers, and 15+ Hours of Battery
Jul 08, 2026Dell Pro Max 14 (MC14250) review – Powerful, Repairable, and Very Configuration-Dependent
Jul 04, 2026Lenovo Legion 5i (15″, Gen 11) review – Full-Power RTX 5060, OLED Display, and Real Upgradeability
Jun 30, 2026Lenovo LOQ 15 (15IPH11) review – The Coolest Budget Gaming Laptop of 2026?
Jun 27, 2026
Wie kann man bei so einem ausführlichen Test kein Wort über die Geräuschemissionen, sprich Verhalten der Lüftersteuerung und Lärmentwicklung verlieren? Wäre hilfreich wenn ihr dazu noch Daten Nachrichten könntet.
In my opinion, the main advantage of this laptop is the price, and I think that’s where it ends. I bought it just a few days ago. It’s immediately obvious that it’s a cheap model, both from the plastic construction and the screen. The laptop’s performance is good, but I personally didn’t like the screen. It’s bright enough, but washed out. Color reproduction is questionable. It’s fine for gaming and watching videos, but for professional graphics work, like in Photoshop, it won’t be enough, or you’ll have to connect an external monitor. I have the model: 83JH003NRK.
The cons are legitimately the two things gamers, especially on a budget, don’t care about. Most gaming requires being tethered to a wall outlet and biometrics is a convenience at most, and for far too long, those fingerprint readers existed on laptops, barely ever worked, and honestly, a convenience I never used (even when it was available).
