• CPU: Intel Core i7-10510U
  • GPU: NVIDIA GeForce MX250 (10W)
  • Display: 14.0”, Full HD (1920 x 1080), IPS
  • Storage: 512GB SSD
  • RAM: 16GB (1x 16384MB) - LPDDR3, 2133MHz
  • Weight: 1.40 kg (3.1 lbs)

Pros

  • Its keyboard is backlit and great for typing
  • ErgoLift and ScreenPad 2.0 boost its versatility
  • Its display has decent maximum brightness and doesn't use PWM to adjust the brightness, whatsoever
  • Wide color coverage
  • Supports PCIe x4 SSDs, WiFi 6 standards
  • It has a very rigid structure
  • Great battery life

Cons

  • Lacks a Thunderbolt connector
  • No RAM upgradability post-purchase

ASUS ZenBook Flip 14 UX463 - Specs

CPU Performance #96
  • Intel Core i7-10610U 1.4%
  • Intel Core i7-1180G7 1.5%
  • Intel Core i7-10510U
  • Intel Core i5-10310U 0.3%
  • AMD Ryzen 5 3500U 0.3%
  • Intel Core i5-10210U 0.5%
GPU Performance #154
  • AMD Radeon RX Vega 7 (R4000,5000 15W) 1%
  • NVIDIA Quadro P520 (4GB GDDR5) 0.5%
  • NVIDIA GeForce MX250 (10W)
Display
14.0”, Full HD (1920 x 1080), IPS
panel 1
AUO B140HAN03.2
Color accuracy 5.9 -> 1.6
HDD/SSD
512GB SSD NVMe
M.2 Slot
1x 2280 PCIe NVMe 3.0 x4 See photo
RAM
16GB (1x 16384MB) - LPDDR3, 2133MHz
OS
Windows 10 Home
Battery
50Wh, 3-cell
Body Material
Aluminum
Dimensions
320 x 206 x 17.9 mm (12.60" x 8.11" x 0.70")
Weight
1.40 kg (3.1 lbs)
Ports and connectivity
  • 1x USB Type-A 2.0
  • 1x USB Type-C 3.2 Gen 2 (10 Gbps)
  • HDMI 1.4
  • Card Reader MicroSD
  • Wi-Fi 802.11ax
  • Bluetooth 5.0
  • Audio jack 3.5 mm combo
Features
  • Web camera IR Camera
  • Backlit keyboard
  • Microphone Digital Array Microphone
  • Speakers 2x 1W, Harmon Kardon
  • Optical drive



There are 18 ASUS laptops with the same specs (sorted by price)

#CommissionsEarned
Show all laptops



There are 18 laptops with the same specs, All brands (sorted by price)

#CommissionsEarned
Show all laptops



More ASUS ZenBook Flip 14 UX463 configurations - 19 laptops

#CommissionsEarned
See all ASUS ZenBook Flip 14 UX463 configurations

DISPLAY: 14-inch, 1920 x 1080, IPS

Name AUO B140HAN03.2
Diagonal 14"
Pixel density 157.35 ppi
Brightness 354 cd/m2
sRGB 93%
PWM frequency No PWM (Flicker-Free)
Panel Type IPS
Resolution 1920 x 1080
Becomes "Retina" from 22 inches (56 cm)
Contrast 1400:1
dE Color Checker 5.9 1.6
PWM Rating 10.0: (safe)
Buy Our Profiles Here

Health-Guard

The first and most important profile (in our opinion) is the Health-Guard – when being used with our LM Profiles application, Health-Guard eliminates the harmful Pulse-Width Modulation (PWM) and reduces the negative Blue Light which affects our eyes and body. Since it’s custom tailored for every panel, it manages to keep the colors perceptually accurate (they may seem strange at first but after a few minutes our brain will start recognizing them as accurate ones – that’s how Health-Guard differs from alternatives like f.lux).

Now the profile has a higher color temperature which makes is suitable for working through the whole day (not only at night) and simulates paper so the pressure on the eyes is greatly reduced.

Pro Tip: As the Health-Guard profile simulates paper and has as accurate as possible colors, it could be a great tool for prepress designers!

Left: No Profile | Drag the slider to see the difference | Right: Health-Guard Profile

Design and Gaming

The second profile type is Design and Gaming – it combines our previous “Web Design” and “Gaming and Movie Nights” profiles in one, so it’s aimed at designers who work with colors professionally, and for games and movies as well (or maybe you’re a designer who likes to relax with some games or movies from time to time?).

“Design and Gaming” takes display panels to their limits, making them as accurate as possible in the sRGB IEC61966-2-1 standard for Web and HDTV, at white point D65.

Left: No Profile | Drag the slider to see the difference | Right: Design & Gaming Profile

Just as our previous Gaming profile, this one also regulates the first steps out of black so you can have even faster reflexes when playing in dark virtual environments…or just see everything in the darkest scenes in movies.

Left: No Profile | Drag the slider to see the difference | Right: Design & Gaming Profile

Office Work

The third profile is Office Work and it should be used mostly by users who spend most of the time looking at pieces of text, tables or just surfing.

Office Work aims to deliver better distinctness and clarity by keeping a flat gamma curve (2.20), native color temperature and perceptually accurate colors.

Left: No Profile | Drag the slider to see the difference | Right: Office Work Profile

You’ll find more information about the profiles HERE.

Buy our profiles for AUO B140HAN03.2

In addition to receiving efficient and health-friendly profiles, by buying LaptopMedia's products you also support the development of our labs, where we test devices in order to produce the most objective reviews possible.

Office Work - screen profile

Office Work

Office Work should be used mostly by users who spend most of the time looking at pieces of text, tables or just surfing. This profile aims to deliver better distinctness and clarity by keeping a flat gamma curve (2.20), native color temperature and perceptually accurate colors.

$4.96
Buy Now
Design and Gaming - screen profile

Design and Gaming

This profile is aimed at designers who work with colors professionally, and for games and movies as well. Design and Gaming takes display panels to their limits, making them as accurate as possible in the sRGB IEC61966-2-1 standard for Web and HDTV, at white point D65.

$4.97
Buy Now
Health-Guard - screen profile

Health-Guard

Health-Guard eliminates the harmful Pulse-Width Modulation (PWM) and reduces the negative Blue Light which affects our eyes and body. Since it’s custom tailored for every panel, it manages to keep the colors perceptually accurate. Health-Guard simulates paper so the pressure on the eyes is greatly reduced.

$4.98
Buy Now
All
$9.99
Buy Now

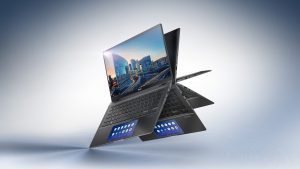

ASUS ZenBook Flip 14 UX463 in-depth review

Oh my, oh my, our office was visited by the Taiwanese Santa Claus that left us a special present. It is a 2-in-1 device that looks marvelous and aims to beat the HP Elite Dragonfly G1 to the hearts of the creators. Yes, as you surely have figured out from the title of this article, we are reviewing the ASUS ZenBook Flip 14 UX463. This is all but an ordinary device, ladies, and gentlemen. Not only it has a rotatable screen and supports styluses, but it also features the innovative ErgoLift[...]

Read the full review

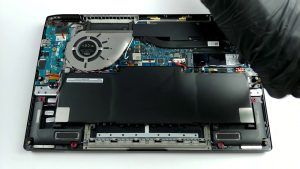

Disassembly, maintenance and upgrade options

Quite honestly, the ZenBook Flip 14 UX463 is one of our favorite 2-in-1 laptops of 2019/2020. It boasts great performance, a punchy screen, and some additional features. Check out all ASUS ZenBook[...]

Read more



CPU Performance: Intel Core i7-10510U

GPU Performance: NVIDIA GeForce MX250 (10W)

Results are for the 3DMark: Fire Strike (Graphics) benchmark (the higher the score, the better)
Results are for the Unigine Heaven 4.0 benchmark (the higher the score, the better)
Results are for the Unigine Superposition benchmark (the higher the score, the better)
Results are from the 3DMark: Time Spy (Graphics) benchmark (higher the score, the better)

Some games you can play on this laptop

GTA V
71
fps
28
fps
14
fps
4
fps
1920 x 1080 (Full HD)
Minecraft
MIN
MAX


Bench
221
fps
32
fps


1920 x 1080 (Full HD)
Battlefield 5
LOW
MED
Bench
32
fps
23
fps
16
fps
8
fps
1920 x 1080 (Full HD)
CS:GO
LOW
MED
MAX

Bench
84
fps
75
fps
66
fps

1920 x 1080 (Full HD)
League of Legends
MED
MAX

Bench
187
fps
150
fps
149
fps

1920 x 1080 (Full HD)
DOTA 2
LOW
MAX
Bench
35
fps
34
fps
43
fps
31
fps
1920 x 1080 (Full HD)
World of Tanks
MIN
MED

Bench
192
fps
49
fps
23
fps


1920 x 1080 (Full HD)
PUBG
32
fps
23
fps
23
fps
16
fps

1920 x 1080 (Full HD)
Total War: THREE KINGDOMS
LOW
MED
Bench
34
fps
18
fps
6
fps
3
fps
1920 x 1080 (Full HD)
Rocket League


Bench
171
fps
66
fps


1920 x 1080 (Full HD)
Warframe
LOW


Bench
60
fps
28
fps


1920 x 1080 (Full HD)
Team Fortress 2
LOW
MAX


Bench
105
fps
87
fps


1920 x 1080 (Full HD)
PES 2020
LOW


Bench
38
fps
23
fps


1920 x 1080 (Full HD)
Overwatch

Bench
63
fps
38
fps
24
fps


1920 x 1080 (Full HD)
FIFA 20
LOW


Bench
89
fps
46
fps


1920 x 1080 (Full HD)
TC: Six Siege
50
fps
35
fps
32
fps
25
fps
1920 x 1080 (Full HD)
Halo: Reach

Bench
63
fps
61
fps
57
fps

1920 x 1080 (Full HD)
Rise of the Tomb Raider
37
fps
24
fps
10
fps
4
fps
1920 x 1080 (Full HD)
Darksiders Genesis
LOW
MED
Bench
40
fps
23
fps
23
fps
21
fps
1920 x 1080 (Full HD)
Hearthstone
LOW
MED

Bench
141
fps
145
fps
60
fps

1920 x 1080 (Full HD)
Show all tested games
