7. Temperatures and comfort, Battery Life

6. [eBook Guide + Tools] How to MAX OUT your Laptop Previous page Next page 8. Disassembly, Upgrade options, and Maintenance

Temperatures and comfort, Battery Life

Max CPU load

In this test we use 100% on the CPU cores, monitoring their frequencies and chip temperature. The first column shows a computer’s reaction to a short load (2-10 seconds), the second column simulates a serious task (between 15 and 30 seconds), and the third column is a good indicator of how good the laptop is for long loads such as video rendering.

Average P-core frequency; Average E-core frequency; CPU temp.; Package Power

Intel Core i7-1260P (28W TDP)	0:02 – 0:10 sec	0:15 – 0:30 sec	10:00 – 15:00 min
ASUS ExpertBook B5 OLED (B5602)	2.82 GHz @ 2.33 GHz @ 63°C @ 52W	2.83 GHz @ 2.33 GHz @ 71°C @ 51W	2.30 GHz @ 1.84 GHz @ 60°C @ 35W
Lenovo ThinkPad T14s Gen 3	2.82 GHz @ 2.34 GHz @ 65°C @ 51W	2.71 GHz @ 2.29 GHz @ 87°C @ 47W	1.78 GHz @ 1.57 GHz @ 71°C @ 25W
Lenovo ThinkPad T14 Gen 3	2.86 GHz @ 2.38 GHz @ 80°C @ 47W	2.49 GHz @ 2.16 GHz @ 84°C @ 37W	1.70 GHz @ 1.36 GHz @ 70°C @ 21W
Lenovo ThinkPad X13 Gen 3	2.92 GHz @ 2.40 GHz @ 69°C @ 49W	2.84 GHz @ 2.36 GHz @ 87°C @ 47W	1.69 GHz @ 1.52 GHz @ 69°C @ 22W
Acer Swift 5 (SF514-56T)	3.23 GHz @ 2.58 GHz @ 82°C @ 61W	2.35 GHz @ 1.90 GHz @ 86°C @ 42W	2.27 GHz @ 1.73 GHz @ 72°C @ 30W
Dell XPS 13 Plus 9320	2.88 GHz @ 2.39 GHz @ 78°C @ 47W	2.76 GHz @ 2.33 GHz @ 94°C @ 44W	2.08 GHz @ 1.67 GHz @ 82°C @ 28W
Dell Vostro 16 5620	2.55 GHz @ 2.14 GHz @ 73°C @ 41W	2.54 GHz @ 2.12 GHz @ 82°C @ 40W	1.97 GHz @ 1.61 GHz @ 74°C @ 28W
Lenovo ThinkPad T16 Gen 1	2.66 GHz @ 2.29 GHz @ 72°C @ 47W	1.21 GHz @ 1.53 GHz @ 63°C @ 20W	1.26 GHz @ 1.54 GHz @ 64°C @ 20W

The ExpertBook B5 OLED (B5602) shows a respectable result in the temperature test. It never really heated too much, with the temperature at the end of the test sitting comfortably at 60°C.

Real-life gaming

Intel Arc A350M	GPU frequency/ Core temp (after 2 min)	GPU frequency/ Core temp (after 30 min)
ASUS ExpertBook B5 OLED (B5602)	2150 MHz @ 65°C @ 33W	1952 MHz @ 60°C @ 28W

There are two things we need to clear up before we analyze these results. First, this is the first machine equipped with this GPU we’ve tested. Second – the power readings here are only for the GPU chip, as Intel doesn’t have a “board power draw” equivalent on this particular graphics card. Anyways, the clock speeds seem pretty fine to us. However, we feel that it could have been boosted for longer, considering the low temperature.

Comfort during combined load

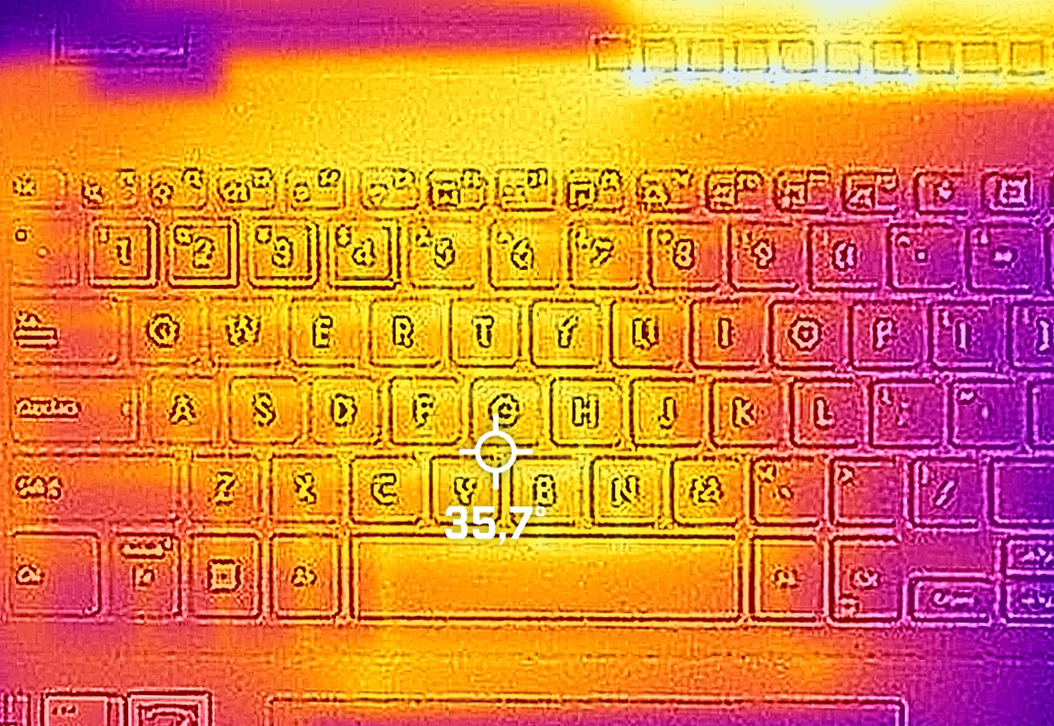

You can expect moderate to low noise levels during a combined load, such as gaming. The maximum temperature on the keyboard is also in the roundabout of 35-36°C, which is absolutely normal in our opinion.

Battery

Now, we conduct the battery tests with the Windows Better performance setting turned on, screen brightness adjusted to 120 nits and all other programs turned off except for the one we are testing the notebook with. This device is equipped with an 84Wh battery pack. It lasts for 13 hours and 9 minutes of Web browsing, or 7 hours and 34 minutes of video playback.

Video playback

Brightness: 180 nits; Display Mode: SDR
Time to Full Discharge: Higher is Better

ASUS ExpertBook B5 84Wh, 4-cell

7h 11m

Lenovo ThinkPad P16s Gen 1 52.5Wh

5h 50m-18.8%

HP ZBook Studio G9 86Wh, 6-cell

12h 48m+78.2%

Dell Latitude 5531 64Wh, 4-cell

8h 14m+14.6%

Dell Precision 3570 58Wh, 4-cell

9h 13m+28.3%

Web surfing

In order to simulate real-life conditions, we used our own script for automatic web browsing through over 70 websites.

ASUS ExpertBook B5 84Wh, 4-cell

13h 09m

Lenovo ThinkPad P16s Gen 1 52.5Wh

7h 15m-44.9%

HP ZBook Studio G9 86Wh, 6-cell

15h 14m+15.8%

Dell Latitude 5531 64Wh, 4-cell

10h 22m-21.2%

Dell Precision 3570 58Wh, 4-cell

12h 14m-7%
