ASUS Zenbook 15 OLED (UM3504) review – has a stunning display and light chassis

Display quality, Health impact (PWM), Sound

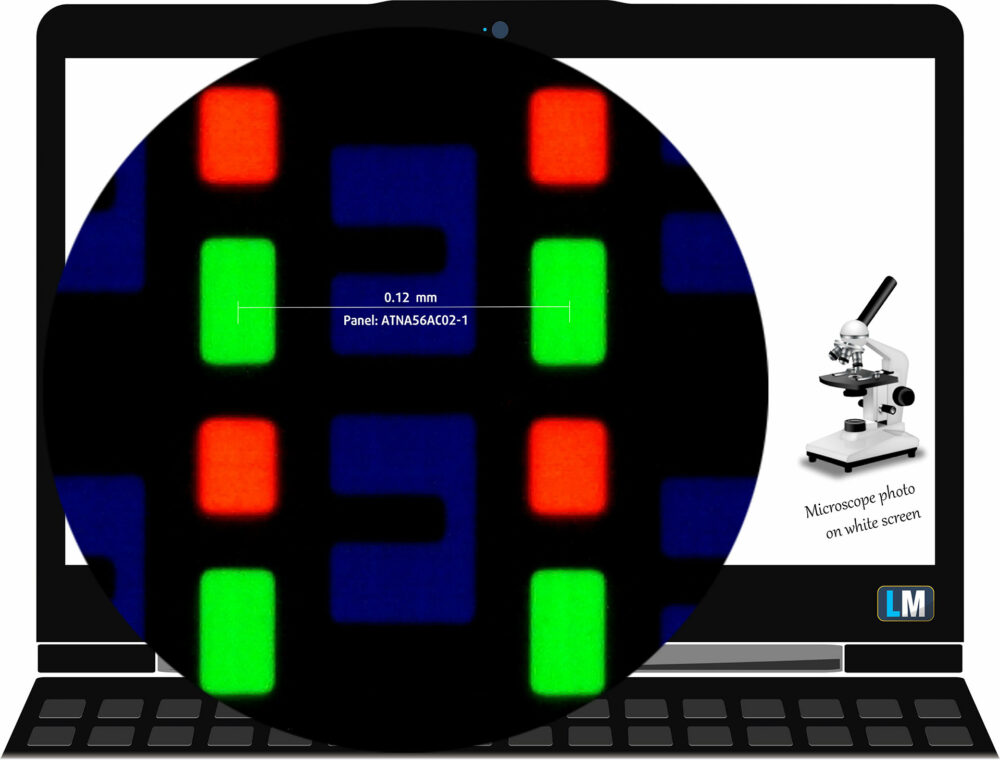

ASUS Zenbook 15 OLED (UM3504) is equipped with an OLED panel, model number Samsung ATNA56AC02-1 (SDC4180). It comes with a 120Hz refresh rate. Its diagonal is 15.6″ (39.6 cm), and the resolution – 2880 x 1620p. Additionally, the screen ratio is 16:19, the pixel density – 212 ppi, and their pitch – 0.12 x 0.12 mm. The screen can be considered Retina when viewed from at least 40 cm which is perfect for a laptop (from this distance, the average human eye can’t see the individual pixels).

Viewing angles are good. We offer images at different angles to evaluate the quality.

Also, a video with locked focus and exposure.

The maximum measured brightness is 380 nits (cd/m2) in the middle of the screen (HDR off) and 379 nits (cd/m2) average across the surface with a maximum deviation of only 2%. The Correlated Color Temperature on a white screen and at maximum brightness is 6500K („Splendid“ – „Normal“ mode).

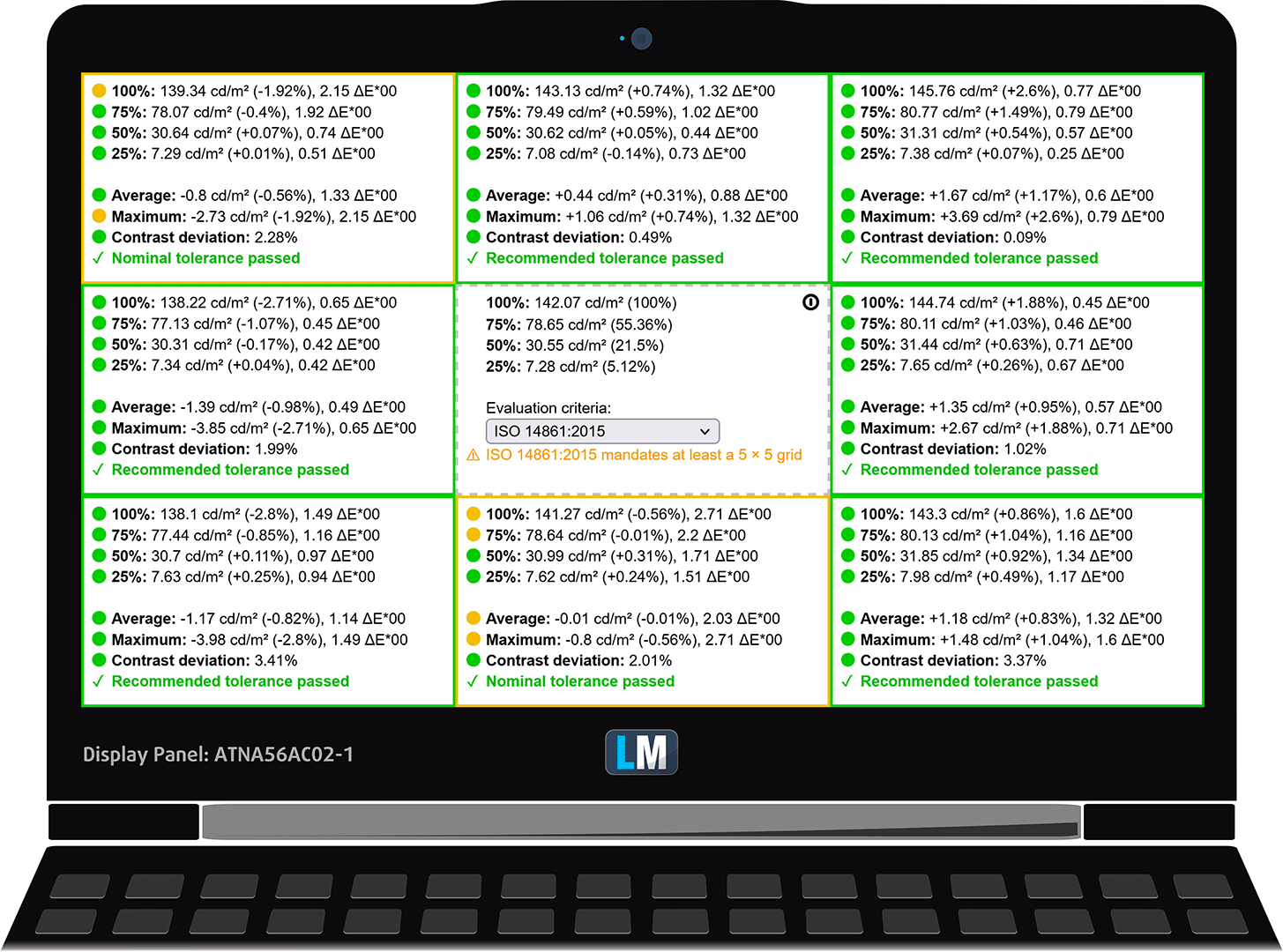

In the illustration below you can see how the display performs from a uniformity perspective. The illustration below shows how matters are for operational brightness levels (approximately 140 nits).
Values of dE2000 over 4.0 should not occur, and this parameter is one of the first you should check if you intend to use the laptop for color-sensitive work (a maximum tolerance of 2.0 ). The contrast ratio of OLED panels is practically infinite, due to their ability to turn off black pixels entirely.

To make sure we are on the same page, we would like to give you a little introduction to the sRGB color gamut and the Adobe RGB. To start, there’s the CIE 1976 Uniform Chromaticity Diagram that represents the visible specter of colors by the human eye, giving you a better perception of the color gamut coverage and the color accuracy.

Inside the black triangle, you will see the standard color gamut (sRGB) that is being used by millions of people on HDTV and on the web. As for the Adobe RGB, this is used in professional cameras, monitors, etc for printing. Basically, colors inside the black triangle are used by everyone and this is the essential part of the color quality and color accuracy of a mainstream notebook.

Still, we’ve included other color spaces like the famous DCI-P3 standard used by movie studios, as well as the digital UHD Rec.2020 standard. Rec.2020, however, is still a thing of the future and it’s difficult for today’s displays to cover that well. We’ve also included the so-called Michael Pointer gamut, or Pointer’s gamut, which represents the colors that naturally occur around us every day.

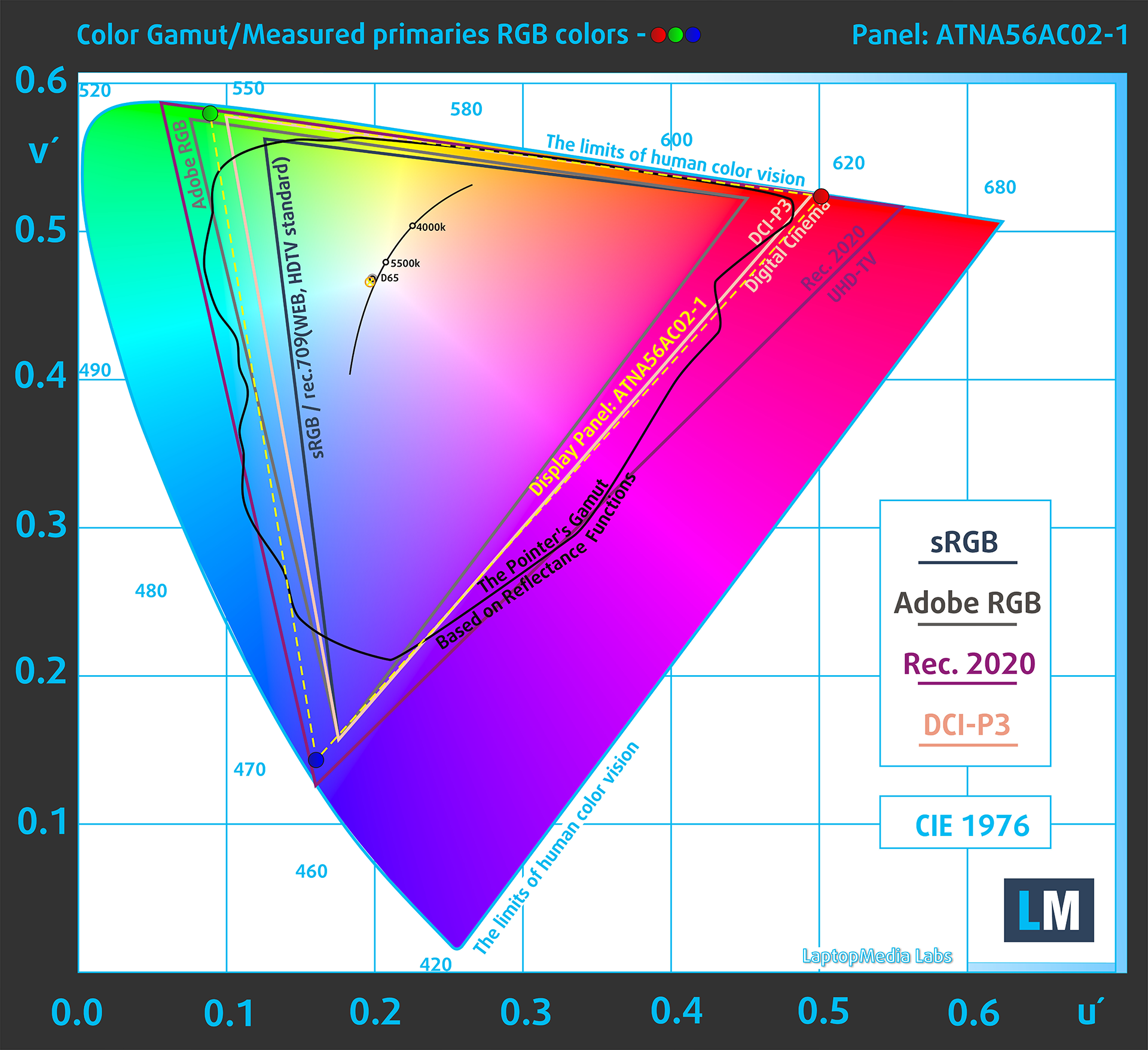

The yellow dotted line shows ASUS Zenbook 15 OLED (UM3504)’s color gamut coverage.

Its display covers 100% of the sRGB/ITU-R BT.709 (web/HDTV standard) in CIE1976, and 99% of DCI-P3, ensuring a super vibrant and attractive picture.

We tested the accuracy of the display with 24 commonly used colors like light and dark human skin, blue sky, green grass, orange, etc.

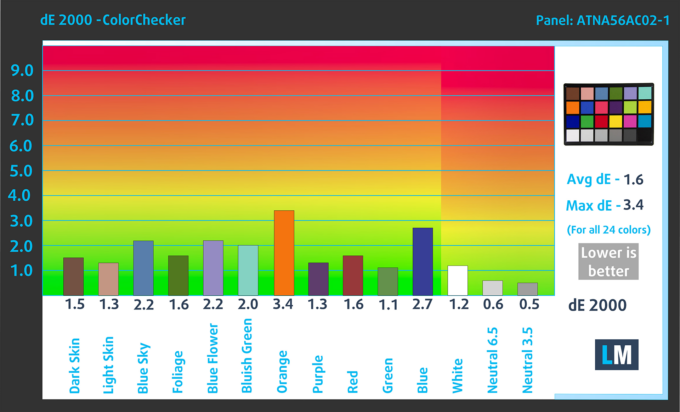

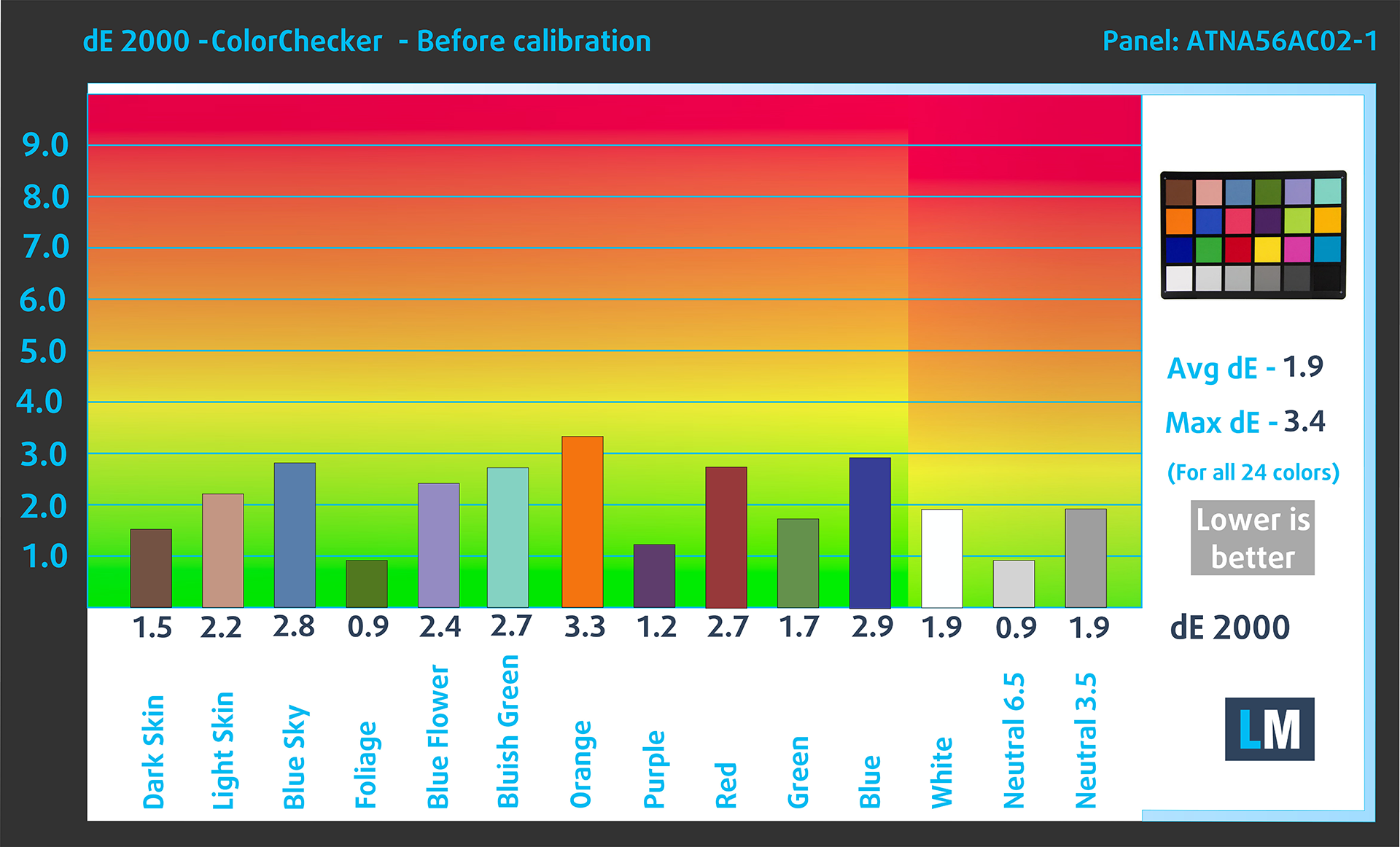

Below you can compare the scores of the ASUS Zenbook 15 OLED (UM3504) with the default settings – HDR off, „Splendid“ – „Normal“ mode compared to P3-D65 (Display) color space and with the “Gaming and Web design” profile (right). In this case, the default settings are very good.

ASUS engineers have successfully enhanced the display capabilities of ASUS Zenbook 15 OLED (UM3504), making it suitable for various use cases such as Web design, pre-press design, video editing, etc.

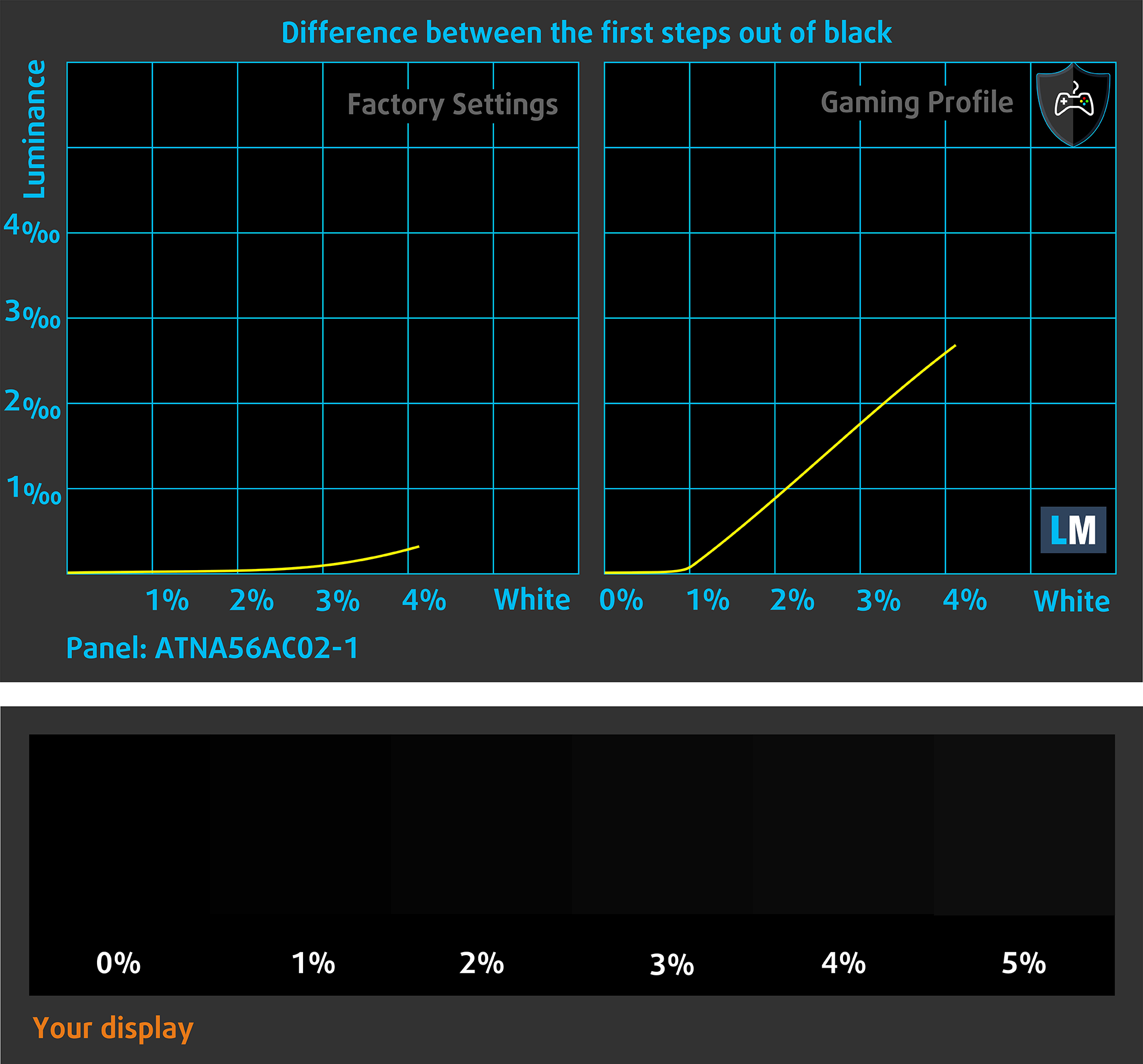

The next figure shows how well the display is able to reproduce really dark parts of an image, which is essential when watching movies or playing games in low ambient light. (HDR Off)

The left side of the image represents the display with stock settings, while the right one is with the “Gaming and Web Design” profile activated. On the horizontal axis, you will find the grayscale, and on the vertical axis – the luminance of the display. On the two graphs below you can easily check for yourself how your display handles the darkest nuances but keep in mind that this also depends on the settings of your current display, the calibration, the viewing angle, and the surrounding light conditions.

Response time (Gaming capabilities)

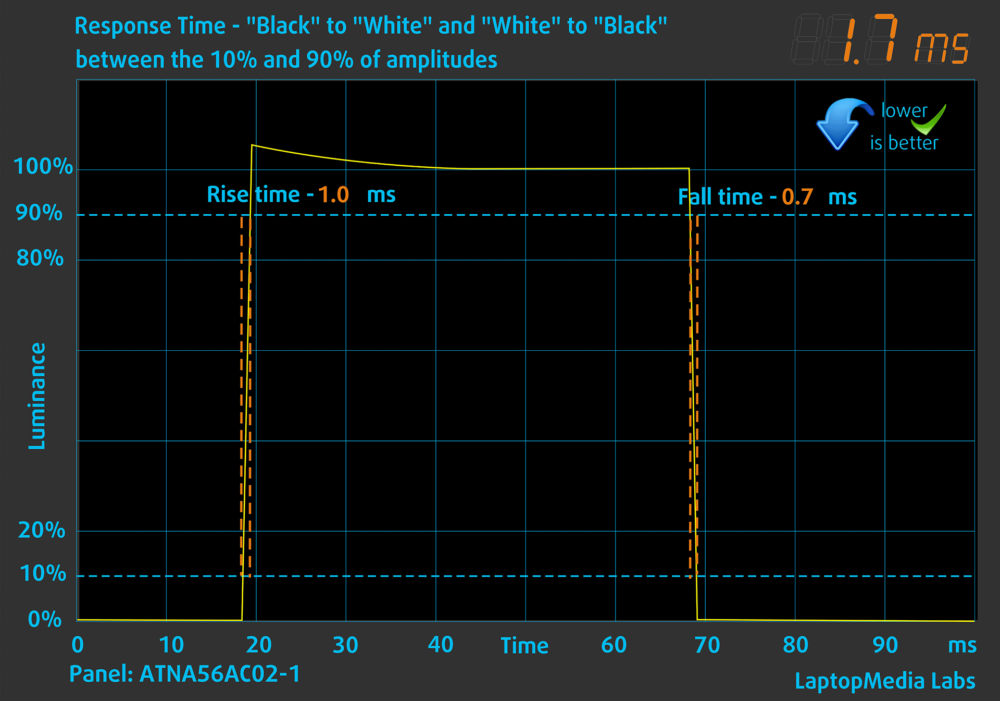

We test the reaction time of the pixels with the usual “black-to-white” and “white-to-black” method from 10% to 90% and vice versa.

We recorded Fall Time + Rise Time = 1.7 ms. The score is much better compared to the majority of the LCD panel results.

Health Impact: PWM (Screen flickering)

Pulse-width modulation (PWM) is an easy way to control monitor brightness. When you lower the brightness, the light intensity of the display is not lowered, but instead turned off and on by the electronics with a frequency indistinguishable to the human eye. In these light impulses, the light/no-light time ratio varies, while brightness remains unchanged, which is harmful to your eyes. You can read more about that in our dedicated article on PWM.

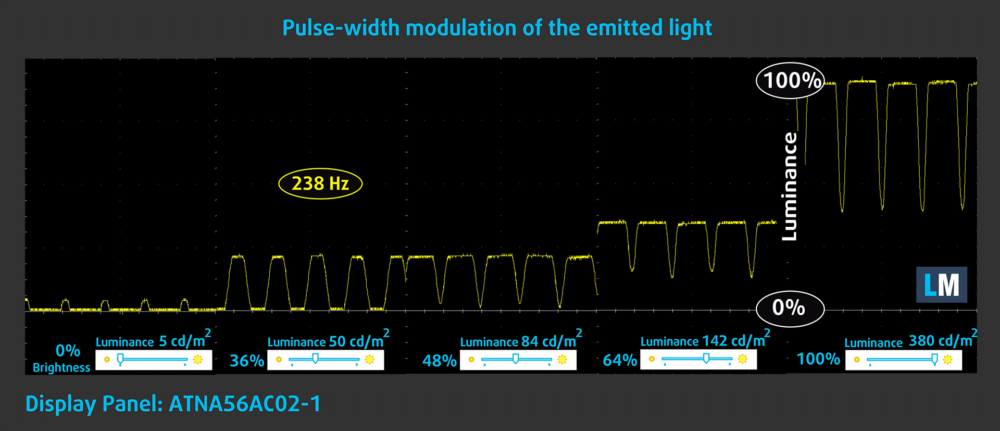

ASUS Zenbook 15 OLED (UM3504)’s display uses PWM with a low filling coefficient up until 80 nits. Above that, we see weaker pulsations

Health Impact: Blue light emissions

Installing our Health-Guard profile not only eliminates PWM but also reduces the harmful Blue Light emissions while keeping the colors of the screen perceptually accurate. If you’re not familiar with the Blue light, the TL;DR version is – emissions that negatively affect your eyes, skin, and your whole body. You can find more information about that in our dedicated article on Blue Light.

Health Impact: Gloss-level measurement

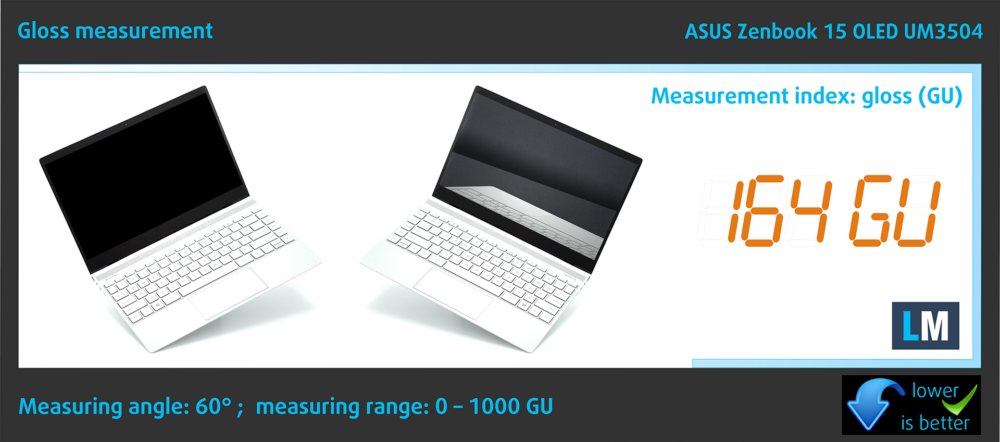

Glossy-coated displays are sometimes inconvenient in high ambient light conditions. We show the level of reflection on the screen for the respective laptop when the display is turned off and the measurement angle is 60° (in this case, the result is 164 GU).

Sound

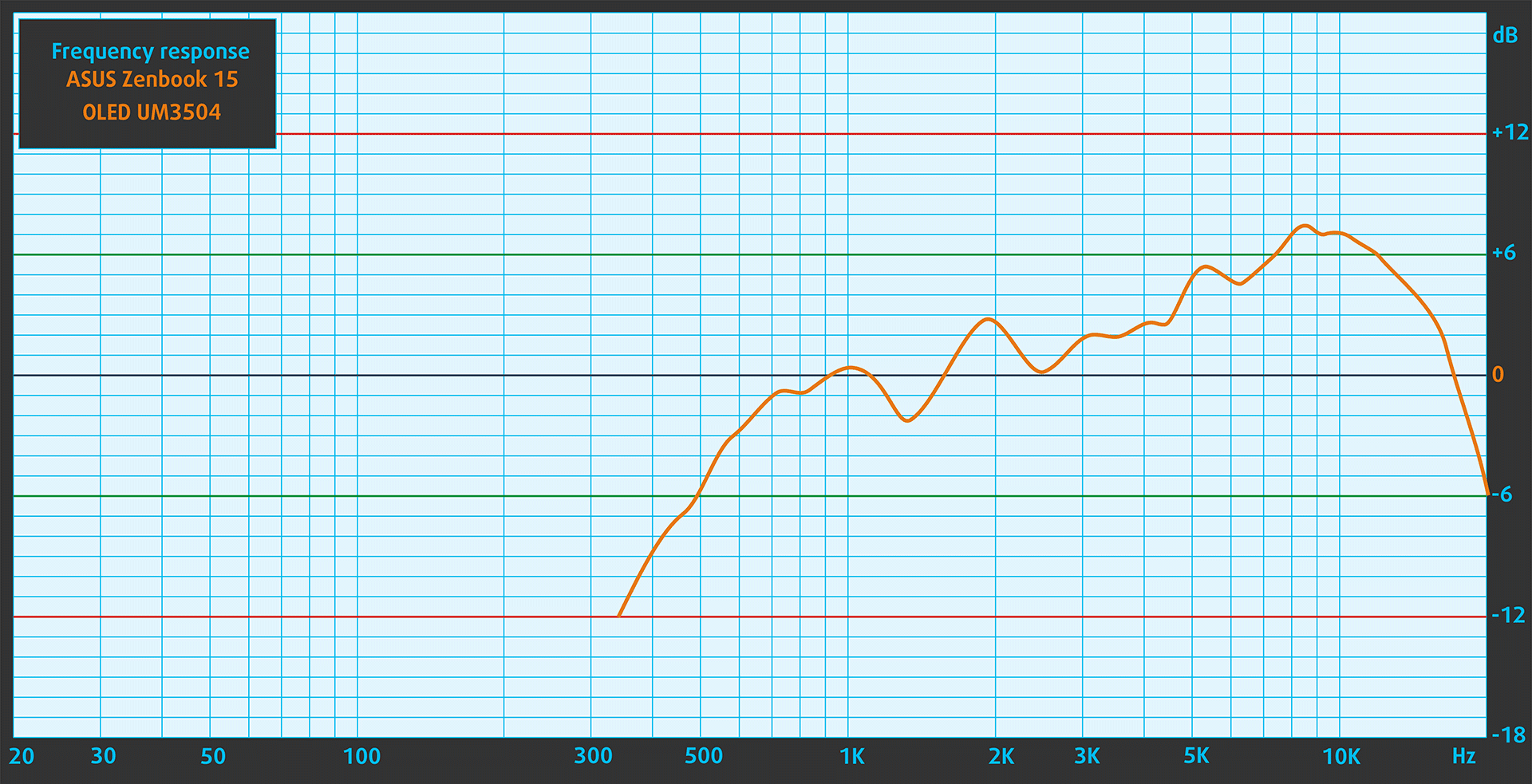

ASUS Zenbook 15 OLED (UM3504)’s Harman Kardon speakers produce a sound of very good quality. Furthermore, the low, mid, and high tones are clear of deviations.

Author: Nikolay Palaozov

Author: eng. Kroum NikolovHead of Engineering at LaptopMedia.com, inventor and innovator with 40+ years of experience in electronics and high technology.
