Lenovo LOQ (15″ Intel, 2023) review – low price, high performance

Disassembly, Upgrade options, and Maintenance

To access this notebook’s internals, you first need to remove the back plastic shroud. It is held in place by four Phillips-head screws. After you take it out, undo the 9 Phillips-head screws that keep the bottom panel attached to the chassis.

Inside, we find a 60Wh battery pack, To take it out, unplug the connector from the motherboard, and remove the four Phillips-head screws that secure the battery to the device.

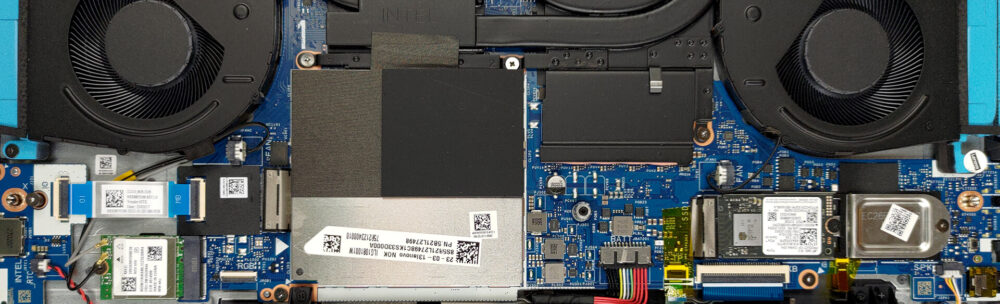

Here, you get two SODIMM slots, which work with DDR5 RAM in dual-channel mode. Storage-wise, there are two M.2 PCIe x4 slots. They support Gen 4 SSDs.

As for cooling, you get three heat pipes, four heat sinks, and two fans. In addition, there are a couple of heat spreaders meant for the VRMs and the graphics memory.

Author: Alex Iliev

Author: eng. Kroum NikolovHead of Engineering at LaptopMedia.com, inventor and innovator with 40+ years of experience in electronics and high technology.
