ASUS ROG Strix G17 G713P (2023) review – everything could be perfect if it isn’t for one thing

Disassembly, Upgrade options, and Maintenance

To get inside this device, you need to undo a total of 11 Phillips-head screws. One of them is captive and lifts the bottom panel, so you can start the prying process from there. Don’t forget to remove the LED ribbon cable.

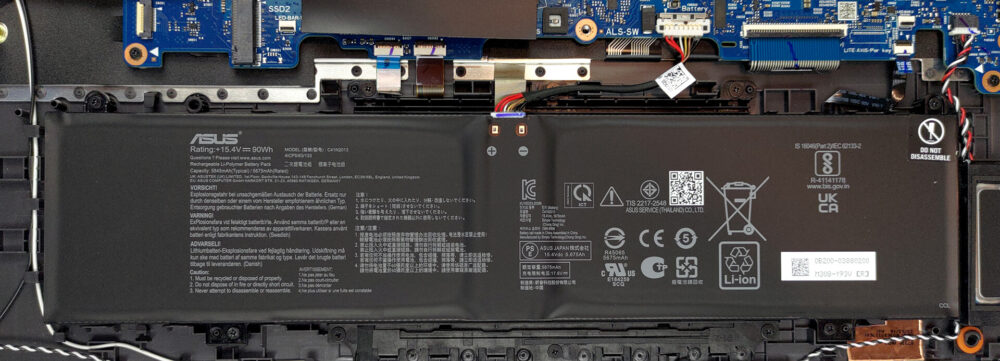

Inside, we see a 90Wh battery pack. To take the battery out, unplug its connector from the motherboard, and undo the four Phillips-head screws that keep it in place.

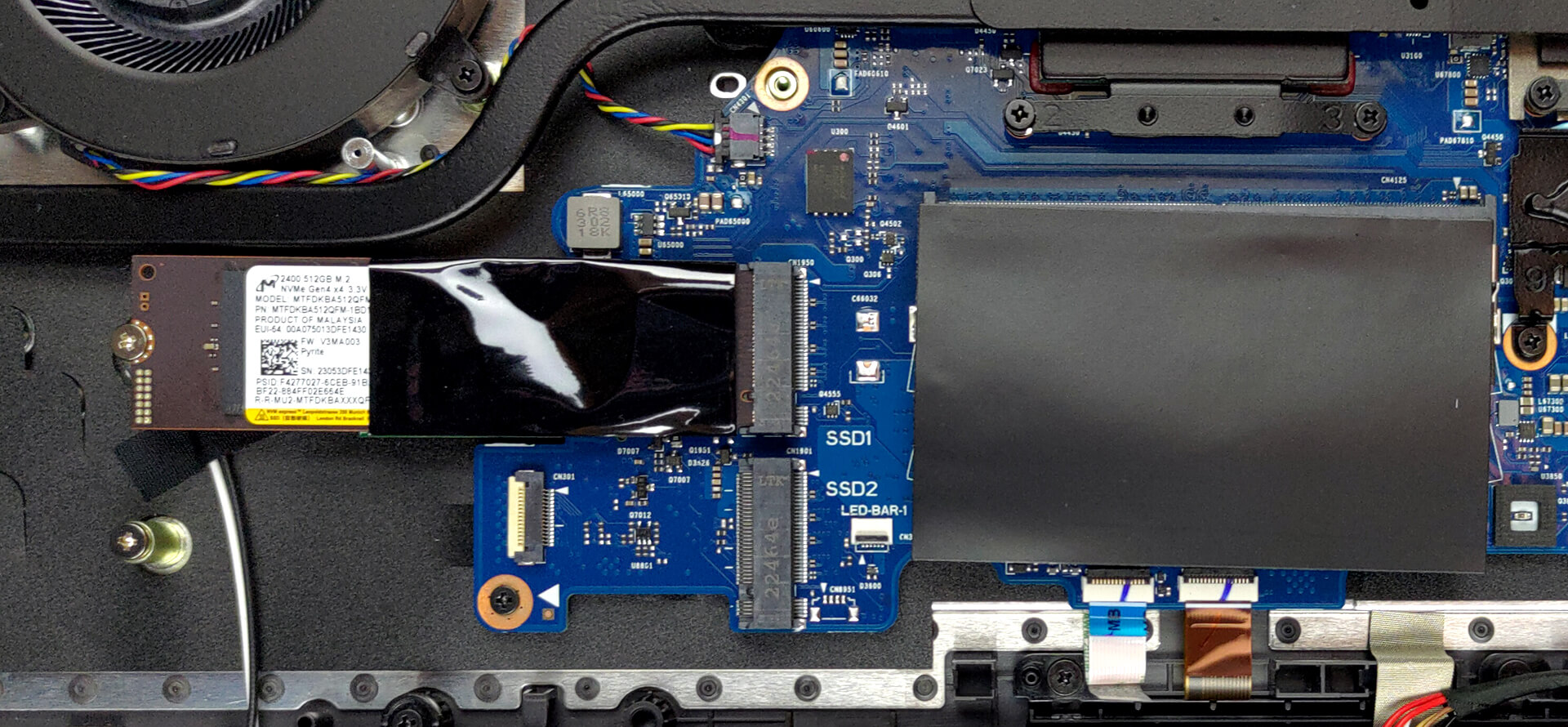

Memory-wise, there are two SODIMM slots, that work with DDR5 RAM in dual-channel mode. As for storage, you get two M.2 PCIe x4 slots, both of which support Gen 4 SSDs.

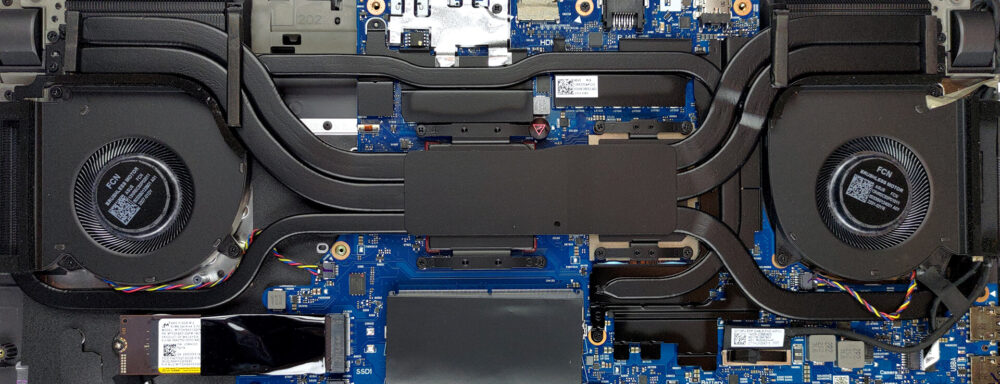

In terms of cooling, there are two heat pipes shared between the CPU and the GPU, with one more dedicated to each of them. Furthermore, you get a heat pipe cooling the graphics memory and the VRMs, while four heat sinks and two fans deal with heat dissipation.

Author: Alex Iliev

Author: eng. Kroum NikolovHead of Engineering at LaptopMedia.com, inventor and innovator with 40+ years of experience in electronics and high technology.
